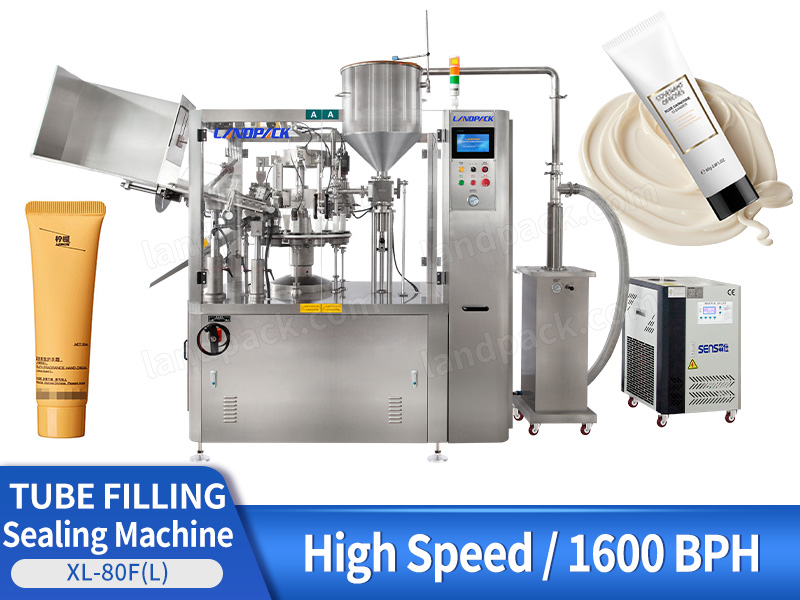

Plastic Tube Filling and Sealing Machine High-Speed Tube Filling Machine

Introduction:

Plastic tube filling and sealing machine for wall putty, paint and thick paste, with piston filling, hot-air sealing, date stamping and tail trimming, up to 80 tubes/min.

Application:

Suitable for toothpaste, adhesive, lotion, wall repair paste, ointment, cream, paint, sealant, grease and other liquid or viscous products.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

This plastic tube filling and sealing machine handles sealant, acrylic paint, silicone gel, wall putty, grease, repair paste, adhesive, pigment paste, caulking compound and other viscous products. Its piston filling system processes thick materials, while the rotary unit automatically performs tube loading, positioning, filling, sealing, coding, trimming and discharge.

Plastic Tube Filling and Sealing Machine High-Speed Tube Filling Machine

Package Type:

The machine handles plastic tubes and laminated plastic tubes in different diameters, lengths, and filling volumes. It supports printed tubes with color marks, hot-air tail sealing, embossed date codes, and trimmed straight tube ends. Matching tube holders and filling nozzles allow format changes for different tube sizes.

FEATURES

1. Automatic hopper feeds tubes into the rotary holders.

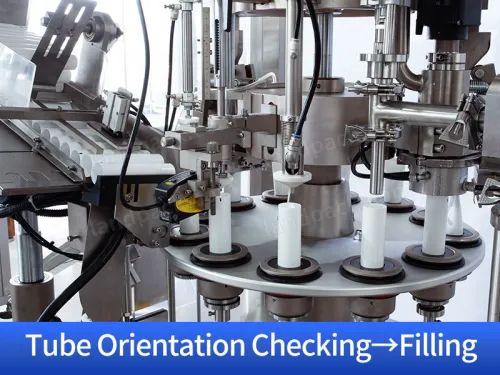

2. Tube-positioning unit aligns printed artwork through the color mark sensor.

3. Anti-reverse inspection detects incorrectly loaded tubes.

4. Dust collection removes particles before filling starts.

5. Piston pump handles wall putty, paint, paste, and other viscous products.

6. SS316 product-contact parts suit chemical and paste filling.

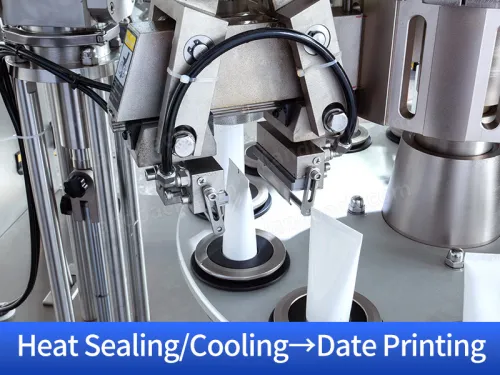

7. Hot-air unit heats the tube wall evenly before sealing.

8. Water chiller cools the sealed tail after heating.

9. Date-stamping unit adds batch or production information to the tube end.

10. Tail trimmer produces a straight and even finished edge.

11. Replaceable tube holders support different tube diameters.

12. Control panel adjusts filling volume, speed, heating time, and sealing settings.

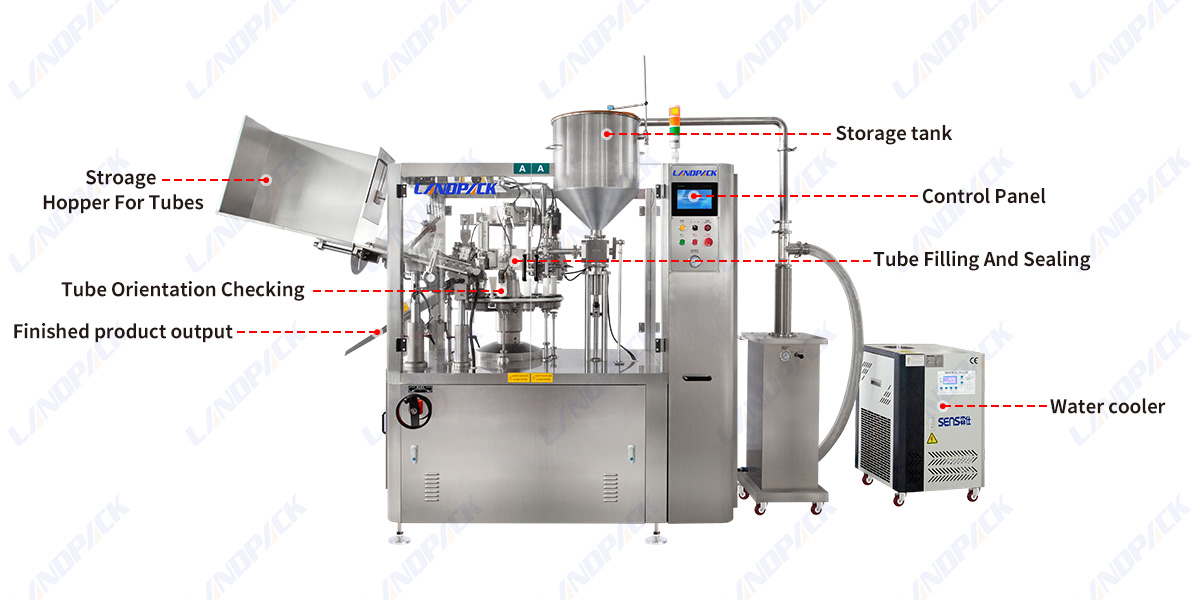

Machine Structure Overview:

Plastic Tube Filling and Sealing Machine High-Speed Tube Filling Machine

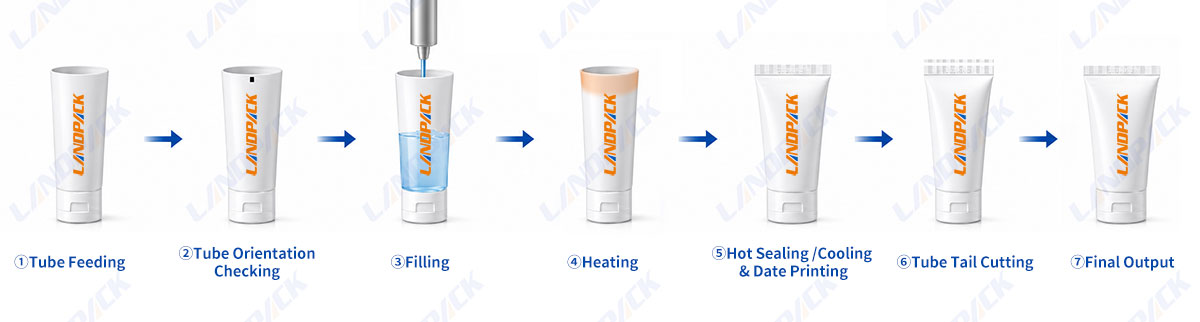

WORKFLOW

Automatic Tube Feeding

Dust Removal and Inspection

Piston Filling

Hot-Air Heating

Water Cooling

Tail Sealing and Date Stamping

Tail Trimming

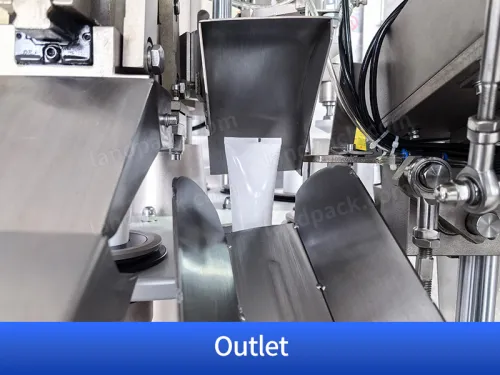

Tube Discharge

PARAMETER

Parameter / Model	XL-80L	XL-80F
Tube Material	Metal tube, Aluminum tube	Plastic tube, Composite tube
Tube Diameter	Φ10 - Φ42 mm	Φ10 - Φ60 mm
Tube Length	45 - 250 mm (Customizable)	45 - 250 mm (Customizable)
Filling Capacity	5 - 500 ml/tube (Adjustable)	5 - 500 ml/tube (Adjustable)
Filling Accuracy	≤ ±0.5%	≤ ±0.5%
Speed (r/min)	3 - 10	2.5 - 7
Production Capacity	60 - 80 tubes/min	60 - 80 tubes/min
Compressed Air	0.55 - 0.65 MPa	0.55 - 0.65 MPa
Motor Power	2 kW (380V / 220V 50Hz)	2 kW (380V / 220V 50Hz)
Heat Sealing Power	3.3 kW	3.3 kW
Overall Dimensions (mm)	2500×1200×2400	2500×1200×2400
Main Unit Weight	Approx. 1500 kg	Approx. 1500 kg
