Tea Powder Packing Machines Matcha Powder Stick Sachet Packaging Machine

Introduction:

The automatic tea powder stick pack machine is designed for high-speed packaging of powder.

Application:

Suitable for matcha powder, green tea powder, black tea powder, instant tea powder, coffee powder, milk tea powder, solid beverage powder, flavored drink mixes, and other fine powder products.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

The automatic tea powder stick pack machine is designed for high-speed packaging of matcha powder, green tea powder, black tea powder, instant tea powder, coffee powder, milk tea powder, solid beverage powder, flavored drink mixes, and other fine powder products.

Tea Powder Packing Machines Matcha Powder Stick Sachet Packaging Machine

Package Type:

The automatic tea powder stick pack machine is designed for producing stick packs, sachets, four-side sealing sachets, three-side sealing sachets, linked sachets, and single-dose powder packs.

FEATURES

1. INOVANCE PLC control system with fault alarm, recipe storage and self-diagnosis functions.

2. 7-inch touch screen interface for simple operation and quick parameter adjustment.

3. Automatically completes feeding, measuring, bag forming, filling, coding and sealing.

4. Advanced machine design delivers high packaging accuracy, speed and efficiency.

5. CNC-machined bag former ensures stable bag shaping and consistent pouch appearance.

6. Independent PID temperature control provides reliable and attractive sealing quality.

7. AirTAC pneumatic components ensure smooth operation and long service life.

8.Equipped with a safety door switch to enhance operator safety during production.

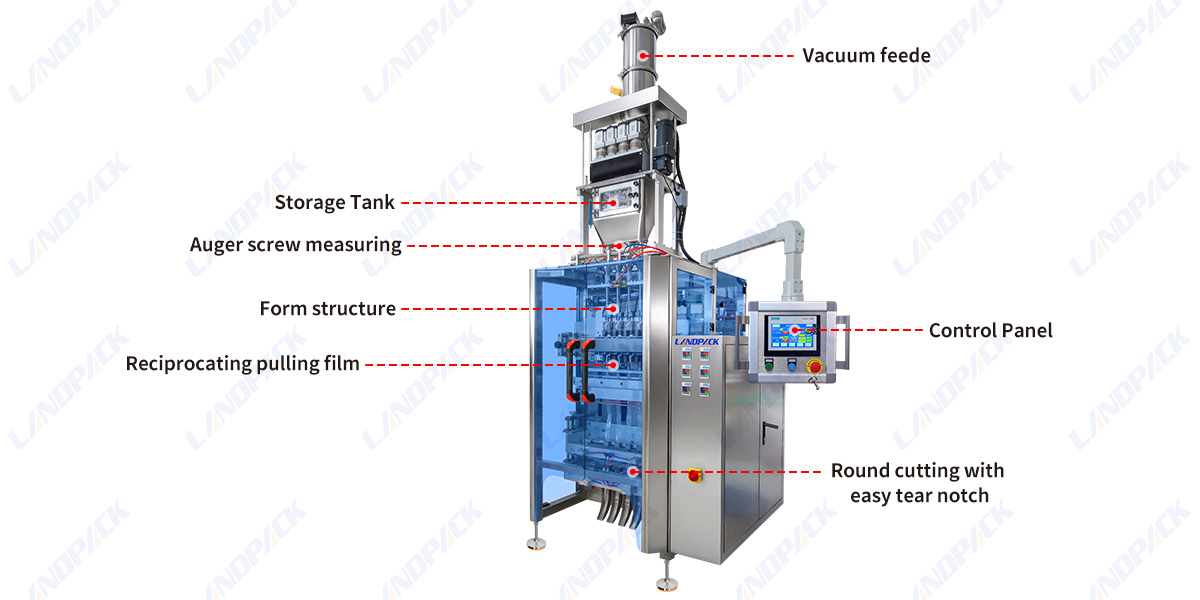

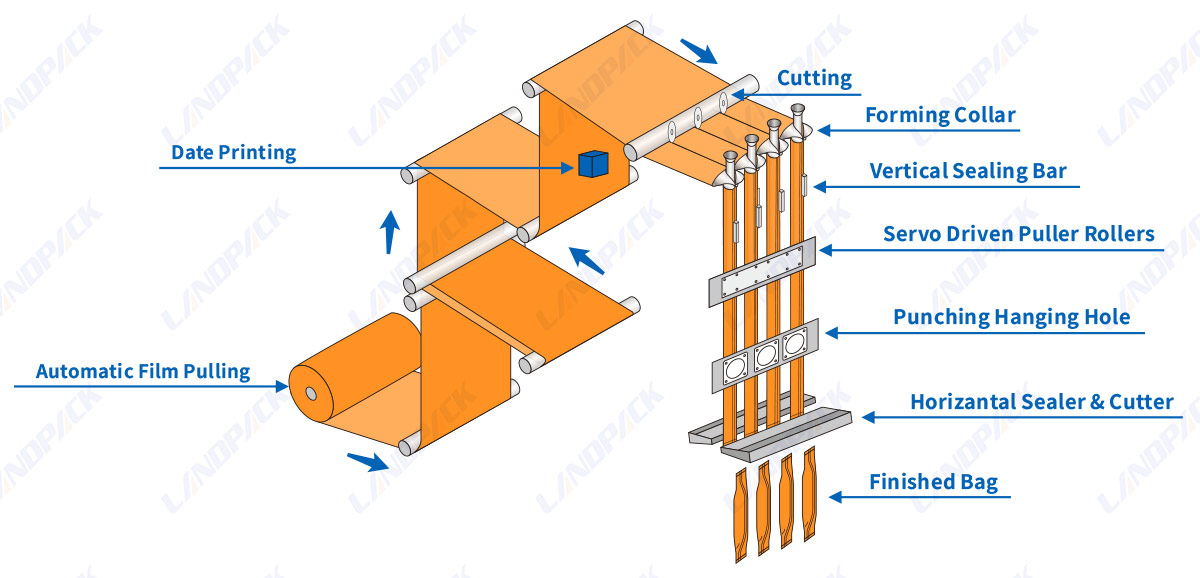

Machine Structure Overview:

1. Cutting 2. Forming Collar 3. Date Printing 4. Vertical Sealing Bar 5. Servo Driven Puller Rollers 6. Punching Hanging Hole 7. Automatic Film Pulling 8. Horizantal Sealer & Cutter 9. Finished Bag

Tea Powder Packing Machines Matcha Powder Stick Sachet Packaging Machine

WORKFLOW

Vacuum Feeding

Auger Measuring

Multi-Lane Bag Forming

Filling

Sealing

Laser Coding

Cutting

Finished Product Output

PARAMETER

Model	LD-280BF	LD-560BF
Lane number	4-6 Line	8-12 Line
Filling Method	Auger filling by servo motor
Capacity	Max.35 cycle/ min
Sachat Size	L:50-180mm; W:17-30mm	L:50-180mm; W:17-30mm
Film weidth & Thickness	Max.280mm, 0.07-0.10mm	Max.560mm, 0.07-0.10mm
Sealing type	Back sealing/Stick bag	Back sealing/Stick bag
Cutting type	1.Straight cutting;2.Zig zag cutting;3.Round cutting;4.Irregular
Air & Powder	0.8Mpa 0.8m3/min; 3.5kw	0.8Mpa 0.8m3/min; 5.5kw
Dimension & weight	13859182005mm;350kg	168513002005mm;550kg
