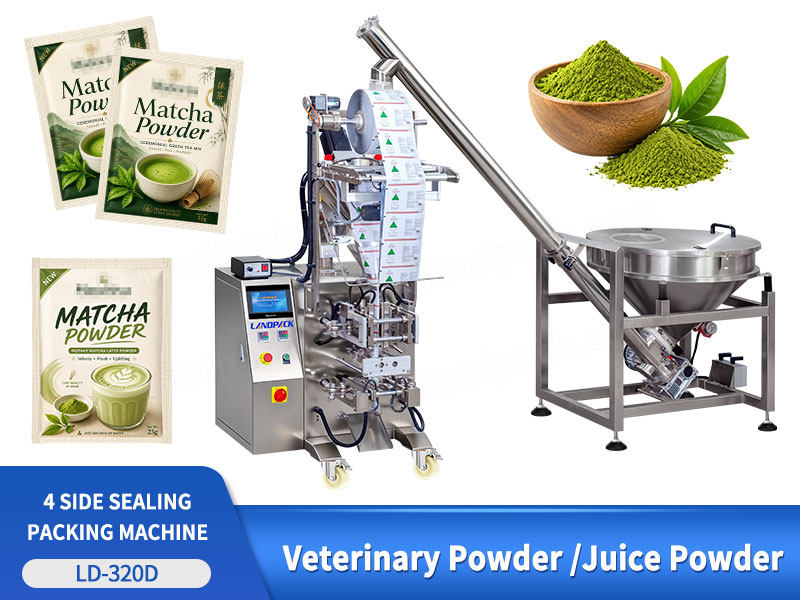

Automatic Tea Powder Packing Machine For 4 Sides Sealing Pouch

Introduction:

The Automatic Tea Powder Packing Machine is specially designed for powder and other fine powder products that require packing in four-side sealing pouch.

Application:

Such as match powder, tea powder, coffee powder, cocoa powder, milk powder, protein powder, juice powder, beverage premix, flour, starch, baking powder, seasoning powder, chili powder, curry powder, powdered sugar, herbal powder, pharmaceutical powder, veterinary powder and other free-flowing or dusty powder materials.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

The automatic tea powder packing machine is designed for powder and other fine powder products packed in four-side seal sachets. Such as match powder, tea powder, coffee powder, cocoa powder, milk powder, protein powder, juice powder, beverage premix, flour, starch, baking powder, seasoning powder, chili powder, curry powder, powdered sugar, herbal powder, pharmaceutical powder, veterinary powder and other free-flowing or dusty powder materials.

Automatic Tea Powder Packing Machine For 4 Sides Sealing Pouch

Package Type:

This tea powder packing machine is suitable for producing four-side seal pouches, three-side seal pouches, sachets, pillow pouches, back sealing pouches, gusset pouches.

FEATURES

1. Automatically completes bag forming, dosing, filling, sealing, coding and counting in one process.

2. Mitsubishi PLC and touch screen control system ensure easy operation and stable performance.

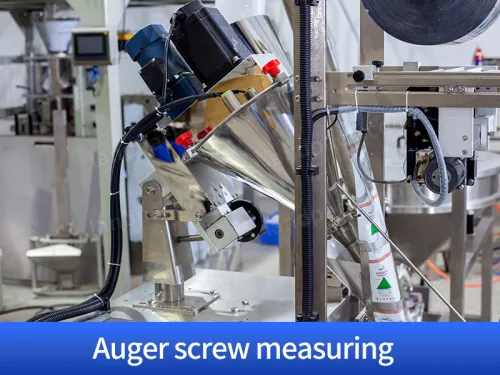

3. Servo auger filling system provides accurate and adjustable powder dosing.

4. Photoelectric tracking system ensures precise film positioning and consistent bag length.

5. Ribbon date printer supports 1-3 lines of production date, batch number and expiry date printing.

6. Independent PID temperature control delivers strong and attractive sealing quality.

7. Supports both straight cutting and serrated cutting to meet different packaging requirements.

6. Suitable for various powder products with reliable operation and continuous production capability.

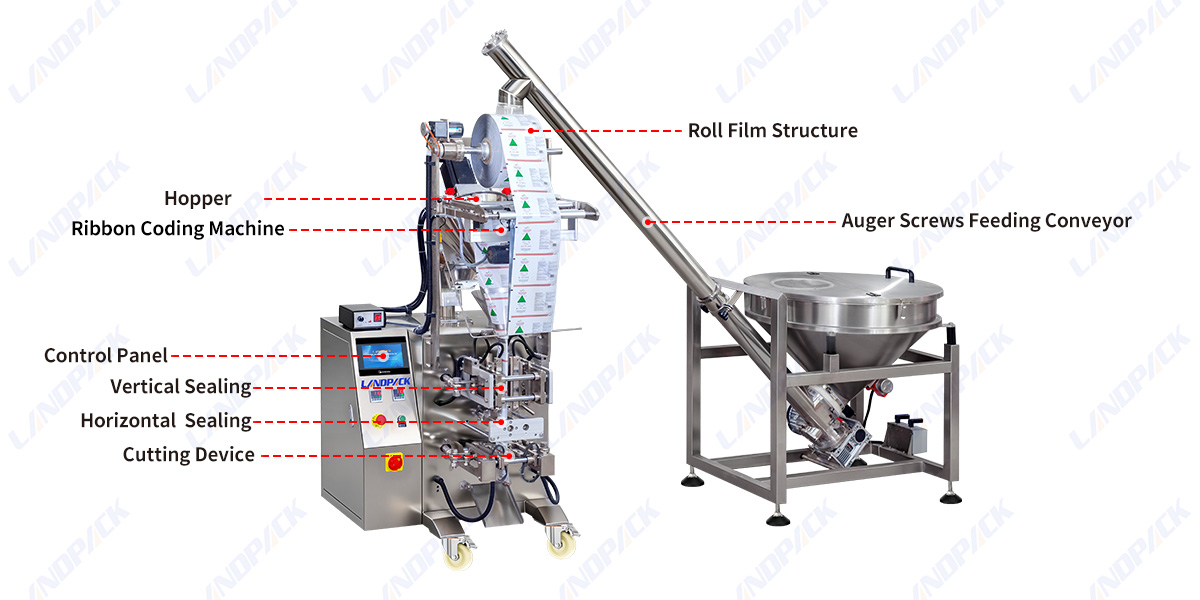

Machine Structure Overview:

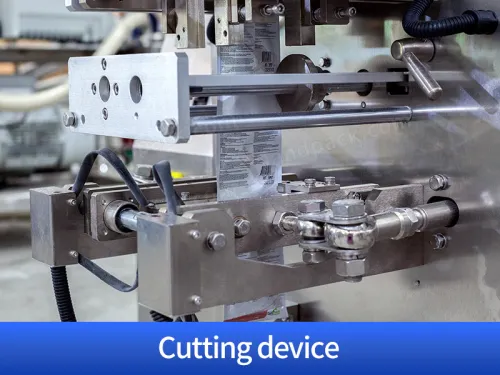

1. Hopper 2. Ribbon Coding Machine 3. Vertical Sealing 4. Horizontal Sealing 5. Cutting Device 6. Control Panel 7.Roll Film Structure 8. Auger Screws Feeding Conveyor
Automatic Tea Powder Packing Machine For 4 Sides Sealing Pouch

Automatic Tea Powder Packing Machine For 4 Sides Sealing Pouch

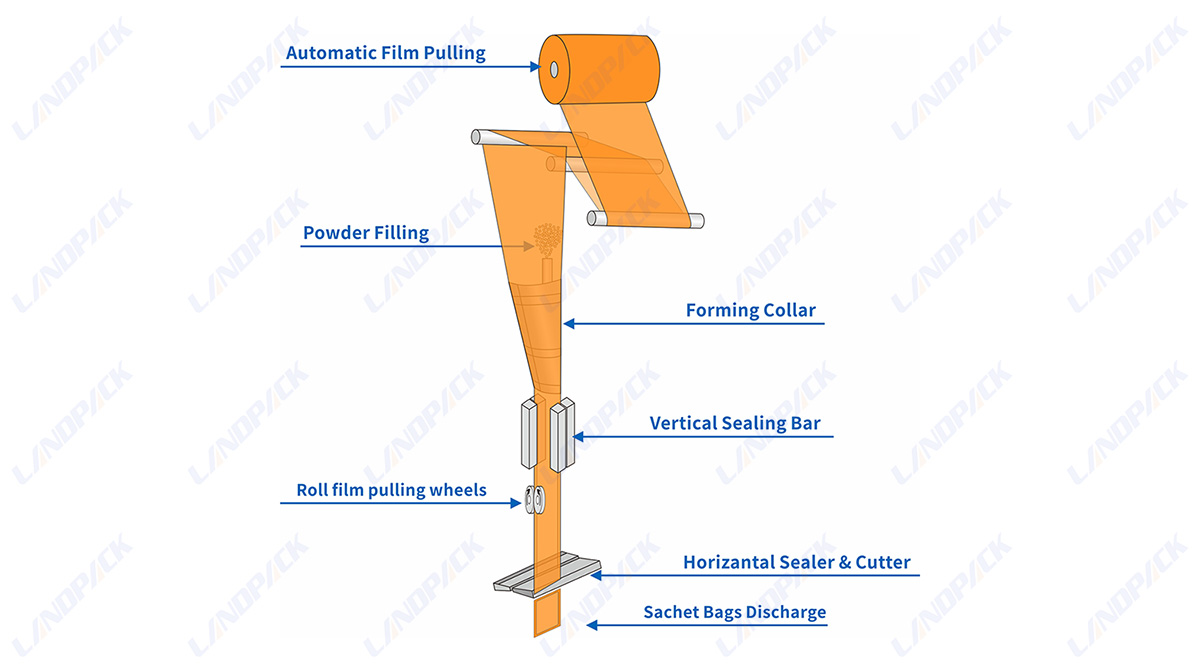

WORKFLOW

Powder Feeding

Measuring

Bag Forming

Filling

Four-Side Sealing

Date Coding

Cutting

Finished Product Output

PARAMETER

Model	LD-320D	LD-380D
Film width	120-320mm	180-380mm
Bag length	50-200mm	60-280mm
Bag width	50-150mm	60-180mm
Diameter of film roll	Max.300mm	Max.320mm
Packing speed	35-70bag/min
Measuring range	50-500ml	50-750ml
Film thickness	0.04-0.07mm
Power	220V 50/60Hz 2.2KW	220V 50/60Hz 2.5KW
Machine size(LWH)	9706801950mm	11008002150mm
Machine weight	About 300kg	About 450kg
Packing Type	Back seal bag, 3/4 side seal sachet, stick bag, continuous bag etc. Support customization
