Automatic Tea Powder Filling Machine Matche Tea Powder Packing Machine

Introduction:

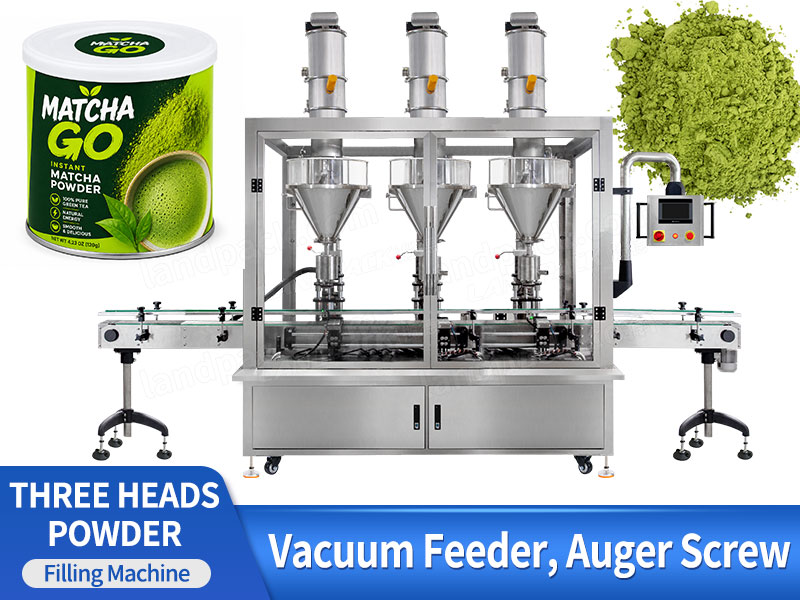

This automatic three-head powder filling machine is designed for high-speed and accurate filling of fine powders into jars, cans and bottles.

Application:

Suitable for green tea, matcha, and drink powders in bottles or jars, with output up to 40 bottles/min.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

This tea powder filling machine fills green tea powder, matcha powder, milk tea powder, instant tea blends, coffee powder, and other dry powders into bottles or jars. Three filling heads work at the same time to raise output while keeping the fill weight steady. The automatic powder tea filling machine suits tea factories, drink powder plants, and food powder lines, with output up to 40 bottles/min.

Automatic Tea Powder Filling Machine Matche Tea Powder Packing Machine

Package Type:

This green tea powder packing machine works with PET bottles, HDPE bottles, glass jars, and metal cans in round or square shapes. Adjustable guides and filling heads handle different container heights, neck sizes, and filling weights.

FEATURES

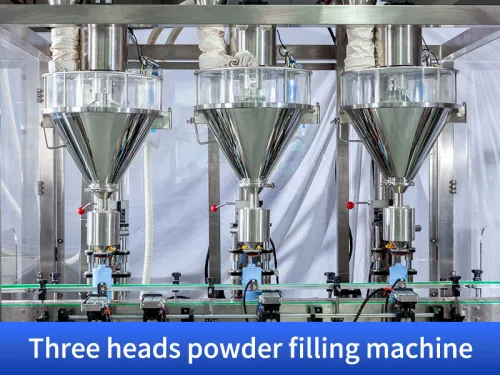

1. Three filling heads raise output for bottle production.

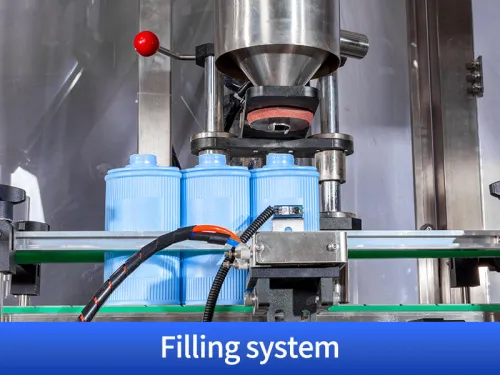

2. Auger dosing controls the tea powder filling weight.

3. Adjusts filling weight and speed from the control panel.

4. Handles round and square bottles in different sizes.

5. Connects with bottle feeders, cappers, sealers, and labelers.

6. Powder-contact parts use stainless steel.

7. Filling heads allow quick cleaning and product change.

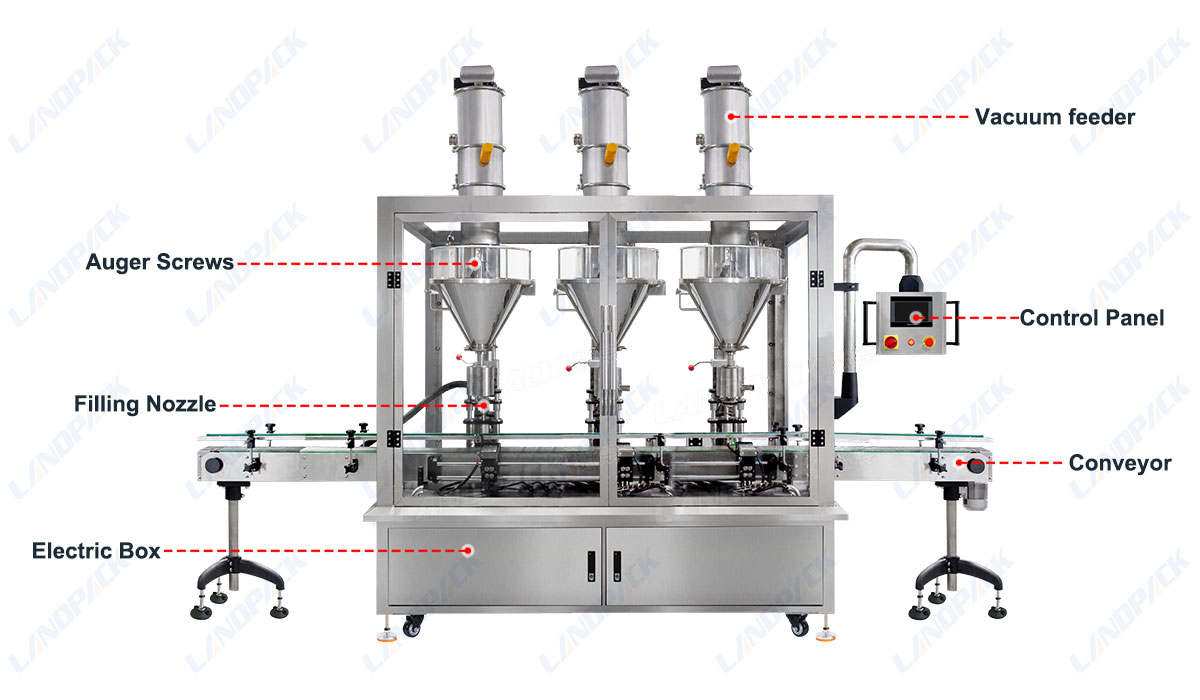

Machine Structure Overview:

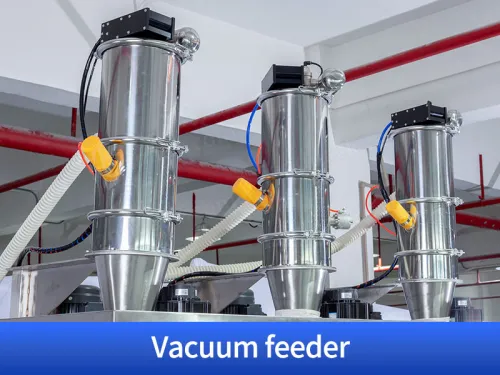

1. Vacuum Feeder 2. Auger Screws 3. Control Panel 4. Filling Nozzle 5. Conveyor 6. Electric Box

Automatic Tea Powder Filling Machine Matche Tea Powder Packing Machine

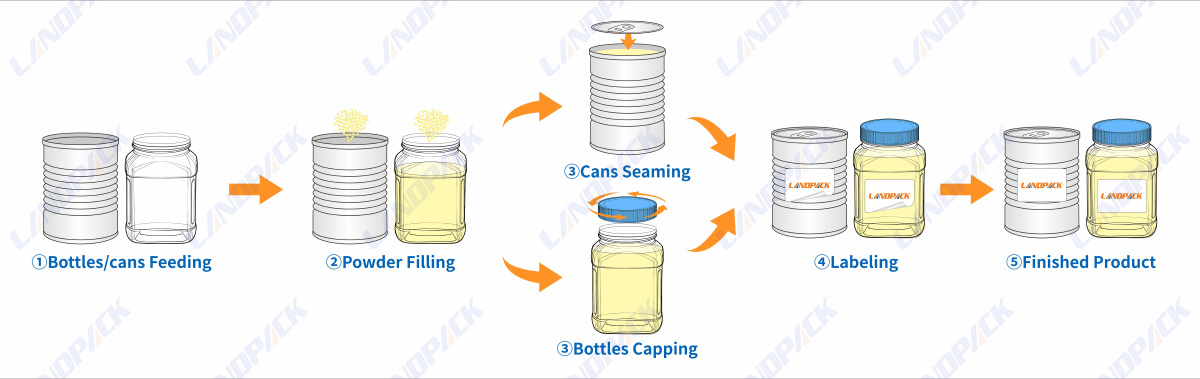

WORKFLOW

Bottle Feeding

Bottle Positioning

Powder Dosing

Three-Head Filling

Bottle Release

Output

PARAMETER

	Filling heads	Three screws dosing device
	Material of Nozzle	SS304, meets GMP production requirements
	Material of machine	SS304, 1.5mm thickness
	Filling Speed	35-40 bottles/minute. Can be adjusted to prevent bottle overflow
	Filling form	Three screw filler
	Filling sensor	Included, No bottle, no filling
	Control method	PLC+Touch screen
	Air consumption	0.6MPa
	Dust removal device	Yes
