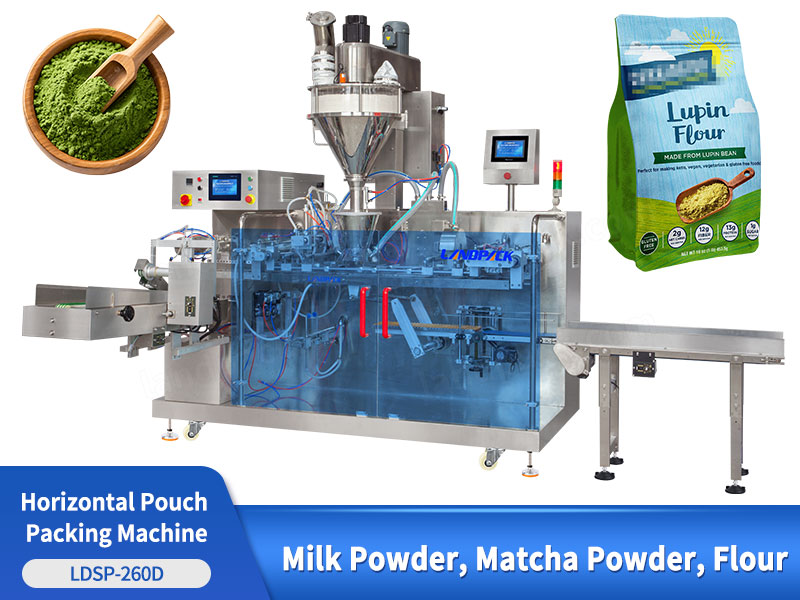

Matcha Powder Packing Machine Zipper Pouch Doypack Packing Machine

Introduction:

Automatic matcha powder premade pouch packing machine with auger feeding, powder dosing, zipper pouch opening, vacuum dust removal, sealing and finished pouch output.

Application:

This horizontal premade pouch packing machine is suitable for milk powder, matcha powder, flour, protein powder, coffee powder, seasoning powder and other fine powder products.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

It can be used in tea, food, baking ingredient, nutritional supplement and pet food production lines where automatic powder feeding, accurate dosing, bag-mouth dust removal and pouch sealing are required. Such as matcha powder, milk tea powder, instant tea powder, cocoa powder, flour, gluten-free flour, baking powder, cake mix, protein powder, meal replacement powder, nutrition powder and pet supplement powder.

Matcha Powder Packing Machine Zipper Pouch Doypack Packing Machine

Package Type:

Suitable for premade stand-up pouches, zipper pouches and flat pouches for fine powder and medium- to large-weight powder products.

FEATURES

1. The high-capacity auger feeding machine transfers powder automatically to reduce manual material loading.

2. The horizontal pouch feeding device positions premade pouches accurately, with adjustable feeding speed for different production requirements.

3. The auger dosing system supports controlled filling of matcha powder and other fine powder products.

4. The zipper-opening and pouch-opening devices fully open each pouch before filling to reduce pouch feeding errors.

5. Vacuum cleaning removes residual powder around the pouch opening after filling.

6. The bag-mouth dust removal device keeps the sealing area clean and helps maintain consistent heat sealing.

7. The PLC control panel allows operators to adjust filling, pouch feeding and sealing parameters from the touchscreen.

8. The finished product conveyor transfers sealed pouches smoothly to downstream inspection or collection equipment.

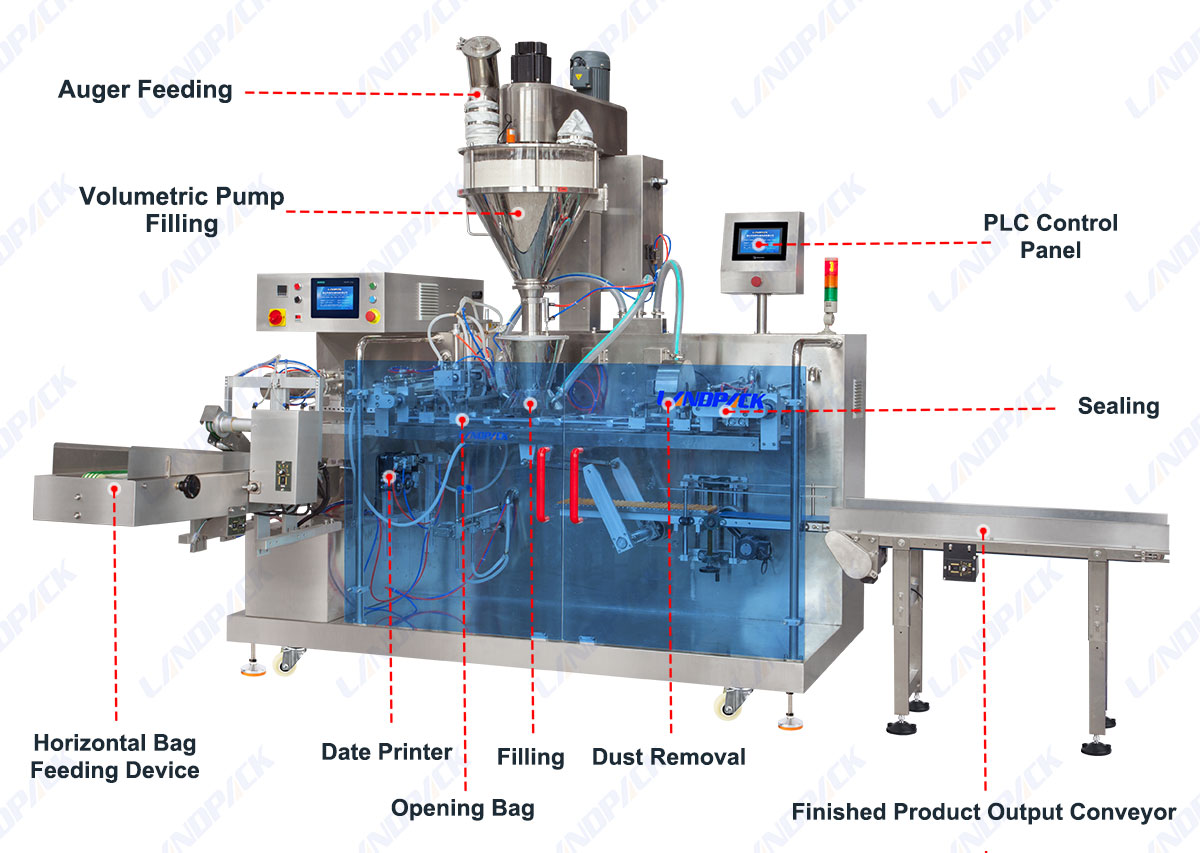

Machine Structure Overview:

1. Auger Feeding 2. Volumetric Pump Filling 3. PLC Control Panel 4. Date Printer 5. Dust Removal 6. Finished Product Output Conveyor

Matcha Powder Packing Machine Zipper Pouch Doypack Packing Machine

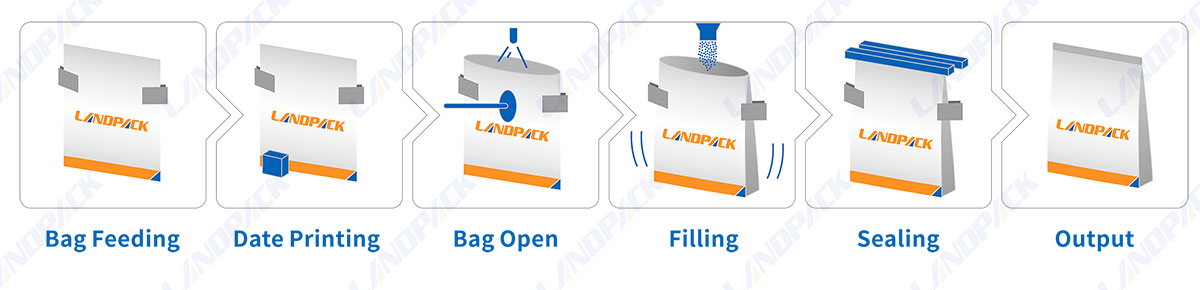

WORKFLOW

Auger Material Feeding

Horizontal Pouch Feeding

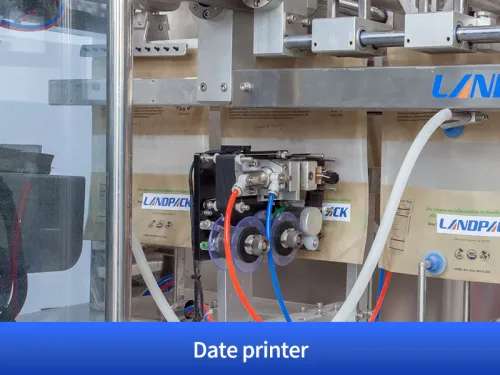

Date Printing

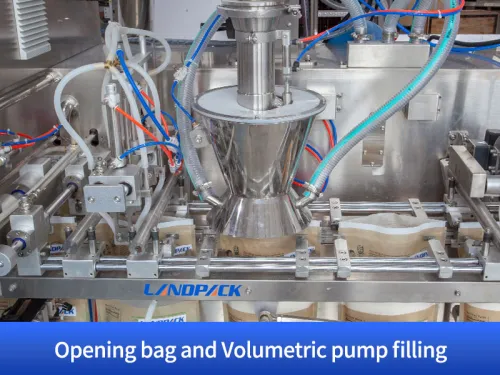

Powder Measuring and Filling

Vacuum Cleaning

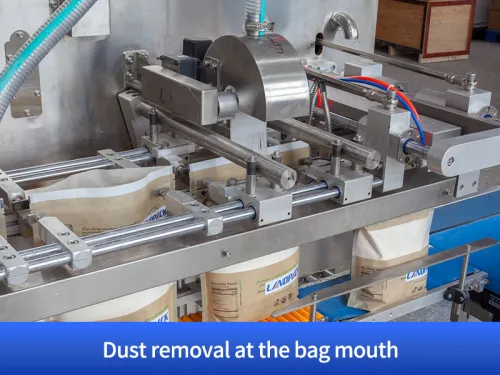

Bag-Mouth Dust Removal

Heat Sealing

Finished Product Output

PARAMETER

Type	LDSP-160	LDSP-160Y	LDSP-210	LDSP-260
Bag Type	3-side, 4 side sealing bag, stand-up bag, handbag, spout bags, zipper bag, compound bag, etc.
Bag Size	110-230mm80-160mm(LW)	70-100mm110-230(LW)	100-210mm/110-320mm（L*W）	100-260mm/110-320mm（L*W）
Filling Range	10g-100g	10g-100g	10g-1kg	10g-3kg
Packing Speed	20-45bags/min(speed is determined by the product filling quantity)	25-50bags/min(speed is determined by the product filling quantity)	20-50bags/min (speed is determined by the product filling quantity)	20-50bags/min (speed is determined by the product filling quantity)
Machine weight	800KG	800KG	900KG	1000KG
Total Power	2.0KW	2.0KW	2.0KW	2.0KW
Work Flow	1.Giving bag 2. Pick up the bag(coding) 3.Open the bag up and down 4.Filling 5.Heating sealing 6.Output of product
Dimensions	1750mm X 1285mm X 1360mm(LWH)		2140mm X 1366mm X 1360mm(LWH)	2140mm X 1366mm X 1360mm(LWH)
Collocation	Screw metering,screw elevator
