Automatic Instant Tea Powder Packing Machine Stick Counting Cartoning Line

Introduction:

Instant tea powder packing machine with 4-lane stick packing, counting, cartoning and coding, running up to 35 cycles/min.

Application:

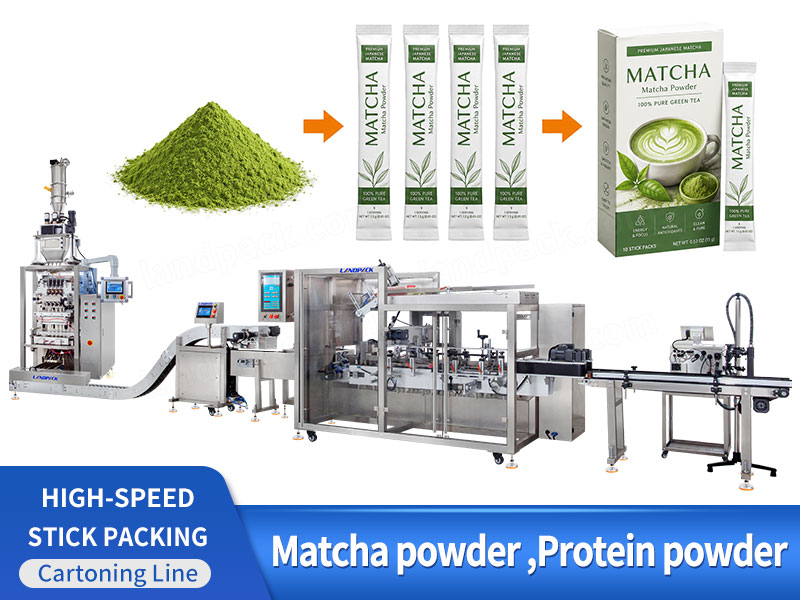

This high-speed stick packing and cartoning line is suitable for matcha powder, protein powder, milk powder, coffee powder, collagen powder, probiotic powder, drink powder and other fine powder products requiring automatic stick sachet packing, counting and cartoning.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

This instant tea powder packing machine packs instant tea powder, matcha blends, milk tea powder, lemon tea powder, and other drink mixes into single-serve stick packs, then counts and loads them into cartons.

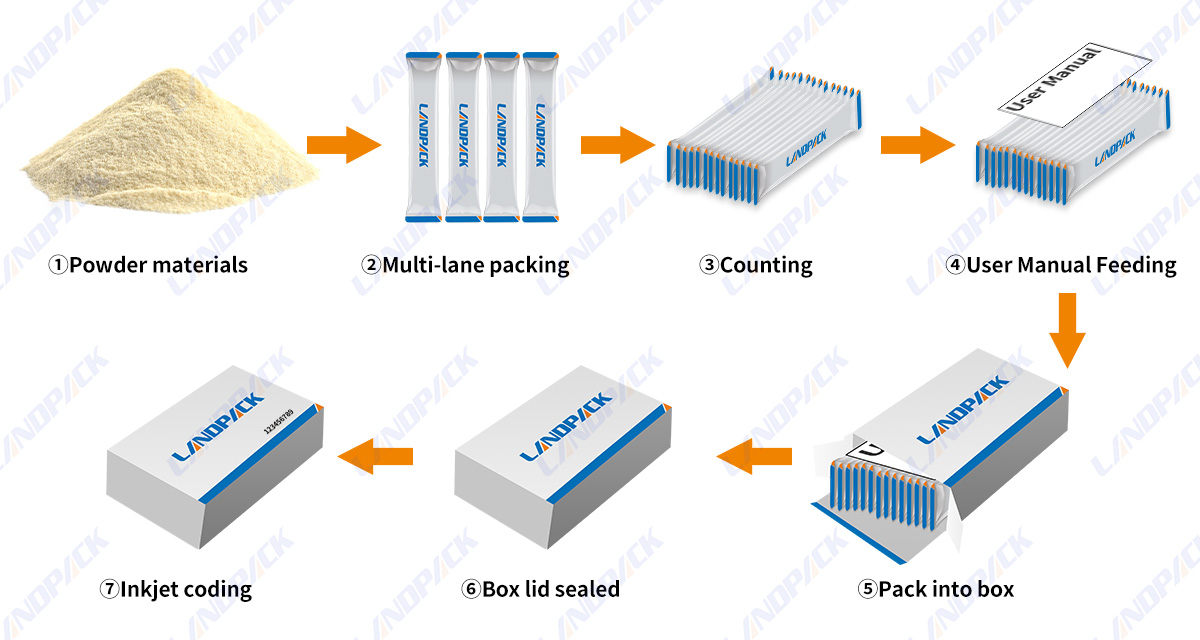

Automatic Instant Tea Powder Packing Machine Stick Counting Cartoning Line

Package Type:

The line makes back-seal stick packs from roll film and loads a set quantity into folding cartons. It supports slim sticks in different widths and lengths, printed laminated film, custom stick counts per box, and cartons with instruction leaflets.

FEATURES

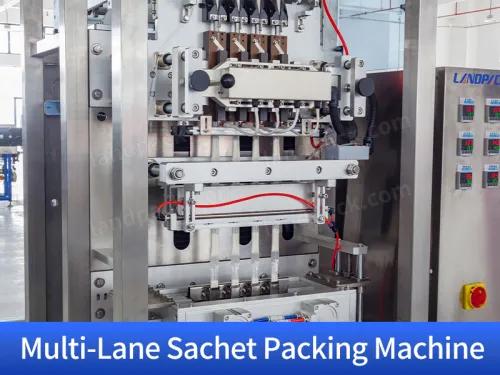

1. Four lanes produce four stick packs in each cycle.

2. Vacuum feeder keeps powder supplied to the hopper.

3. Forms slim back-seal sticks from printed roll film.

4. Counts a set number of sticks before cartoning.

5. Cartoner opens, loads, and closes boxes automatically.

6. Leaflet feeder adds product instructions to each carton.

7. Inkjet coder prints dates and batch numbers.

8. One line handles stick packing through finished carton output.

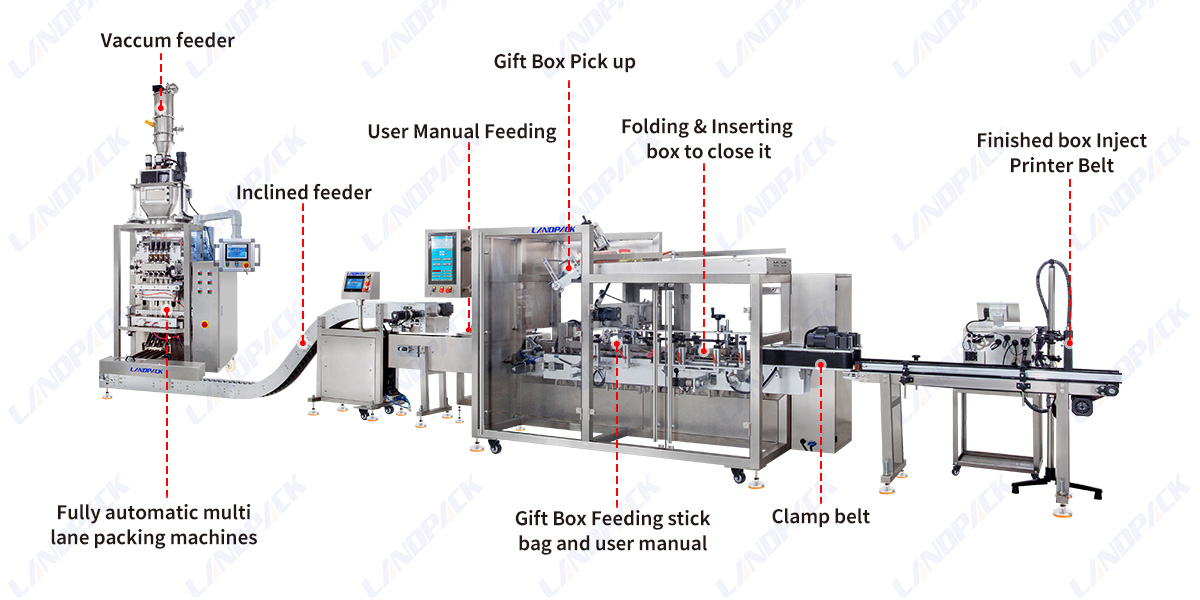

Machine Structure Overview:

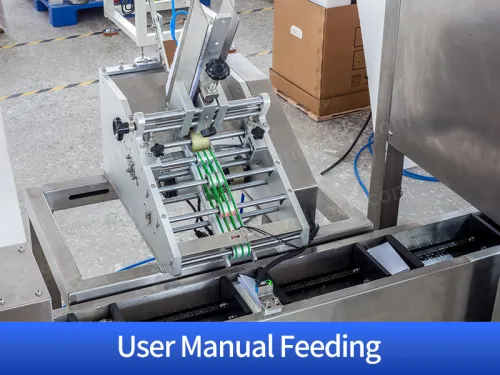

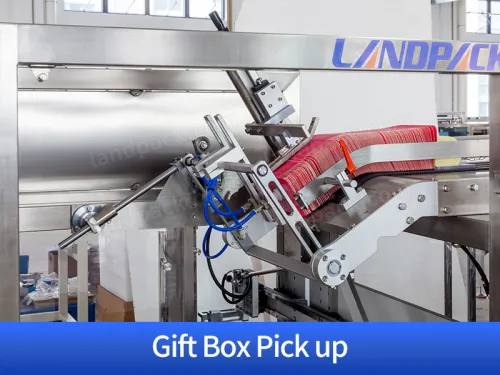

1. Multi lane packing machine 2. User manual feeding 3. Gift box pick up 4. Folding & Inserting box to close it 5. Clamp belt 6. Finished box inject printer belt

Automatic Instant Tea Powder Packing Machine Stick Counting Cartoning Line

WORKFLOW

Vacuum Feeding

Sealing and Cutting

Sorting and Counting

Carton Opening

Stick Cartoning

Leaflet Feeding

Carton Closing

Date Coding

PARAMETER

Mutil Land Stick Packing Machine
Model	LDBF-280D	LDBF-560D
Lane number	4-6 Lines	8-12 Lines
Filling Method	1. Volumetric cup; 2. Weigher
Capacity	Max.35 cycles/ min
Sachat Size	L: 50-180mm; W: 17-30mm	L: 50-180mm; W: 17-30mm
Film width & Thickness	Max.280mm, 0.07-0.10mm	Max.560mm, 0.07-0.10mm
Sealing type	Back sealing/Stick bag	Back sealing/Stick bag
Cutting type	1. Straight cutting; 2. Zig zag cutting; 3. Round cutting; 4. Irregular
Air & Powder	0.8Mpa, 0.8m³/min; 3.5kw	0.8Mpa, 0.8m³/min; 5.5kw

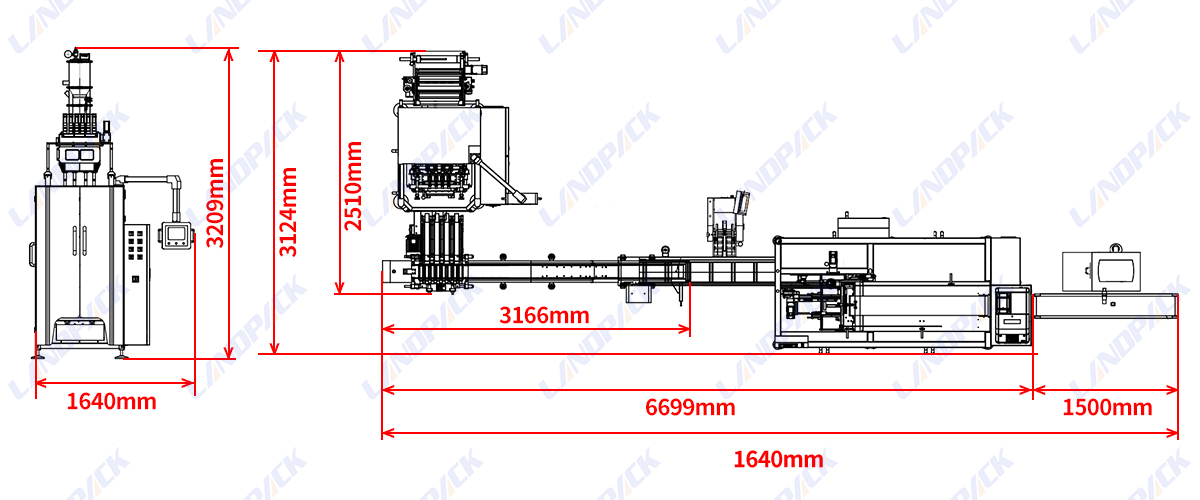

Dimension & weight	13859182005mm; 350kg	168513002005mm; 550kg
Bag in Box Packing System
Model	LDDS-100	LDDS-120	LDDS-250
Packing speed	40-60 boxes/min	30-50 boxes/min	30-50 boxes/min
Box Size	L: 60-220mm, W: 20-125mm, H: 15-60mm	L: 80-250mm, W: 100-160mm, H: 40-90mm	L: 150-320mm, W: 100-180mm, H: 90-110mm
Air Consumption	≥0.6 mpa, 20 m³/h
Power supply	220V/380V, 50HZ
Machine Power	4.5KW	5.5KW	6.5KW
Machine Size	342513901771mm	345014501800mm	420016501850mm
Machine Weight	1200KG	1600KG	2500KG
