Automatic Tea Powder Vertical Packing Machine Vffs Packaging Machine

Introduction:

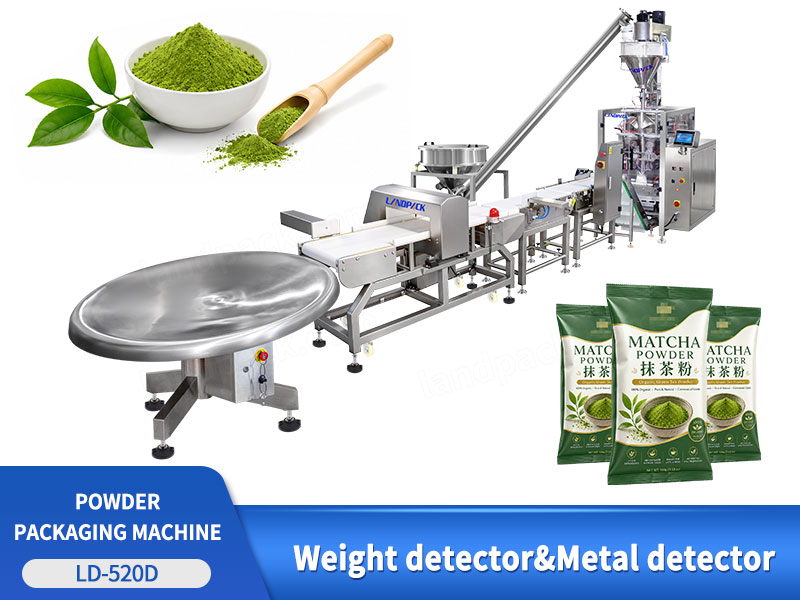

Automatic powder vertical packing machine with auger filling, anti-static device, checkweigher, metal detector and finished bag collecting turntable.

Application:

Automatic powder vertical packing machine is designed for flour, corn flour, cocoa powder, seasoning powder and other fine powder products packed from roll film.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

It can be used in flour processing, baking ingredients, seasoning, beverage powder and agricultural powder production lines that require automatic auger filling, bag forming, weight inspection and metal detection.

Automatic Tea Powder Vertical Packing Machine Vffs Packaging Machine

Package Type:

Suitable for laminated roll film formed into back-seal pillow bags or gusset bags for flour and other fine powder products.

FEATURES

1. The auger screw feeding conveyor transfers powder automatically from the feeding hopper to the dosing system.

2. The auger filling system measures fine powder by screw rotation and supports adjustable filling volumes for different bag weights.

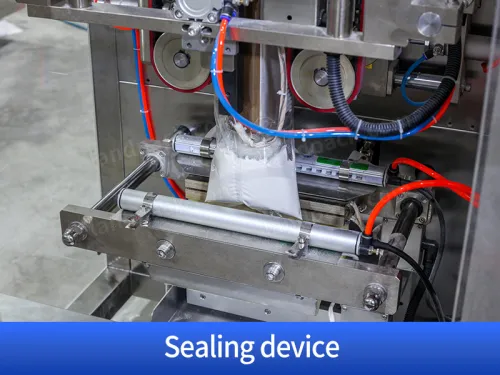

3. The anti-static device helps reduce powder and packaging-film adhesion around the bag-forming and sealing area.

4. Servo-driven film pulling keeps the packaging film moving consistently during bag forming and sealing.

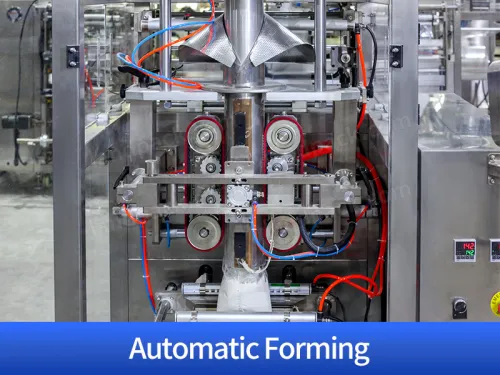

5. The vertical packing machine completes film unwinding, bag forming, powder filling, sealing and cutting automatically.

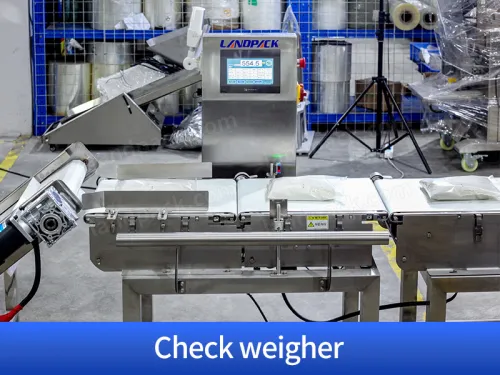

6. The checkweigher inspects the weight of each finished bag and separates products outside the configured weight range.

7. The metal detector checks packed products for metal contamination before they enter the collection section.

8. The output turntable collects finished bags and provides operators with a convenient area for secondary packing.

9. The integrated line reduces manual product transfer between powder filling, inspection and finished bag collection.

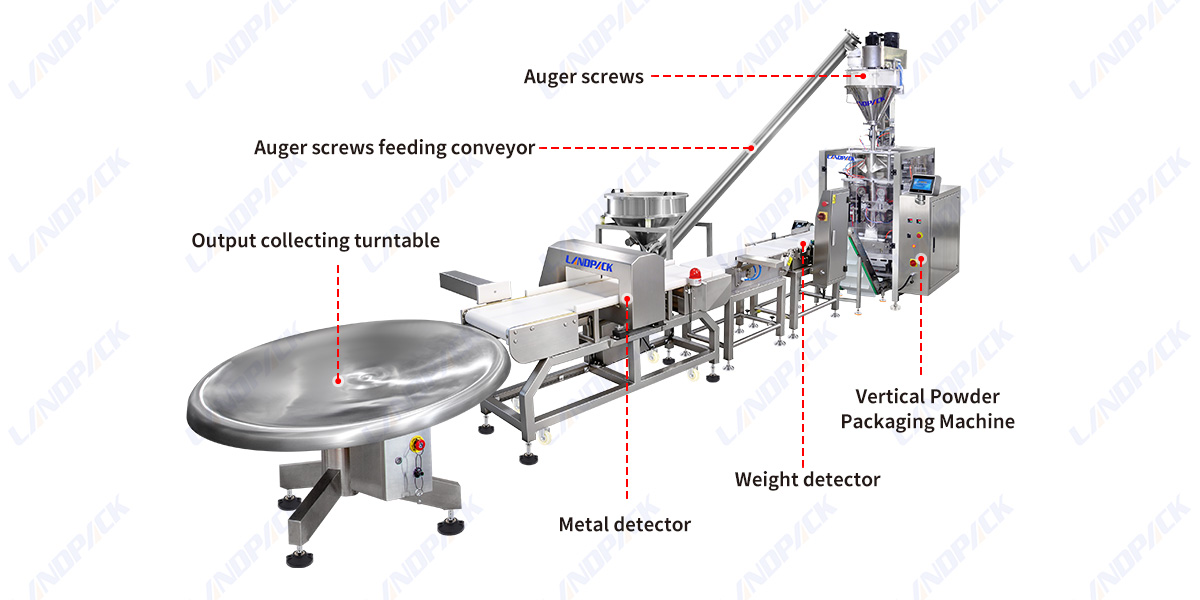

Machine Structure Overview:

Output Collecting Turntable 2. Auger Screws Feeding Conveyor 3. Auger Screws 4. Metal Detector 5. Weight Detector 6. Vertical Powder Packaging Machine

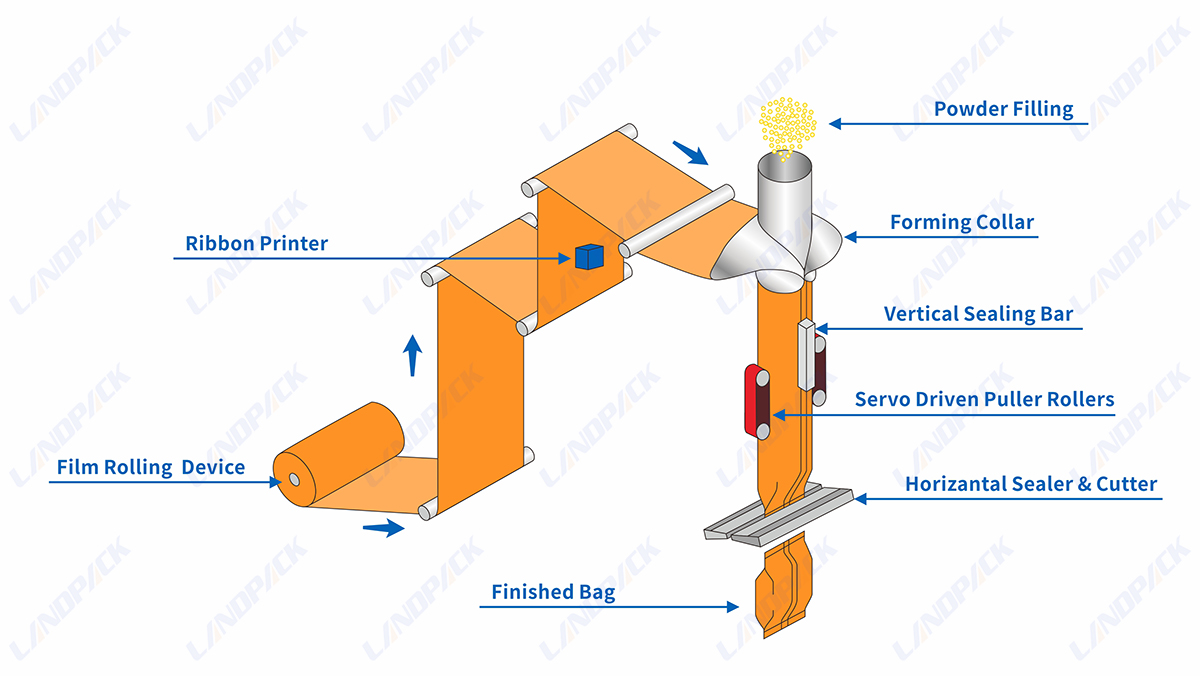

WORKFLOW

Powder Feeding

Ribbon Coding

Bag Forming

Powder Filling

Weight Inspection

Metal Detection

Finished Bag Collection

PARAMETER

Model	LD-420D	LD-520D	LD-620D	LD-720D
Film Thickness	0.04-0.12mm	0.04-0.12mm	0.04-0.12mm	0.04-0.12mm
Bag Length	80-300mm	60-400mm	60-450mm	60-500mm
Bag Width	60-200mm	100-250mm	65-300mm	65-350mm
Film Roll Diameter	Max.600mm	Max.600mm	Max.600mm	Max.600mm
Pakaging Rate	5-60 bags/min	5-40 bags/min	5-35 bags/min	5-30 bags/min
Film Width	Max.420mm	Max.520mm	150-Max.620mm	150-Max.720mm
Making bag volume	1000ml	2000ml	3000ml	5000ml
Power Supply	220V, 50/60HZ, 3KW	220V, 50/60HZ, 3KW	220V, 50/60HZ, 3.2KW	220V, 50/60HZ, 3.5KW
Machine Size	121710151343 mm(LWH)	148810801490 mm(LWH)	148811801550 mm(LWH)	178013502050 mm(LWH)
