Automatic Tea Powder Packing Machine Matcha Powder Capsules Filling Sealing Machine

Introduction:

Automatic tea powder filling sealing machine for matcha capsules, with rotary powder filling and foil sealing, up to 1,500 capsules/hour.

Application:

Suitable for matcha powder, coffee powder, milk powder, protein powder, cocoa powder and other fine powder products packed in small capsules or cups.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

This tea powder packing machine fills matcha powder, green tea powder, instant tea blends, milk tea powder, and other fine powders into preformed capsules. The rotary table moves each capsule through loading, powder dosing, lid placement, sealing, and discharge. This matcha tea powder packing machine produces up to 1,500 capsules/hour, depending on capsule size and filling weight.

Automatic Tea Powder Packing Machine Matcha Powder Capsules Filling Sealing Machine

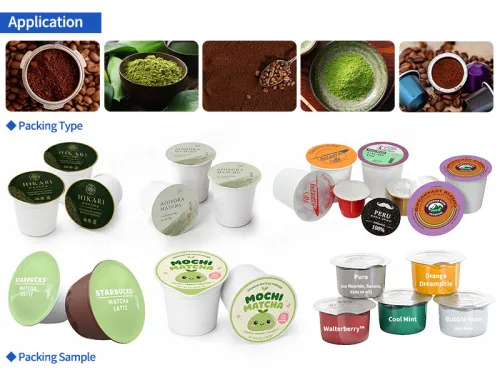

Package Type:

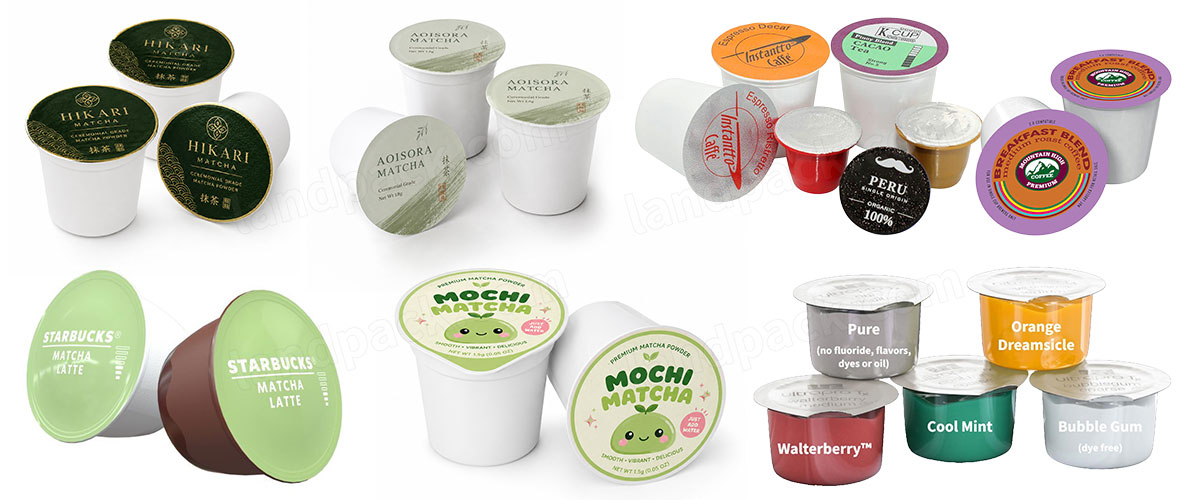

The machine works with preformed plastic or aluminum capsules and seals them with pre-cut aluminum foil lids. Replaceable moulds allow the line to handle different capsule diameters, heights, and filling volumes.

FEATURES

1. Rotary table handles filling and sealing in one machine.

2. Auger dosing system controls tea powder filling weight.

3. Replaceable moulds fit different capsule sizes.

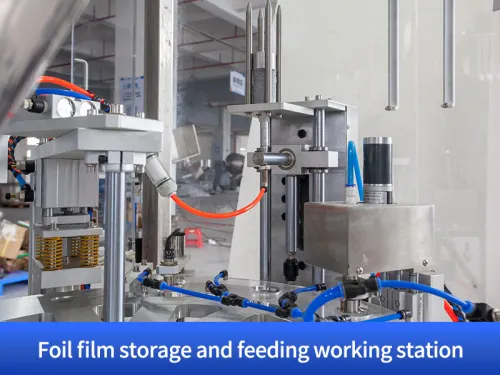

4. Automatic foil lid placing reduces manual handling.

5. Temperature control keeps capsule seals even.

6. Compact frame fits small capsule production rooms.

7. Simple panel controls filling weight and machine speed.

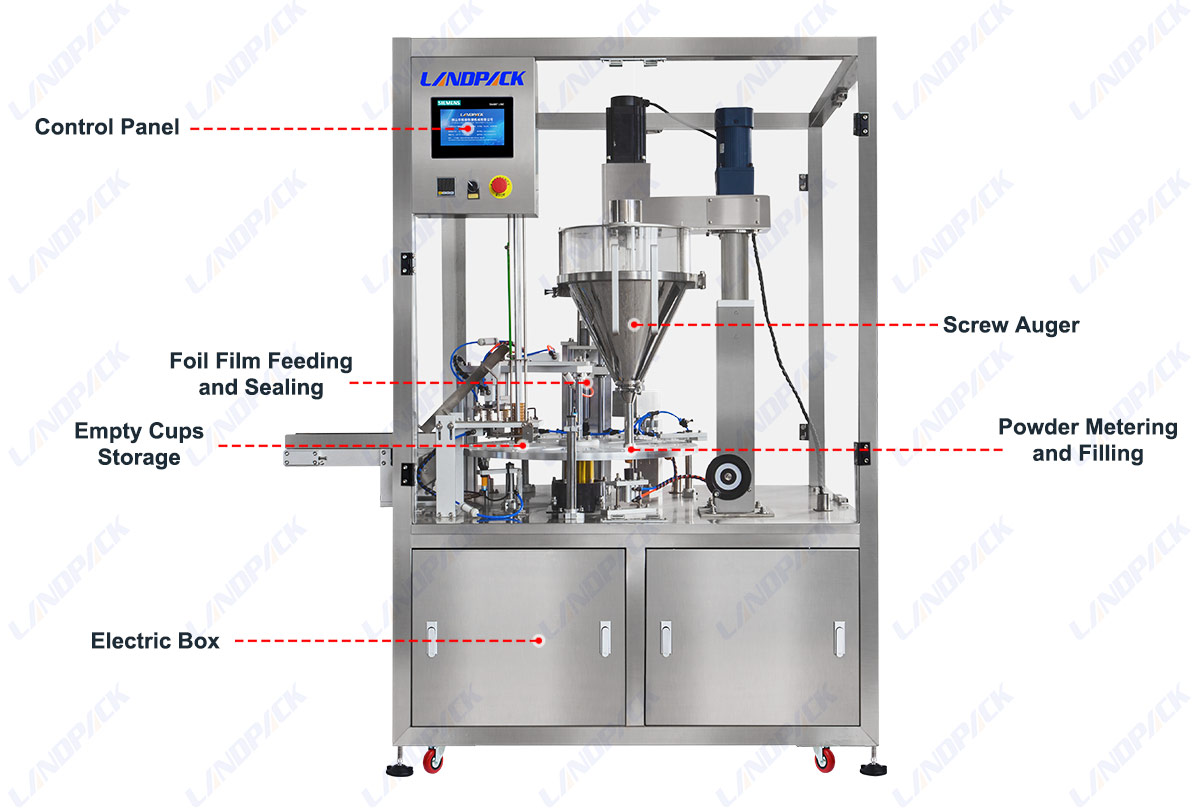

Machine Structure Overview:

1. Control Panel 2. Screw Auger 3. Foil Film Feeding and Sealing 4. Empty Cups Storage 5. Powder Metering and Filling 6. Electric Box

Automatic Tea Powder Packing Machine Matcha Powder Capsules Filling Sealing Machine

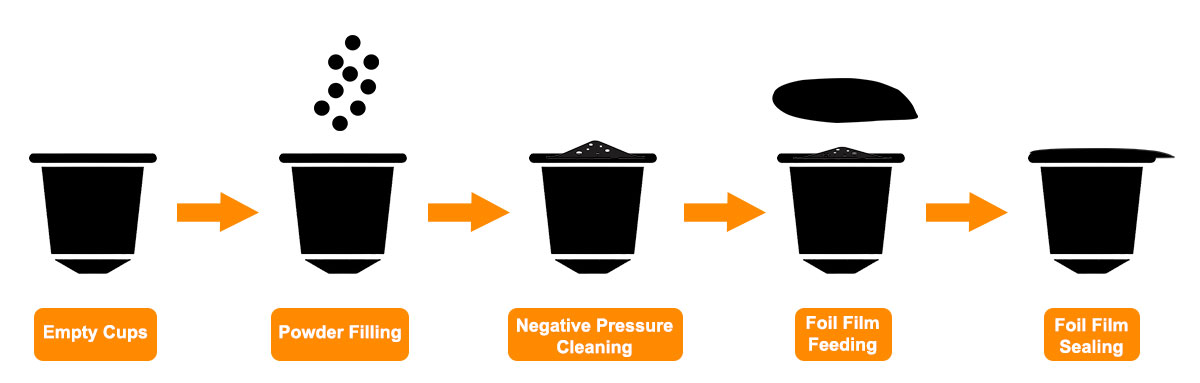

WORKFLOW

Capsule Loading

Capsule Positioning

Powder Filling

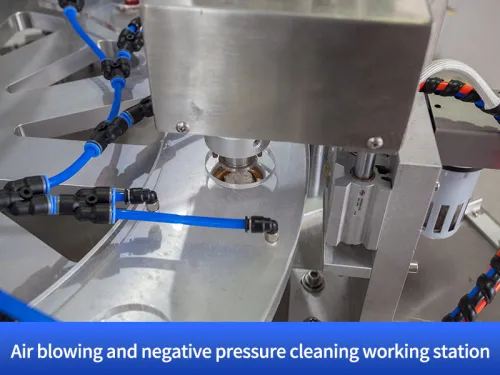

Capsule Rim Cleaning

Foil Lid Placing

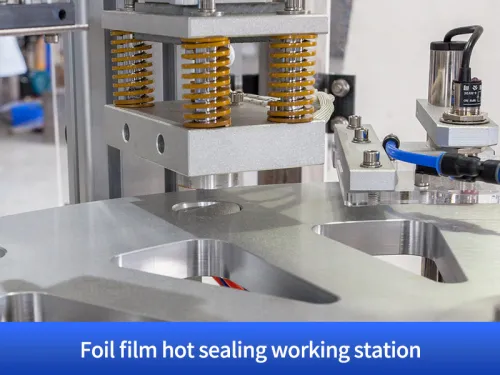

Heat Sealing

Output

PARAMETER

	Specification
	Production Capacity	800-1500 capsules/hour
	Measurement	Screw head filling (1 or 2 heads)
	Filling Range	5-10g ( Can be customized )
	Size (L)	1500(W)1200(H) 1700mm
	Voltage	220V,50/60HZ,2.2kw
	Weight	500kg
	Air Supply	1m/points, 0.6-0.75Mpa
	Structure	304 stainless steel body
