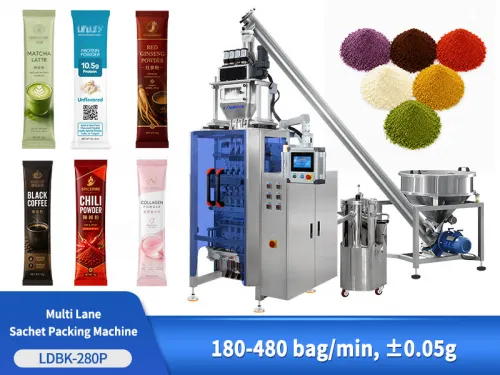

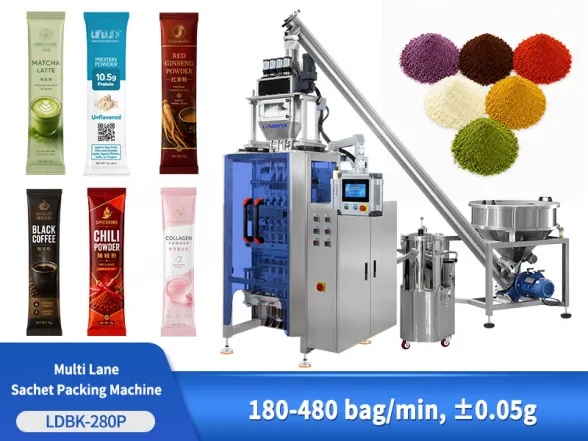

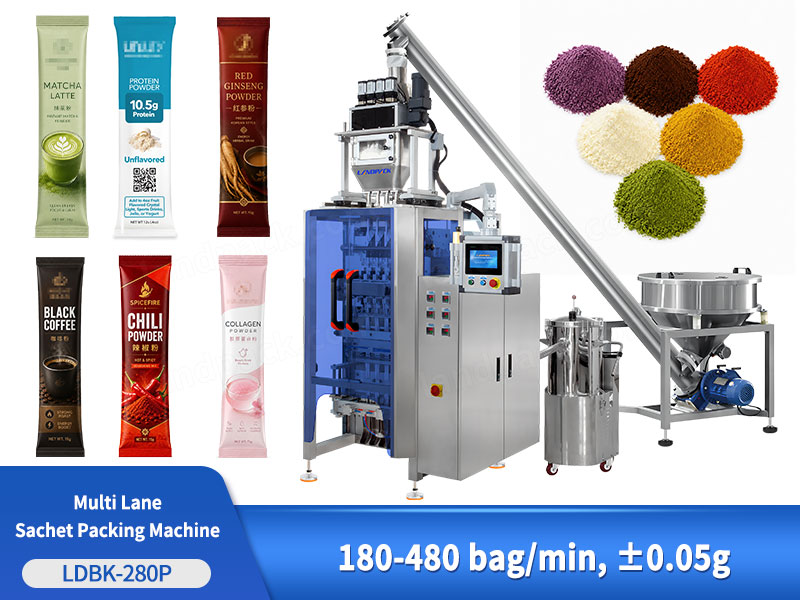

Automatic Mulit Lane Tea Powder Stick Packing Machine with Screw Conveyor

Introduction:

Mulit lane stick powder packing machine for three-side seal stick, with screw feeding, servo auger dosing, coding and dust removal, up to 35 cycles/min.

Application:

This 4-lane three-side seal powder packing machine is suitable for automatic sachet packaging of milk tea powder, protein powder, matcha powder, coffee powder, seasoning powder, spice powder, nutritional powder and other fine powder products.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Automatic Mulit Lane Tea Powder Stick Packing Machine with Screw Conveyor

Package Type:

This powder stick packing machine makes three-side seal sachets from roll film. It supports slim stick-style sachets, flat powder packets, printed film, and different sachet widths, lengths, and filling weights. Common film options include PET/PE, PET/AL/PE, OPP/CPP, and other heat-sealable laminated films.

FEATURES

1. Separate servo auger controls dosing on each lane.

2. Screw conveyor keeps powder supplied to the hopper.

3. Servo film pulling keeps sachet length steady.

4. SS304 frame and product-contact parts support regular powder production.

5. Siemens PLC and touchscreen control speed, dosing, and sealing settings.

6. Dust removal reduces loose powder around the seal.

7. Ribbon coder prints clear production and batch information.

8. Roll film system handles forming, filling, sealing, and cutting.

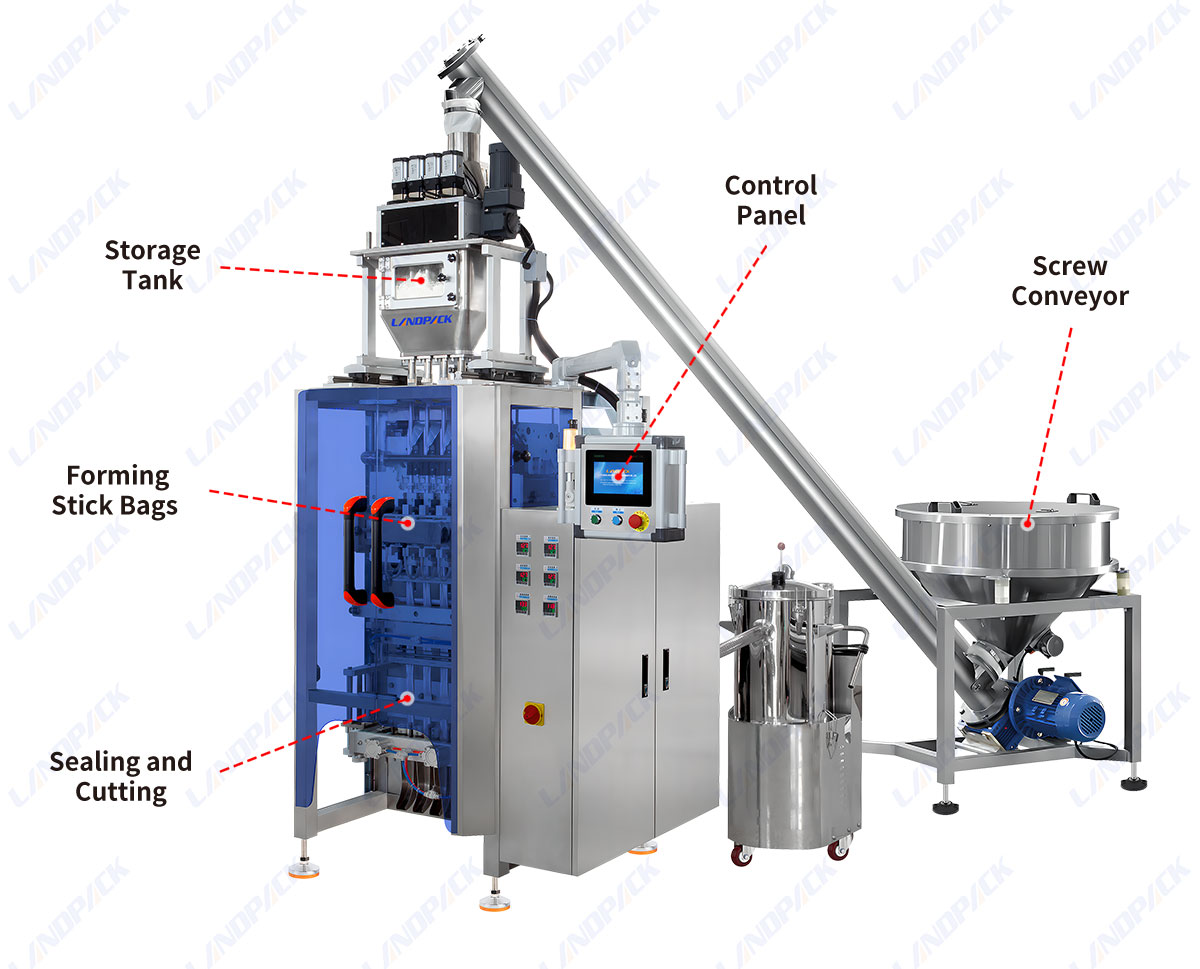

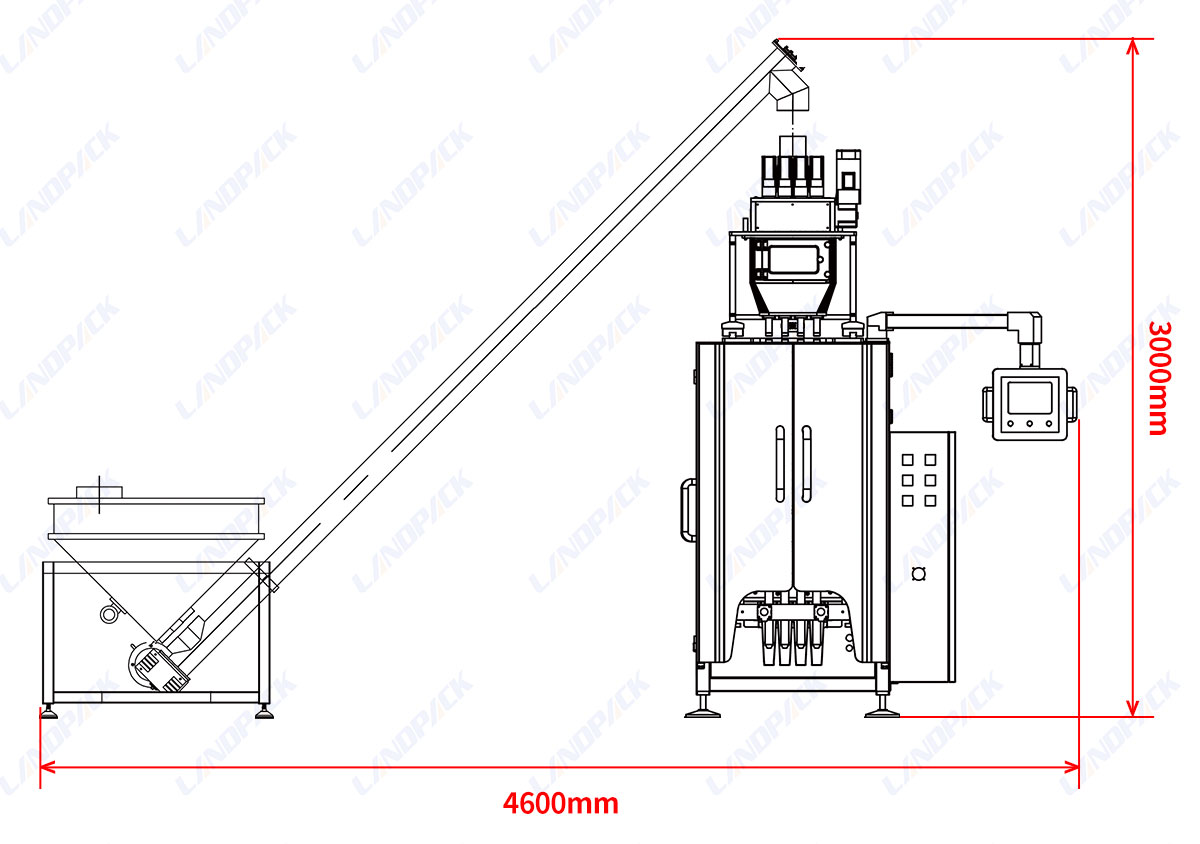

Machine Structure Overview:

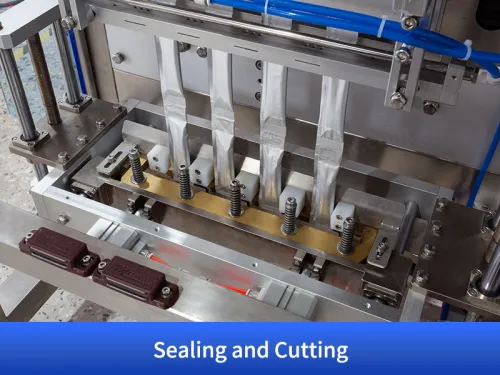

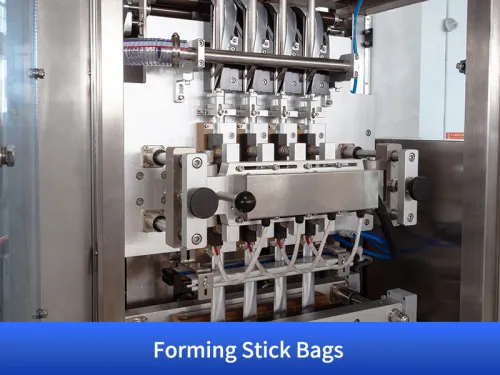

1. Storage Tank 2. Control Panel 3. Screw Conveyor 4. Forming 5. Sealing and Cutting

Automatic Mulit Lane Tea Powder Stick Packing Machine with Screw Conveyor

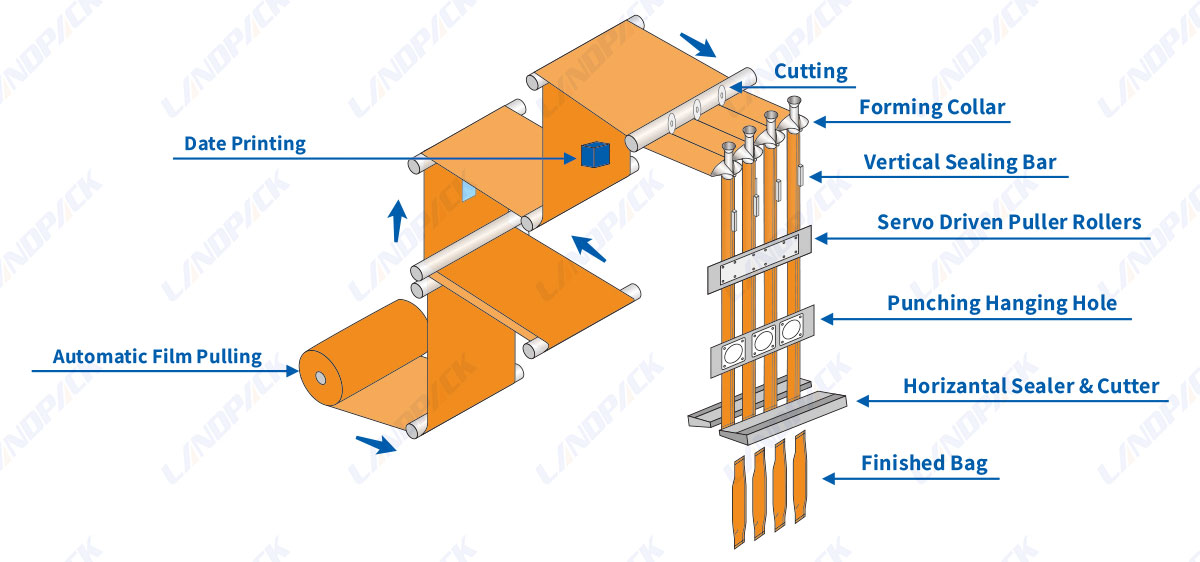

WORKFLOW

Screw Feeding

Servo Film Pulling

Ribbon Coding

Auger Dosing

Powder Filling

Dust Removal

Sachet Forming and Sealing

Cutting and Output

PARAMETER

Model	LDBF-280G	LDBF-560G
Lane number	4-6 Lines	8-12 Lines
Filling Method	Auger filling by servo motor
Capacity	Max.35 cycles/ min
Stick Size	L: 50-180mm; W: 17-30mm	L: 50-180mm; W: 17-30mm
Film width & Thickness	Max.280mm, 0.07-0.10mm	Max.560mm, 0.07-0.10mm
Sealing type	Back sealing/Stick bag	Back sealing/Stick bag
Cutting type	1. Straight cutting; 2. Zig zag cutting; 3. Round cutting; 4. Irregular
Air & Powder	0.8Mpa, 0.8m³/min; 3.5kw	0.8Mpa, 0.8m³/min; 5.5kw
Dimension & weight	13859182005mm; 350kg	168513002005mm; 550kg
