Automatic Matcha Tea Powder Filling Capping Labeling Machine Bottling Line

Introduction:

Automatic tea powder filling machine for matcha bottles, with weighing filler, spoon inserter, capping, foil sealing and labeling, up to 40 bottles/min.

Application:

This tea powder filling machine packs matcha powder, green tea powder, instant tea powder, milk tea powder, and blended tea powder into bottles.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

This tea powder filling machine packs matcha powder, green tea powder, instant tea powder, milk tea powder, and blended tea powder into bottles. The line feeds and cleans each bottle, weighs the powder, inserts a measuring spoon, tightens the cap, seals the foil liner, cleans the bottle surface, and applies the label. This matcha tea powder packing machine runs up to 40 bottles/min, depending on the bottle size and filling weight.

Automatic Matcha Tea Powder Filling Capping Labeling Machine Bottling Line

Package Type:

This line works with square and round bottles or jars made from PET, HDPE, or glass. It supports screw caps, aluminum foil liners, and packs that include a measuring spoon. Matching parts allow the automatic powder tea filling machine to handle different bottle sizes, neck diameters, cap types, and label positions.

FEATURES

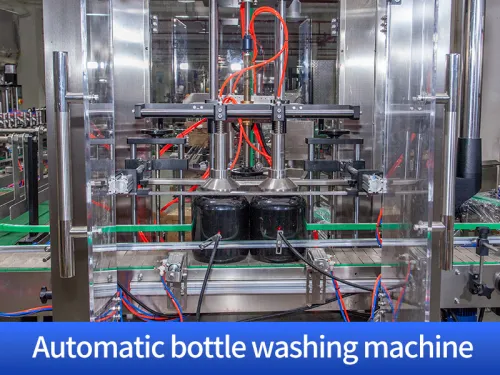

1. Two-head ionized air cleaner removes dust before filling.

2. Dual-head weighing filler controls the powder weight.

3. Automatic spoon inserter adds one measuring spoon per bottle.

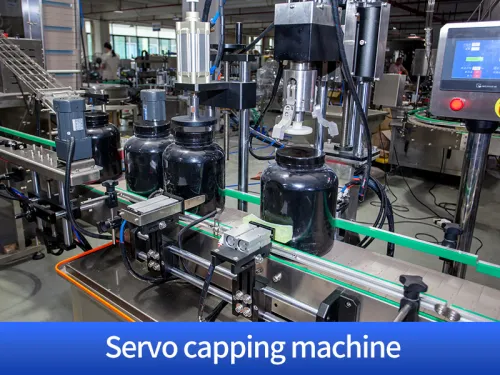

4. Servo capping head controls cap tightening.

5. Aluminum foil sealer closes the bottle mouth after capping.

6. Bottle cleaner removes powder left on the outer surface.

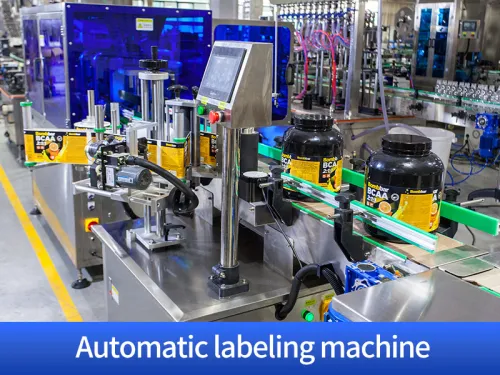

7. Positioning system keeps labels in the correct direction.

8. Collection table holds finished bottles for packing.

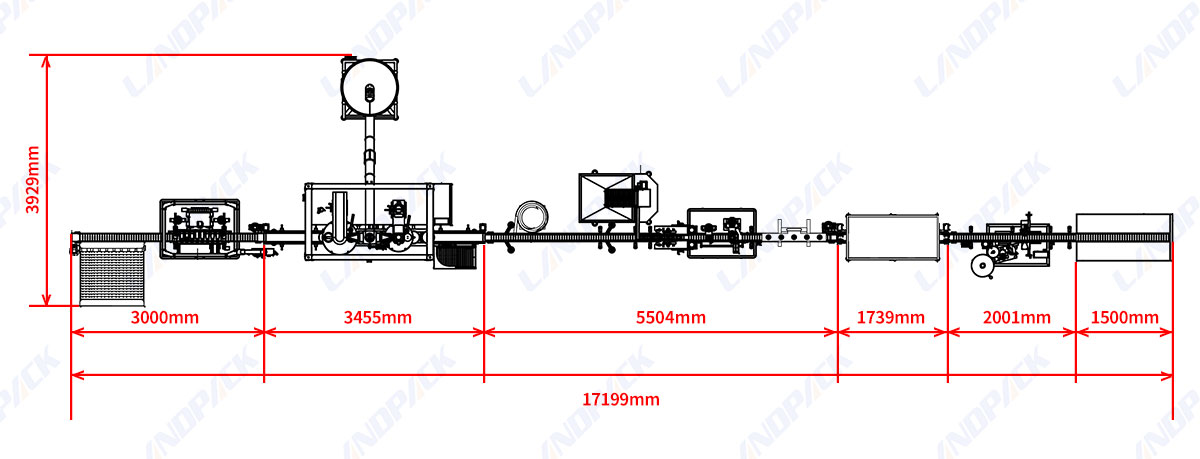

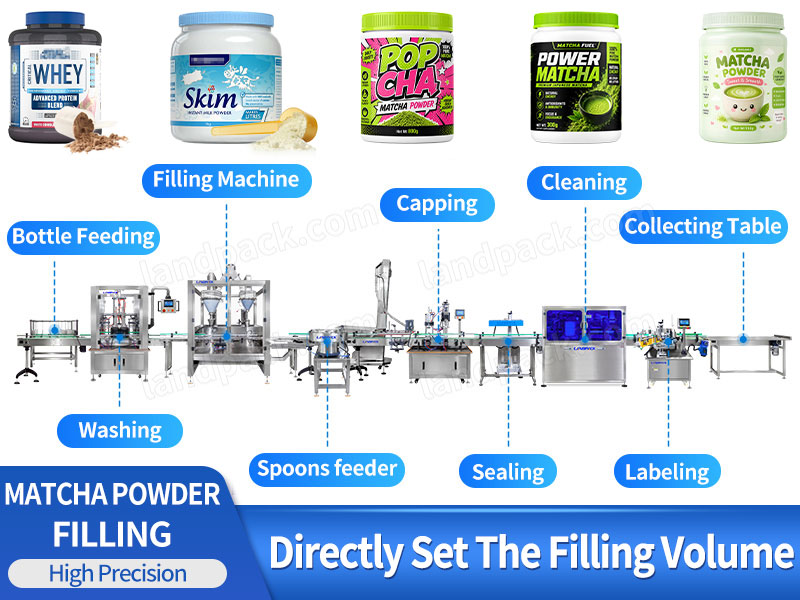

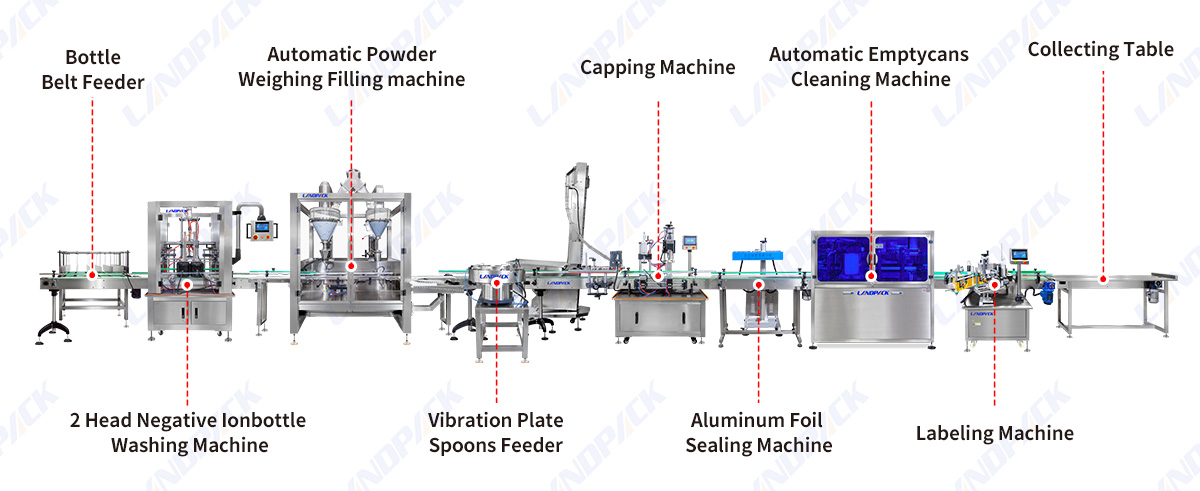

Machine Structure Overview:

Automatic Matcha Tea Powder Filling Capping Labeling Machine Bottling Line

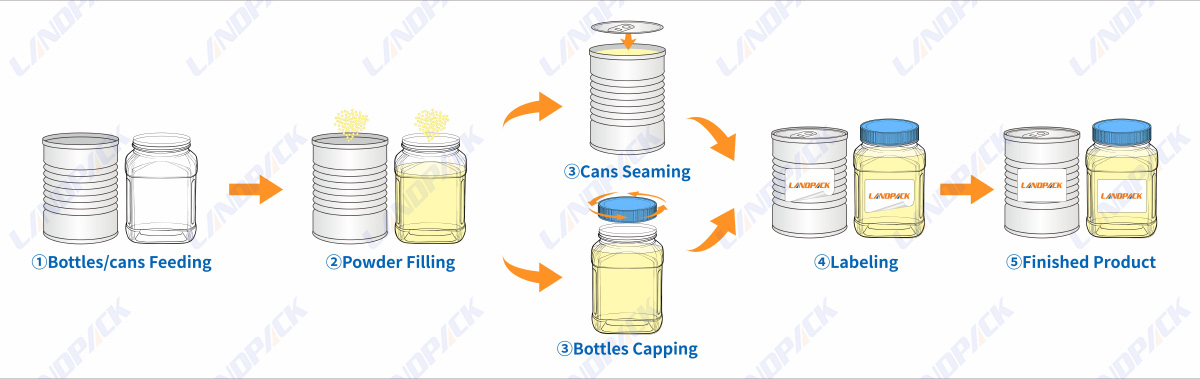

WORKFLOW

Bottle Feeding

Ionized Air Cleaning

Powder Weighing and Filling

Spoon Inserting

Servo Capping

Foil Sealing

Positioning and Labeling

Collection

PARAMETER

Model	LD-PAF01
Filling Range	10-5000g (Customizable)
Filling Speed	20-40 bottles/min
Measurement accuracy	±1%
Power	5 KW
Working power supply	220V, 50Hz
Working pressure	0.6-0.8MPa
Weight	550kg
Size	L2006W979H2068(mm)
