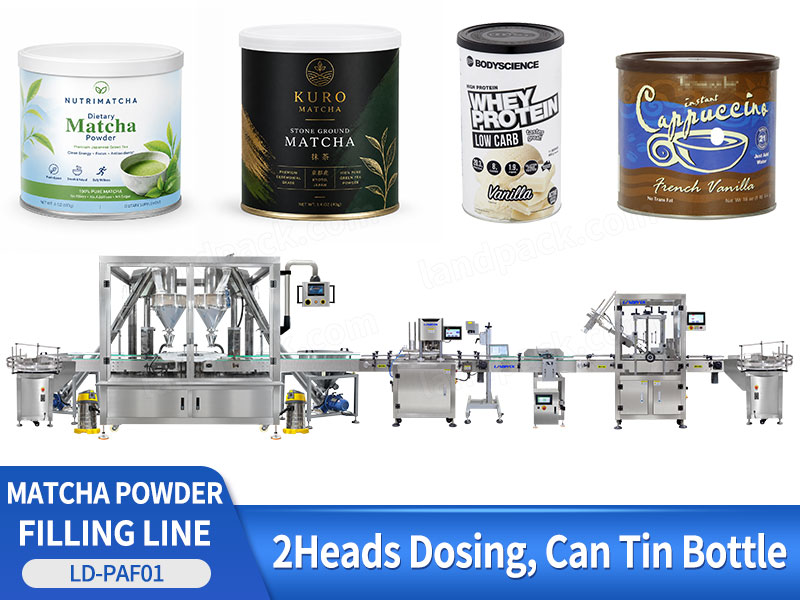

Automatic Matcha Powder Rotary Can Filling Seaming Line Machine

Introduction:

Automatic matcha powder filling line for cans and bottles, with double-head auger filling, can seaming, lid pressing, laser coding and container collection.

Application:

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

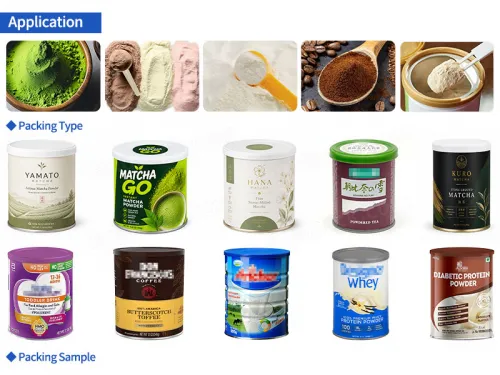

It can be used in tea, dairy, sports nutrition, instant beverage and food ingredient production lines where automatic container feeding, auger dosing, can seaming, lid pressing and batch coding are required. Such as matcha powder, green tea powder, whey protein powder, milk powder, infant formula powder, coffee powder, cocoa powder, milk tea powder, meal replacement powder, nutrition powder, cereal powder, fruit powder, seasoning powder and baking powder.

Automatic Matcha Powder Rotary Can Filling Seaming Line Machine

Package Type:

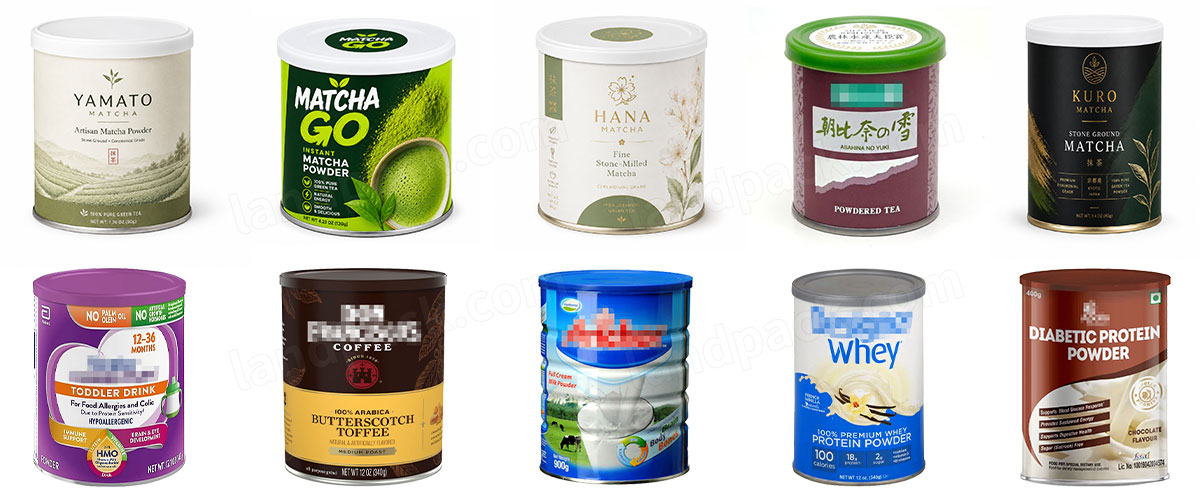

Suitable for metal cans, composite cans, plastic jars and rigid bottles closed by can seaming or press-on lids.

FEATURES

1. The automatic bottle and can feeder arranges empty containers and transfers them continuously to the filling section.

2. The double-head rotary auger filling system supports simultaneous powder dosing to increase filling capacity.

3. Auger dosing allows the filling volume to be adjusted according to different powder characteristics and container sizes.

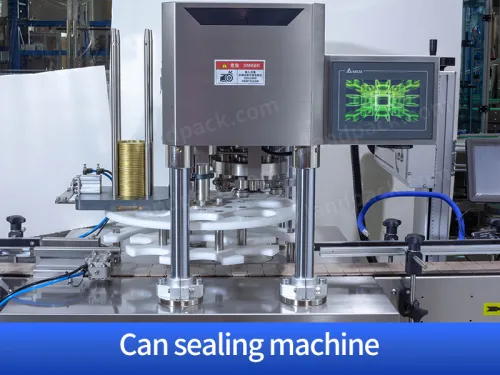

4. The can seaming machine closes metal or composite cans with matching can ends after filling.

5. The reverse-turn mechanism changes the container conveying direction and connects the filling section with the downstream capping equipment.

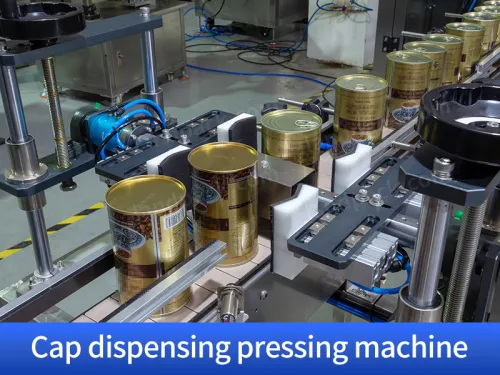

6. The automatic pressing machine applies and presses lids onto plastic jars or bottles without manual capping.

7. The laser printer marks production dates, batch numbers, barcodes or other traceability information on the container.

8. The complete line can be configured for either can seaming or bottle lid pressing according to the selected packaging container.

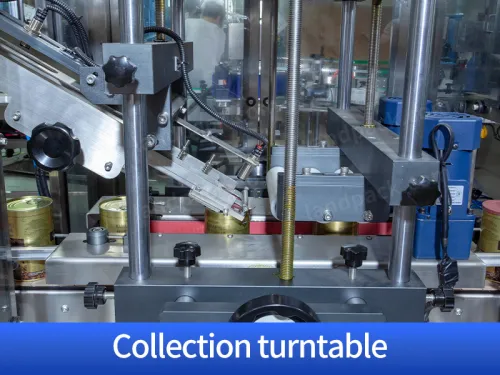

9. The collecting table gathers finished containers and provides a convenient connection point for downstream labeling or case-packing equipment.

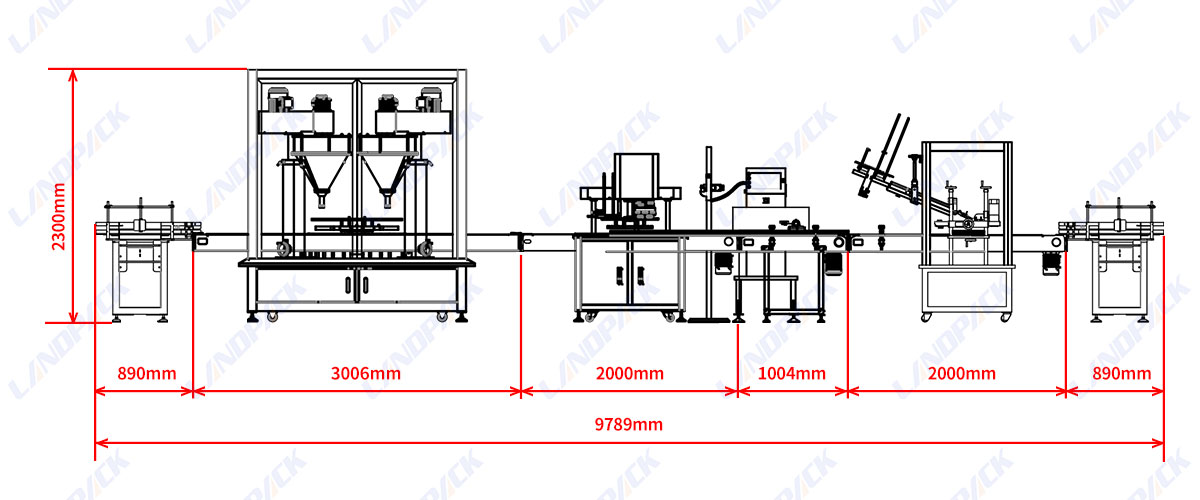

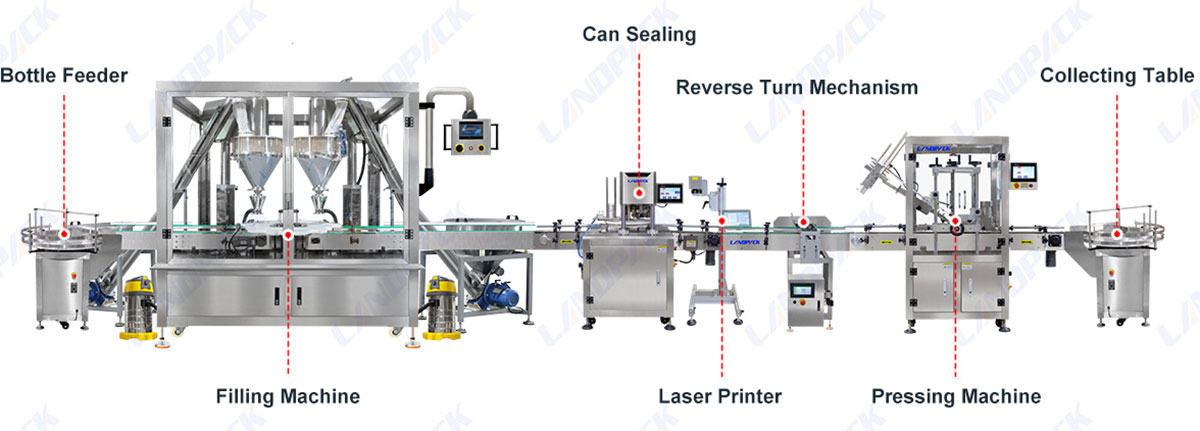

Machine Structure Overview:

1. Bottle Feeder 2. Filling Machine 3. Can Sealing 4. Laser Printer 5. Reverse Turn Mechanism 6. Pressing Machine 7. Collecting Table

Automatic Matcha Powder Rotary Can Filling Seaming Line Machine

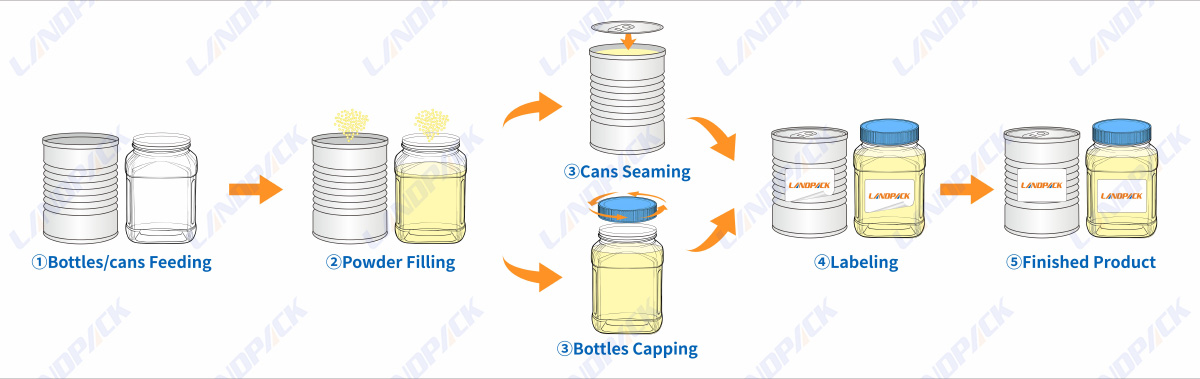

WORKFLOW

Container Feeding

Container Positioning

Double-Head Auger Filling

Can Seaming or Bottle Lid Pressing

Laser Coding

Container Conveying

Finished Product Collection

PARAMETER

Automatic Powder Screw Filling
Model	LD-PAF880
Power Supply	220V/110V, 50-60Hz, 200W
Turntable Diameter	800mm (Could be customized)
Suitable Bottle Diameter	40-120mm
Suitable Bottle Height	30-200mm
Working Speed	40-50 bottles/min (Could be customized)
Package Size	123012101260mm
Gross Weight	181kg
Automatic Can Sealing Machine
Voltage	220V/50Hz (customized)
Power	0.55KW
Air pressure	0.3-0.5mpa
Speed	10-25 BPM (can be customized)
Bottle diameter	50-126mm
Bottle high	50-200mm
Outline dimension	240013002200MM (LWH)
Net weight	130KG
Laser Coding Machine
Print range	100*100mm
Speed	Max10000mm/s (can be customized)
Laser	Fiber laser generator
Machine size	8255451425mm
Machine voltage	220V (can be customized)
Weight	80kg
Automatic Flip Device
Material	SS304
Label pasting precision	±1mm
Speed	25-80 bottles/minute
Suitable product size	Diameter Ф25mm-Ф180mm, Height: 30-450mm
Power	220V/110V, 50-60Hz, 2.5kw
Automatic Plastic Lids Pressing Machine
Attribute	Description or Value
Seal Can Diameter	Ф40-Ф130mm (can be customized)
Bottle's Height	60-300mm (can be customized)
Cap's Height	5-15mm
Speed	30-50 Cans/minute (can be customized)
Storage Can Cover	About 100pcs
