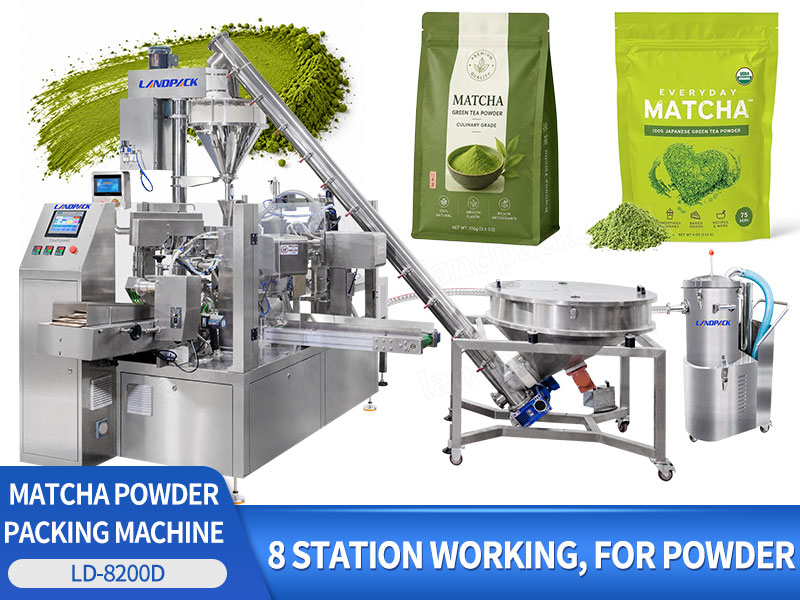

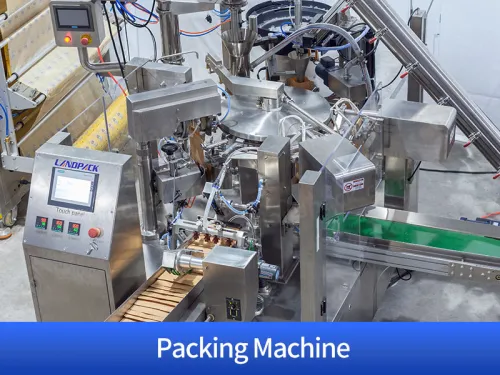

Automatic Matcha Powder Packing Machine Doypack Machine with Spoon Feeder

Introduction:

The LD-8200D automatic powder packing machine integrates screw feeding, auger dosing, dust collection and automatic spoon insertion.

Application:

Automatic Powder Packing Machine is a complete premade pouch packaging solution designed for matcha powder, green tea powder, black tea powder, herbal tea powder, instant tea powder, protein powder, collagen powder, meal replacement powder and other fine powder products.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

This Automatic Matcha Powder Packing Machine is a complete premade pouch packaging solution designed for matcha powder, green tea powder, black tea powder, herbal tea powder, instant tea powder, protein powder, collagen powder, meal replacement powder and other fine powder products.

Automatic Matcha Powder Packing Machine Doypack Machine with Spoon Feeder

Package Type:

This Automatic Matcha Powder Packing Machine is suitable for premade pouches, stand-up bags, flat bottom bags, zipper pouches, doypack, gusset pouches, and custom-shaped premade pouches.

FEATURES

1. Supports premade zipper pouches, stand-up pouches, flat pouches and other bag formats with high compatibility.

2. Rotary multi-station design enables continuous operation and improves packaging efficiency.

3. Automatically completes pouch feeding, opening, filling and sealing in one process.

4. The intelligent bag detection system prevents filling and sealing when the pouch is not properly opened.

5. Adjustable packaging speed through frequency control to match different production requirements.

6. PLC touch screen control system provides simple operation and fast parameter setting.

7. Stable heat sealing technology ensures strong seals and extends product shelf life.

8. Food-grade stainless steel construction is durable, hygienic and easy to clean.

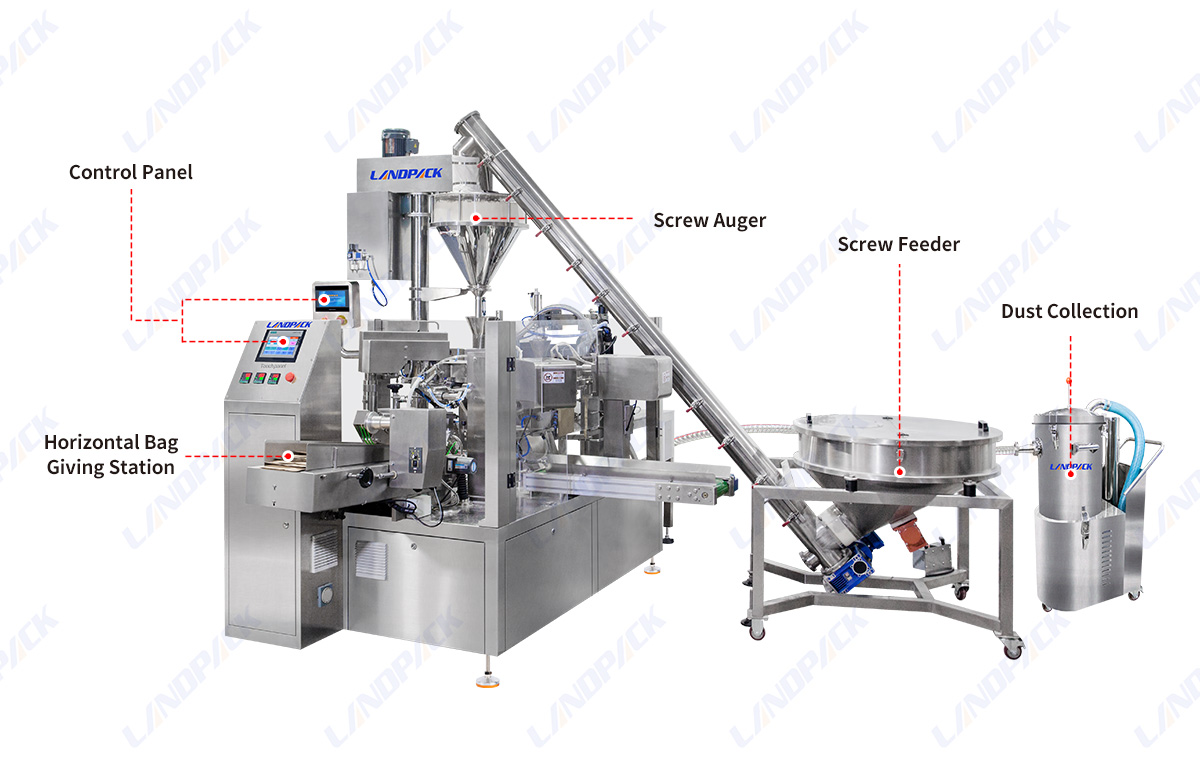

Machine Structure Overview:

1Control Panel 2. Screw Auger 3. Screw Feeder 4. Date Printer 5. Dust Collection 6. Horizontal Bag 7. Giving Station

Automatic Matcha Powder Packing Machine Doypack Machine with Spoon Feeder

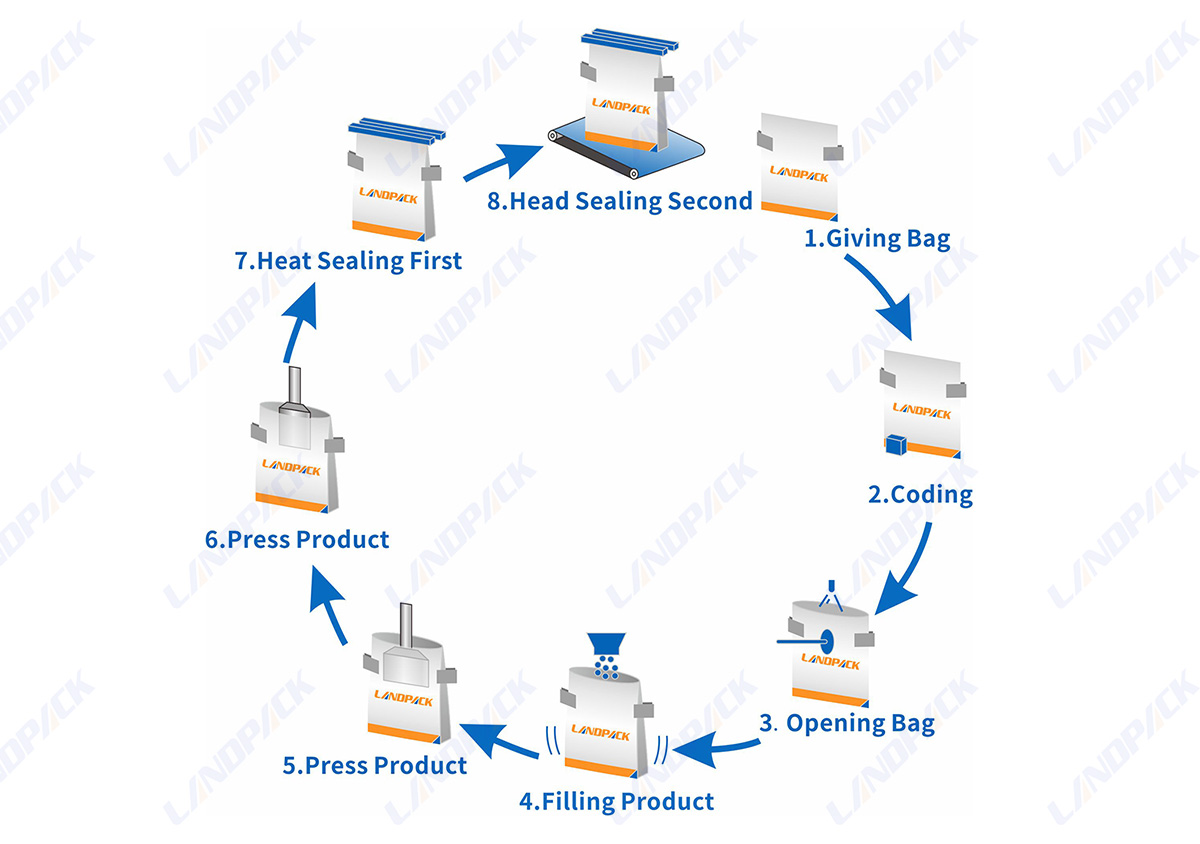

WORKFLOW

Powder Feeding

Servo Auger Measuring

Pouch Feeding

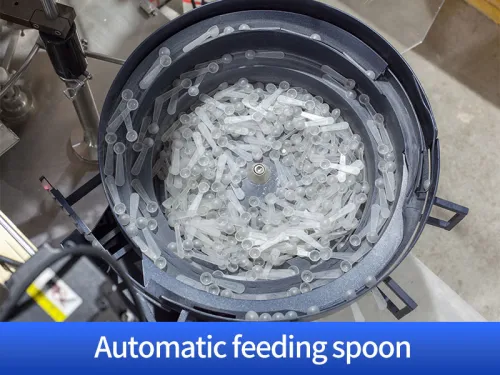

Spoon Inserting

Dust Removal

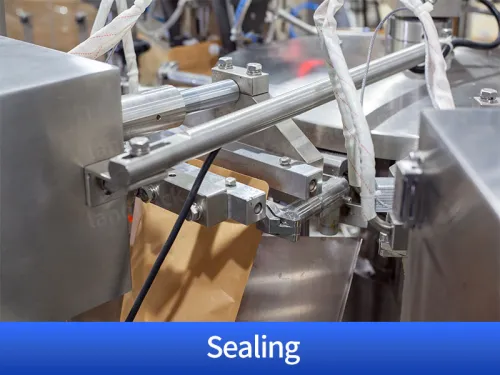

Zipper Sealing

Finished Product Output

PARAMETER

Type	LD-8230	LD-8260	LD-8300	LD-8400
Bag Type	3-side, 4 side sealing bag, doypack, box pouch, zipper pouch, stand up pouch, side gusset bag, etc.
Bag Size	150-380mm80-230mm (LW)	150-380mm/140-260mm (L*W)	150-430mm/180-300mm (L*W)	200-500mm/270-400mm (L*W)
Filling Range	10g-1000g	1500g	2000g	3000g
Packing Speed	20-60 bags/min	20-50 bags/min	10-40 bags/min	10-25 bags/min
Voltage	Standard AC380V+10%, three-phase 50HZ;
Total Power	3.75KW	3.75KW	3.85KW	4.5KW
Air Consumption	0.4m³/min
Dimensions	174013801450mm(LWH)		246018301460mm(LWH)	226022001520mm(LWH)
Machine Weight	1300KG	1300KG	1700KG	2000KG
