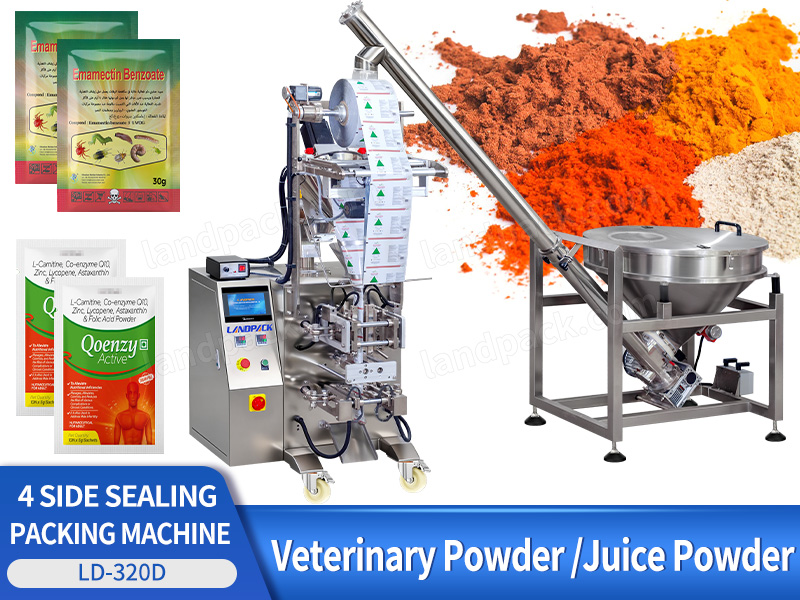

Automatic Talcum Powder Filling Machine Four Side Sealing Packing Machine

Introduction:

Four-side sealing powder packing machine designed for automatic film forming, auger filling, sealing, and cutting of powder sachets.

Application:

Suitable for talcum powder, milk powder, protein powder, and other fine powder products in small-format packaging.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Suitable for automatic packaging of powder products in four-side sealed sachets. Widely used for talcum powder, milk powder, protein powder, coffee powder, nutritional powder, seasoning powder, pharmaceutical powder, and other fine powder materials. Applicable to food, pharmaceutical, chemical, and daily chemical industries requiring small-format powder sachet packaging.

Automatic Talcum Powder Filling Machine Four Side Sealing Packing Machine

Package Type:

Suitable for four-side sealed sachets formed from roll film. Designed for powder products with auger filling system, supporting automatic forming, filling, sealing, and cutting for single-dose packaging.

FEATURES

1. Vertical form fill seal structure for compact installation.

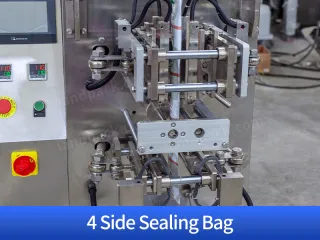

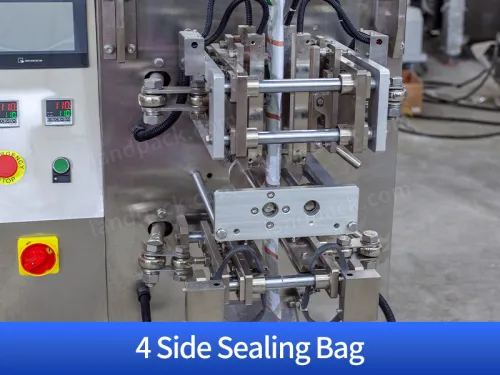

2. Four-side sealing system for flat sachet appearance.

3. Auger filling system for powder dosing control.

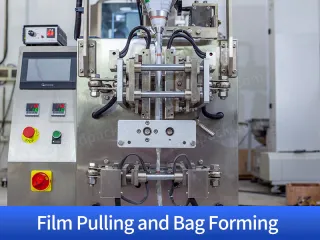

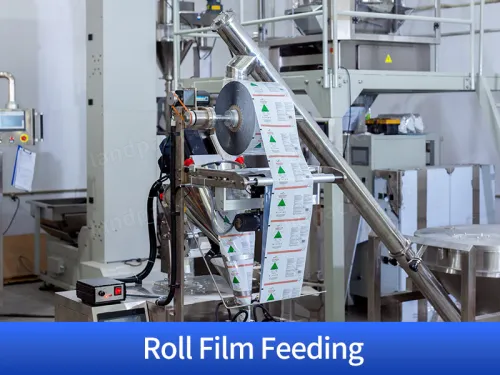

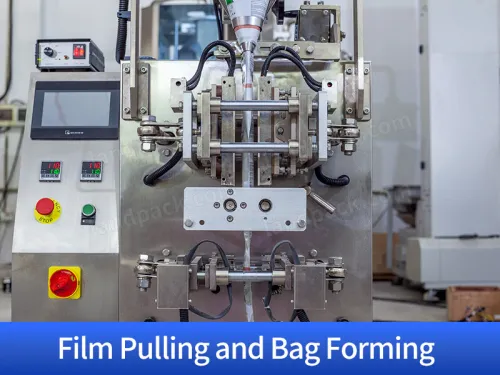

4. Automatic film pulling and sachet forming process.

5. Servo-driven film feeding for synchronized movement.

6. Vertical and horizontal sealing system integrated in one machine.

7. Compatible with laminated roll film materials.

8. PLC control with touchscreen operation interface.

9. Ribbon coding system for date or batch printing.

10. Stainless steel construction for product contact parts.

Adjustable sachet length and filling volume.

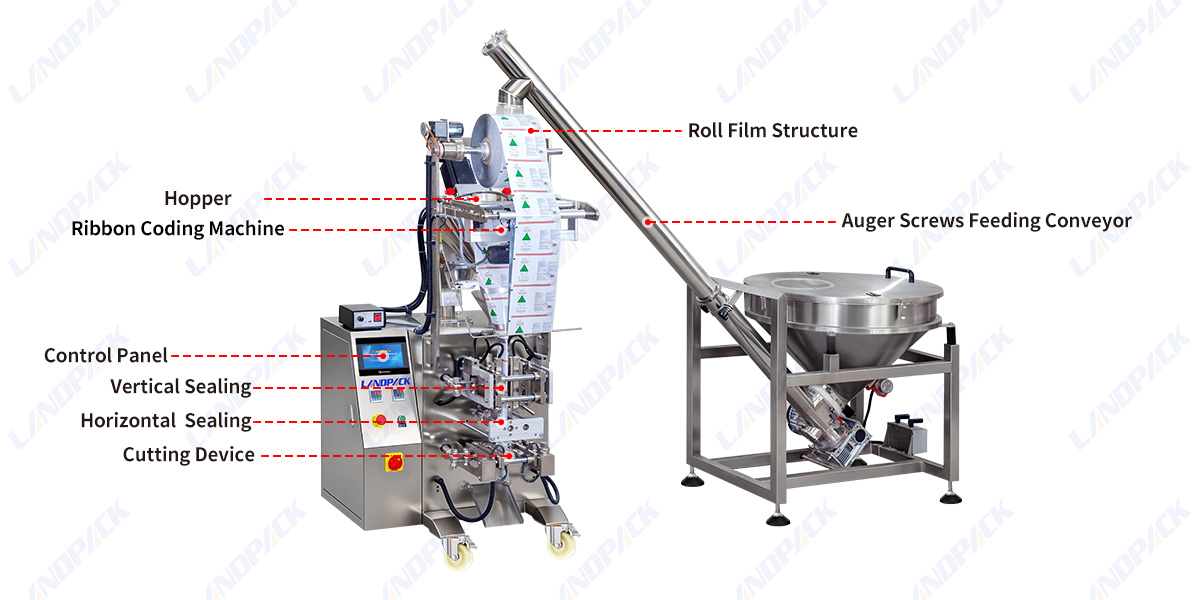

Machine Structure Overview:

1. Hopper 2. Roll Film Structure 3. Auger Screws Feeding Conveyor 4. Control Panel 5. Vertical Sealing 6. Horizontal Sealing 7. Cutting Device

Automatic Talcum Powder Filling Machine Four Side Sealing Packing Machine

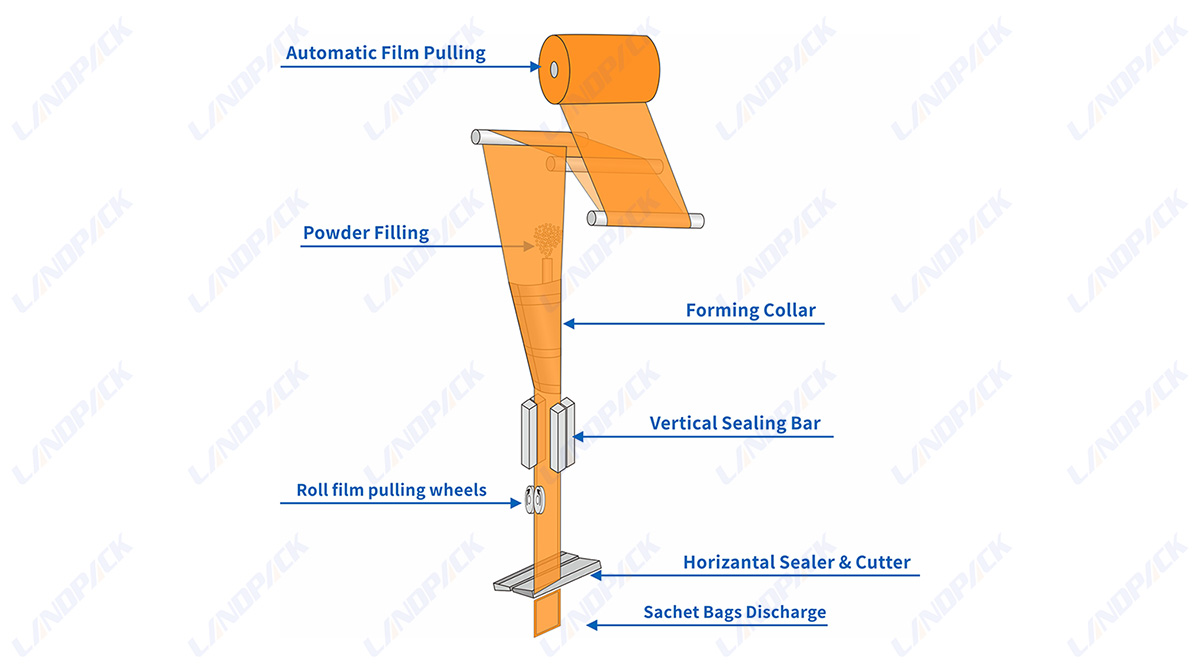

WORKFLOW

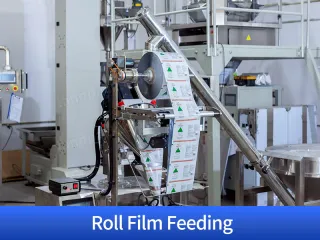

Film feeding

Bag forming

Powder dosing

Filling

Four-side sealing

Cutting

Finished sachet output

PARAMETER

Model	LD-320D	LD-380D
Film width	120-320mm	180-380mm
Bag length	50-200mm	60-280mm
Bag width	50-150mm	60-180mm
Diameter of film roll	Max.300mm	Max.320mm
Packing speed	35-70bag/min
Measuring range	50-500ml	50-750ml
Film thickness	0.04-0.07mm
Power	220V 50/60Hz 2.2KW	220V 50/60Hz 2.5KW
Machine size(LWH)	9706801950mm	11008002150mm
Machine weight	About 300kg	About 450kg
Packing Type	Back seal bag, 3/4 side seal sachet, stick bag, continuous bag etc. Support customization
