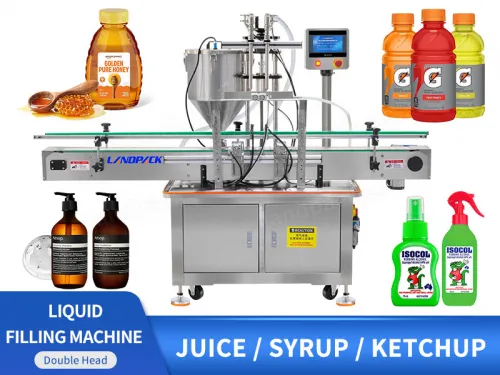

Automatic Liquid Syrup Bottle Filling Machine

Introduction:

This liquid syrup bottle filling machine is suitable for various liquids, including cough syrup, glucose syrup, honey syrup, orange juice, mango puree, coconut water, hand lotion, face serum, cleansing milk, and other pharmaceutical, food, and cosmetic products, ensuring precise, efficient, and hygienic filling.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Automatic Liquid Syrup Bottle Filling Machine

FEATURES

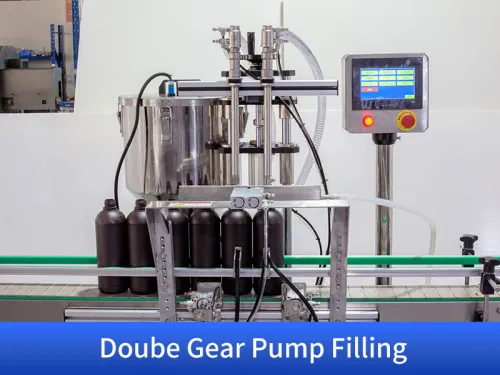

1. The advanced double gear pump filling system ensures precise, consistent filling performance for various liquid viscosities, from syrups to emulsions, maintaining high-speed operation with minimal cycle interruptions.

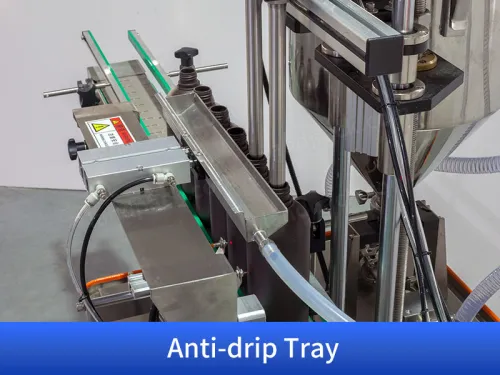

2. A built-in stainless steel anti-drip tray efficiently captures nozzle residue, eliminating spills and product waste while ensuring a clean, sanitary filling environment.

3. Simple PLC-controlled operation with one-touch start functionality allows quick setup and recipe changes, maximizing productivity without compromising filling accuracy.

4. Engineered for high-throughput performance, the system delivers rapid, reliable filling to significantly enhance overall production efficiency.

Automatic Liquid Syrup Bottle Filling Machine

PARAMETER

	Model	LFZ-01/02/03/04/05/06
	Filling head	1/ 2 / 3 / 4 / 5/ 6/(Customizable)
	Filling volume	50-1000ml(Customizable)
	Filling speed	15-25 bottles/min
	Voltage	220V/380V,50-60HZ
	Power	2KW
	Working pressure	0.6-0.8MPa
	Machine dimension	400013002090mm
	Machine weight	650KG
