Automatic Salt Filling Machine Granule Filling Capping Labeling Machine Line

Introduction:

The bottle filling line is suitable for sea salt, granular spices, dried seasonings and other free-flowing granular food products packed in plastic or glass bottles.

Application:

It can be used in seasoning, spice, salt, condiment and food processing lines that require automatic bottle feeding, dosing, capping, sealing, coding and labeling.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail Get Price

Benefits & Features

Technical Parameters

VIDEOS

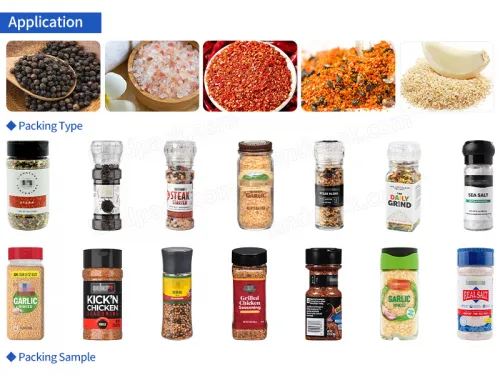

Application

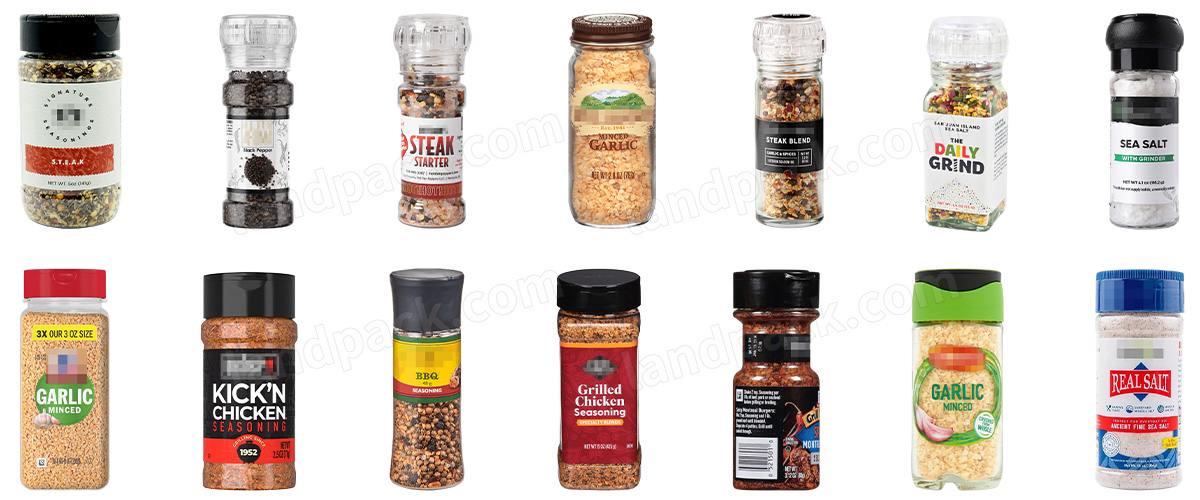

Suitable products include sea salt, Himalayan pink salt, rock salt, coarse salt, flavored salt, black pepper, peppercorns, chili flakes, minced garlic, dried onion granules, sesame seeds, steak seasoning, BBQ seasoning, mixed spices, herb blends and other free-flowing granular products.

Automatic Salt Filling Machine Granule Filling Capping Labeling Machine Line

Package Type:

Suitable for round plastic or glass bottles with screw caps and optional aluminum foil inner sealing for granular seasoning products.

FEATURES

1. Volumetric cup dosing system measures sea salt, coarse spices and other free-flowing granular products according to the required filling volume.

2. Screw feeder transfers material automatically to the dosing system for continuous bottle filling.

3. Bottle sorting, filling, cap feeding, capping, foil sealing, coding and labeling are connected in one automatic production line.

4. Four-wheel capping system tightens screw caps continuously and can be adjusted according to compatible bottle and cap sizes.

5. Aluminum foil sealing machine provides an additional inner seal for bottles requiring foil sealing before labeling.

6. Inkjet printer can print production date, expiry date, batch number and other coding information according to production requirements.

7. Material-contact parts are made of SS304 stainless steel for food and seasoning filling applications.

8. The standard line runs at approximately 15–20 bottles per minute and can be configured for different production capacity requirements.

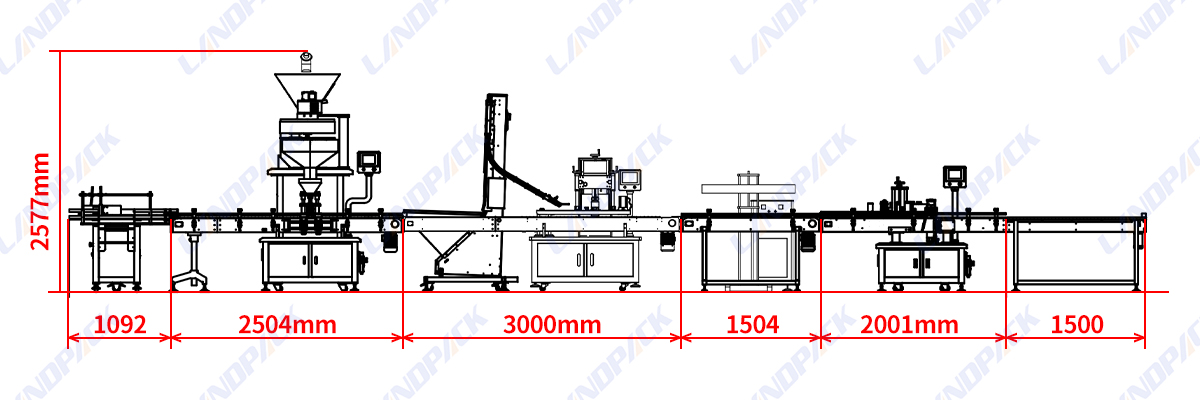

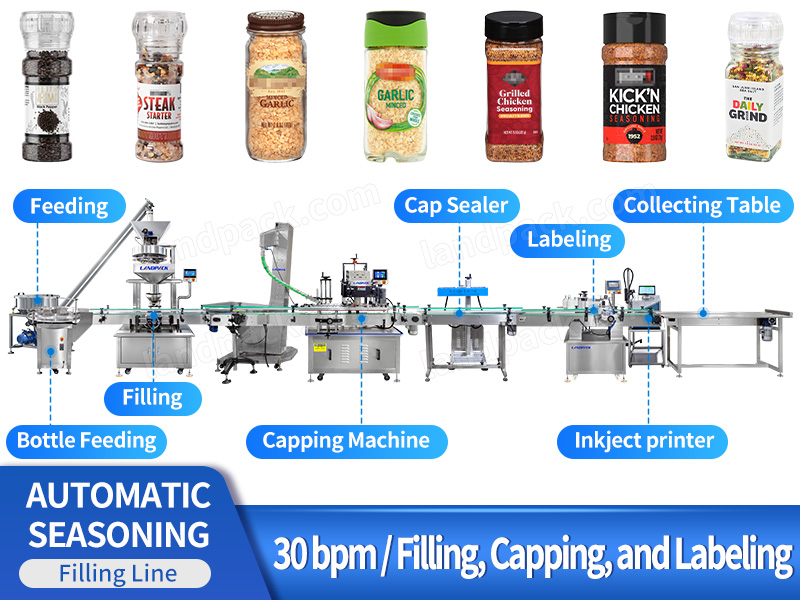

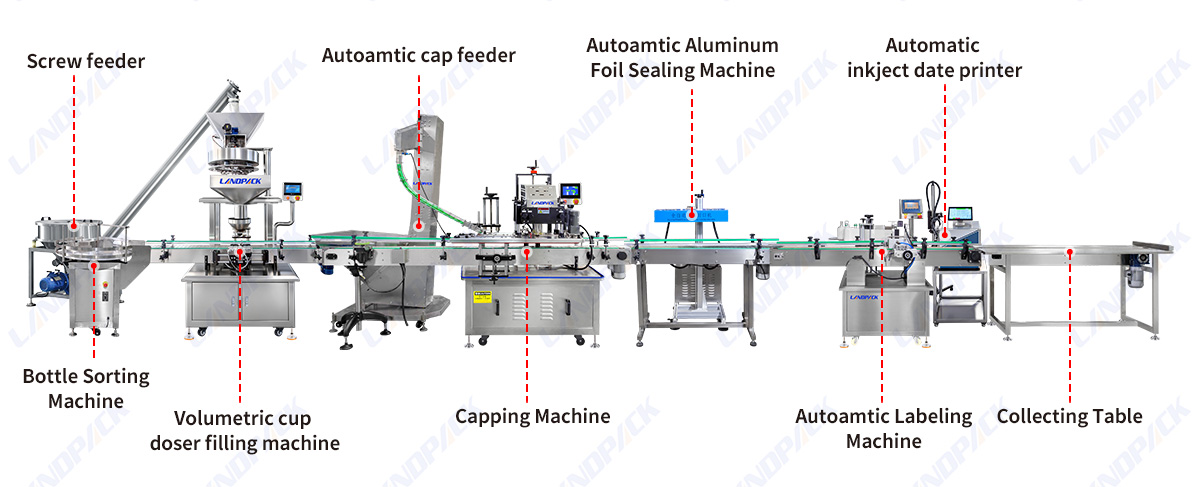

Machine Structure Overview:

Automatic Salt Filling Machine Granule Filling Capping Labeling Machine Line

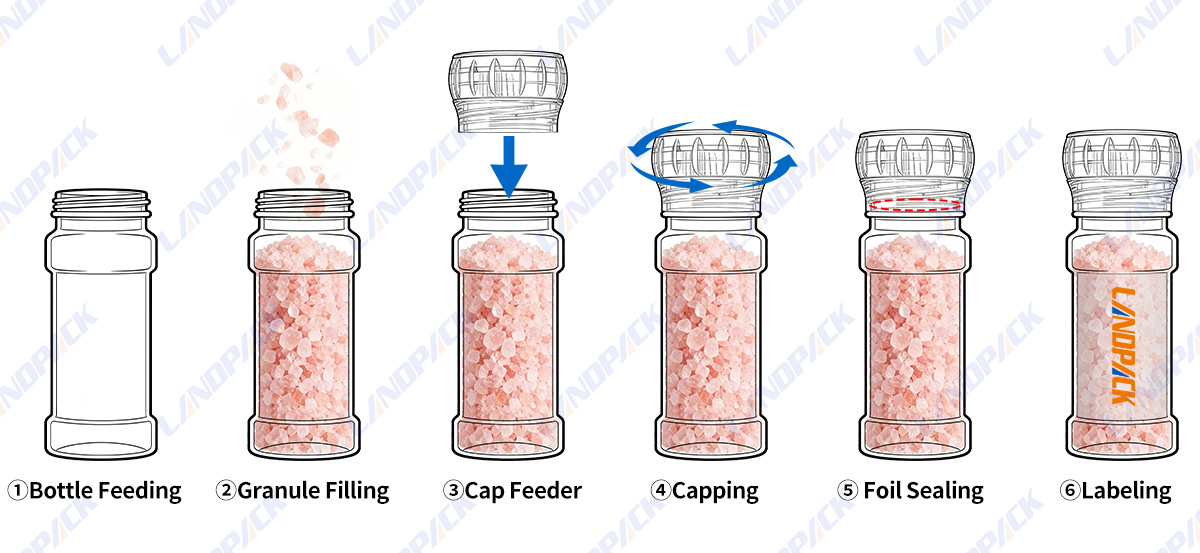

WORKFLOW

Bottle Sorting

Volumetric Cup Dosing

Bottle Filling

Cap Feeding

Capping

Aluminum Foil Sealing

Inkjet Coding

Bottle Labeling

PARAMETER

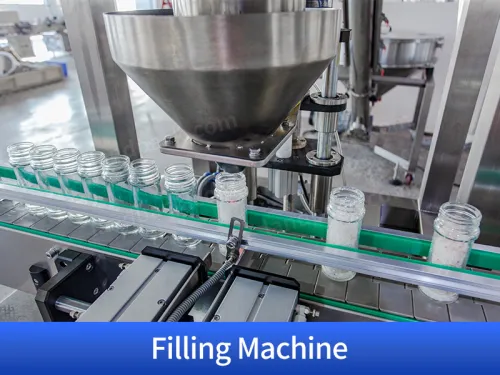

Measuring Cup Filling Machine
Specification	Typical Value/Range
Machine Model	(Custom/OEM)
Filling Method	Volumetric Measuring Cup (Cup Dosing)
Number of Filling Cups	1-4 (customizable)
Filling Volume Range	~10-1000 ml (adjustable)
Filling Accuracy	+1% (subject to product characteristics)
Filling Speed	Adjustable, up to~40-60 fills/min
Control System	PLC with Touch Screen Interface
Power Supply	220 V/380 V, 50/60 Hz (configurable)
Air Pressure	0.6-0.8 MPa (if pneumatic parts used)
Material Contact Parts	Stainless Steel (SUS304/316)
Hopper Capacity	Custom, based on production need
Machine Weight	Varies with configuration
Overall Dimensions	Custom based on layout
Optional Features	CIP cleaning, no-container stop, conveyor integration
High Speed Capping Machine
Model	LFX-GS-150(Eight wheel capping)	LFX-GS-250(Six wheel capping)
Capacity	40-100 Bottles/min	30-80 Bottles/min
Bottle cap diameter	Φ18mm-Φ80mm(Could be customized)	Φ18mm-Φ80mm(Could be customized)
Bottle diameter	Φ35mm-Φ140mm(Could be customized)	Φ35mm-Φ140mm(Could be customized)
Bottle sealing height	38mm-300mm(Could be customized)	38mm-300mm(Could be customized)
Power	2KW	1.5KW
Voltage	220V, 50HZ	220V, 50HZ
Air pressure	0.6-0.8Mpa	0.5-0.7Mpa
Weight	350kg	300kg
Dimensions	H3120W1544L2122	H3100W1244L2122

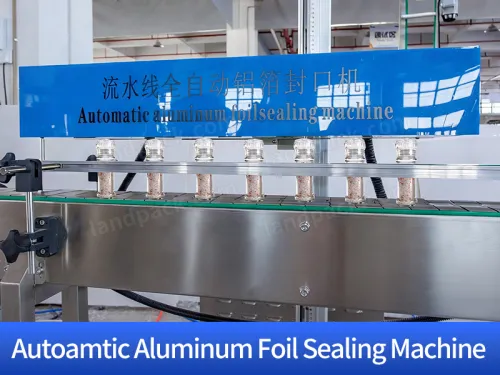

Automatic Aluminum Foil Sealing Machine
Model	LD-ZS(Double Heads Aluminum Foil Sealing)	LF-LB-2000(Single Heads Aluminum Foil Sealing)
Applicable bottle diameter	10-200mm (Could be customized)	10-200mm (Could be customized)
Applicable bottle height	H:40-300mm (Could be customized)	H:40-300mm (Could be customized)
Speed	0-30 bottles/min	0-10 bottles/min
Bottle material	Glass, ceramics, plastics, metals	Glass, ceramics, plastics, metals
Voltage	220V, 50HZ	220V,50HZ
Power	1500W	1200W
Dimension	15008001750mm	12006001550mm

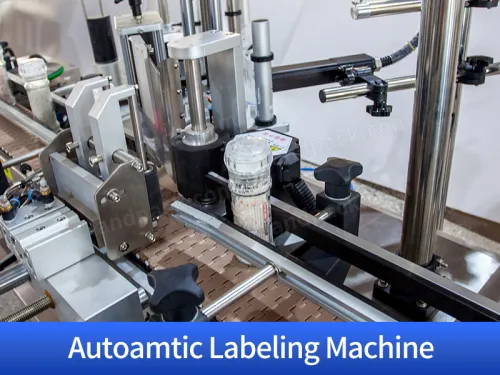

Automatic Labeling Machine
Model	LFT-YP-00
Labeling Speed	20-60 bottles/minute
Labeling Accuracy	±1mm
Max Label Width	100mm
Applicable Product Size	Φ30mm~Φ80mm(Can be customized)
Applicable inner diameter of paper	Φ76mm
Applicable outer diameter of paper	Max.Φ330mm
Air Source	4-6 KG 30L/min
Dimension	20008001600mm
Voltage	220V 50 Hz 2000W
Weight	250KG
Inkjet Printer Machine
Power supply	220V 60Hz
Printing speed	1024 seconds (5*7)
Printing materials	paper, plastic products, pipes, food bags, metal, glass, paper cups, etc.
Store information	The system can store 1000 print information
Machine size	length 370mm width 260mm height 500mm
Ink consumption	70 million words per print (5*7)
Machine weight	21kg
Package size	560350570mm
