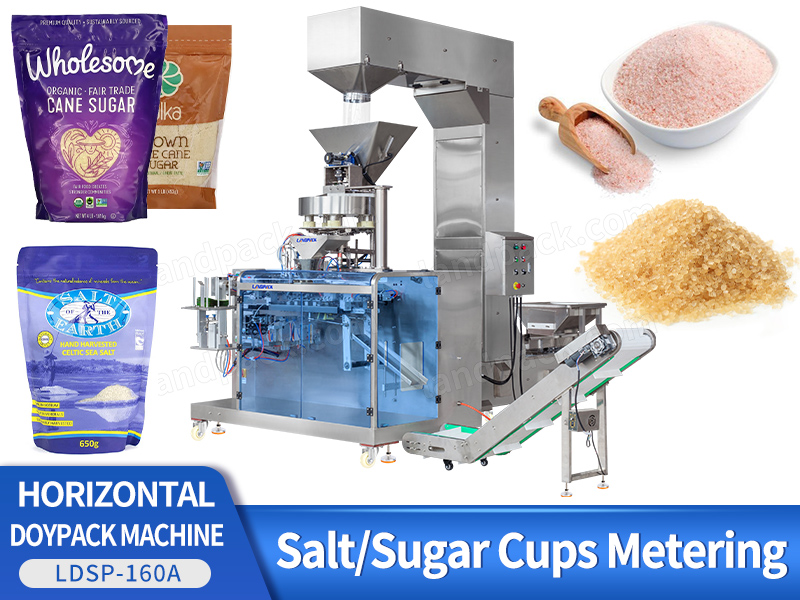

Automatic Sugar Salt Doypack Pouch Packing Machine

Application:

Tailored for packaging granular and free-flowing products, such as salt, sugar, rice, nuts, oat, popcorn, candy, chocolate, gummy, pet food, grains, etc.

Kindly Reminder:

Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Tailored for packaging granular and free-flowing products, such as salt, sugar, rice, nuts, oat, popcorn, candy, chocolate, gummy, pet food, grains. And similar fine particles into premade doypacks including stand‑up pouches, zipper bags, three‑side or four‑side seal formats. Commonly used in food production lines where precise metering and consistent sealing are essential.

Automatic Sugar Salt Doypack Pouch Packing Machine

FEATURES

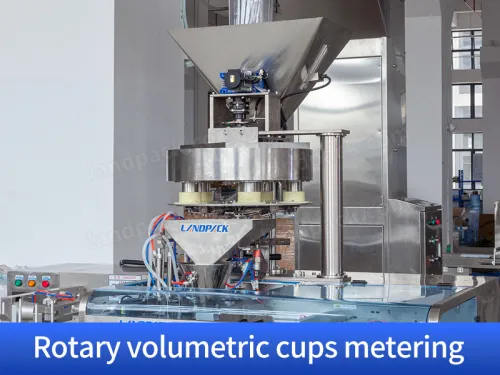

1. Uses rotor volumetric cup metering for precise portion control, ideal for granular products like salt and sugar—reliable and cost-effective.

2. Features a PLC with touch-screen interface for stable operation, easy adjustments, and quick troubleshooting.

3. Fully automated workflow includes Z-type elevator feeding, vertical bag pickup, ribbon coding, zipper opening, dual sealing, and conveyor discharge.

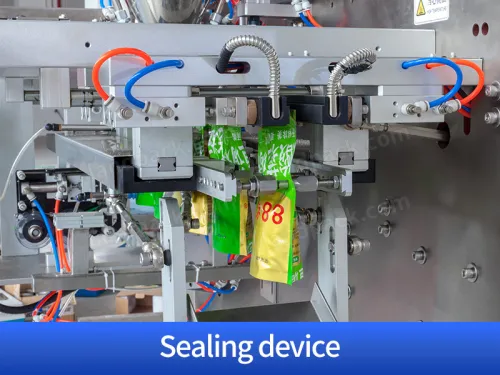

4. Two-stage heat sealing ensures airtight packaging, perfect for moisture-sensitive products.

5. Made with 304 stainless steel in product contact areas and corrosion-resistant carbon steel frame, meeting GMP and food-grade standards.

6. Includes automatic error detection to stop operation if pouches are missing, unopened, or unsealed—reducing waste and allowing reuse.

7. Modular design supports add-ons like date coding, gas flushing, RFID, perforation, punch holes, or handles for customization.

8. Ensures efficient, high-quality packaging with minimal manual intervention for consistent results.

Automatic Sugar Salt Doypack Pouch Packing Machine

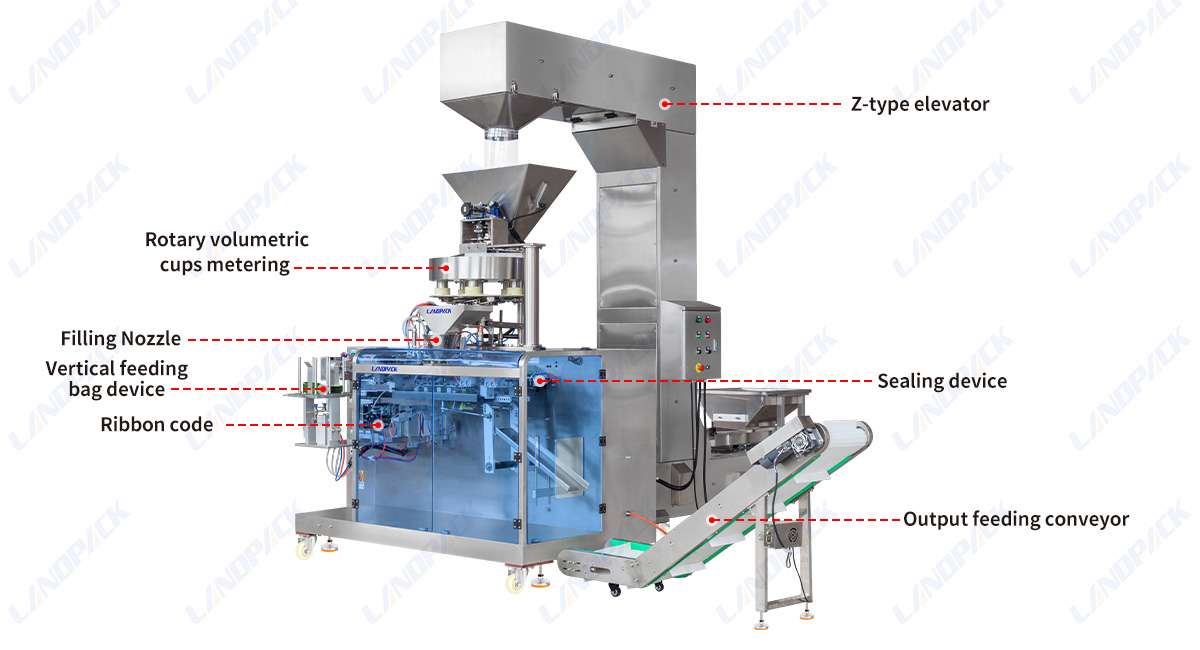

WORKFLOW

1.Automatic Z‑type Feed

2.Bag Feeding

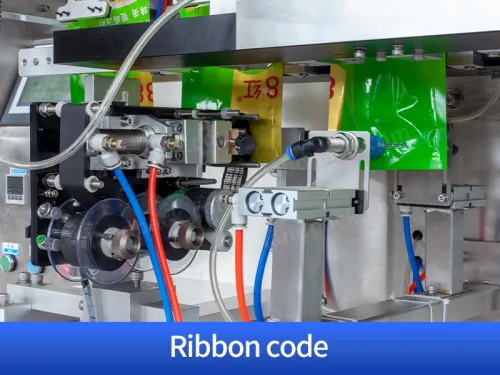

3.Ribbon Code

4.Zipper / Bag Opening

5.Metering & Filling

6.Dual Sealing

7.Finished Product Conveyor

PARAMETER

Type	LDSP-160	LDSP-160Y	LDSP-210	LDSP-260
Bag Type	3-side, 4 side sealing bag, Doypack, Box Pouch, Zipper Pouch, Stand Up Pouch, Stand Up Pouch With Hole, Kraft Paper Bag, Side Gusset Bag etc.
Bag Size	110-230mm80-160mm(LW)	70-100mm110-230(LW)	100-210mm/110-320mm（L*W）	100-260mm/110-320mm（L*W）
Filling Range	10g-100g	10g-100g	10g-1kg	10g-3kg
Packing Speed	20-45bags/min(speed is determined by the product filling quantity)	25-50bags/min(speed is determined by the product filling quantity)	20-50bags/min (speed is determined by the product filling quantity)	20-50bags/min (speed is determined by the product filling quantity)
Machine weight	800KG	800KG	900KG	1000KG
Total Power	2.0KW	2.0KW	2.0KW	2.0KW
Work Flow	1.Giving bag 2. Pick up the bag(coding) 3.Open the bag up and down 4.Filling 5.Heating sealing 6.Output of product
Dimensions	1750mm X 1285mm X 1360mm(LWH)		2140mm X 1366mm X 1360mm(LWH)	2140mm X 1366mm X 1360mm(LWH)
Collocation	Screw metering,screw elevator
