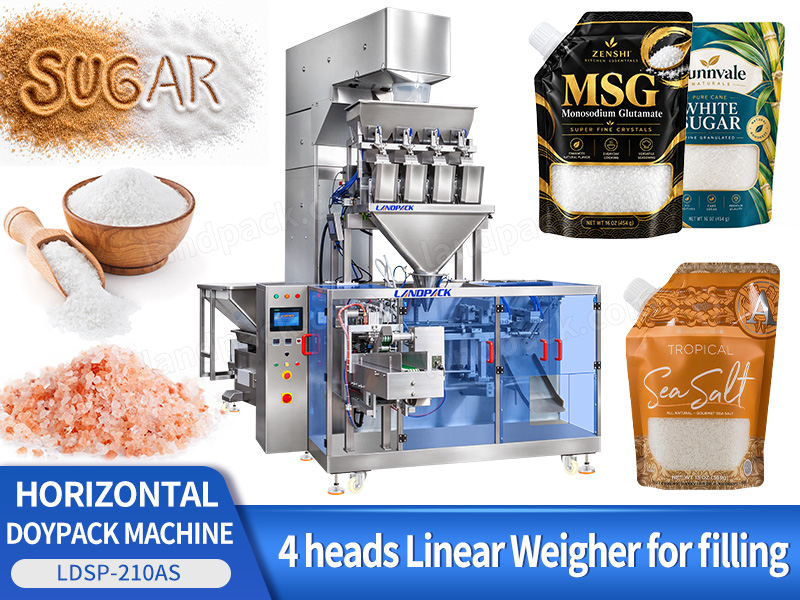

Automatic Salt Packing Machine Spout Pouch Packing Machine with Linear Weigher

Introduction:

Automatic salt spout pouch packing machine with 4-head linear weigher, Z-type elevator, automatic pouch feeding, filling, date coding and sealing.

Application:

Automatic Horizontal Premade Pouch Packing Machine is designed for packaging salt, sugar, monosodium glutamate (MSG), seasoning granules and other free-flowing granular products.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail Get Price

Benefits & Features

Technical Parameters

VIDEOS

Application

It can be used in salt processing, food seasoning, sugar production and granular ingredient packaging lines where automatic weighing, pouch feeding, filling and sealing are required. Such as table salt, sea salt, Himalayan pink salt, white sugar, monosodium glutamate, rock salt, brown sugar, chicken seasoning granules, coarse salt, crystal sugar, refined salt, vegetable seasoning granules, raw cane sugar, soup seasoning granules, citric acid granules and other crystalline food ingredients.

Automatic Salt Packing Machine Spout Pouch Packing Machine with Linear Weigher

Package Type:

Suitable for premade spout pouches with different pouch sizes and filling weights for salt, sugar, MSG and other free-flowing granular products.

FEATURES

1. SS316 stainless steel product contact parts provide corrosion resistance for salt and other granular food products.

2. Z-type elevator automatically transfers granular materials to the weighing system for continuous feeding.

3. Four-head linear weigher measures granular products with adjustable filling weights.

4. Horizontal premade pouch packing system automatically completes bag feeding, date coding, pouch opening, filling and sealing.

5. Supports different premade spout pouch sizes and filling weights according to packaging requirements.

6. Integrated control panel allows operators to adjust packaging settings and monitor machine operation.

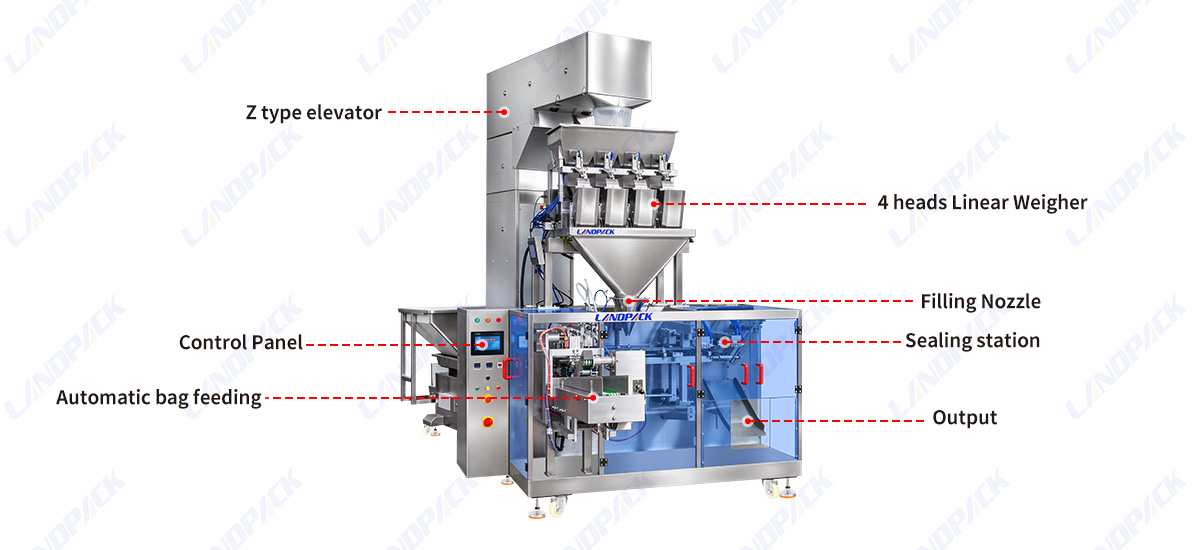

Machine Structure Overview:

Automatic Salt Packing Machine Spout Pouch Packing Machine with Linear Weigher

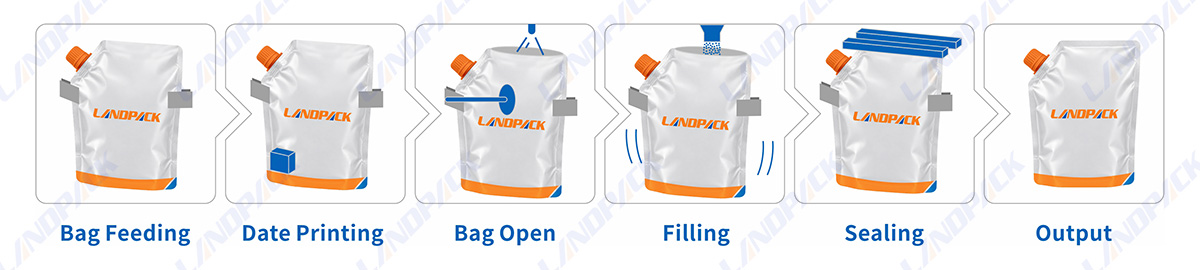

WORKFLOW

Z-Type Elevator

4-Head Linear Weigher

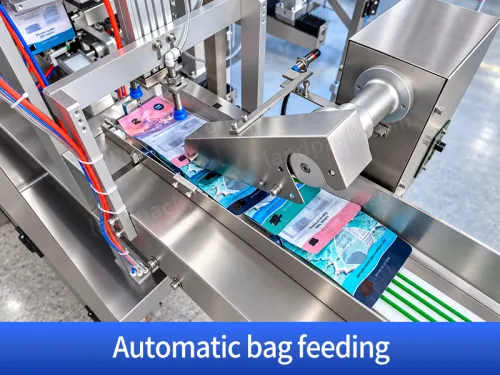

Automatic Bag Feeding

Date Printing

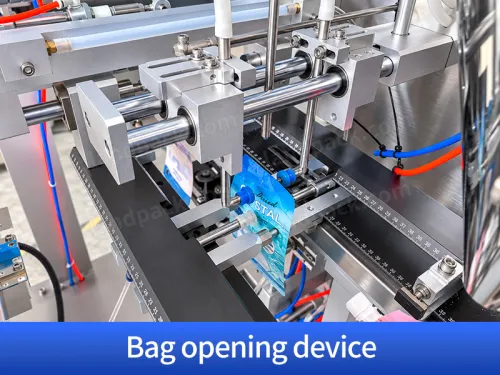

Bag Opening

Automatic Filling

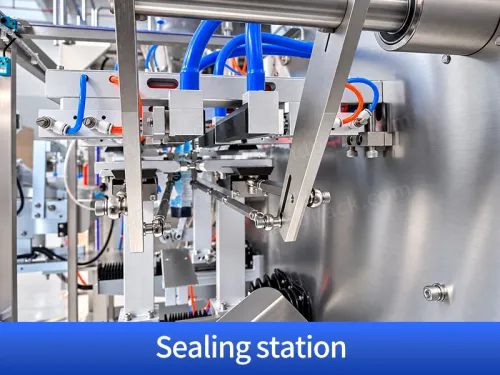

Heat Sealing

Finished Product Output

PARAMETER

Type	LDSP-160	LDSP-160Y	LDSP-210	LDSP-260
Bag Type	3-side, 4 side sealing bag, stand-up bag, handbag, spout bags, zipper bag, compound bag, etc.
Bag Size	110-230mm80-160mm(LW)	70-100mm110-230(LW)	100-210mm/110-320mm（L*W）	100-260mm/110-320mm（L*W）
Filling Range	10g-100g	10g-100g	10g-1kg	10g-3kg
Packing Speed	20-45 bags/min	25-50 bags/min	20-50 bags/min	20-50 bags/min
Machine weight	800KG	800KG	900KG	1000KG
Total Power	2.0KW	2.0KW	2.0KW	2.0KW
Work Flow	1. Giving bag, 2. Pick up the bag(coding), 3. Open the bag up and down, 4. Filling, 5. Heating sealing, 6. Output of the product
Dimensions	175012851360mm(LWH)		214013661360mm(LWH)	214013661360mm(LWH)
Collocation	Screw metering, screw elevator

After receiving your inquiry,We will send you the quotation as soon as possible.
