High Accuracy Stand Up Doypack Packing Machine Rotary Packaging Machine

Introduction:

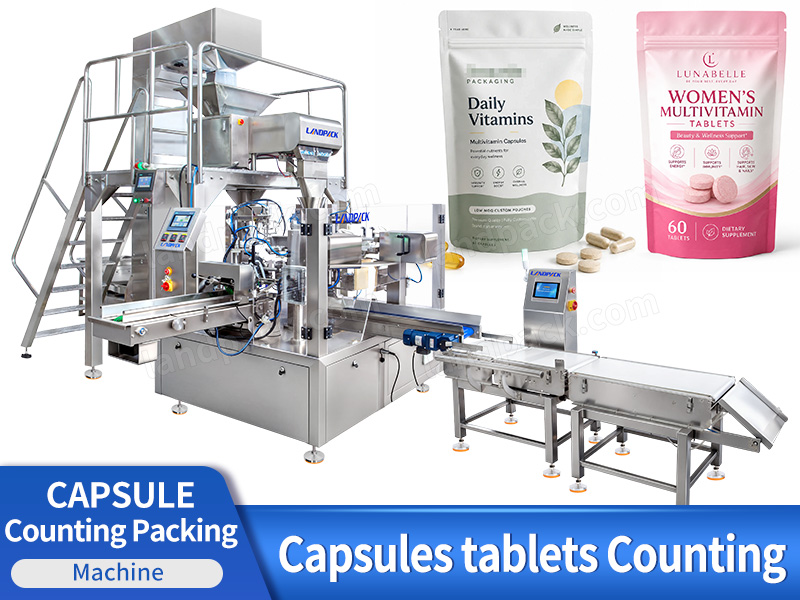

The automatic premade pouch packing line integrates an eight-station pouch packing machine, 16-channel counting machine, Z-type elevator and checkweigher. It can automatically complete capsule feeding, counting, filling, pouch opening, sealing and weight inspection.

Application:

This machis is suitable for capsules, tablets, coated tablets, effervescent tablets and healthcare medicines, Vitamin capsules, fish oil softgels, probiotics, collagen tablets and dietary supplements, Candy tablets, mint tablets, chewing tablets and functional food products.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

The Capsule Counting Packaging Machine For Premade Pouch is suitable for Capsules, tablets, coated tablets, effervescent tablets and healthcare medicines, Vitamin capsules, fish oil softgels, probiotics, collagen tablets and dietary supplements, Candy tablets, mint tablets, chewing tablets and functional food products.

High Accuracy Stand Up Doypack Packing Machine Rotary Packaging Machine

Package Type:

The Capsule Counting Packaging Machine supports various premade pouch types, including stand-up pouches, zipper pouches, doypack, premade pouches, spout pouches, and customized premade bags.

FEATURES

1. SUS304 stainless steel construction, fully compliant with GMP requirements.

2. Customized 16-channel counting system ensures high counting accuracy for tablets and capsules.

3. Siemens PLC and touch screen control for easy operation and stable performance.

4. One-touch bag width adjustment, supporting premade pouches up to 230mm wide.

5. Automatic zipper pouch opening with top and bottom vacuum suction cups.

6. Intelligent "No Bag Open, No Fill" function reduces product waste.

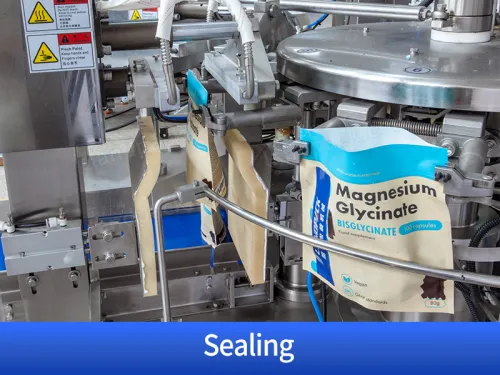

7. Vibration settling, product pressing and double sealing ensure neat and secure pouch sealing.

8. Integrated check weigher verifies finished pouch weight for consistent packaging quality.

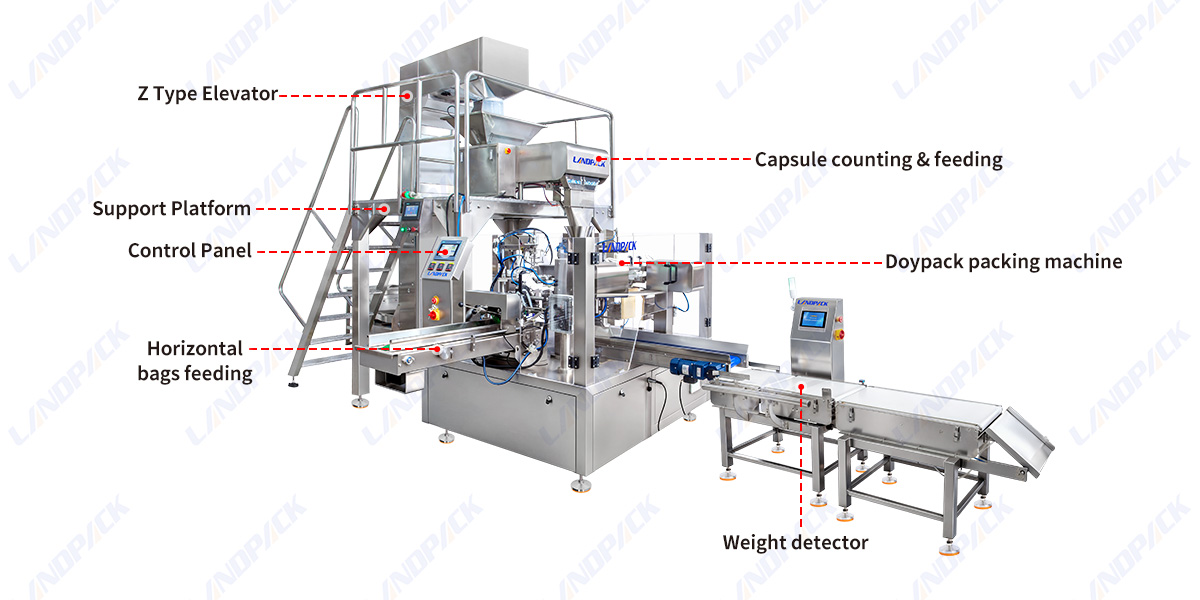

Machine Structure Overview:

1. Z Type Elevator 2. Support Platform 3. Control Panel 4. Horizontal Bags Feeding 5. Capsule Counting & Feeding 6. Doypack Packing Machine 7. Weight Detector

High Accuracy Stand Up Doypack Packing Machine Rotary Packaging Machine

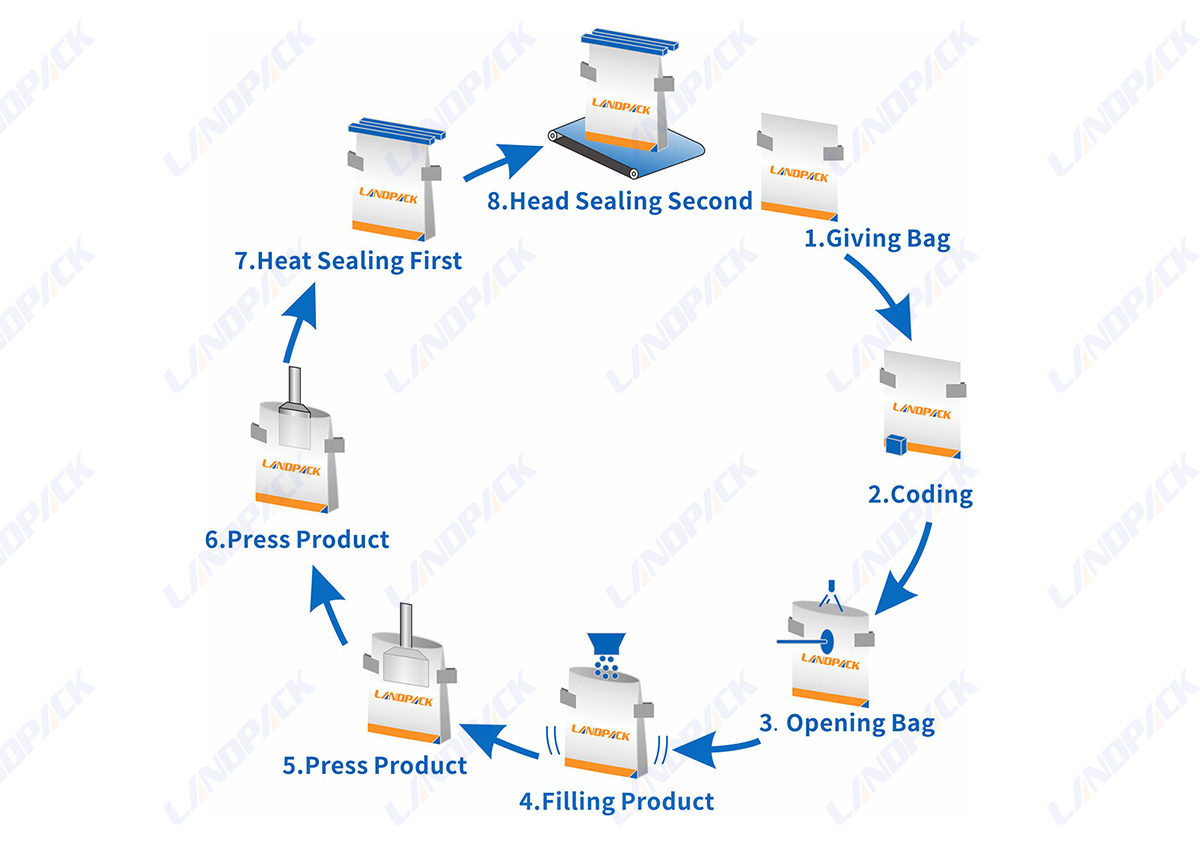

WORKFLOW

Material Feeding

Capsule Counting

Pouch Feeding

Pouch Opening

Product Filling

Heat Sealing

Weight Inspection

Finished Product Discharge

PARAMETER

Type	LD-8230	LD-8260	LD-8300	LD-8400
Bag Type	3-side, 4 side sealing bag, doypack, box pouch, zipper pouch, stand up pouch, side gusset bag, etc.
Bag Size	150-380mm80-230mm (LW)	150-380mm/140-260mm (L*W)	150-430mm/180-300mm (L*W)	200-500mm/270-400mm (L*W)
Filling Range	10g-1000g	1500g	2000g	3000g
Packing Speed	20-60 bags/min	20-50 bags/min	10-40 bags/min	10-25 bags/min
Voltage	Standard AC380V+10%, three-phase 50HZ;
Total Power	3.75KW	3.75KW	3.85KW	4.5KW
Air Consumption	0.4m³/min
Dimensions	174013801450mm(LWH)		246018301460mm(LWH)	226022001520mm(LWH)
Machine Weight	1300KG	1300KG	1700KG	2000KG
