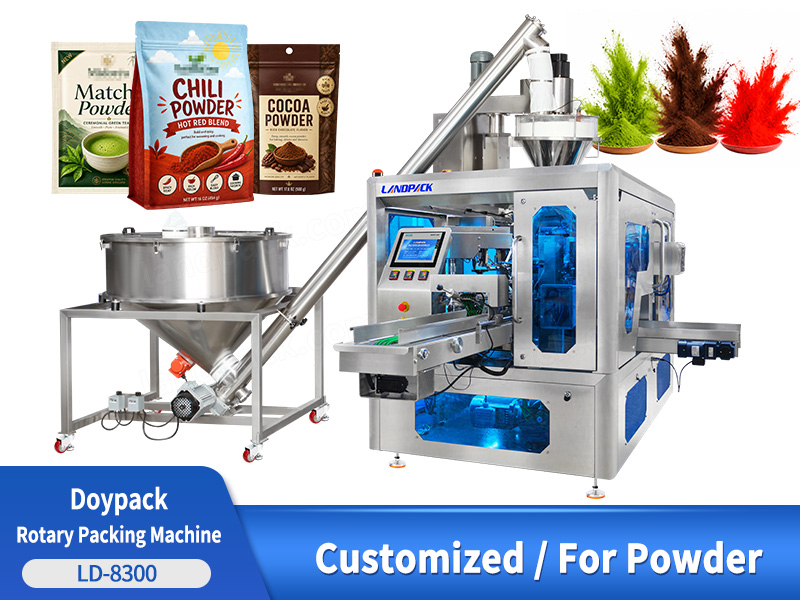

Automatic Stand Pouch Packing Machine Powder Doypack Filling and Sealing Machine

Introduction:

It automatically completes powder feeding, pouch picking, opening, accurate dosing, filling and sealing. The machine supports various premade pouches and provides stable packaging for fine and free-flowing powder products.

Application:

Suitable for matcha powder, chili powder, cocoa powder, curry powder, lemon powder, milk powder, coffee powder, protein powder, seasoning powder, nutritional powder and other powdered products.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

This automatic zipper pouch packing machine is designed for filling and sealing premade pouches with milk powder, coffee powder, protein powder, cocoa powder, flour, spices, seasonings, collagen powder, probiotics, meal replacement blends, nutritional supplements and other fine powder products.

Automatic Stand Pouch Packing Machine Powder Doypack Filling and Sealing Machine

Package Type:

The Zipper Pouch Packing Machine is suitable for stand-up pouch, zipper pouches, Doypack bags, flat pouches, aluminum foil bags, kraft paper pouches, side gusset bags and customized premade pouch types.

FEATURES

1. Customized premium machine cover design delivers a modern appearance and enhanced equipment protection.

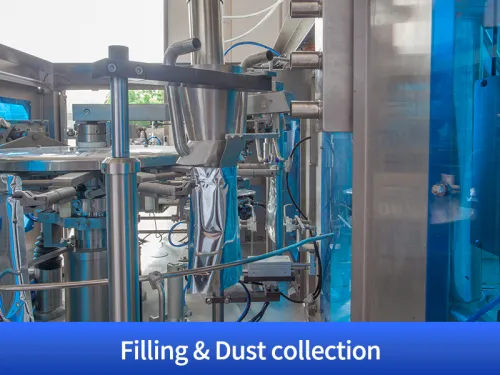

2. Integrated dust collection system reduces airborne powder and improves workshop cleanliness.

3. Brush cleaning device automatically removes powder residue from pouch openings for better sealing quality.

4. Servo-driven auger filling system ensures accurate powder dosing and stable filling performance.

5. Fully enclosed filling structure minimizes powder leakage and reduces material waste.

6. SUS304 stainless steel contact parts meet food-grade and pharmaceutical hygiene requirements.

7. Lightweight hollow-shaft screw conveyor design improves feeding efficiency and simplifies maintenance.

8. Vacuum dust extraction improves packaging accuracy, extends equipment lifespan and lowers maintenance costs.

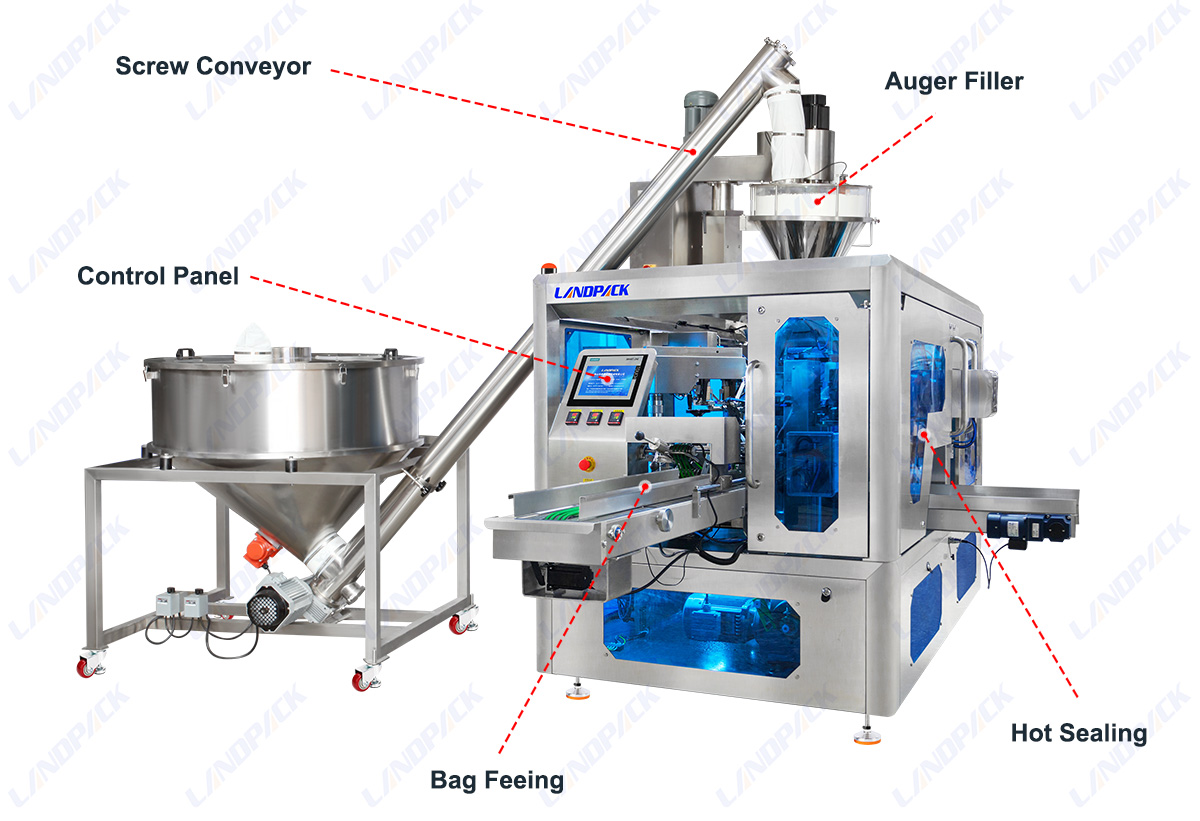

Machine Structure Overview:

Automatic Stand Pouch Packing Machine Powder Doypack Filling and Sealing Machine

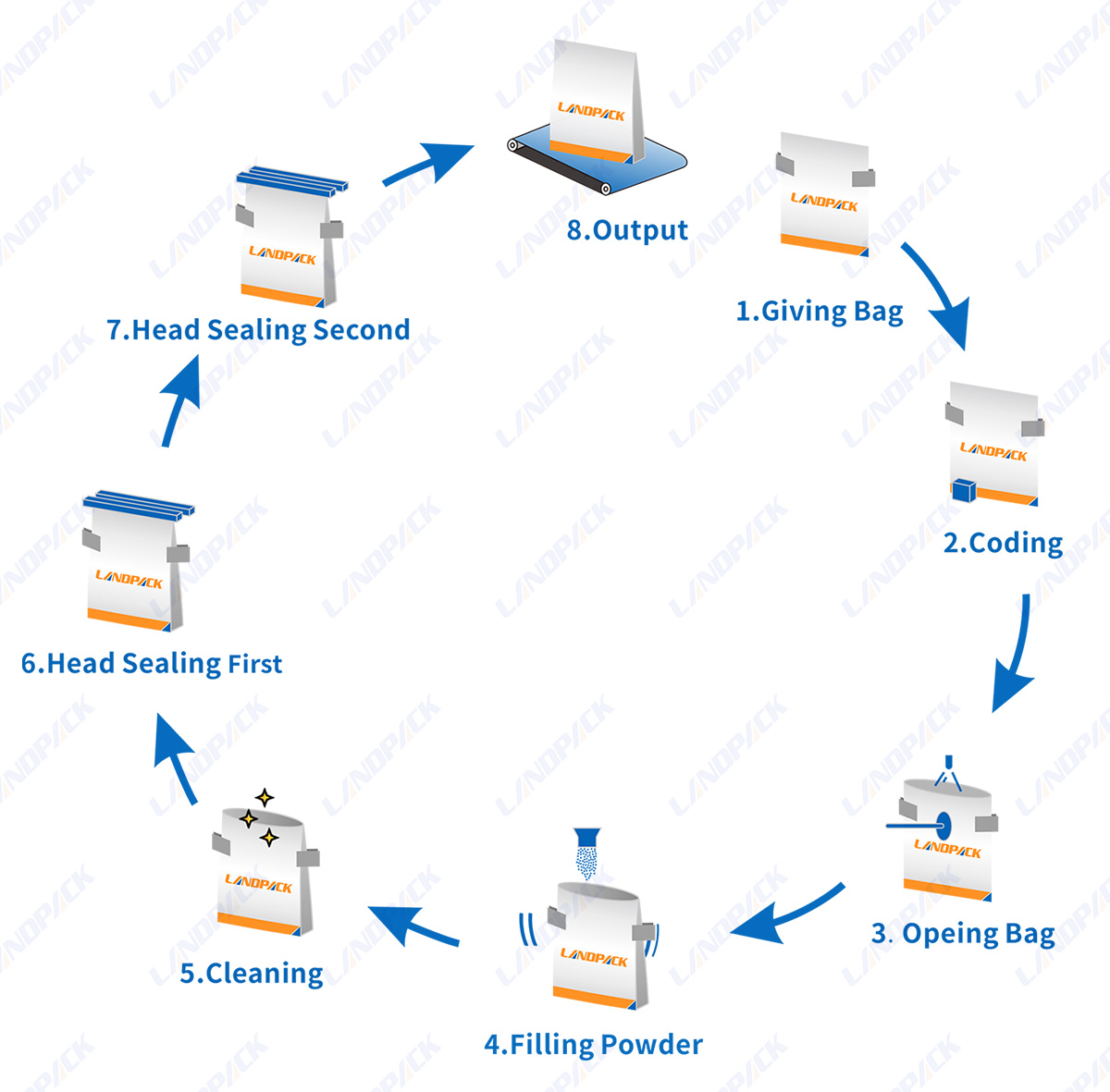

WORKFLOW

Powder Feeding

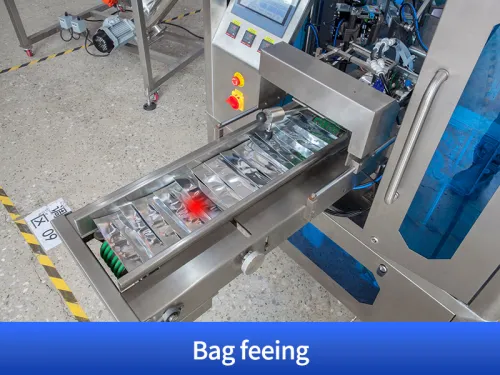

Pouch Feeding

Pouch Opening

Zipper Opening

Powder Filling

Bag Shaping

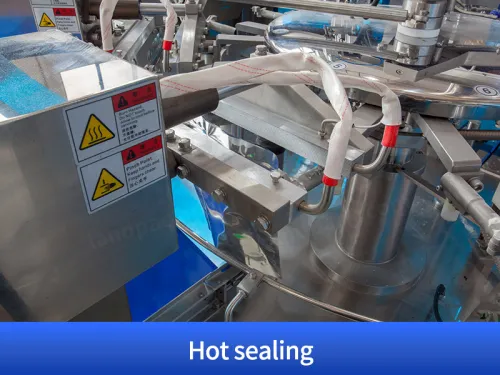

Heat Sealing

Finished Product Output

PARAMETER

Type	LD-8230	LD-8260	LD-8300	LD-8400
Bag Type	3-side, 4 side sealing bag, doypack, box pouch, zipper pouch, stand up pouch, side gusset bag, etc.
Bag Size	150-380mm80-230mm (LW)	150-380mm/140-260mm (L*W)	150-430mm/180-300mm (L*W)	200-500mm/270-400mm (L*W)
Filling Range	10g-1000g	1500g	2000g	3000g
Packing Speed	20-60 bags/min	20-50 bags/min	10-40 bags/min	10-25 bags/min
Voltage	Standard AC380V+10%, three-phase 50HZ;
Total Power	3.75KW	3.75KW	3.85KW	4.5KW
Air Consumption	0.4m³/min

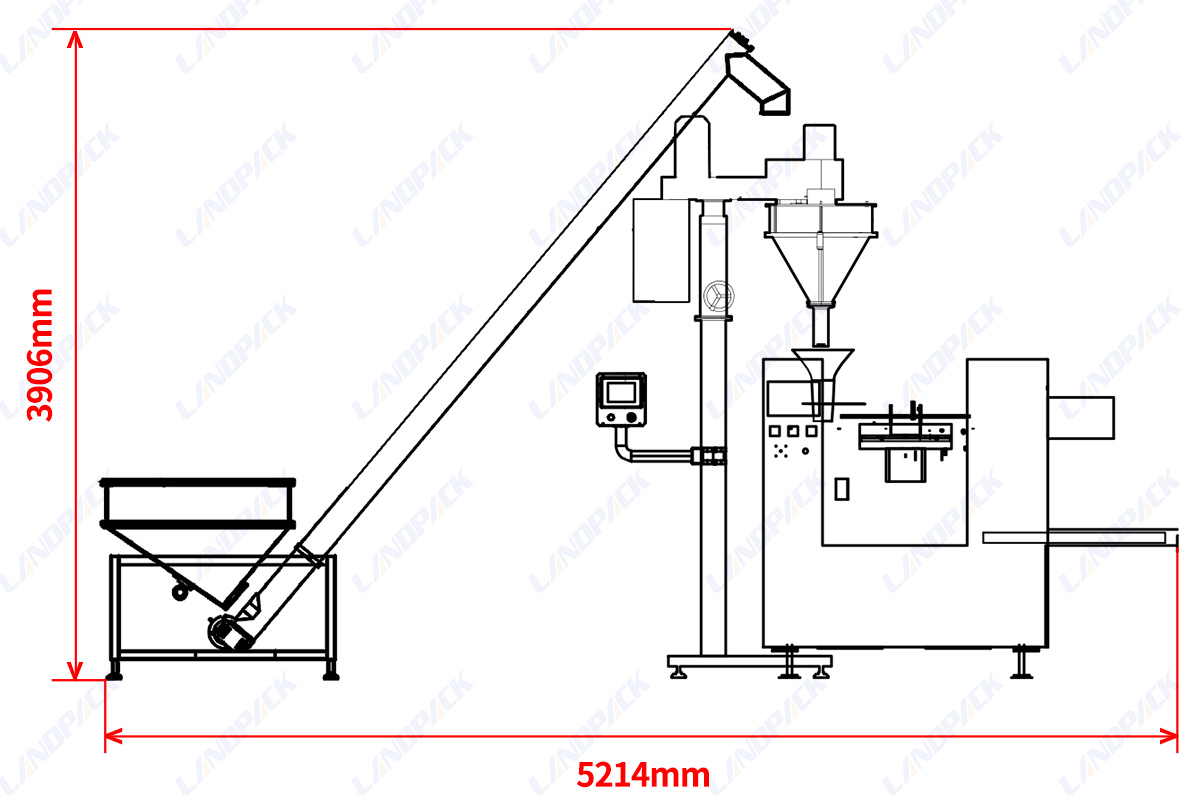

Dimensions	174013801450mm(LWH)		246018301460mm(LWH)	226022001520mm(LWH)
Machine Weight	1300KG	1300KG	1700KG	2000KG
