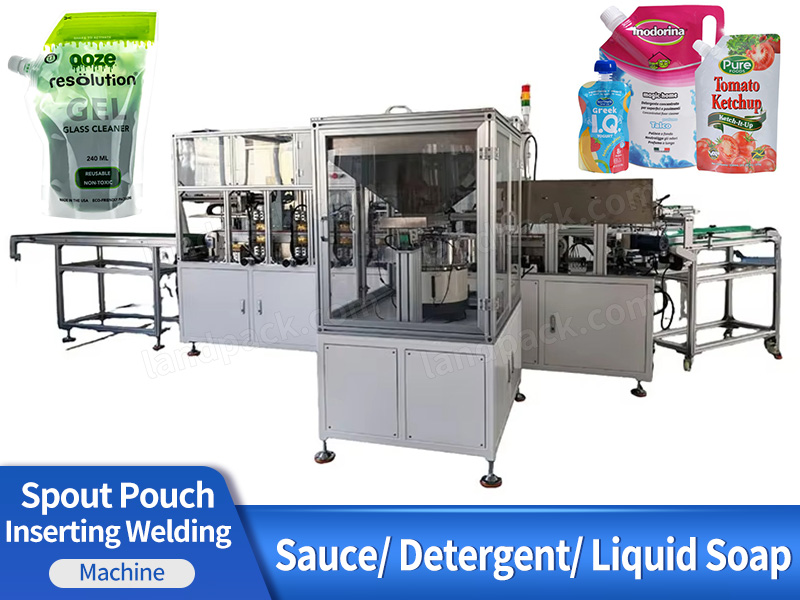

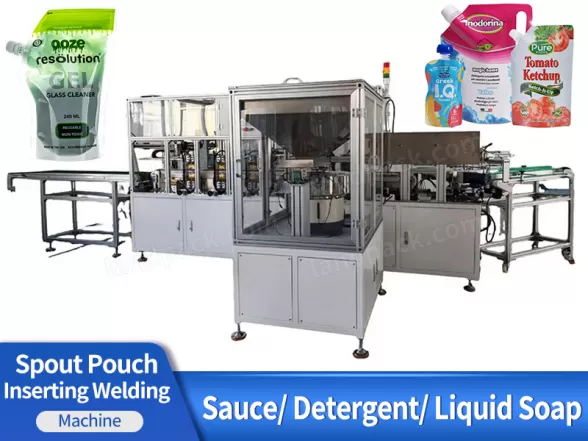

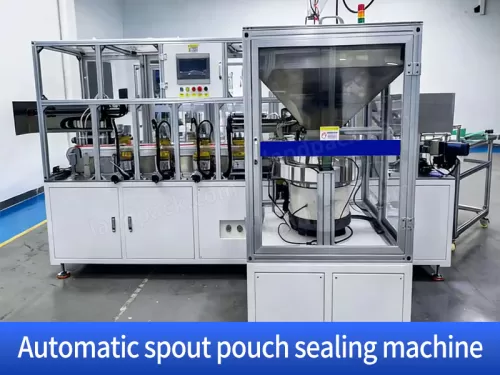

Automatic Spout Sealing Machine for Juice / ketchup / jam

Introduction:

Spout pouch inserting and sealing machine for automatic welding of plastic nozzles onto flexible packaging. Designed for food, cosmetic, and chemical liquid pouch production with stable heat sealing performance.

Application:

Suitable for food, daily chemical, cosmetic, and chemical liquid packaging with adjustable temperature and pressure control.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

This spout inserting and sealing machine is suitable for attaching plastic spouts to flexible pouches used for liquid and semi-liquid products. It supports a wide range of packaging applications. Such as sauce, dairy products, beverages, puree, liquid condiments, cleaning liquids, detergents, dishwashing Liquid, shampoo, conditioner, skincare liquids, liquid medicine, disinfectants.

Automatic Spout Sealing Machine for Juice / ketchup / jam

Package Type:

Spout welding for pre-made pouches with heat sealing method, supporting different pouch formats and spout positions.

FEATURES

1. Automatic pouch feeding and positioning system improves line efficiency.

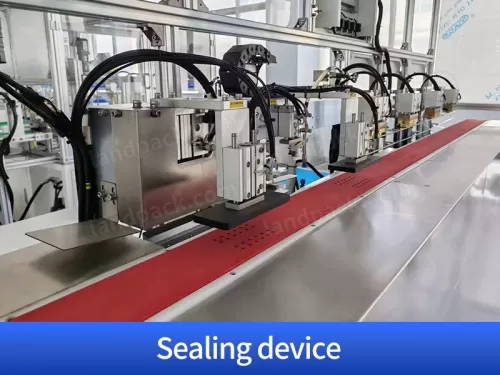

2. Heat sealing system applies controlled temperature and pressure for bonding.

3. Multi-station design allows sequential processing (insertion, sealing, cooling).

4. Pneumatic actuation ensures repeatable sealing force.

5. Digital control panel enables precise adjustment of sealing parameters.

6. Quick changeover for different pouch sizes and spout specifications.

7. Conveyor output supports integration with filling or cartoning lines.

8. Stable structure suitable for continuous operation.

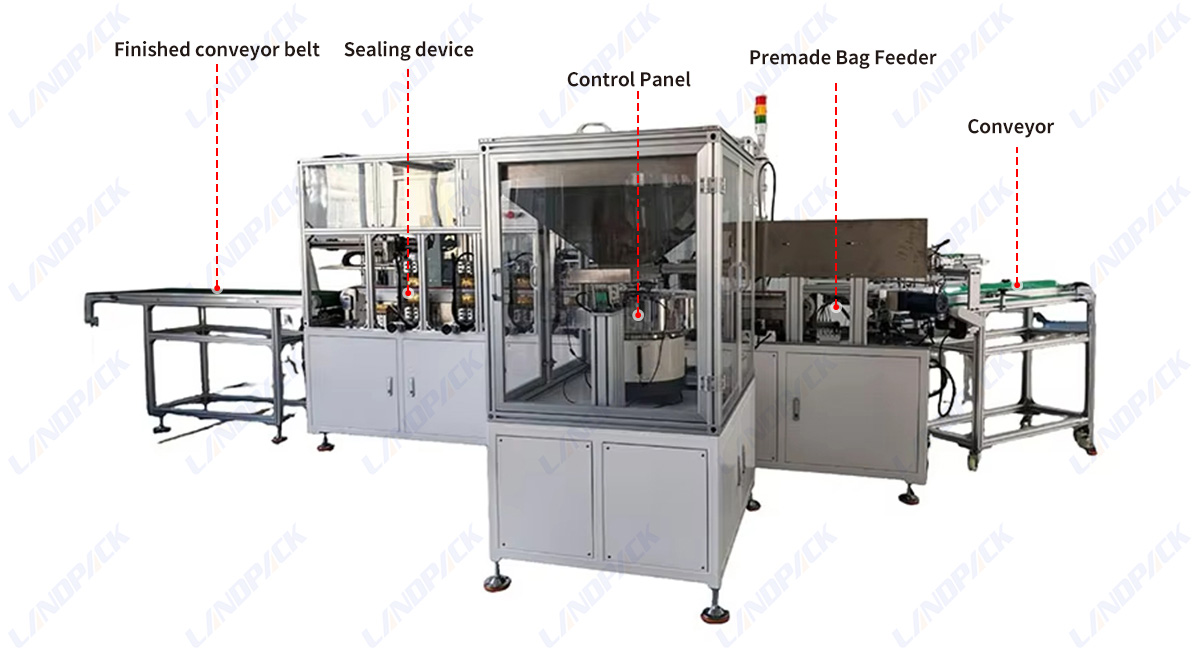

Machine Structure Overview:

1. Finished Conveyor Belt 2. Sealing Device 3. Control Panel 4. Premade Bag Feeder 5. Conveyor

Automatic Spout Sealing Machine for Juice / ketchup / jam

WORKFLOW

Bag Feeding

Inset Cap

Sealing

Output

PARAMETER

	Power	AC 220V, 50HZ
	Compressed air	0.5Mpa, 200NL/min
	Size	LWH 240018001800MM
	Number of workstations	7
	Station gap	250mm
	Weight	≈1000Kg
	Quick-wear part	Vacuum suction cup
	Pouch size	WL=(70~80)(100~260)MM
	Spout Size	Customized,Diameter ≤22mm, Length＜40mm
	Efficiency	1800-2000pcs/h
	Capacity	5.0KW
