Automatic Spout Pouch Filling Machine with Multi Head Linear Weigher

Introduction:

This machine is suitable for table salt and other free-flowing food granules packed in premade stand-up pouches, including pouches with corner spouts.

Application:

The horizontal packing machine completes pouch feeding, ribbon date coding, pouch opening, filling, heat sealing and finished pouch discharge.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail Get Price

Benefits & Features

Technical Parameters

VIDEOS

Application

It can be used in salt processing, sugar packaging and granular seasoning production lines that require automatic material feeding, weighing, pouch handling, date coding and sealing. Products include sea salt, rock salt, pink salt, iodized salt, white granulated sugar, caster sugar, raw cane sugar, brown sugar granules, monosodium glutamate, chicken bouillon granules, vegetable bouillon granules and granular seasoning blends, subject to product trials and pouch compatibility.

Automatic Spout Pouch Filling Machine with Multi Head Linear Weigher

Package Type:

Suitable for heat-sealable premade stand-up pouches, including corner-spout pouches filled through the open top and sealed above the filling area.

FEATURES

1. Product contact parts are made of 316 stainless steel for durability during salt handling.

2. A Z-type bucket elevator automatically transfers salt from the feed hopper to the weighing system.

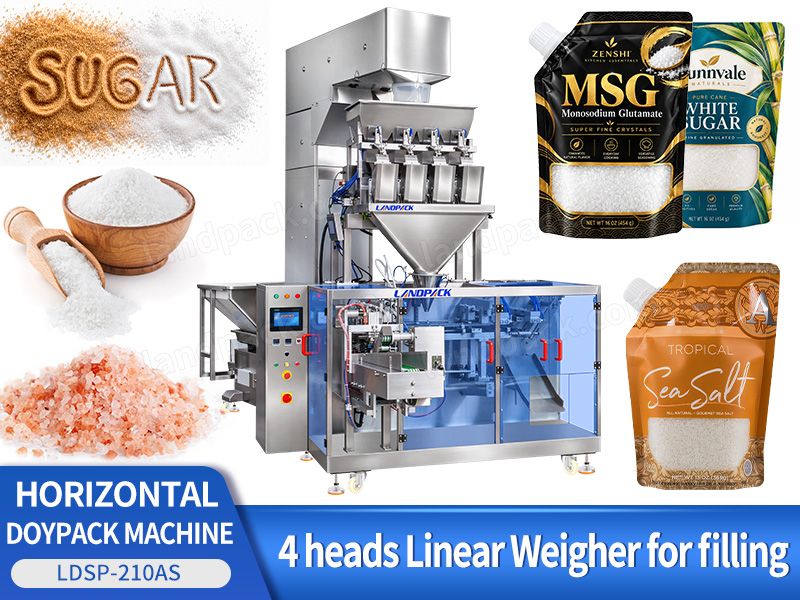

3. A four-head linear weigher measures product portions according to the selected target weight.

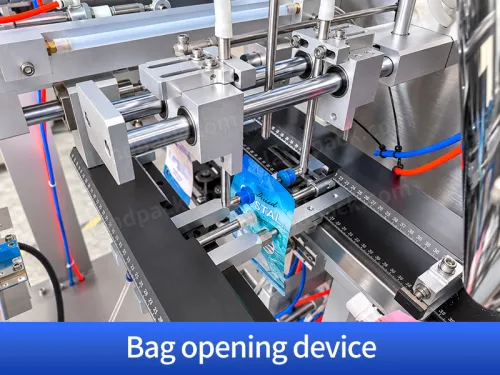

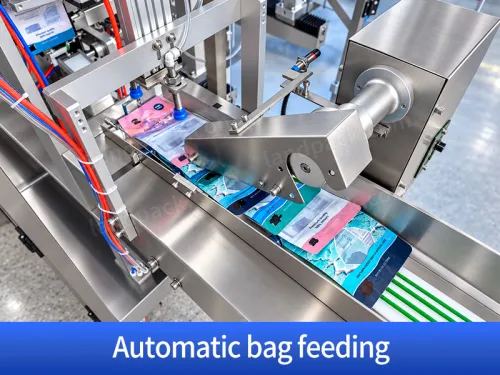

4. The horizontal packing machine integrates automatic pouch feeding, opening, filling, heat sealing and discharge.

5. A ribbon coding unit prints production dates or batch information on the pouches before filling.

6. Adjustable pouch handling and weighing settings accommodate different pouch formats and fill weights within the machine's operating range.

7. A touchscreen control panel provides a central interface for setting and monitoring packing operations.

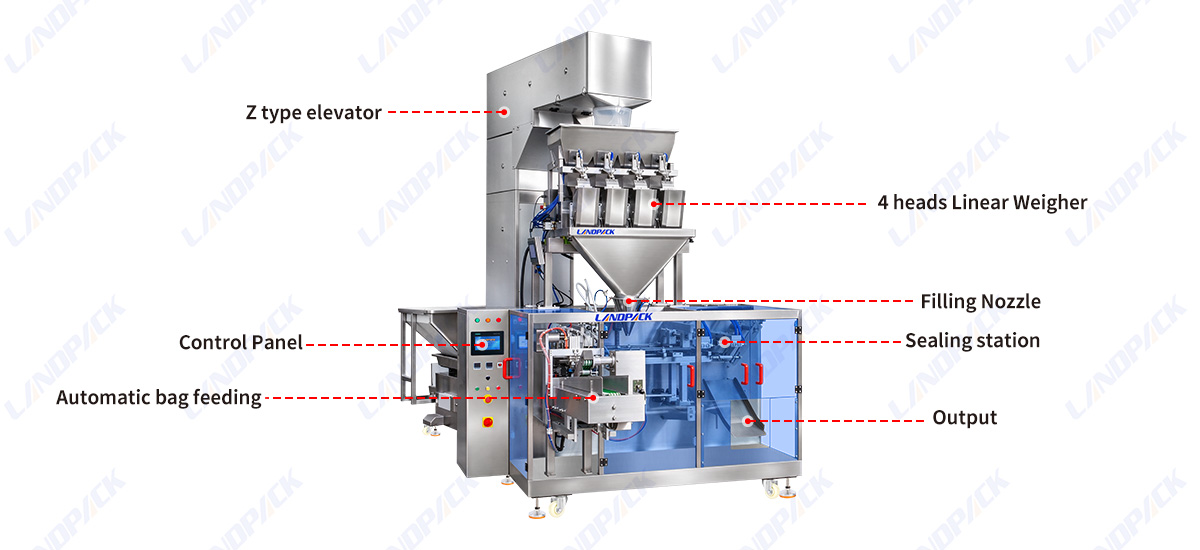

Machine Structure Overview:

Automatic Spout Pouch Filling Machine with Multi Head Linear Weigher

WORKFLOW

Salt Loading

Z-Type Bucket Elevating

Four-Head Linear Weighing

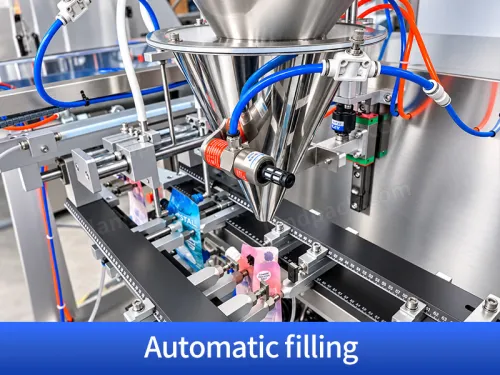

Discharge into the Filling Funnel

PARAMETER

Type	LDSP-160	LDSP-160Y	LDSP-210	LDSP-260
Bag Type	3-side, 4 side sealing bag, stand-up bag, handbag, spout bags, zipper bag, compound bag, etc.
Bag Size	110-230mm80-160mm(LW)	70-100mm110-230(LW)	100-210mm/110-320mm（L*W）	100-260mm/110-320mm（L*W）
Filling Range	10g-100g	10g-100g	10g-1kg	10g-3kg
Packing Speed	20-45 bags/min	25-50 bags/min	20-50 bags/min	20-50 bags/min
Machine weight	800KG	800KG	900KG	1000KG
Total Power	2.0KW	2.0KW	2.0KW	2.0KW

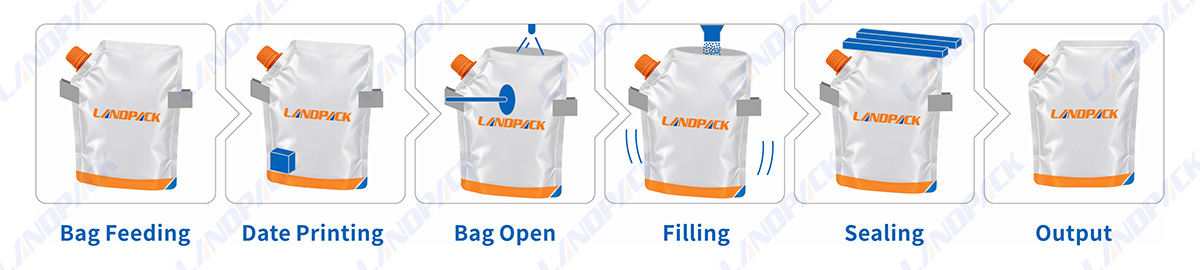

Work Flow	1. Giving bag, 2. Pick up the bag(coding), 3. Open the bag up and down, 4. Filling, 5. Heating sealing, 6. Output of the product
Dimensions	175012851360mm(LWH)		214013661360mm(LWH)	214013661360mm(LWH)
Collocation	Screw metering, screw elevator

After receiving your inquiry,We will send you the quotation as soon as possible.
