Spout Pouch Filling Machine | High Speed Liquid Filling and Capping Machine

Introduction:

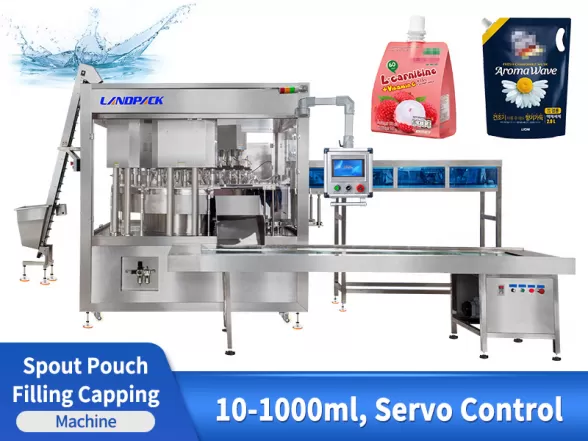

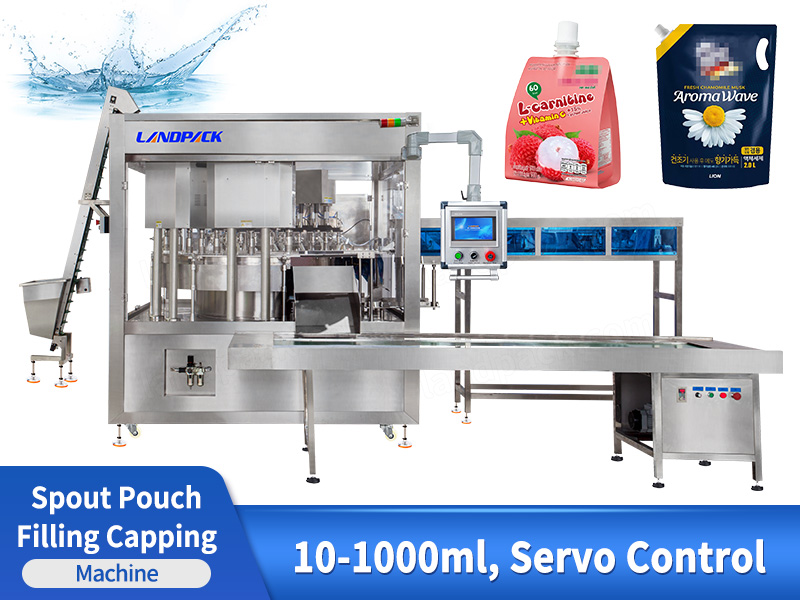

Landpack's spout pouch filling system provides a complete solution for filling and capping spout pouches. The rotary 10-head filler can meet your needs for high productivity and large-capacity pouch filling.

Application:

It is widely used for products like drinks, laundry detergent, soy milk, butter, puree, fruit juice, sauce, jelly, daily chemicals, ketchup, etc.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

This intelligent packaging equipment integrates fully automatic bag feeding, insertion systems, and smart detection technology, widely used in the food and household chemical industries. Its 316 stainless steel contact surface is perfectly suited for hygienic packaging of liquid foods like yogurt, juice, and soy milk, as well as household products such as laundry detergent and alcohol. The equipment can improve packaging efficiency by 30%, reduce material waste by 15%, and ensure product freshness, making it an ideal choice for modern production lines.

Packaging Type:

Spout pouch packaging machines are generally suitable for three types of pouches: stand-up pouches, flat pouches, and custom-shaped pouches. Based on the position of the spout, these pouches can be categorized into top spouts and side spouts.

Spout Pouch Filling Machine | High Speed Liquid Soap Filling and Capping Machine

Custom filling options for special products are available:

1. Mixing and blending multiple liquids

2. Hot-filling or retorting products

3. Liquids containing particles or viscous liquids

Operation

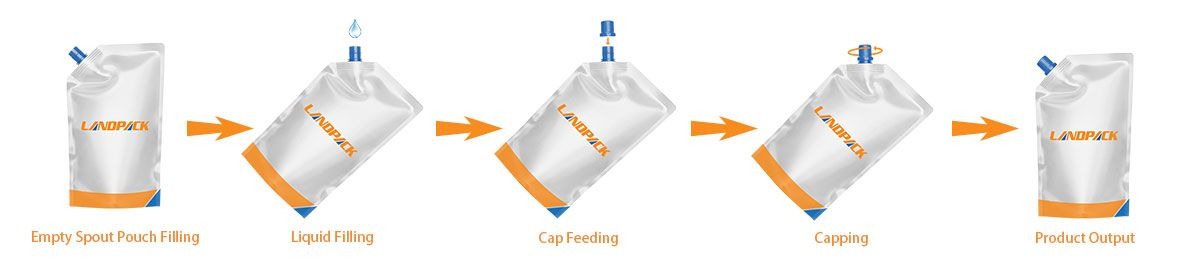

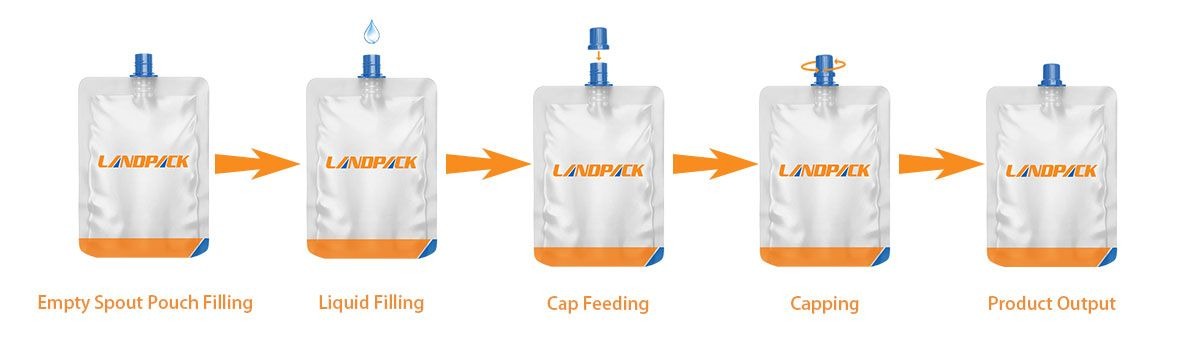

The operator places a magazine filled with uncapped spouted pouches into the machine’s infeed section. Once the system enters ready mode and both the magazine and caps are in place, the automatic filling process begins.

The machine is equipped with a 300L liquid storage tank. When sensors detect the spouted pouch, the 10 filling nozzles descend and accurately dispense the product through the spout. During this movement, the filled pouch is matched with a cap from the feeding rail, then transferred to the next station, where the torque unit lowers and securely tightens the cap onto the pouch.

In the final rotation, the sealed pouch is released from its holder and guided onto the output conveyor.

Spout Pouch Filling Machine | High Speed Liquid Soap Filling and Capping Machine

FEATURES

10-Head Spout Pouch Filling & Capping Machine Integrates filling and capping in a single unit, offering high speed and safety.
	Servo-Controlled Gear Pump Filling Each nozzle is individually driven by a servo motor with gear pump technology, ensuring high precision and consistent filling volumes.
High-Speed Performance Achieves an overall output of 80–100 bags per minute with all 10 heads in operation.
	User-friendly Control Simple setup process, interactive on-screen instructions, and a vivid full-color touchscreen with clear icons make operation straightforward. The integrated industrial PC enables quick parameter adjustments, personalized presets, and convenient local language settings for smooth, efficient use.
Maintenance Made Simple * Manules / Videos of machine installation, adjusting, setting, maintenance are available for you. * Service interval tracking tailored to machine usage * Comprehensive self-diagnostics and fault monitoring * Customizable access rights for individual controls * Easily replaceable sensors with plug-and-play connectors

Machine Key Components:
* Cap Elevator – Lifts caps from hopper to capping.
* Dust Cover: Protects internals and product from contamination.
* Filling Nozzle: Precisely dispenses liquid/paste into pouches.
* Control Panel: Touchscreen interface for setup, adjustment, and monitoring.
* Pouch Feeding Structure: Guides empty pouches into position for filling.
* Finished Product Conveyor: Transfers filled & capped pouches to next stage.

Spout Pouch Filling Machine | High Speed Liquid Soap Filling and Capping Machine

WORKFLOW

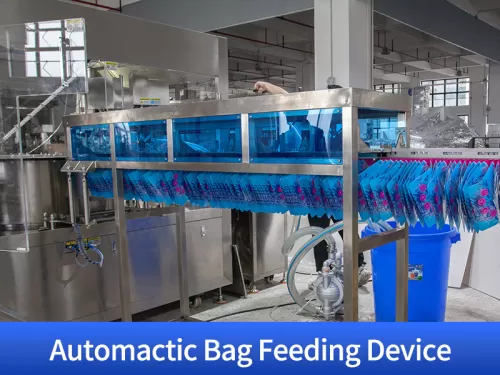

1.Automatic Bag Feeding Device:

2. Diaphragm Pump Automatic Loading Liquid

3. 300L Custom-made Feeding Hopper

4. 10 Heads Gear Pump Filling

5. Automatic Cap Lifting and Vibrator Cap Feeding Machine

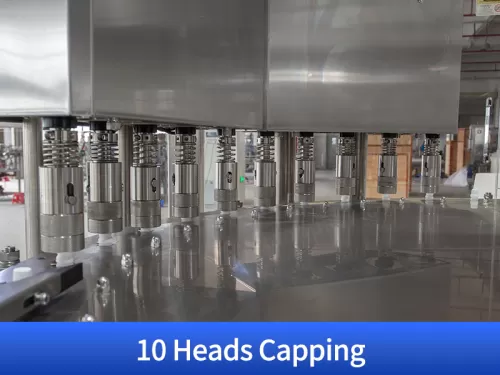

6. 10 Heads Capping

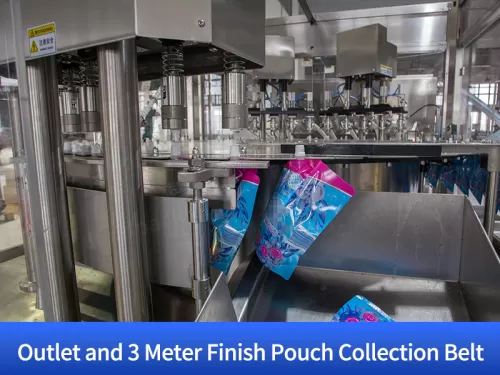

7. Outlet and 3 Meter Finish Pouch Collection Belt

PARAMETER

Model	LF-XZD1T	LF-XZD2T	LF-XZD4T	LF-XZD6T	LF-XZD10T
Filling Head	1	2	4	6	10
Voltage	220V/110V, 50-60Hz
Power	1KW	3KW	3KW	3KW	3KW
Filling Speed	1200 bph	1500-2100 bph	3300-3900 bph	4500-6000 bph	4800-6000 bph
Filling Range	10-300ml	30-2000ml	100-500ml	10-350 ml	50-2000ml
Filling Accuracy	±1%
Air Pressure	0.4-0.7MPa	0.4-0.7MPa	0.8Mpa	0.8Mpa	0.5-0.8Mpa
Machine Weight	300kg	260KG	2600kg	2500kg	700KG
Machine Size	150012001200mm	250022001900mm	140012301900mm	245019002200mm	245019002200mm
