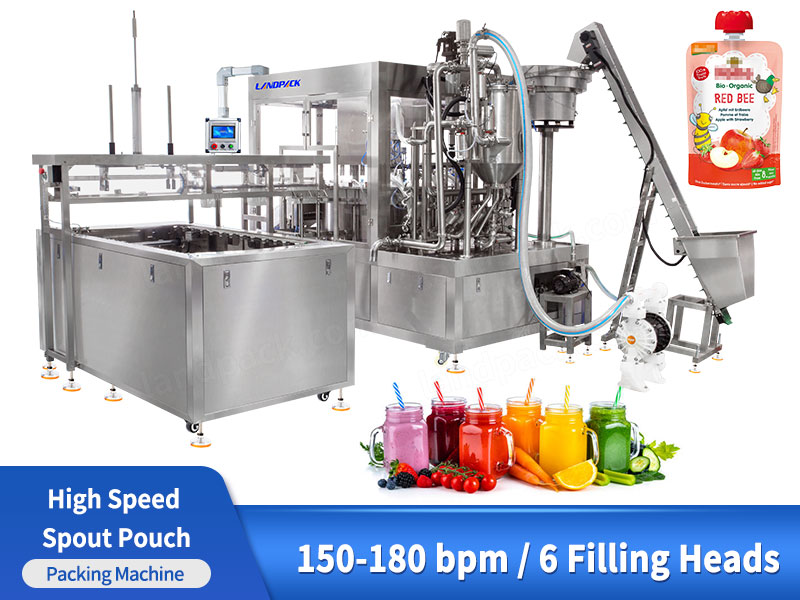

Spout Pouch Filling Capping Machine With CIP and Pouch Feeding System

Introduction:

This food-grade six-head spout pouch filling and capping machine features CIP cleaning and an automatic pouch feeding system.

Application:

Designed for efficient filling of jelly, sauces, fruit juice, and other liquid or semi-liquid products into spout pouches, it delivers stable output, precise filling, and hygienic operation for modern liquid packaging lines.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

This six-head spout pouch filling machine is engineered for hygienic and continuous liquid packaging. Equipped with an automatic pouch feeding system and integrated CIP cleaning function, it allows fast product changeover and easy internal cleaning.

Package Type:

Engineered for maximum flexibility, this spout-filling and capping system accommodates a broad range of flexible packaging formats. It seamlessly handles side, corner, and center-spout designs, as well as customized spouted pouch configurations, meeting the diverse needs of multiple industrial sectors.

Spout Pouch Filling Capping Machine With CIP and Pouch Feeding System

Suitable Products:

This spout pouch filling and capping machine is designed to handle a wide range of liquid and semi-liquid products with different viscosities. With automatic pouch loading, precise filling control, and CIP cleaning, it supports clean production, consistent quality, and flexible packaging needs across food, daily chemical, and industrial liquid processing environments.

Food & Beverage: Fruit juice, jelly & pudding, sauce & ketchup, yogurt drinks, honey & syrup, concentrated beverages

Daily Chemicals & Personal Care: Liquid detergent, hand soap, shampoo, shower gel,hair conditioner, cosmetic gels

Industrial & Chemical Liquids: Lubricants, agricultural liquids, chemical additives, industrial gels, functional liquids

Spout Pouch Filling Capping Machine With CIP and Pouch Feeding System

FEATURES

1. Sanitary Build: Constructed from SS316 stainless steel to meet the most stringent hygiene requirements.

2. CIP-Ready System: Features a Clean-In-Place architecture for thorough, streamlined sterilization.

3. High-Speed Output: Achieves rapid throughput of 150–180 pouches/min.

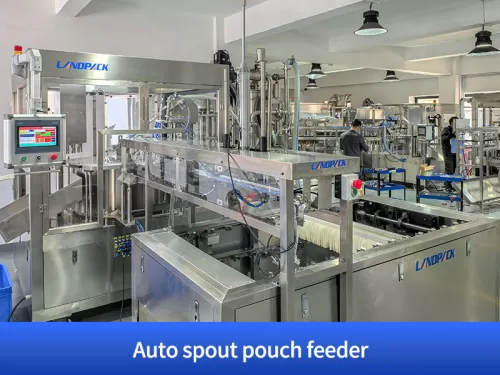

4. Autonomous Infeed: Fully automated pouch loading significantly minimizes manual labor.

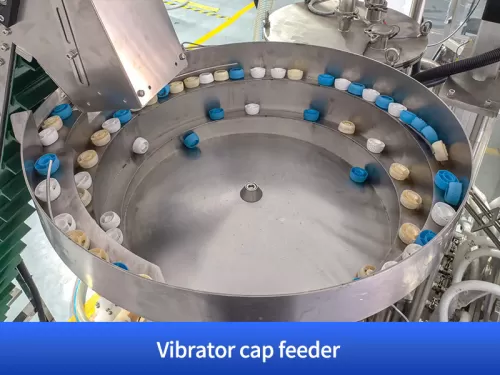

5. Automated Cap Supply: Equipped with a vibratory feeder and cap elevator for continuous delivery.

6. Advanced Filling Nozzles: Includes dedicated CIP connections for integrated cleaning cycles.

7. Spout Sanitization: Post-fill rinsing ensures a residue-free finish and superior product safety.

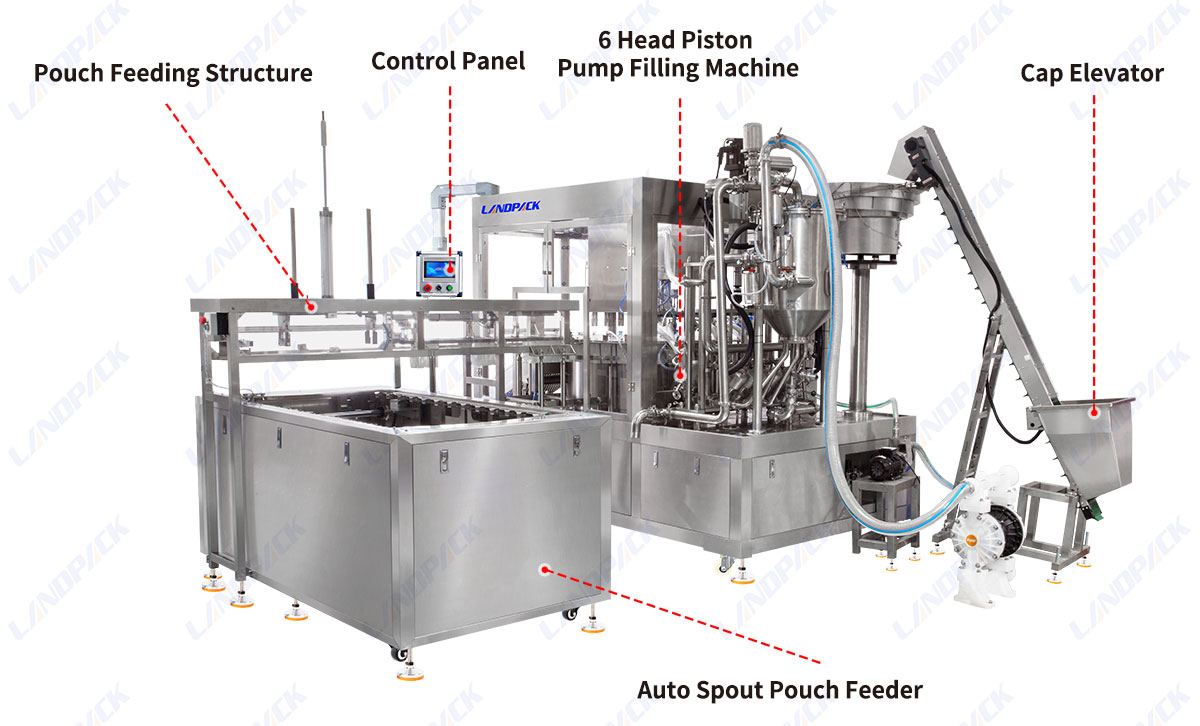

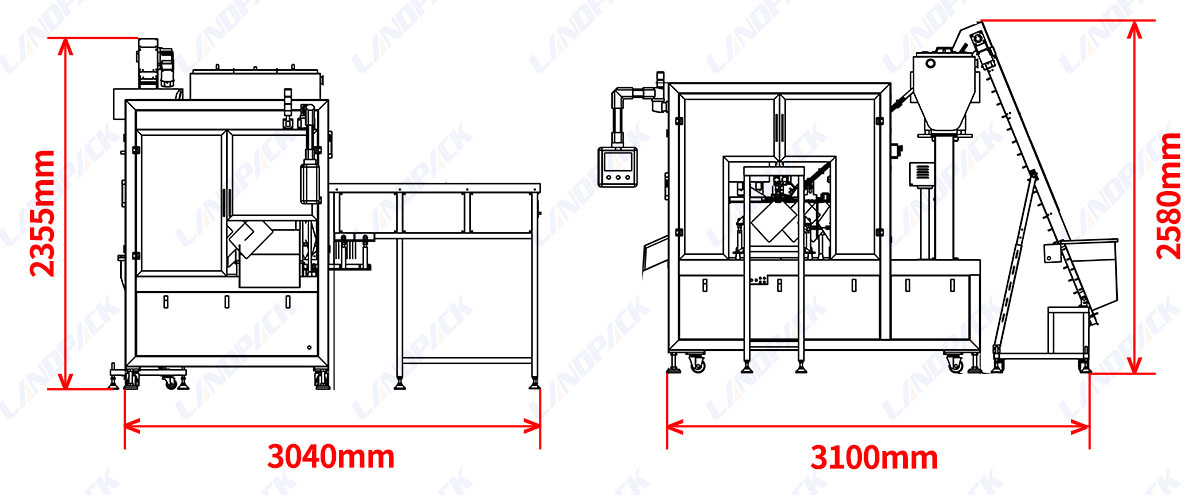

Machine Structure Overview:

Spout Pouch Filling Capping Machine With CIP and Pouch Feeding System

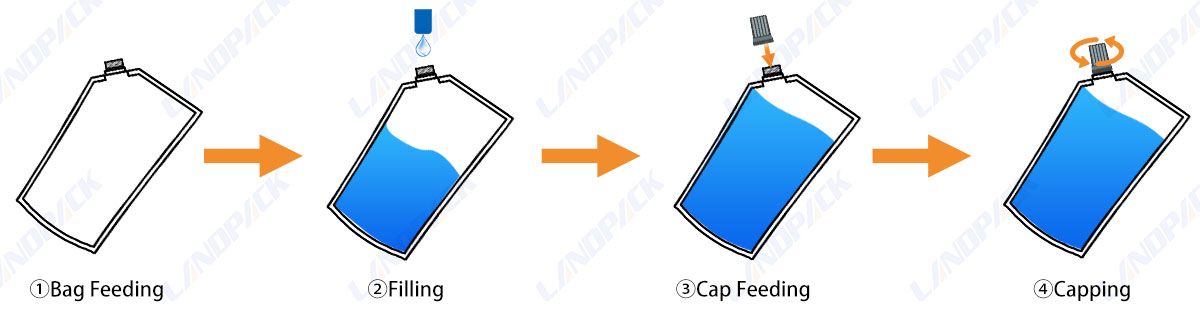

WORKFLOW

Cap lifting and vibrating

Auto spout pouch feeding

6 head piston pump filling

6 head water rinsering

Auto Cap feeding and Capping

Finished product collecting

PARAMETER

Model	LD-SVFC1
Power	220V/50HZ,, 2KW
Filling range	50-2000ml
Filling accuracy	≤±1g
Filling speed	35-40 bags/min (depending on the volume)
Dimensions	L0.8mW0.6mH0.7m
Weight	70KG
Used compressed air pressure	0.5-0.8Mpa
Noise	<85dB
Air consumption	0.5m³/min
