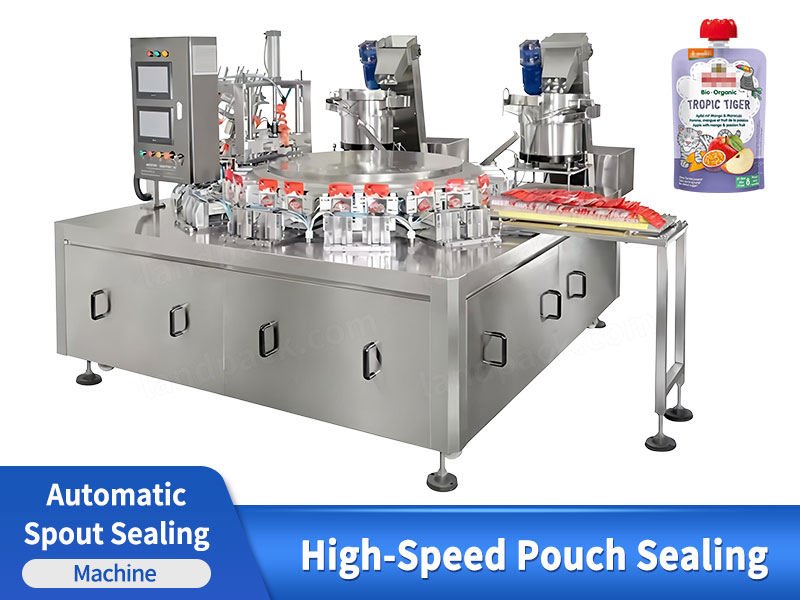

Automatic Spout Inserting Machine | Juice Ketchup Paste Spout Sealing Machine

Introduction:

Automatic rotary spout pouch sealing machine with cap feeding system for welding and capping plastic spouts on flexible pouches.

Application:

Suitable for liquid, cosmetic, paste, sauce and chemical packaging applications.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

This rotary spout pouch welding machine is designed for automatic spout insertion, sealing, and cap handling for pre-made pouches. It is suitable for liquid and semi-liquid packaging that requires resealable openings. Such as fruit puree, yogurt, sauce, soup, baby food,d etergent, cleaning liquid, refill packaging, shampoo, lotion, gel, skincare liquids, lubricants, additives, liquid chemicals, disinfectants, medical liquids.

Automatic Spout Inserting Machine | Juice Ketchup Paste Spout Sealing Machine

Package Type:

Automatic spout insertion, heat sealing, and cap handling for pre-made stand-up pouches, supporting center and corner spout formats.

FEATURES

1. Automatic spout feeding system with vibration plate (capacity up to 500 pcs).

2. High-precision spout insertion using multi-axis cylinder for accurate positioning.

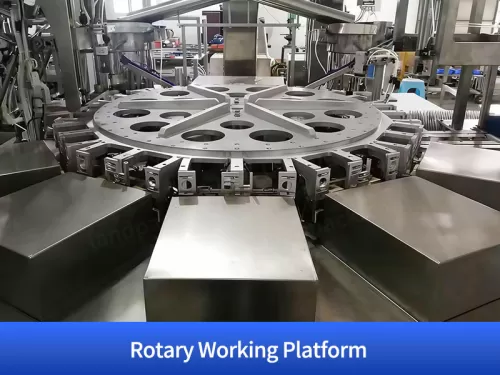

3. Servo-driven transfer system ensures stable and synchronized operation.

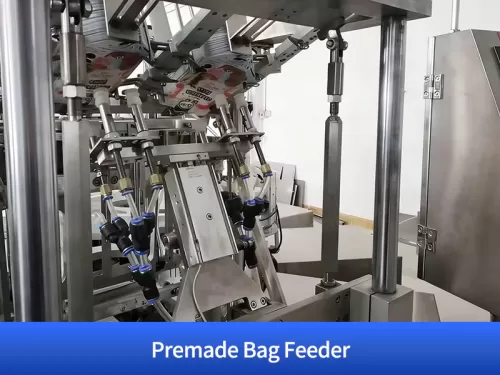

4. Automatic pouch loading, opening and spout inserting process.

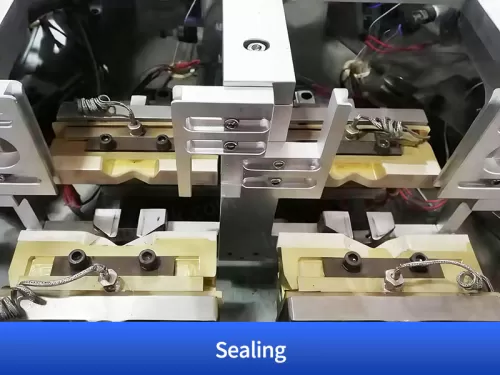

5. Multi-stage heat sealing with pre-heating, sealing and cold forming.

6. Optical inspection system detects defects with rejection rate below 0.5%.

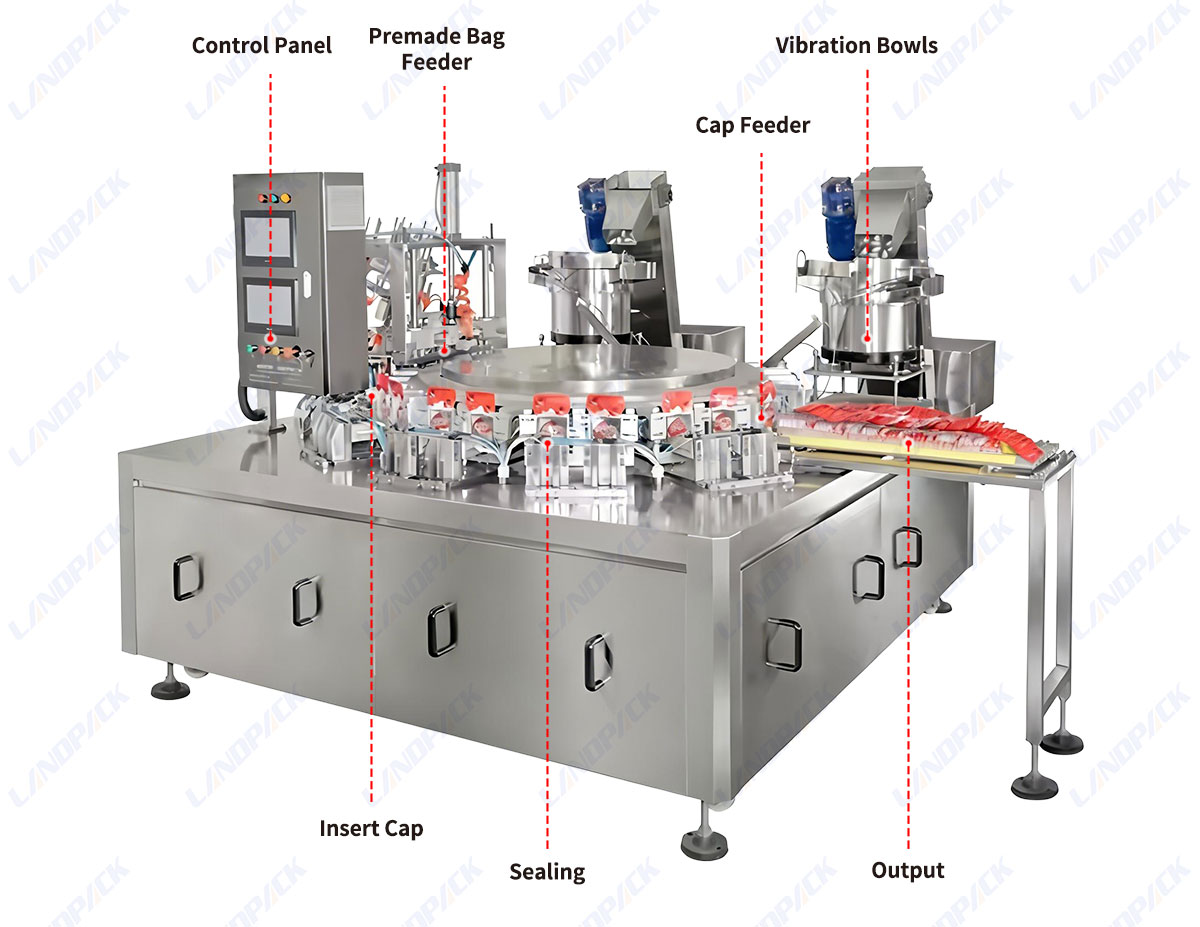

Machine Structure Overview:

1. Premade Bag Feeder, 2. Control Panel, 3. Vibration Bowls, 4. Cap Feeder, 5. Insert Cap, 6. Sealing, 7. Output

Automatic Spout Inserting Machine | Juice Ketchup Paste Spout Sealing Machine

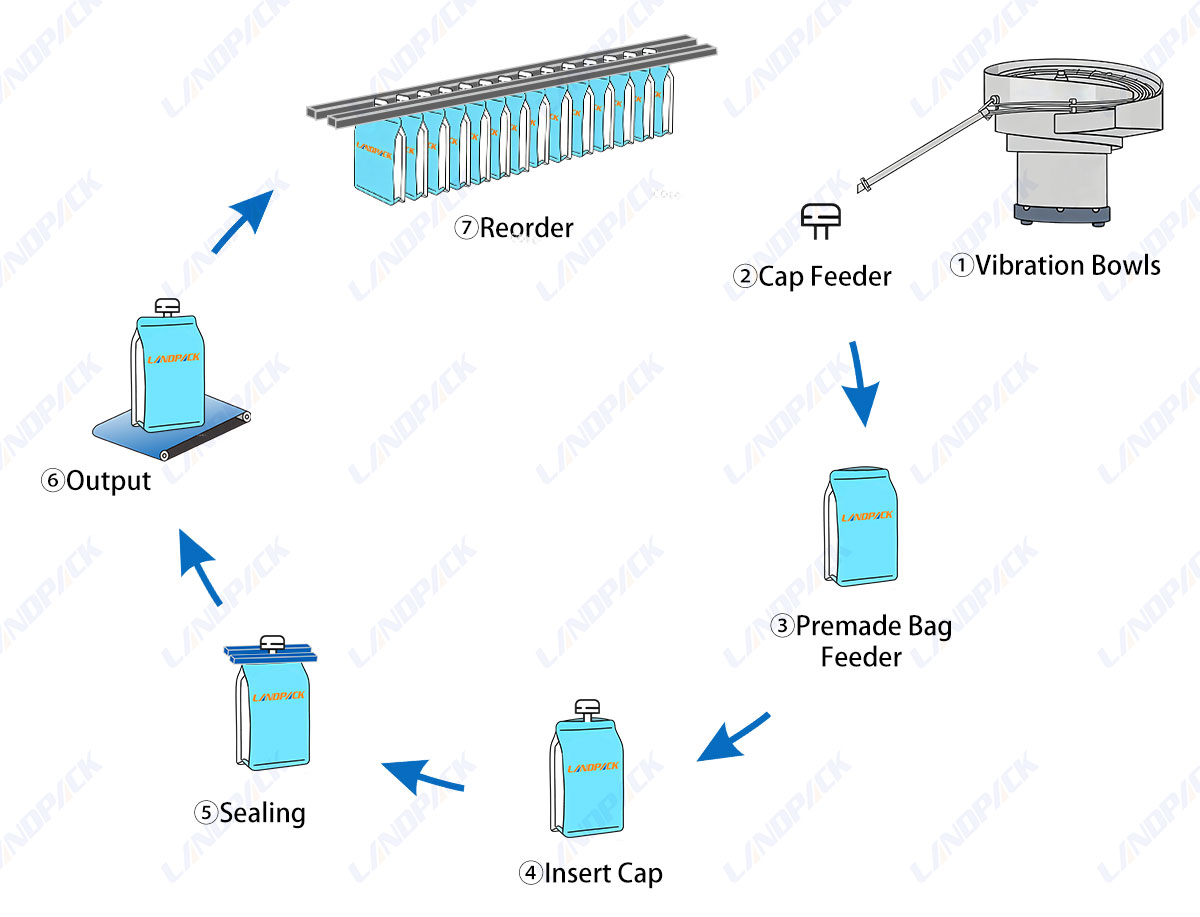

WORKFLOW

Pouch feeding

Spout positioning

Heat sealing

Cooling

Spout Pouch discharge

Finished product output

PARAMETER

	Power	AC 220V, 50HZ
	Compressed air	0.5Mpa, 200NL/min
	Size	LWH 240018001800MM
	Number of workstations	7
	Station gap	250mm
	Weight	≈1000Kg
	Quick-wear part	Vacuum suction cup
	Pouch size	WL=(70~80)(100~260)MM
	Spout Size	Customized,Diameter ≤22mm, Length＜40mm
	Efficiency	1800-2000pcs/h
	Capacity	5.0KW
