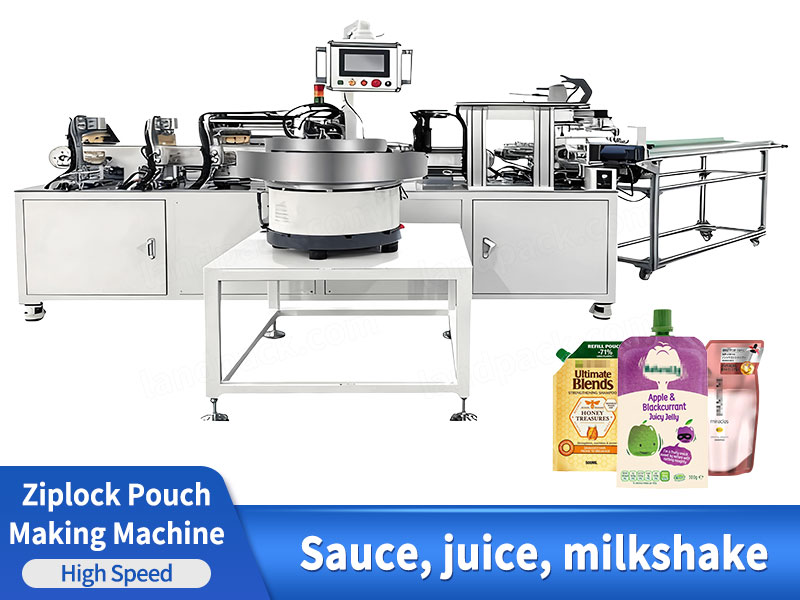

Automatic Spout Inserting Machine | Juice Ketchup Spout Sealing Machine

Introduction:

Spout pouch sealing machine for automatic nozzle insertion and welding on flexible packaging.

Application:

Suitable for food, cosmetic, and chemical liquids with adjustable sealing temperature and high production efficiency.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

This automatic spout inserting and sealing machine is designed for welding spouts onto flexible pouches, and it is suitable for a wide variety of liquid and semi-liquid packaging scenarios, including detergents, cleaning liquids, disinfectants, sterile solutions, beverages, dairy products, pastes, sauces, puree, ready-to-eat liquids, shampoo, cream, lotion, gel, personal care liquids, liquid medicine and refill packaging.

Automatic Spout Inserting Machine | Juice Ketchup Spout Sealing Machine

Package Type:

Spout pouch welding for pre-made bags, including doypack, flat pouch, and customized spout positions (center or corner).

FEATURES

1. Integrated spout insertion and sealing system improves production consistency.
2. Heat sealing or impulse sealing options for different laminated materials.
3. Adjustable speed control to match different production requirements.
4. Pneumatic pressing system ensures stable sealing pressure.
5. Multi-head or single-head configurations available for different outputs.
6. Compact layout reduces floor space and simplifies operation.
7. Easy mold change for different pouch sizes and spout types.
8. Designed for continuous operation in medium to high volume production.

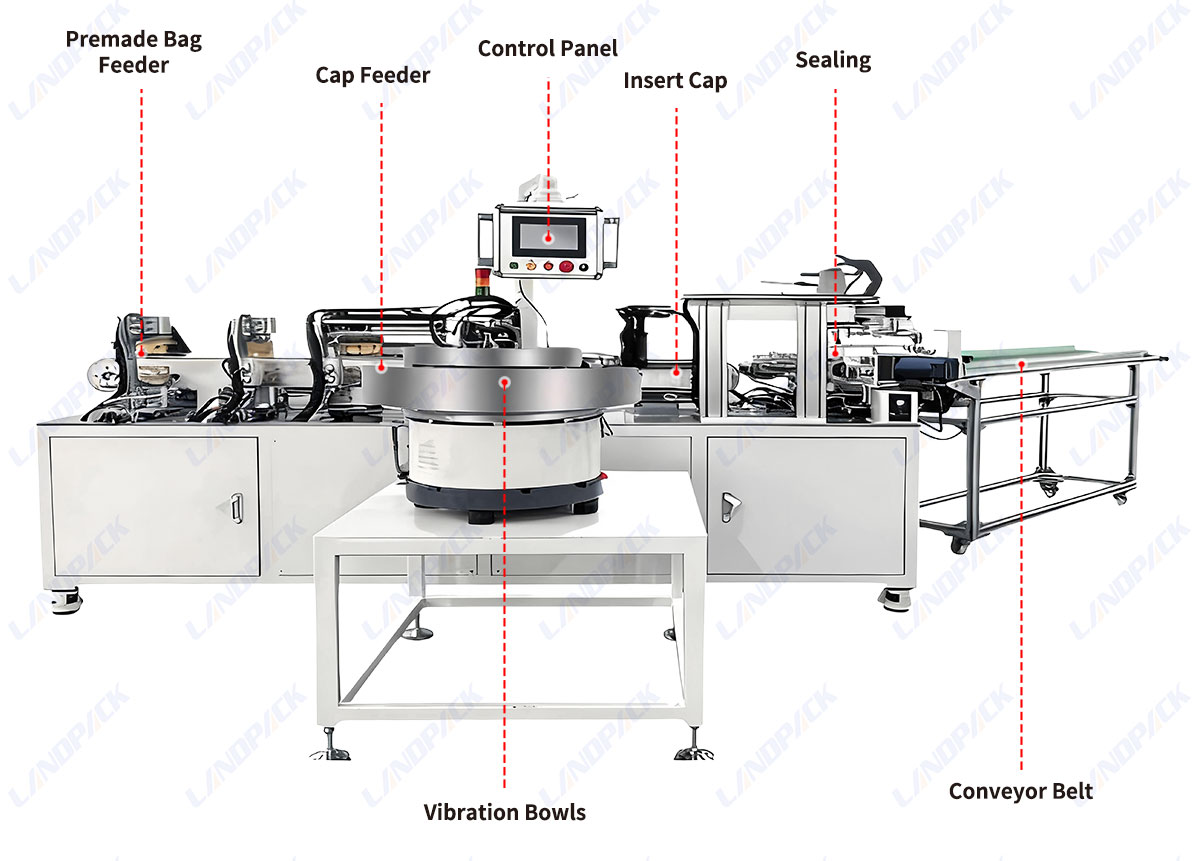

Machine Structure Overview:

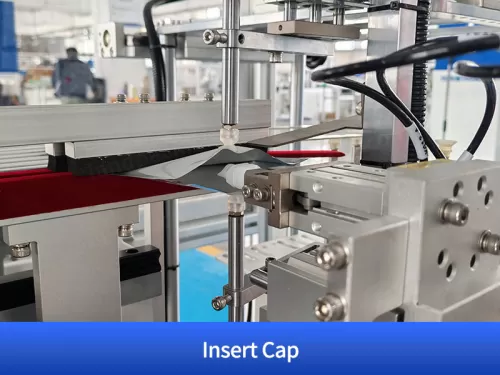

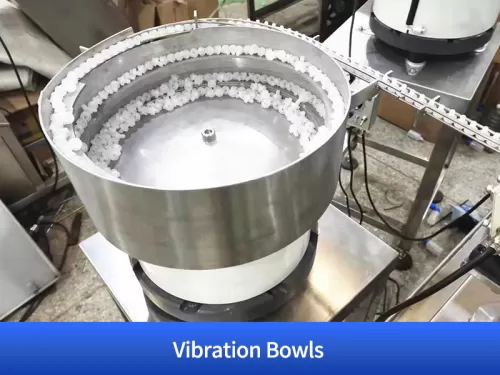

1. Premade Bag Feeder 2. Cap Feeder 3. Vibration Bowls 4. Control Panel 5. Insert Cap 6. Sealing 7. Conveyor Belt

Automatic Spout Inserting Machine | Juice Ketchup Spout Sealing Machine

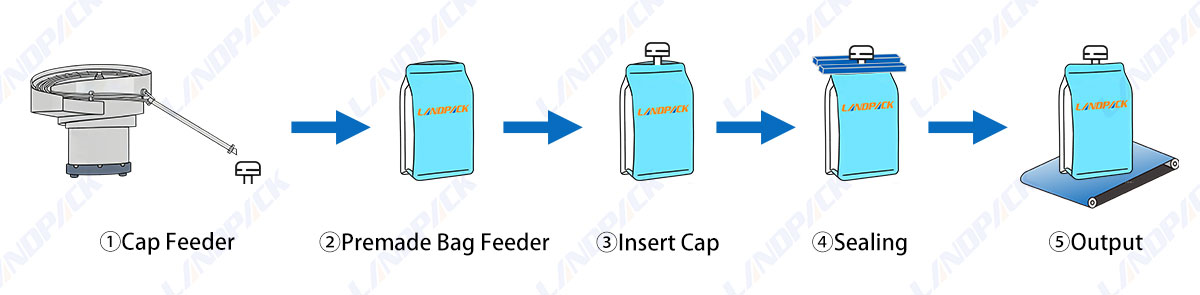

WORKFLOW

Cap Feeding

Pouch Feeding

Spout Positioning

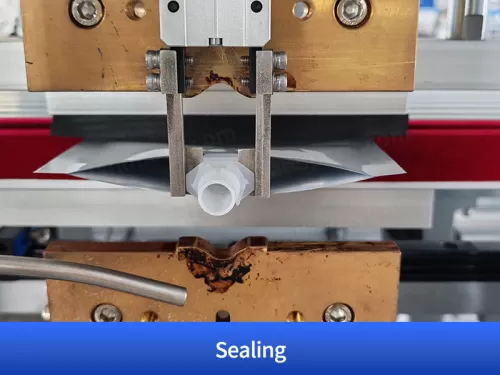

Heat Sealing

Cooling

Finished Product Output

PARAMETER

	Power	AC 220V, 50HZ
	Compressed air	0.5Mpa, 200NL/min
	Size	LWH 240018001800MM
	Number of workstations	7
	Station gap	250mm
	Weight	≈1000Kg
	Quick-wear part	Vacuum suction cup
	Pouch size	WL=(70~80)(100~260)MM
	Spout Size	Customized,Diameter ≤22mm, Length＜40mm
	Efficiency	1800-2000pcs/h
	Capacity	5.0KW
