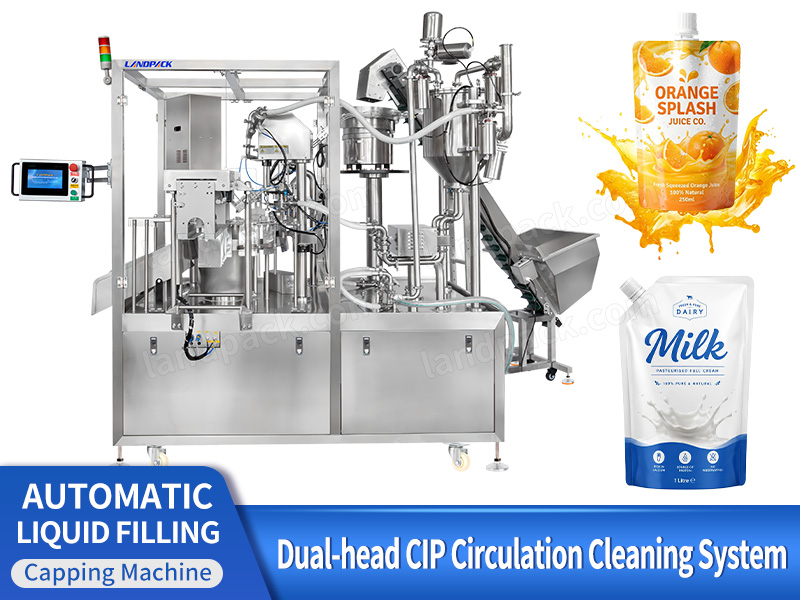

Automatic Liquid Spout Pouch Filling Machine with Automatic CIP Cleaning Function

Introduction:

Automatic 2-head spout pouch filling and capping machine for milk, yogurt and juice, with CIP cleaning, cap elevator, spout washing and automatic capping.

Application:

This machine is suitable for milk, yogurt drinks, fruit juice, fruit puree and other liquid or semi-liquid products packed in premade spout pouches.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

It can be used in dairy, beverage, fruit processing and liquid food production lines where automatic pouch feeding, dual-head filling, spout washing, cap feeding and capping are required. Such as fresh milk, flavored milk, drinking yogurt, soy milk, coconut milk, orange juice, apple juice, mixed fruit juice, fruit puree, baby food puree, smoothies, nutritional drinks, sports drinks, coconut water and liquid dessert products.

Automatic Liquid Spout Pouch Filling Machine with Automatic CIP Cleaning Function

Package Type:

Suitable for premade spout pouches with plastic screw caps for liquid and semi-liquid food products.

FEATURES

1. SS316 stainless steel product-contact parts support hygienic filling for dairy, beverage and liquid food applications.

2. The dual-head gear pump filling system fills two spout pouches simultaneously and allows the filling volume to be adjusted through the control system.

3. The CIP circulation system cleans the storage tank, filling pumps and internal pipelines to reduce manual dismantling during product changeover.

4. A cap elevator transfers caps automatically into the vibration bowl for continuous cap feeding.

5. The vibration bowl sorts and orients caps before delivering them to the automatic capping station.

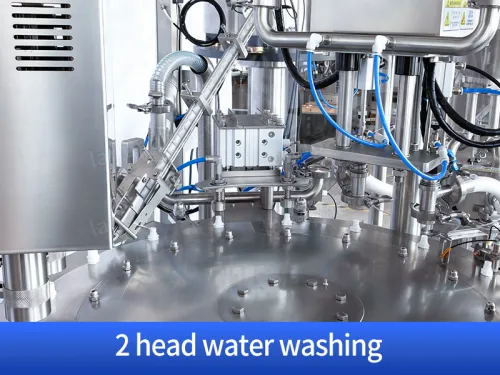

6. The dual-head water washing station cleans the pouch spout after filling to remove product residue before capping.

7. Automatic pouch feeding, filling, washing and capping are integrated into one enclosed production system.

8. The PLC and touch-screen control panel allow operators to set filling and operating parameters from one interface.

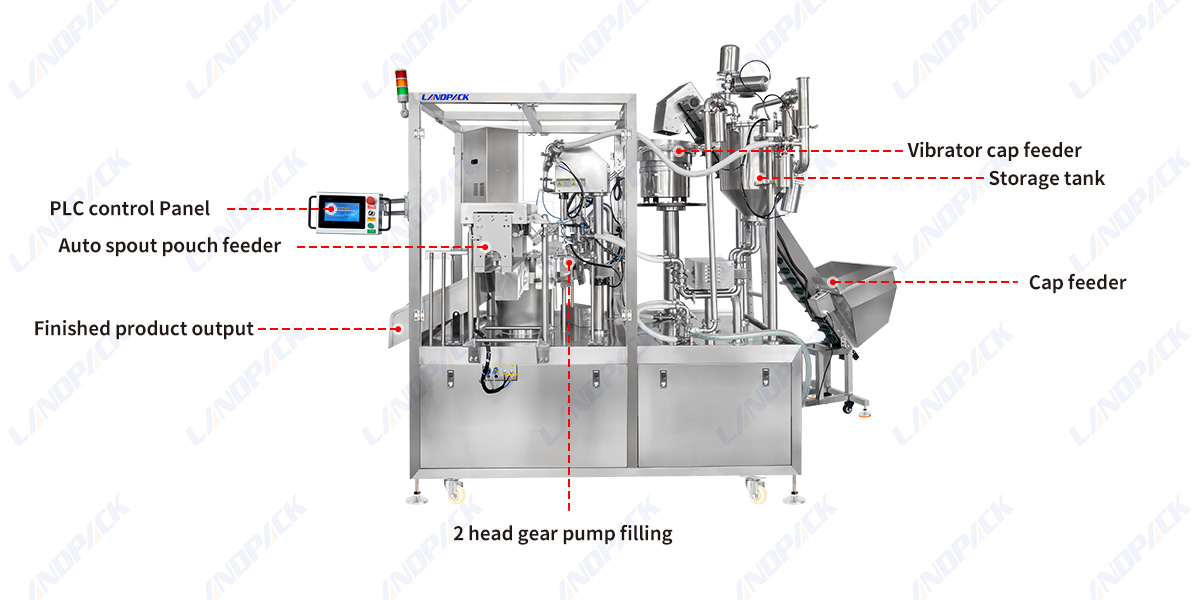

Machine Structure Overview:

1. PLC control Panel 2. Auto spout pouch feeder 3. Finished product output 4. 2 head gear pump filling 5. Vibrator cap feeder 6. Storage tank 7. Cap feeder

Automatic Liquid Spout Pouch Filling Machine with Automatic CIP Cleaning Function

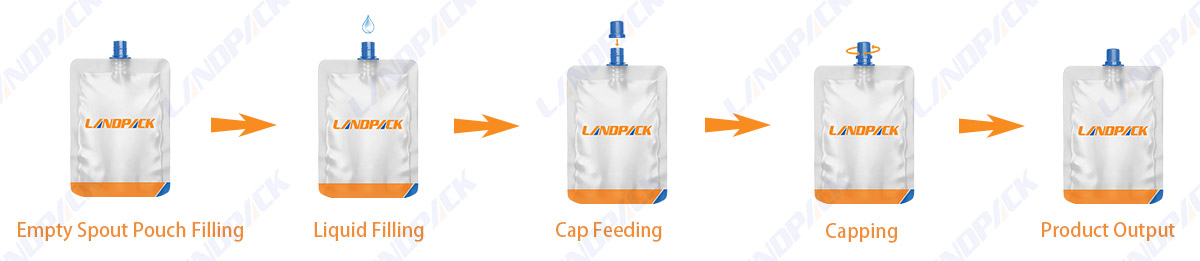

WORKFLOW

Cap Sorting by Vibration Bowl

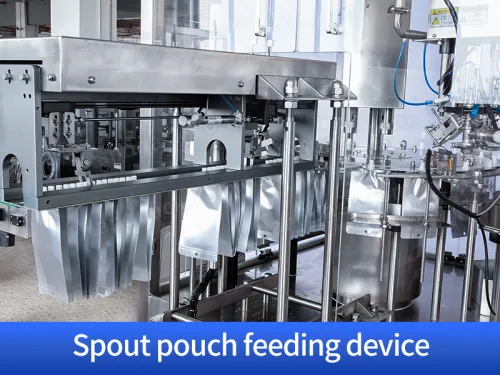

Spout Pouch Feeding

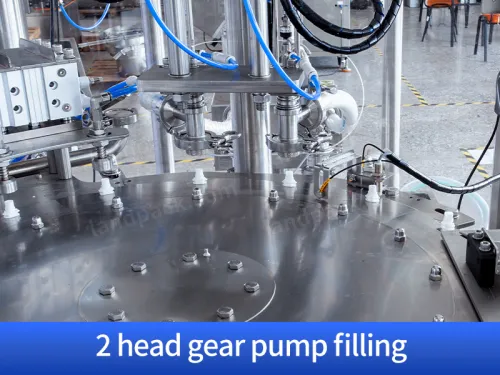

Dual-Head Gear Pump Filling

Dual-Head Spout Water Washing

Automatic Cap Placement

Cap Tightening

Finished Product Collection

PARAMETER

Filling Method	2-Head Gear Pump Filling
Applicable Products	Milk, Yogurt Drinks, Fruit Juice, Puree and Other Liquid or Semi-Liquid Products
Packaging Type	Premade Spout Pouches with Screw Caps
Filling Range	Customized according to pouch size and product characteristics
Filling Accuracy	Approximately ±1%, depending on product viscosity and filling volume
Production Speed	Approximately 30–50 Pouches/Min, depending on filling volume and pouch specification
Spout Washing Heads	2 Heads
Cap Feeding System	Cap Elevator + Vibratory Bowl Feeder
Capping Method	Automatic Cap Placement and Screw Capping
Cleaning System	Dual-Head CIP Circulation Cleaning System
Product-Contact Material	SS316 Stainless Steel
Machine Frame Material	SS304 Stainless Steel
Control System	PLC + Touch Screen
Air Pressure	0.6–0.8 MPa
Power Supply	380V / 50Hz / 3 Phase, customizable

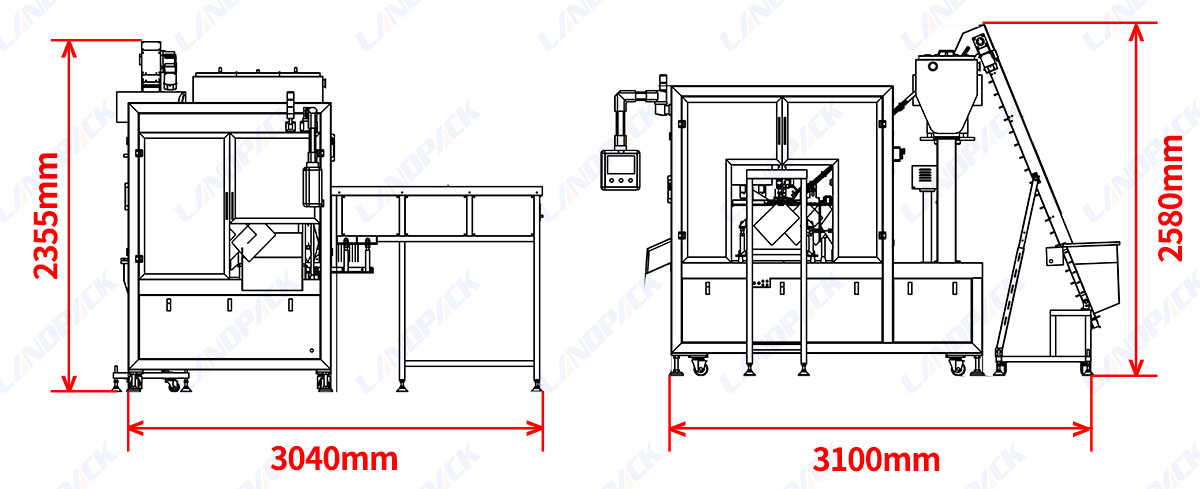

Main Machine Size	Approx. 3040 × 3100 × 2355 mm
Overall Height with Cap Elevator	Approx. 2580 mm
Machine Weight	Customized according to final configuration
