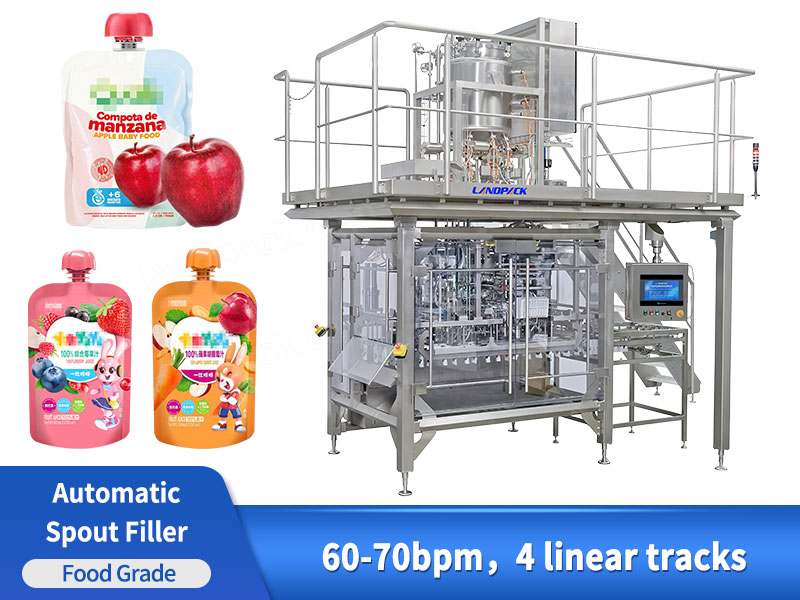

High Speed Spout Pouch Filling Capping Machine Juice Jam Sauce Filling Machine

Introduction:

Automatic rotary spout pouch filling and capping machine for liquid and semi-liquid products.

Application:

Suitable for sauce juice, jam, detergent, ketchup, paste, honey, jelly and cosmetic packaging with an integrated cap feeding system.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

This automatic rotary spout pouch filling machine is used for packaging liquid and semi-liquid products into flexible pouches with spouts. It supports filling and capping in one integrated system. Such as sauce, jam, puree, condiments, juice, functional drinks, liquid supplements, milk-based drinks, yogurt, nutrition paste, cleaning liquids, detergents, shampoo, lotion, cosmetic liquids, etc.

High Speed Spout Pouch Filling Capping Machine Juice Jam Sauce Filling Machine

Package Type:

Pre-made spouted pouch filling with automatic cap feeding and screw capping, suitable for flexible laminated pouches.

FEATURES

1. Four-lane linear structure allows four cups to run in parallel for higher output.

2. Horizontal inline layout supports continuous filling and capping in one direction.

3. Output capacity is higher than standard rotary cup filling and capping machines under the same cup format.

4. Each lane can work in synchronized motion to keep filling and capping stable.

5. Suitable for multi-step filling processes such as noodle block loading, ingredient filling and seasoning addition.

6. Compatible with automatic cup feeding, lid placing, sealing and discharge systems.

7. Filling devices can be matched with different products such as solids, granules, sauces or powder sachets.

8. The machine structure is suitable for round cups, square cups and similar rigid containers.

9. PLC and touch screen control allow parameter adjustment for different cup sizes and filling sequences.

10. Modular design makes it easier to connect with weighing, conveying and feeding systems

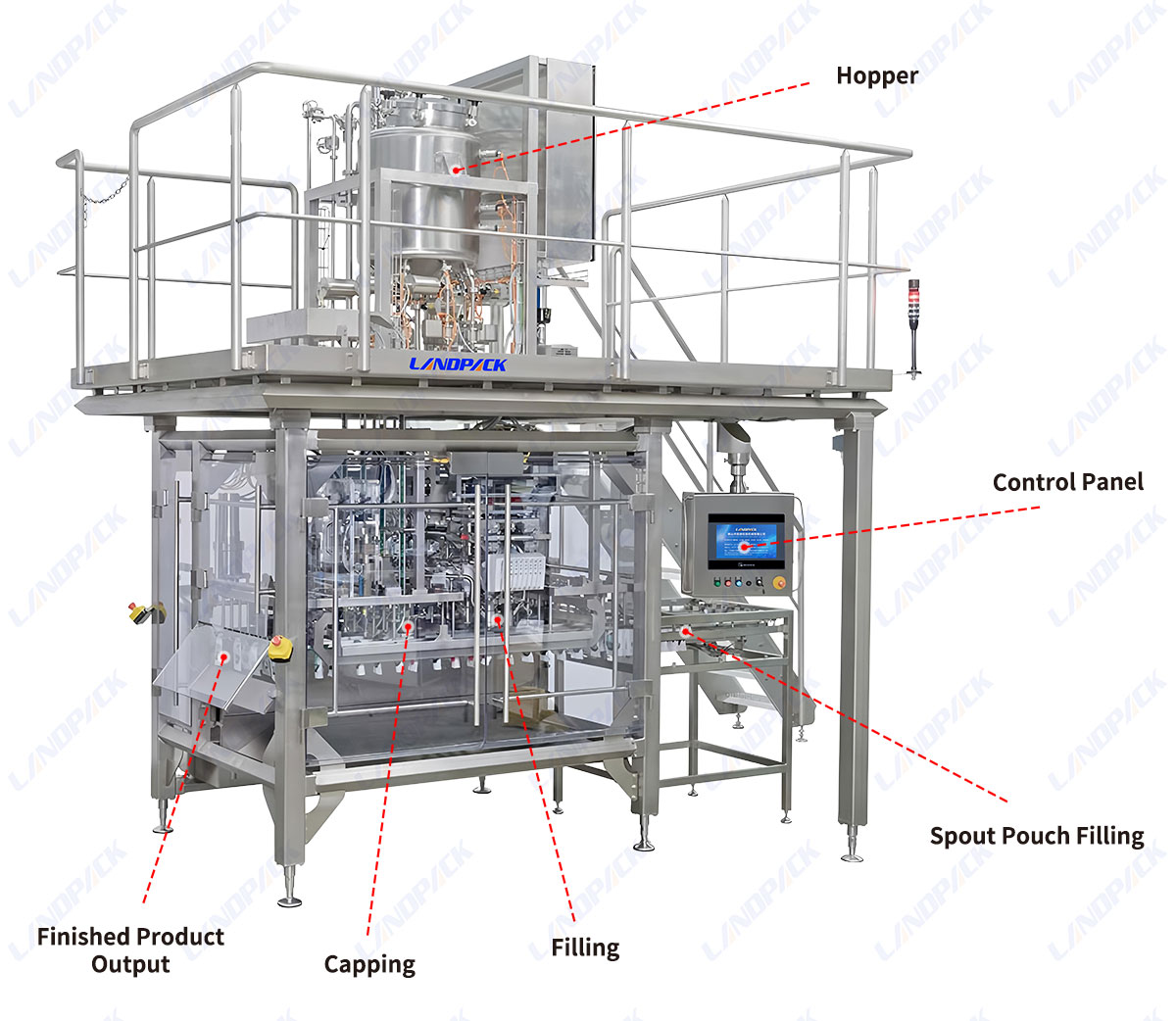

Machine Structure Overview:

1. Hopper 2. Control Panel 3. Finished Product Outing 4. Capping 5. Filling 6. Control Panel 7. Spout Pouch Filling

High Speed Spout Pouch Filling Capping Machine Juice Jam Sauce Filling Machine

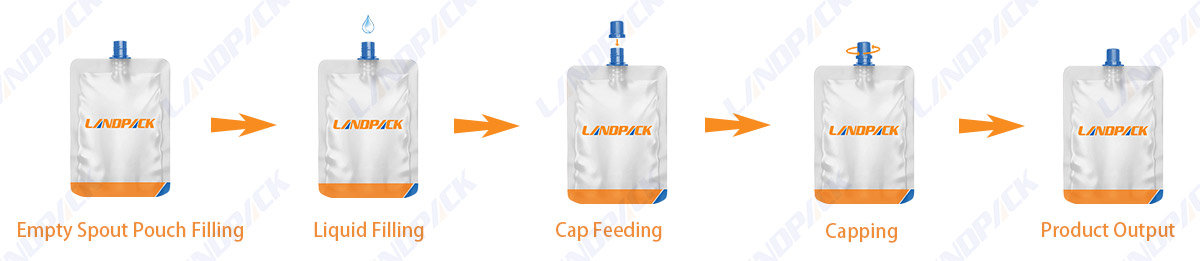

WORKFLOW

Empty Spout Pouch Filling

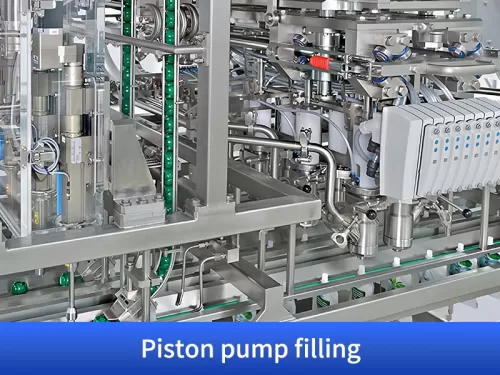

Liquid Filling

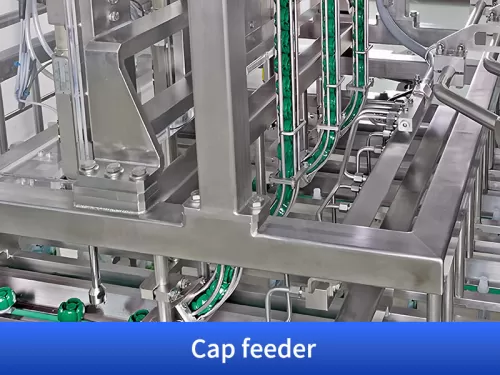

Cap Feeding

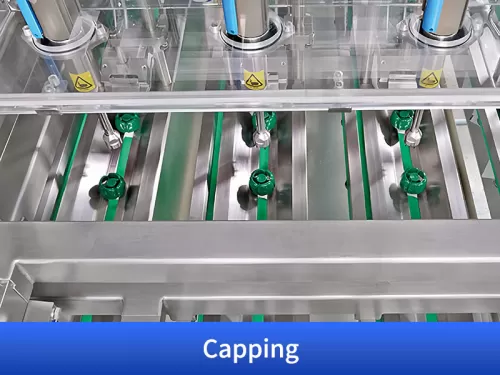

Capping

Product Output

PARAMETER

	Model	LD 400
	Pouch Volume	50 – 500 ml
	Production Capacity	120 / 240 / 480 pouches/min*
	Packing Material	Prefabricated flat or stand-up pouches with center spout
	Power Supply	3 × 400/230V + N + PE, 50/60 Hz
	Voltage	400 (480) / 230 / 24 V
	Power Consumption	Approx. 10 kVA*
	Air Consumption	550 Nl/min, 6 bar*
	Machine Dimensions (L × W × H)	Approx. 2000 × 1500 × 2010 mm*
	Safety Standard	CE, UL, CSA, OSHA
	Machine Design	Hygienic design, washdown capable
	Control System	Centralized control with touch interface
	Standard Functions	No pouch–no filling, servo drives, movable filling heads, teleservice
	Optional Functions	Date coding, recipe management, inline integration
	Notes	*Depends on configuration and pouch size
