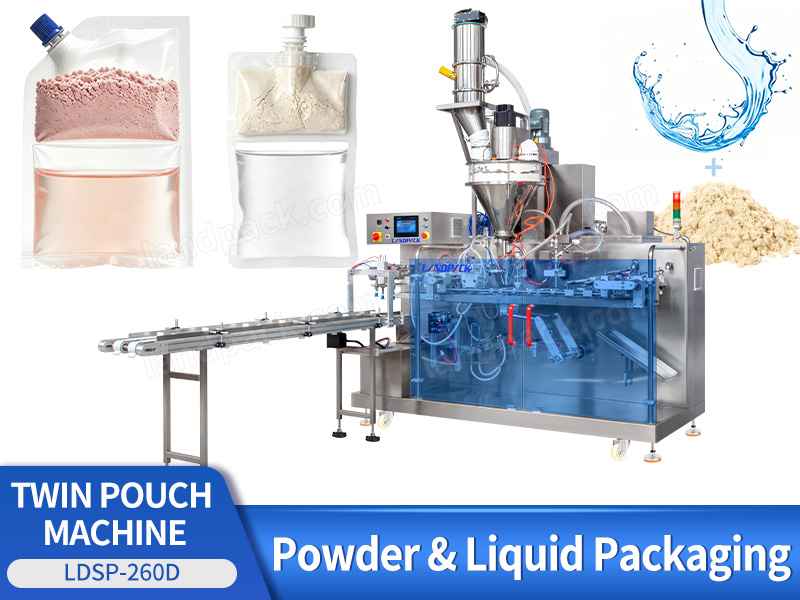

Spout Pouch Filling Machine Horizontal Premade Twin Pouch Packing Machine

Introduction:

Horizontal twin pouch filling machine for dual-chamber spout pouches. Supports powder and liquid filling with nitrogen flushing for products requiring separate storage and mix-on-use packaging.

Application:

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

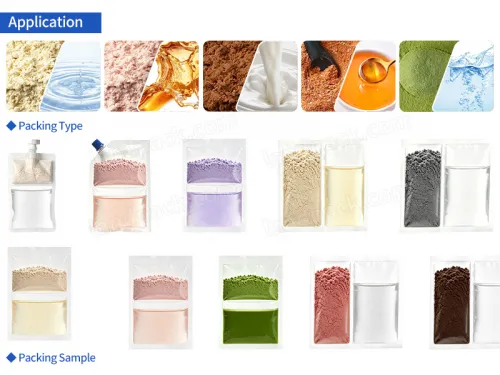

Application

This horizontal twin-pouch filling machine is designed for packaging two separate materials into connected spout pouches. The contents can be mixed by squeezing before use, suitable for products requiring fresh combination at the point of consumption.Such as sauce + seasoning powder, chocolate + milk powder, syrup + additive, liquid supplements + powder nutrients, energy drinks (dual component), yogurt base + flavor powder, enzyme + liquid mix, liquid medicine + powder agent, dual-component formulations, liquid + powder detergents, reactive cleaning products, products that require separated storage and mixing before use.

Spout Pouch Filling Machine Horizontal Premade Twin Pouch Packing Machine

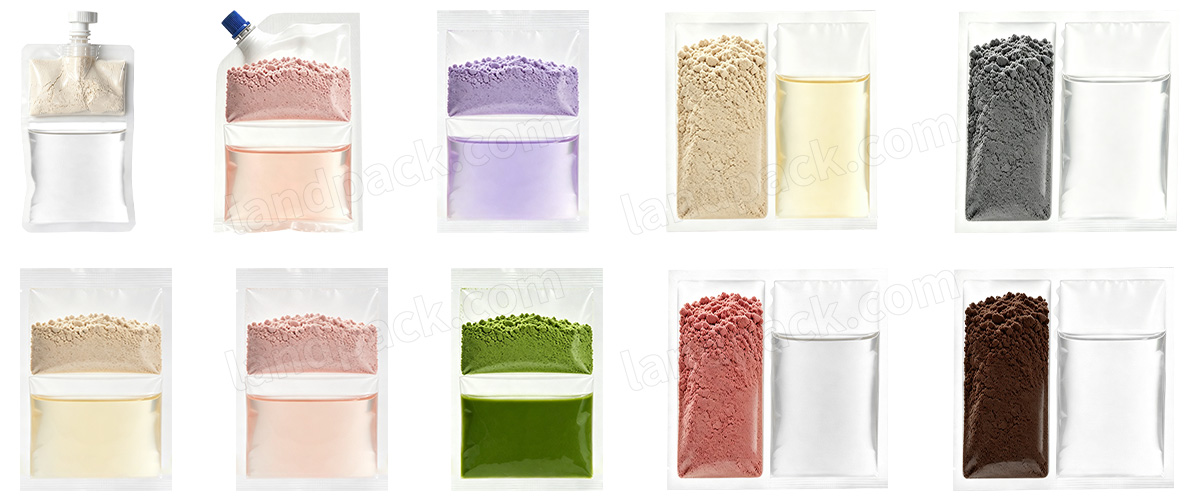

Package Type:

Horizontal premade twin spout pouch filling and sealing, with dual chambers in one connected pouch, supporting nitrogen flushing.

FEATURES

1. Twin pouch design allows two different materials to be filled separately.

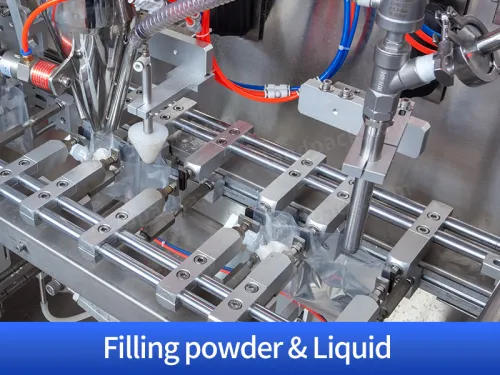

2. Equipped with auger filler for powder and nozzle system for liquid filling.

3. Nitrogen flushing system helps reduce oxidation inside the pouch.

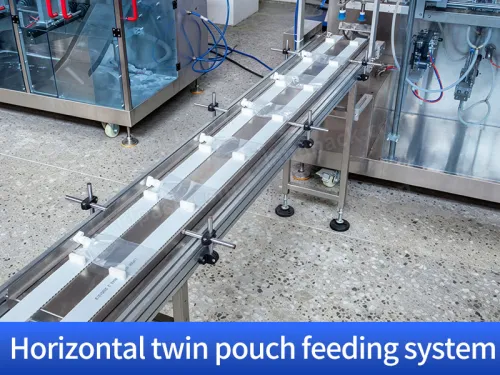

4. Horizontal pouch feeding system ensures stable bag handling.

5. PLC control with touch screen for parameter adjustment.

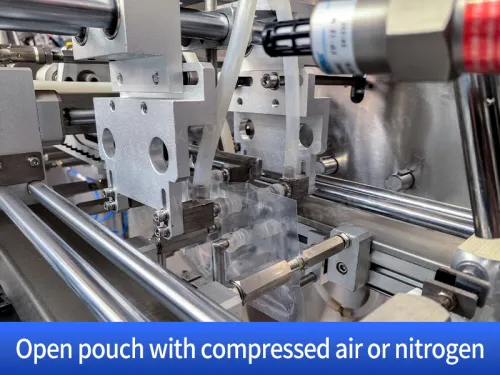

6. Automatic bag opening and positioning before filling.

7. Sealing system designed for multi-layer laminated pouches.

8. Supports spouted pouches with connected dual chambers.

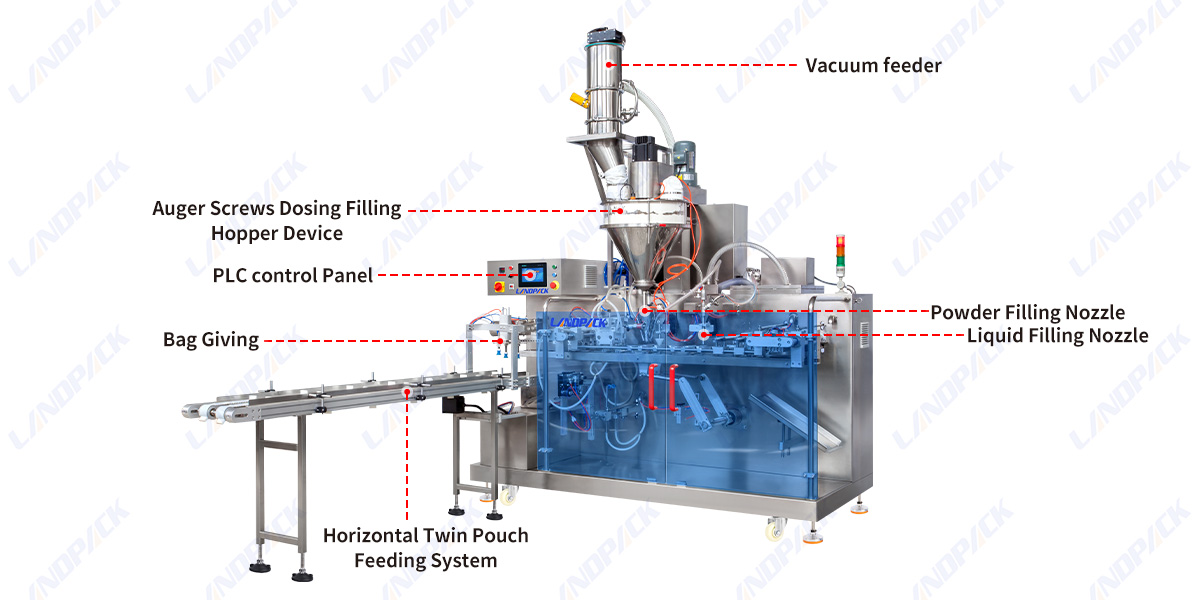

Machine Structure Overview:

1. Vacuum Feeder 2. Auger Screws Dosing Filling 3. Hopper Device 4. PLC Control Panel 5. Powder Filling Nozzle 6. Liquid Filling Nozzle 7. Horizontal Twin Pouch Feeding System

Spout Pouch Filling Machine Horizontal Premade Twin Pouch Packing Machine

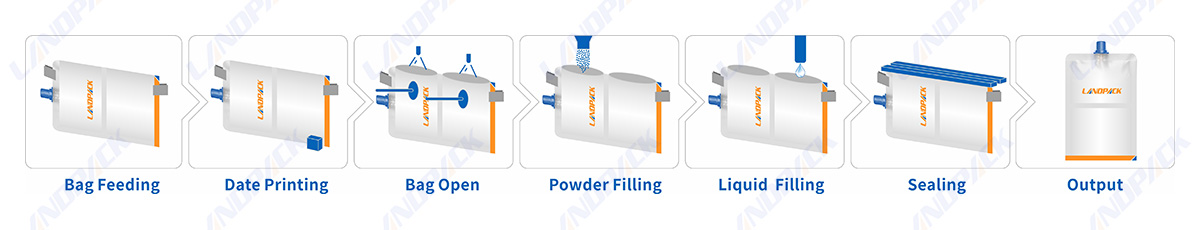

WORKFLOW

Bag Feeding

Date Printing

Bag Open

Powder Filling

Liquid Filling

Sealing

Output

PARAMETER

Type	LDSP-160	LDSP-160Y	LDSP-210	LDSP-260
Bag Type	3-side, 4 side sealing bag, stand-up bag, handbag, spout bags, zipper bag, compound bag, etc.
Bag Size	110-230mm80-160mm(LW)	70-100mm110-230(LW)	100-210mm/110-320mm（L*W）	100-260mm/110-320mm（L*W）
Filling Range	10g-100g	10g-100g	10g-1kg	10g-3kg
Packing Speed	20-45bags/min(speed is determined by the product filling quantity)	25-50bags/min(speed is determined by the product filling quantity)	20-50bags/min (speed is determined by the product filling quantity)	20-50bags/min (speed is determined by the product filling quantity)
Machine weight	800KG	800KG	900KG	1000KG
Total Power	2.0KW	2.0KW	2.0KW	2.0KW
Work Flow	1.Giving bag 2. Pick up the bag(coding) 3.Open the bag up and down 4.Filling 5.Heating sealing 6.Output of product
Dimensions	1750mm X 1285mm X 1360mm(LWH)		2140mm X 1366mm X 1360mm(LWH)	2140mm X 1366mm X 1360mm(LWH)
Collocation	Screw metering,screw elevator
