Automatic Spout Pouch Filling and Capping Machine Horizontal Pouch Packing Machine

Introduction:

This type of machine is widely used for packaging liquid and semi-liquid products in industries such as food and beverage, cosmetics, pharmaceuticals, and household goods.

Application:

Ideal for packaging a wide variety of liquid and semi-liquid products, including juice, milk, laundry detergent, baby puree, sauces, jelly butter pastes and chemical liquids with efficiency and precision in every step.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

It is ideal for packaging a wide variety of liquid and semi-liquid products, including juice, milk, laundry detergent, baby puree, juice, sauces, jelly, butter, ketchup, lotion, syrup, pastes, and chemical liquids, ensuring efficiency and precision in every step of the process.

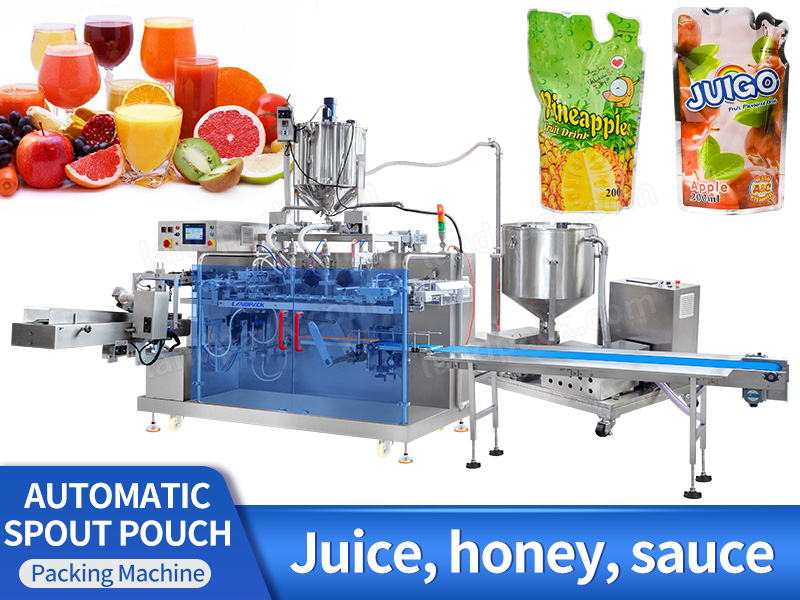

Automatic Spout Pouch Filling and Capping Machine Horizontal Pouch Packing Machine

What is a Juice Horizontal Pouch Packing Machine?

Horizontal pouch packing machines for spout pouches are automated systems designed to efficiently fill and seal pre-made, flexible pouches equipped with an integrated spout. This type of machine plays an essential role across industries, including food and beverage, cosmetics and household goods industries for packaging liquid and semi-liquid products.

Package Type:

spout Pouch
Stand-up Pouch
M-shape Pouch
Flat Pouch
Zipper Pouch

Automatic Spout Pouch Filling and Capping Machine Horizontal Pouch Packing Machine

FEATURES

High-Speed Performance Engineered for efficiency and stability, it achieves speeds of up to 50 bags per minute for maximum productivity.

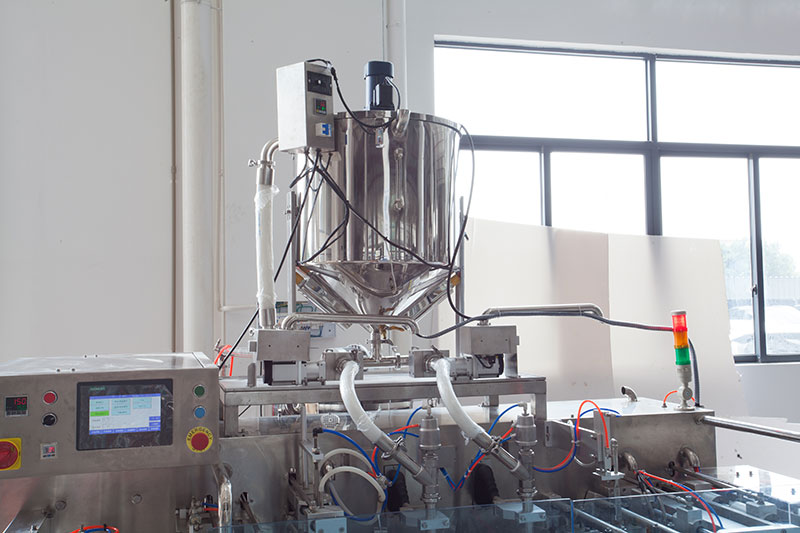

	Heating & Mixing System An integrated heating and mixing function ensures your product remains consistent and high-quality throughout the filling process.

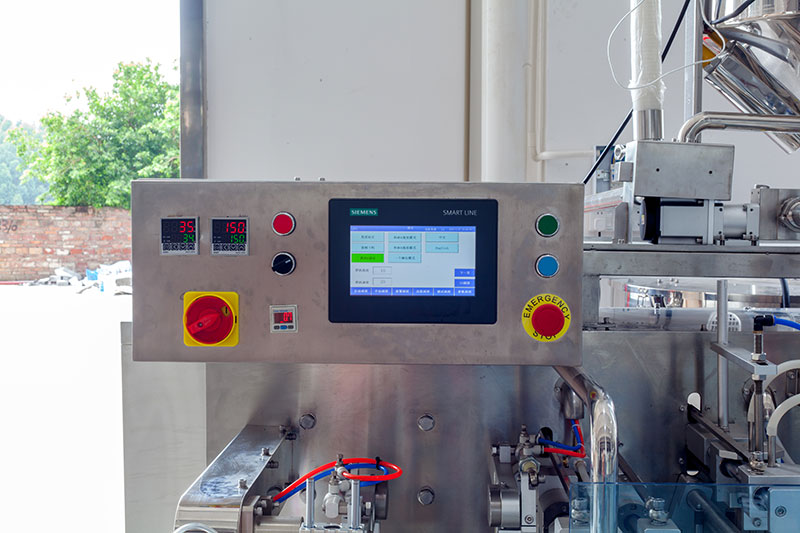

PLC Control The user-friendly touch screen simplifies machine operation, from initial setup to real-time monitoring.
	Integrated Coding The system includes a ribbon code printer for crisp, clear marking of essential batch, date, or barcode information on every bag.

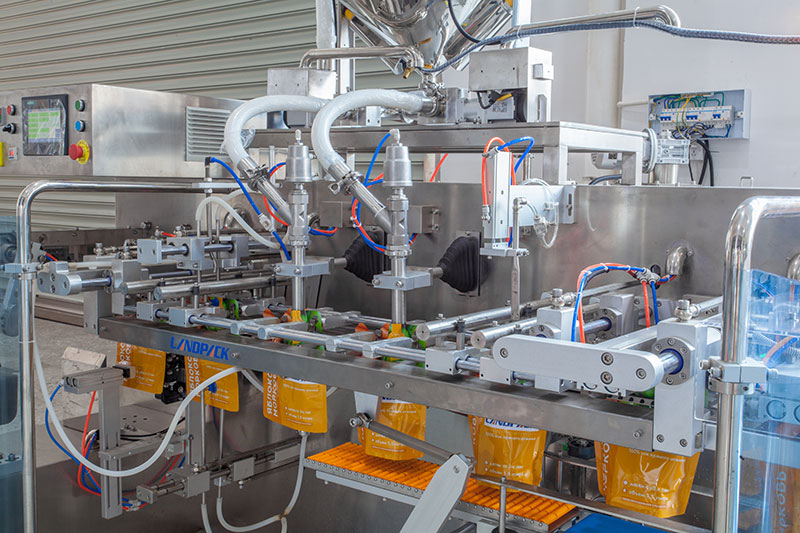

Dual Nozzle Design With its two-nozzle design, the machine fills bags simultaneously, making the process much faster and more efficient.

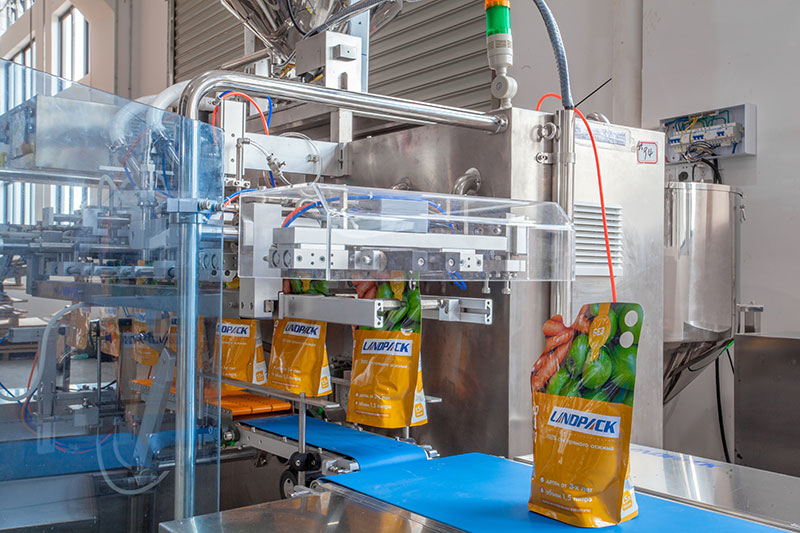

	Seamless Conveyance The system includes an output conveyor that automatically transfers completed bags, creating a continuous and efficient workflow.

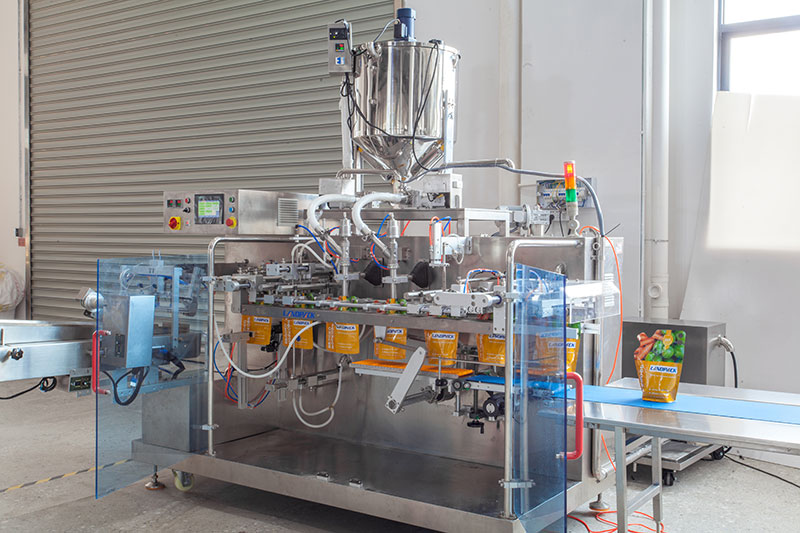

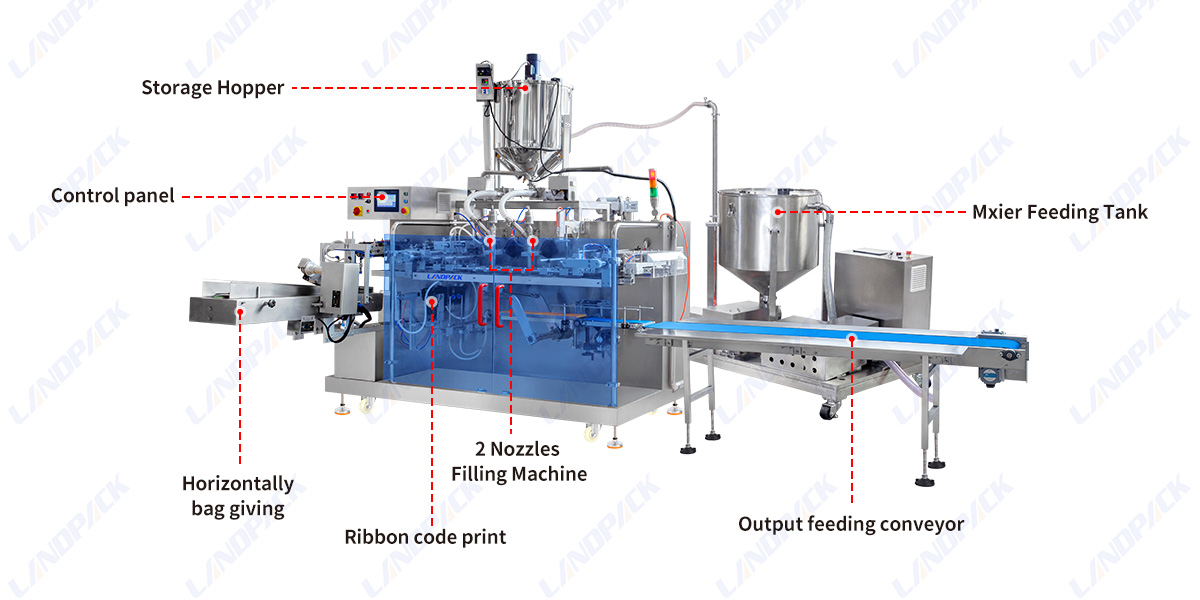

Machine Structure Overview:

Central Storage Hopper: The main reservoir that stores the bulk material prior to its precise portioning and discharge.

* Control Panel:

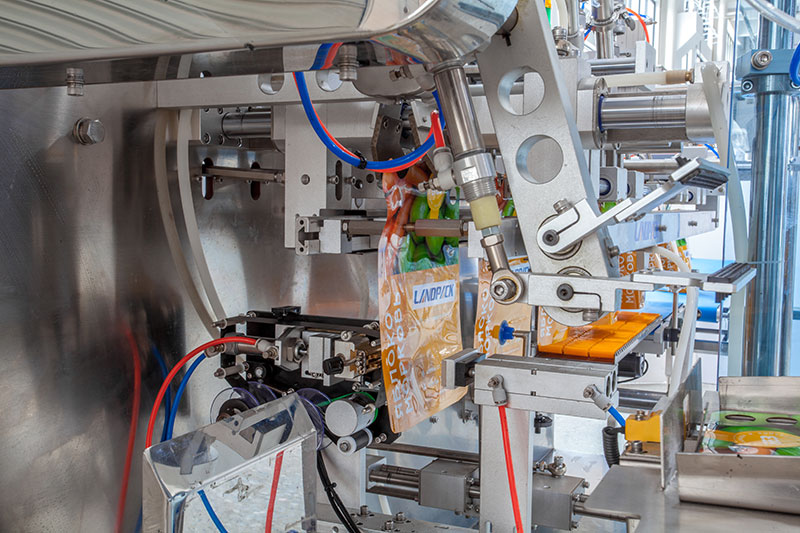

* Bag Gripping & Manipulation Unit:

* Weighing Scale:

* Ribbon Code Printer:

* Dual Nozzles:

* Dual-Sealing Mechanism:

* Discharge Conveyor:

Automatic Spout Pouch Filling and Capping Machine Horizontal Pouch Packing Machine

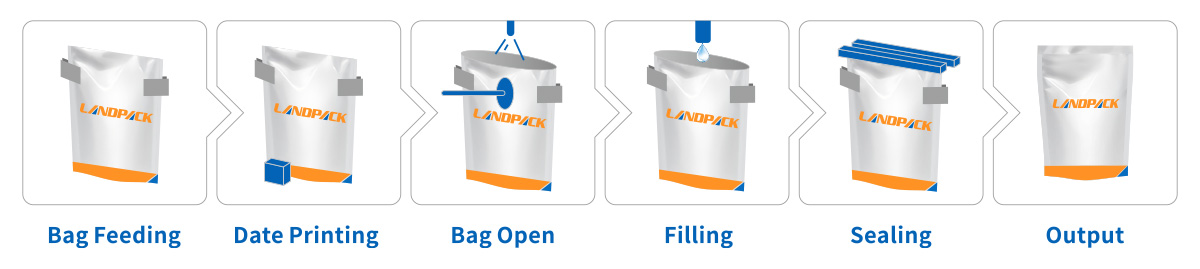

WORKFLOW

1. Mixer Feeding Tank

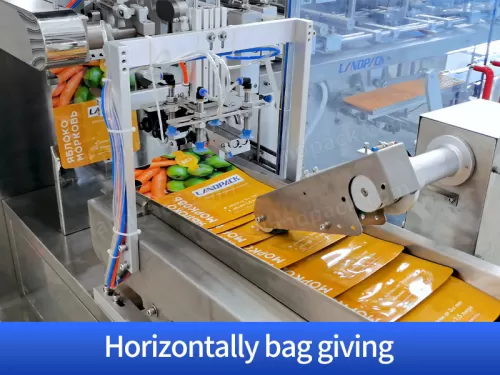

2. Automatic Empty Pouch Feeding Device

3. Bag Opening Device

4. 2 Nozzles Filling Machine

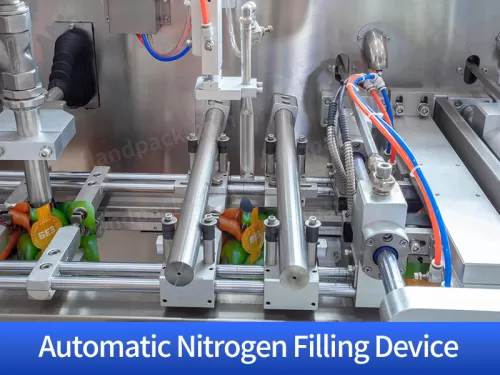

5. Automatic Nitrogen Filling Device

6. Double Sealing Station

PARAMETER

Type	LDSP-160	LDSP-160Y	LDSP-210	LDSP-260
Bag Type	spout pouches, 3-side, 4 side sealing bag, stand-up bag, handbag, zipper bag, compound bag, etc.
Bag Size	110-230mm80-160mm(LW)	70-100mm110-230(LW)	100-210mm/110-320mm（L*W）	100-260mm/110-320mm（L*W）
Filling Range	10g-100g	10g-100g	10g-1kg	10g-3kg
Packing Speed	20-45bags/min(speed is determined by the product filling quantity)	25-50bags/min(speed is determined by the product filling quantity)	20-50bags/min (speed is determined by the product filling quantity)	20-50bags/min (speed is determined by the product filling quantity)
Machine weight	800KG	800KG	900KG	1000KG
Total Power	2.0KW	2.0KW	2.0KW	2.0KW
Work Flow	1. Giving bag, 2. Pick up the bag(coding), 3. Open the bag up and down, 4. Filling, 5. Heating sealing, 6. Output of product

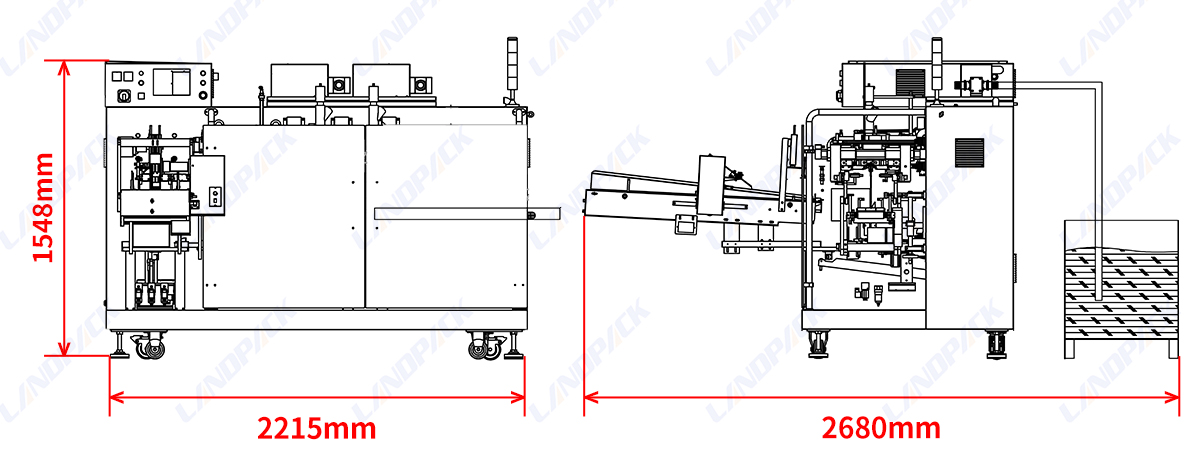

Dimensions	175012851360mm(LWH)		214013661360mm(LWH)	214013661360mm(LWH)
Collocation	Screw metering, screw elevator
