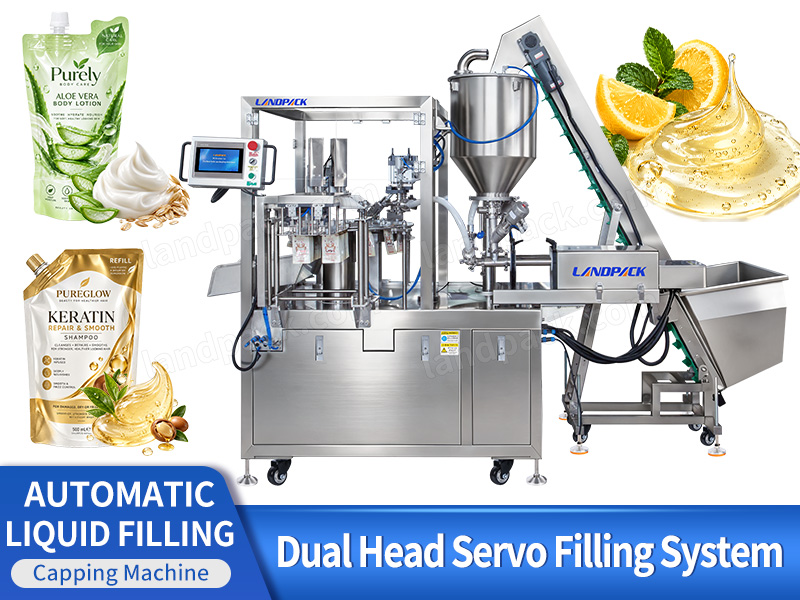

Automatic Liquid Spout Pouch Filling and Capping Machine with Dual-Head Piston Filler

Introduction:

The 2 Heads Spout Pouch Filling and Capping Machine is suitable for body lotion and a wide range of viscous liquid, gel and semi-liquid products packed in premade spout pouches.

Application:

It can be used in personal care, cosmetics, household chemical, food and condiment production lines that require automatic pouch feeding, filling, cap feeding and capping.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail Get Price

Benefits & Features

Technical Parameters

VIDEOS

Application

It can be used in personal care, cosmetics, household chemical and food production lines where automatic pouch feeding, piston filling, cap feeding and capping are required. Such as body lotion, shampoo, conditioner, shower gel, hand cream, aloe vera gel, facial cleanser, hair mask, liquid soap, hand wash, laundry detergent, fabric softener, honey, ketchup, mayonnaise, chili sauce, jam and fruit sauce.

Automatic Liquid Spout Pouch Filling and Capping Machine with Dual-Head Piston Filler

Package Type:

Suitable for premade spout pouches and stand-up refill pouches with plastic spouts and screw caps for liquid, gel and semi-liquid products.

FEATURES

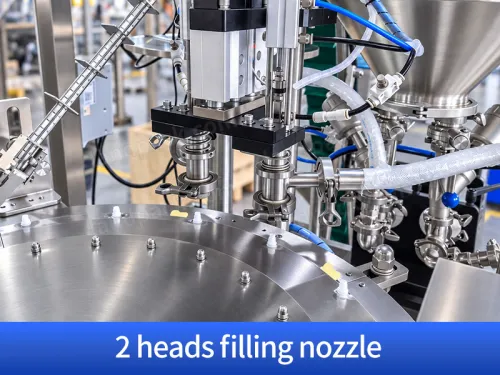

1. Dual-head piston filling system handles body lotion, shampoo, shower gel and other viscous liquid or semi-liquid products with adjustable filling volume.

2. Dual spout pouch feeding channels continuously supply premade pouches to the rotary working platform and reduce manual pouch loading.

3. Rotary working platform transfers each pouch through filling, cap placing and capping stations in sequence.

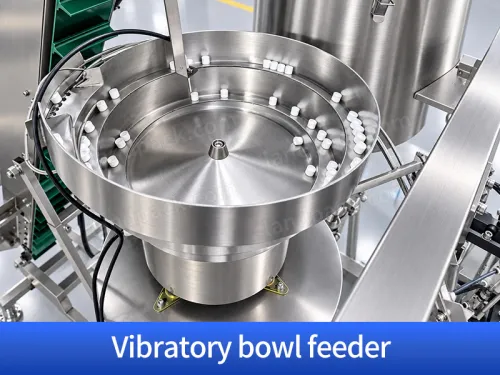

4. Automatic cap lifter transfers caps to the vibration feeding system for continuous cap sorting and feeding.

5. Dual-head capping unit tightens the screw caps after filling to match the two-head filling configuration.

6. HMI control panel allows operators to set and adjust filling and machine operating parameters from the touch screen.

7. Stainless steel product-contact structure supports cleaning and product changeover for personal care, household chemical and food applications.

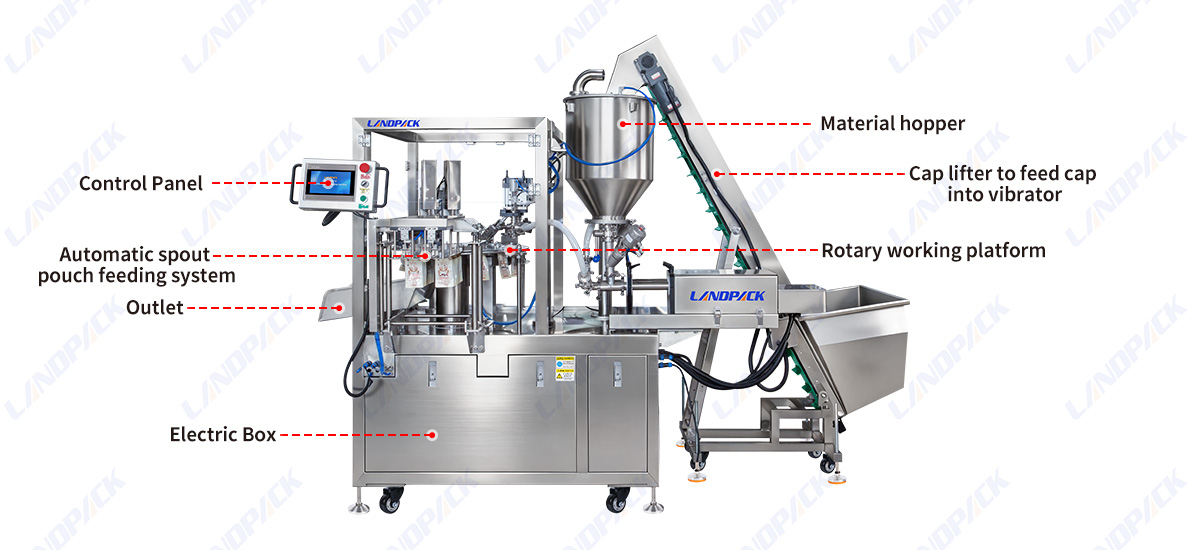

Machine Structure Overview:

Automatic Liquid Spout Pouch Filling and Capping Machine with Dual-Head Piston Filler

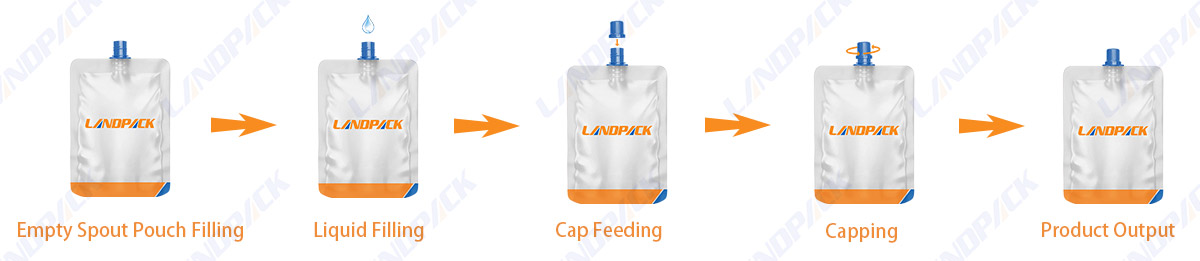

WORKFLOW

Cap Elevating

Cap Feeding

Spout Pouch Feeding

Pouch Positioning

Dual-Head Piston Filling

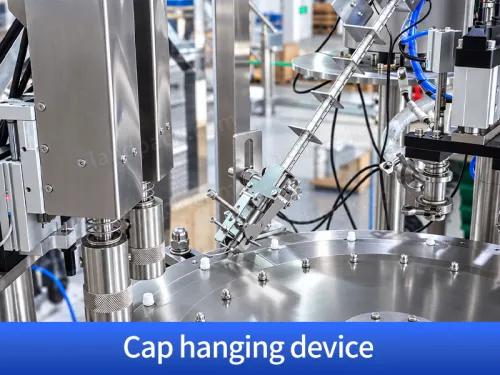

Cap Hanging

Dual-Head Capping

Finished Pouch Output

PARAMETER

Model	LF-XZD1T	LF-XZD2T	LF-XZD4T	LF-XZD6T	LF-XZD10T
Filling Head	1	2	4	6	10
Voltage	220V/110V, 50-60Hz
Power	1KW	3KW	3KW	3KW	3KW
Filling Speed	1200 bph	1500-2100 bph	3300-3900 bph	4500-6000 bph	4800-6000 bph
Filling Range	10-300ml	30-2000ml	100-500ml	10-350 ml	50-2000ml
Filling Accuracy	±1%
Air Pressure	0.4-0.7MPa	0.4-0.7MPa	0.8Mpa	0.8Mpa	0.5-0.8Mpa
Machine Weight	300kg	260KG	2600kg	2500kg	700KG
Machine Size	150012001200mm	250022001900mm	140012301900mm	245019002200mm	245019002200mm
