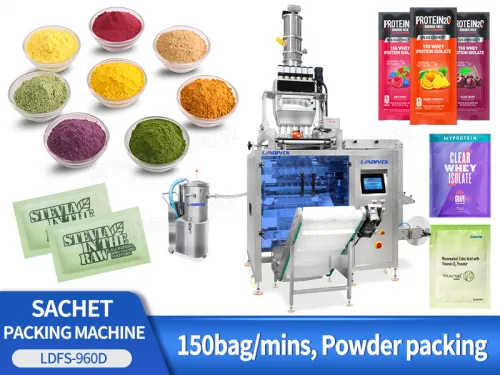

Spice Packing Machine | Multi Lane Sachet Filling Sealing Machine With Vacuum Feeder

Introduction:

This multi lanes powder sachet packing machine can make bags, measure, fill, seal, and make easy tearing notches. Suitable for food, cosmetics, and medicine packing such as spice powder, masala, turmeric, seasoning, flour, pepper, washing powder, and all kinds of powder, etc.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Spice Packing Machine | Multi Lane Sachet Filling Sealing Machine With Vacuum Feeder

FEATURES

1.The machine precisely measures small quantities down to 1 gram with automatic reloading capability for micro-dosing applications.

2.Delivers exceptional filling accuracy with a tolerance of just 0.03-0.05 grams for ultra-precise powder measurement.

3.Features a high-precision drawer-style measuring cup system that ensures consistent dosing performance.

4.Equipped with premium-brand electrical and pneumatic components for reliable operation and extended service life.

5.Designed with separated electrical circuits for easy maintenance identification and reduced operational noise levels.

6.Maintains consistent measurement precision within ±1 gram tolerance across all production cycles.

Spice Packing Machine | Multi Lane Sachet Filling Sealing Machine With Vacuum Feeder

WORKFLOW

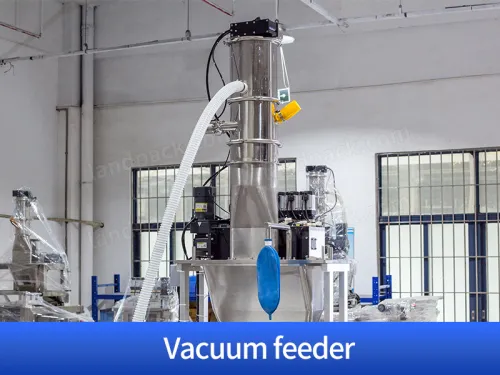

1. Vacuum feeder is more hygienic conveying of materials

2. Air sharft roll film device

3. Date coding

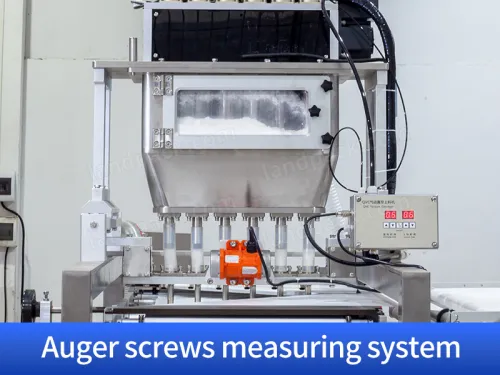

4. Auger screws measuring system

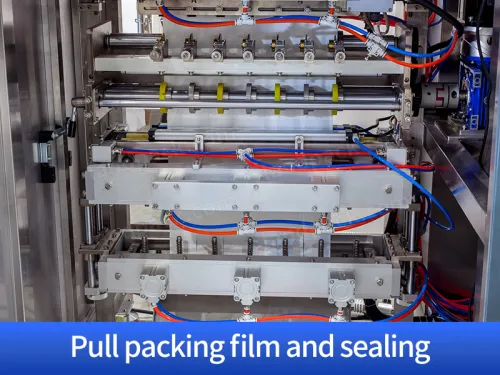

5. Pull packing film and sealing

6. Dust remove

7. Filling

8. Cutting and output the finished product

PARAMETER

Model	LDFS-480D	LDFS-720D	LDFS-960D	LDFS-1200D
Track Number	4-6 Track	4-8 Track	4-10 Track	4-12 Track
Filling Method	Auger filling by servo motor
Capacity	20-40 bags/cut
Sachet Size	L:45--120mm;W:50-60mm	L:45--120mm;W:50-90mm	L:45--120mm;W:50-120mm	L:45--120mm;W:50-150mm
Film Width&Thinckness	Max.480mm;0.07-0.1mm	Max.720mm;0.07-0.1mm	Max.960mm;0.07-0.1mm	Max.1200mm;0.07-0.1mm
Sealing Ttype	4side sealing
Cutting Type	1.Straight cutting 2.Zig zag cutting 3.Continous cutting
Air&Power	0.8MPA 0.8m³/min;2.8kw	0.8MPA 0.8m³/min 4.1kw	0.8MPA 0.8m³/min 5.5kw	0.8MPA 0.8m³/min 6.5kw
DIM&WT	95014701750mm 300kg	115316541750mm 400kg	141516862130mm 500kg	222022102600mm 800kg
