Automatic Spice Filling Machine Powder Bottle Filling Capping Sealing and Labeling Line

Introduction:

Application:

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail Get Price

Benefits & Features

Technical Parameters

VIDEOS

Application

It can be used in food, spice, beverage, nutritional supplement, baking ingredient and daily-use powder production lines where automatic bottle sorting, auger dosing, weight inspection, metal detection, capping, aluminum foil sealing, visual detection and labeling are required. Such as chili powder, turmeric powder, curry powder, coffee powder, cocoa powder, matcha powder, milk powder, coffee creamer, protein powder, collagen powder, electrolyte powder, meal replacement powder, baking powder, starch powder, soup powder, cheese powder, talcum powder and cleaning powder.

Automatic Spice Filling Machine Powder Bottle Filling Capping Sealing and Labeling Line

Package Type:

Suitable for rigid plastic bottles and jars with screw caps and aluminum foil liners, including compatible round and square containers.

FEATURES

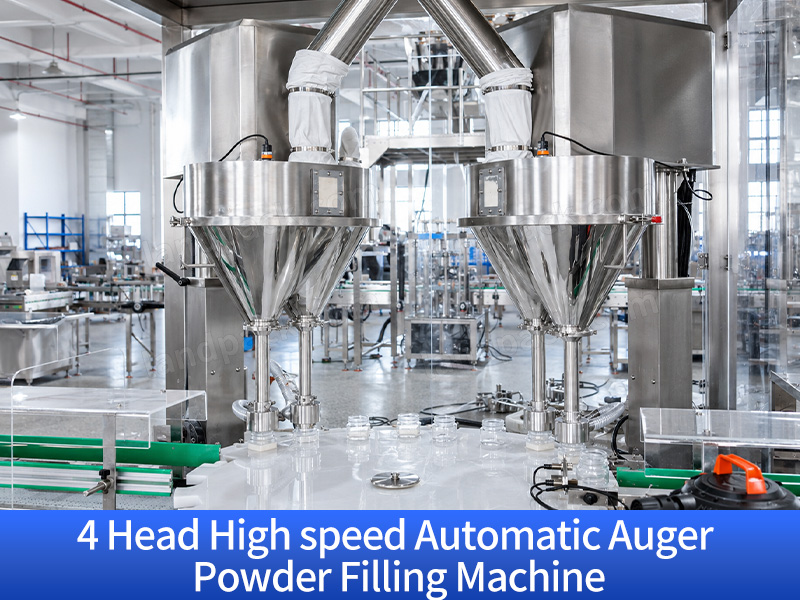

1. Dual-head dual-lane rotary auger filling system supports continuous powder dosing and higher production output for bottle filling applications.

2. Photoelectric bottle detection enables no-bottle-no-filling operation to reduce powder loss during continuous production.

3. Leak-resistant filling nozzles and dust extraction around the filling station help reduce powder leakage and airborne dust.

4. Automatic checkweigher and metal detector inspect filled bottles before the downstream capping and sealing process.

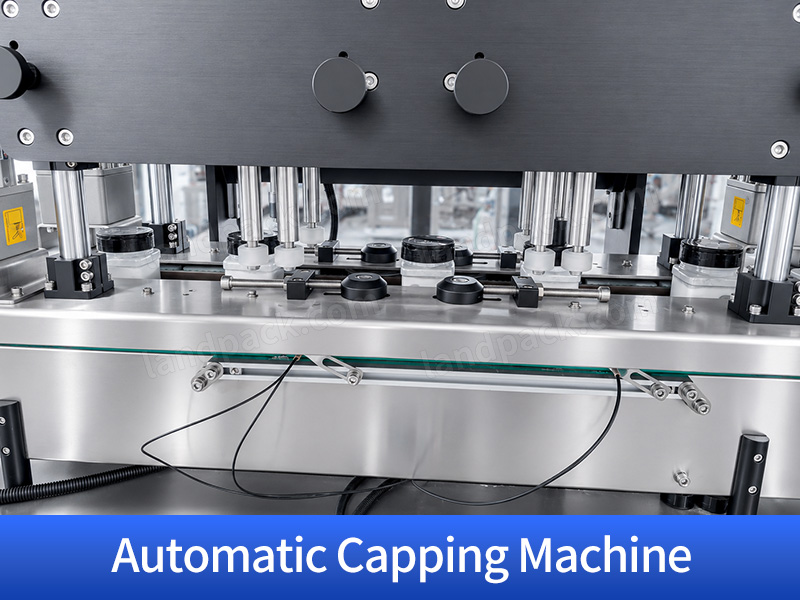

5. Automatic cap elevator and cap feeding system continuously supply caps to the high-speed capping machine and reduce manual cap handling.

6. Adjustable linear capping system can accommodate different compatible bottle sizes without replacing bottle-specific molds for every changeover.

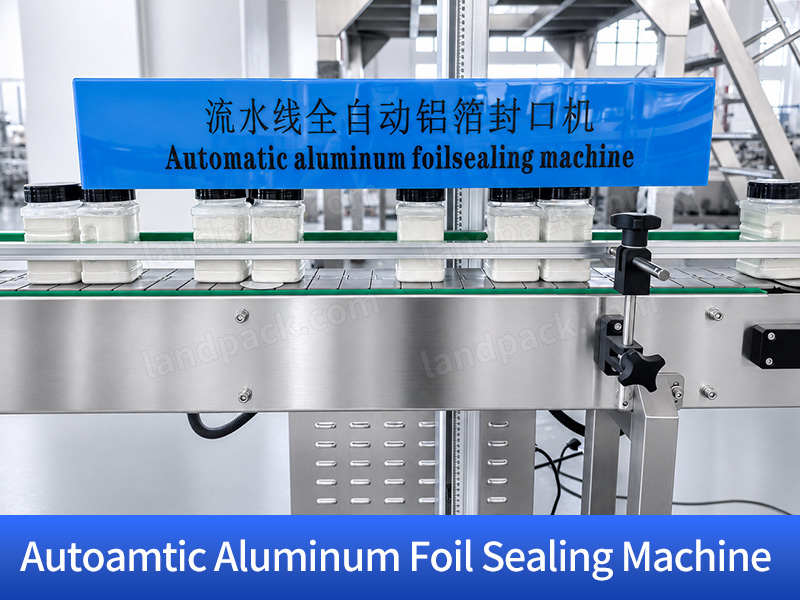

7. Aluminum foil sealing machine provides an additional sealed barrier inside the cap for compatible bottle and foil-liner combinations.

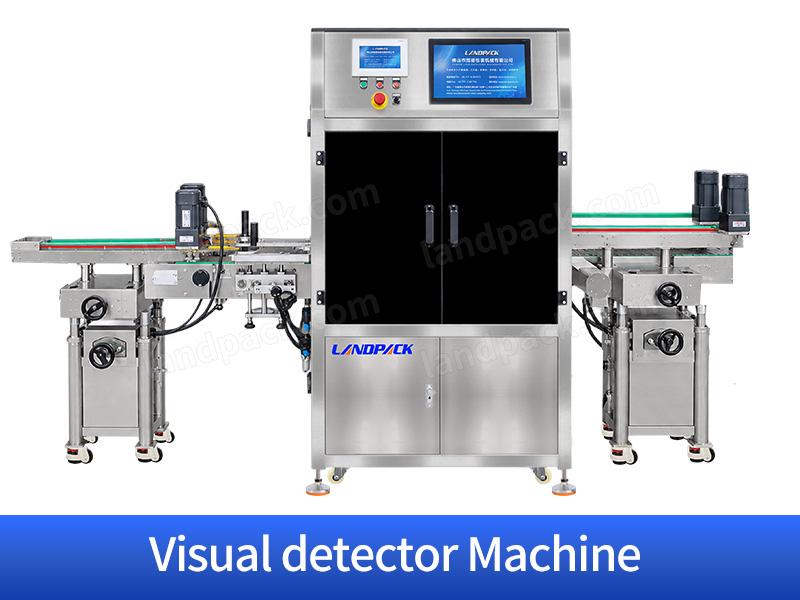

8. Camera-based vision detection recognizes bottle orientation and keeps containers correctly positioned before the labeling process.

9. Four-side wrap-around labeling system supports square bottle labeling and can be configured according to different bottle and label dimensions.

10. Stainless-steel machine frames and integrated conveyors connect bottle sorting, filling, inspection, sealing and labeling into one continuous production line.

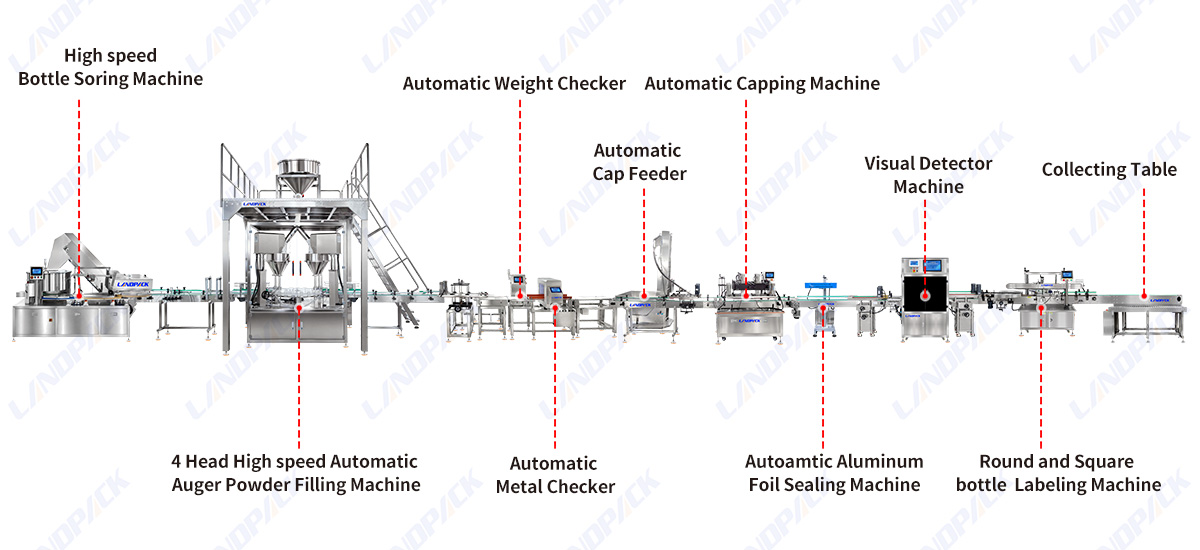

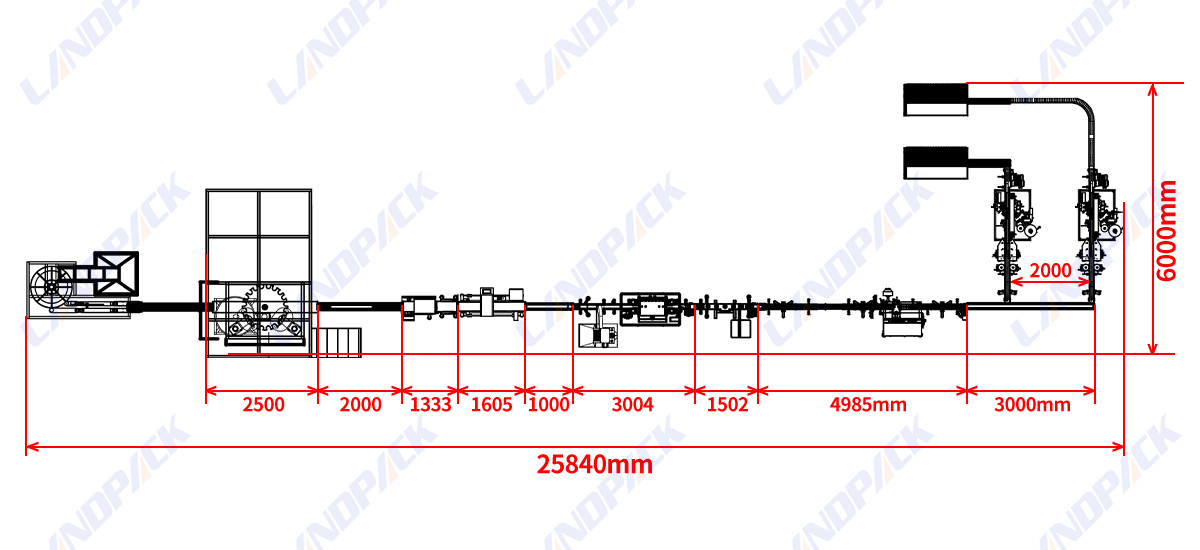

Machine Structure Overview:

Automatic Spice Filling Machine Powder Bottle Filling Capping Sealing and Labeling Line

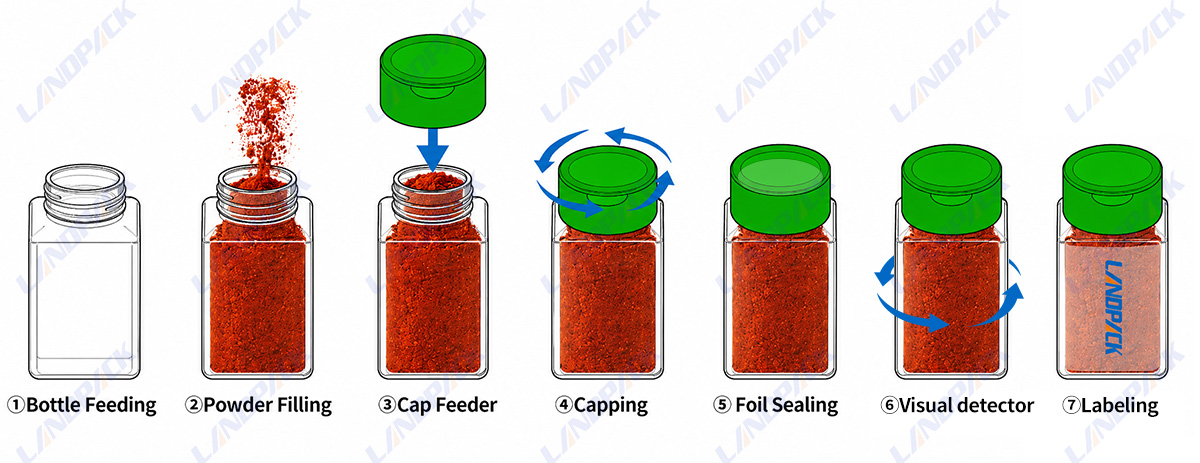

WORKFLOW

Bottle Unscrambling

Dual-Lane Rotary Auger Filling

Checkweighing

Metal Detection

Capping

Aluminum Foil Sealing

Vision Detection & Bottle Orientation

Four-Side Labeling

PARAMETER

	Item	Specification
	Model	Dual-Head Dual-Lane Rotary Auger Filler
	Filling Range	50–500 g (Customized by auger size)
	Filling Speed	Up to 80 Bottles/min
	Filling Accuracy	Approx. ±1%*
	Bottle Diameter	φ30–φ140 mm (Customized)
	Bottle Height	50–200 mm (Customized)
	Hopper Capacity	50 L
	Power Supply	220V / 380V, 50/60Hz

Model	LFX-JX-01(Four wheel capping)	LFX-GS-150(Eight wheel capping)	LFX-GS-250(Six wheel capping)
Capacity	20-50Bottles/min	40-100Bottles/min	30-80Bottles/min
Bottle cap diameter	Φ22mm-Φ80mm（Could be customized）	Φ18mm-Φ80mm（Could be customized）	Φ18mm-Φ80mm（Could be customized）
Bottle diameter	Φ35mm-Φ140mm（Could be customized）	Φ35mm-Φ140mm（Could be customized）	Φ35mm-Φ140mm（Could be customized）
Bottle sealing height	38mm-300mm（Could be customized）	38mm-300mm（Could be customized）	38mm-300mm（Could be customized）
Power	1.5KW	2KW	1.5KW
Voltage	220V、50HZ	220V、50HZ	220V、50HZ
Air pressure	0.6-0.8Mpa	0.6-0.8Mpa	0.5-0.7Mpa
weight	250kg	350kg	300kg
Dimensions	H3000W800L1600mm	H3120W1544L2122	H3100W1244L2122

Model	LD-ZS(Double Heads Aluminum Foil Sealing)	LF-LB-2000(Single Heads Aluminum Foil Sealing)
Applicable bottle diameter	Φ10-200mm（Could be customized）	Φ10-200mm（Could be customized）
Applicable bottle height	H:40-300mm（Could be customized）	H:40-300mm（Could be customized）
Speed	0-30bottle/min	0-10bottle/min
Bottle material	Glass, ceramics, plastics, metals	Glass, ceramics, plastics, metals
Voltage	220V,50HZ	220V,50HZ
Power	1500W	1200W
Dimension	15008001750mm	12006001550mm

	Item	Specification
	Detection Type	Camera Vision Detection & Bottle Orientation
	Inspection Speed	Up to 80 Bottles/min
	Applicable Bottle Diameter	φ30–φ140 mm (Customized)
	Applicable Bottle Height	50–200 mm (Customized)
	Positioning Accuracy	Approx. ±1–2 mm*
	Camera System	Industrial Vision Camera
	Power Supply	220V / 50/60Hz

Model	LFT-LG-100(Low speed labeling)	LFT-GS-00(High speed labeling)
Labeling speed	Max 120bottle/min	Max 140bottle/min
Labeling accuracy	±1mm	±1mm
Label maximum width	100mm（Could be customized）	100mm（Could be customized）
Size of the object being attached	Φ30mm-Φ100mm（Could be customized）	Φ30mm-Φ80mm（Could be customized）
Label ID	Φ76mm	Φ76mm
Label OD	MaxΦ330mm	MaxΦ380mm
Voltage	220V、50HZ	220V、50HZ
Power	1.5KW	1KW
Weight	250kg	300kg

After receiving your inquiry,We will send you the quotation as soon as possible.
