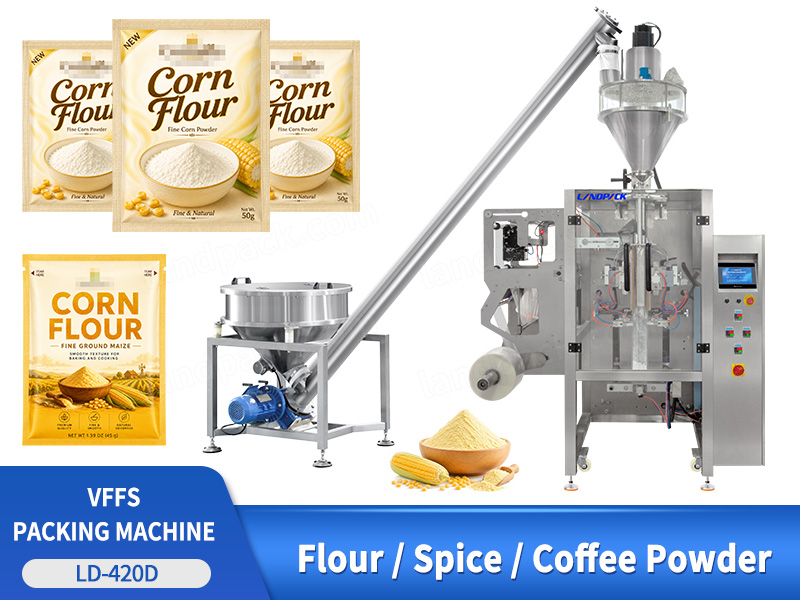

Automatic Spice Four-Side Seal Vertical Packing Machine with Auger Filler

Introduction:

Spice packing machine with servo auger dosing, four-side sealing, ribbon coding and air exhaust, producing sachets at up to 60 bags/min.

Application:

Suitable for spice powder, corn starch, wheat flour, rice flour, baking powder, milk powder, seasoning powder and other fine powder products.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

This spice packaging machine handles baking powder, rice flour, corn starch, premixed flour, milk powder, wheat flour, seasoning powder, corn flour and other fine powder products. Its 50 L auger hopper continuously mixes the material before accurate dosing and filling into four-side seal pouches formed from roll film.

Automatic Spice Four-Side Seal Vertical Packing Machine with Auger Filler

Package Type:

This spice packaging machine produces flat four-side seal sachets from roll film. It supports different bag lengths, filling weights, printed film designs, and straight or serrated cuts according to the machine configuration. Suitable film structures include PET/PE, PET/AL/PE, NY/PE, and other heat-sealable laminated films.

FEATURES

1. Servo auger controls each powder dose with accuracy up to ±1% under suitable operating conditions.

2. 50 L filling hopper includes a stirring device to keep fine powder moving.

3. Sponge exhaust device removes trapped air and makes finished bags flatter.

4. Touchscreen adjusts bag length without changing the bag width.

5. Different bag lengths support several filling volumes on the same former.

6. Air shaft simplifies film roll loading and replacement.

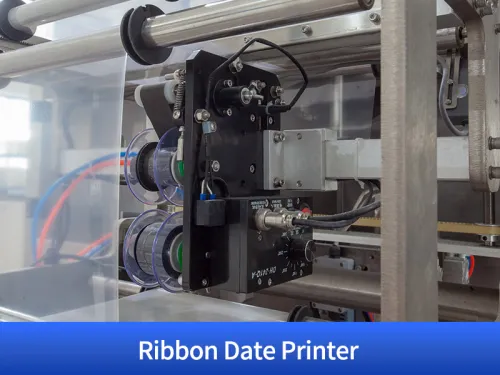

7. Ribbon coder adds date, batch, and expiry information.

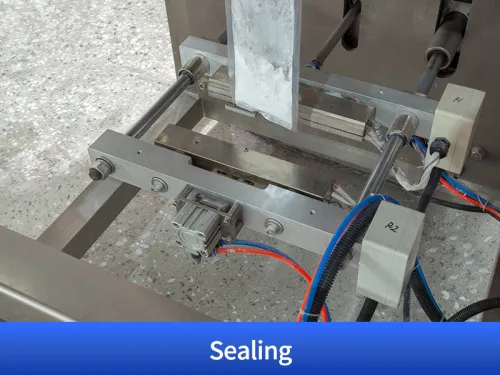

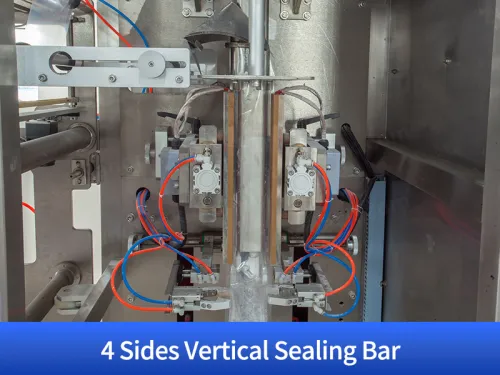

8. Four-side sealing bars close each edge of the sachet.

9. Servo film pulling controls bag length and film movement.

10. Product-contact parts use stainless steel for routine flour and starch packing.

11. Operators can adjust filling weight, sealing temperature, bag length, and production speed.

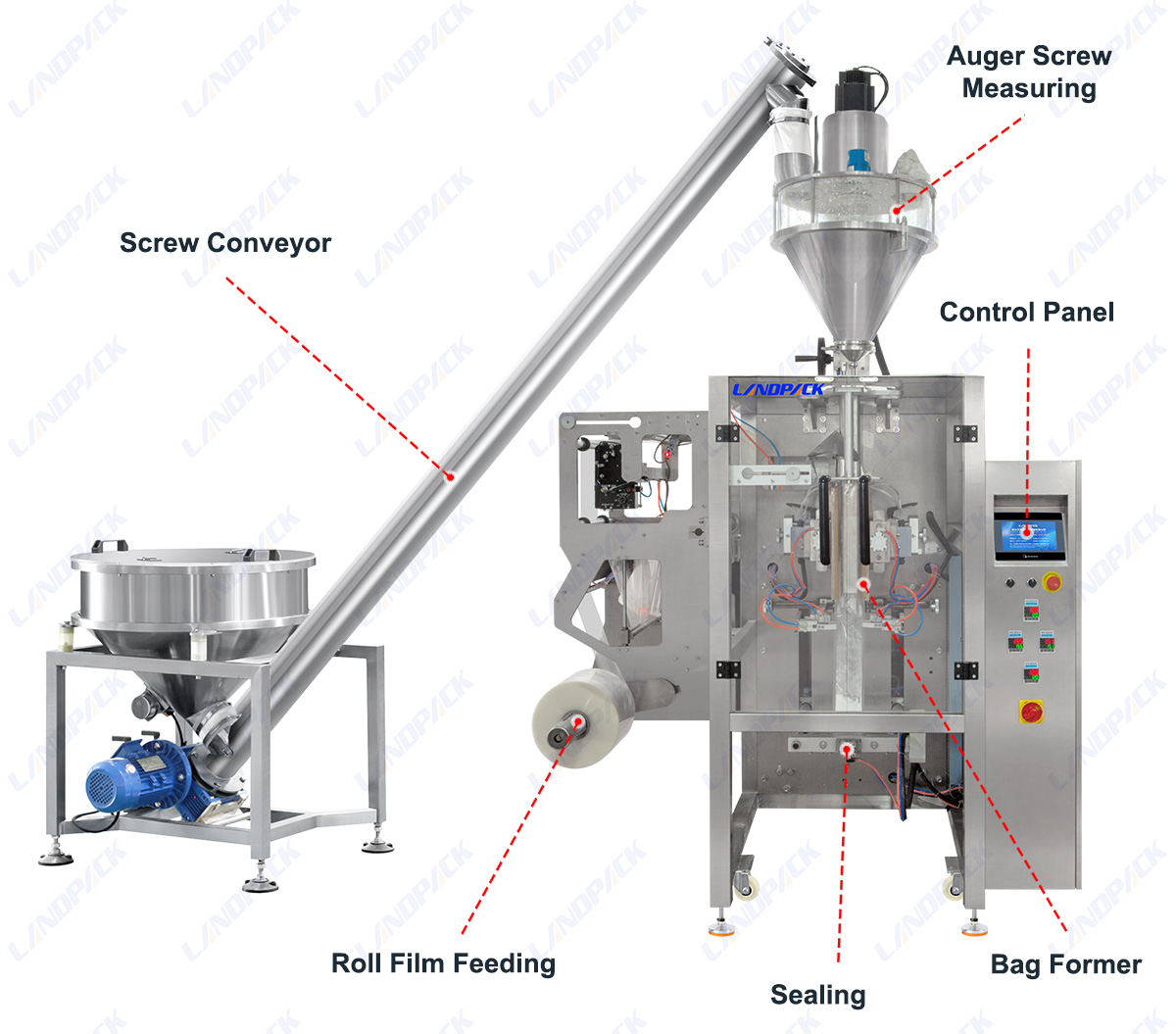

Machine Structure Overview:

Automatic Spice Four-Side Seal Vertical Packing Machine with Auger Filler

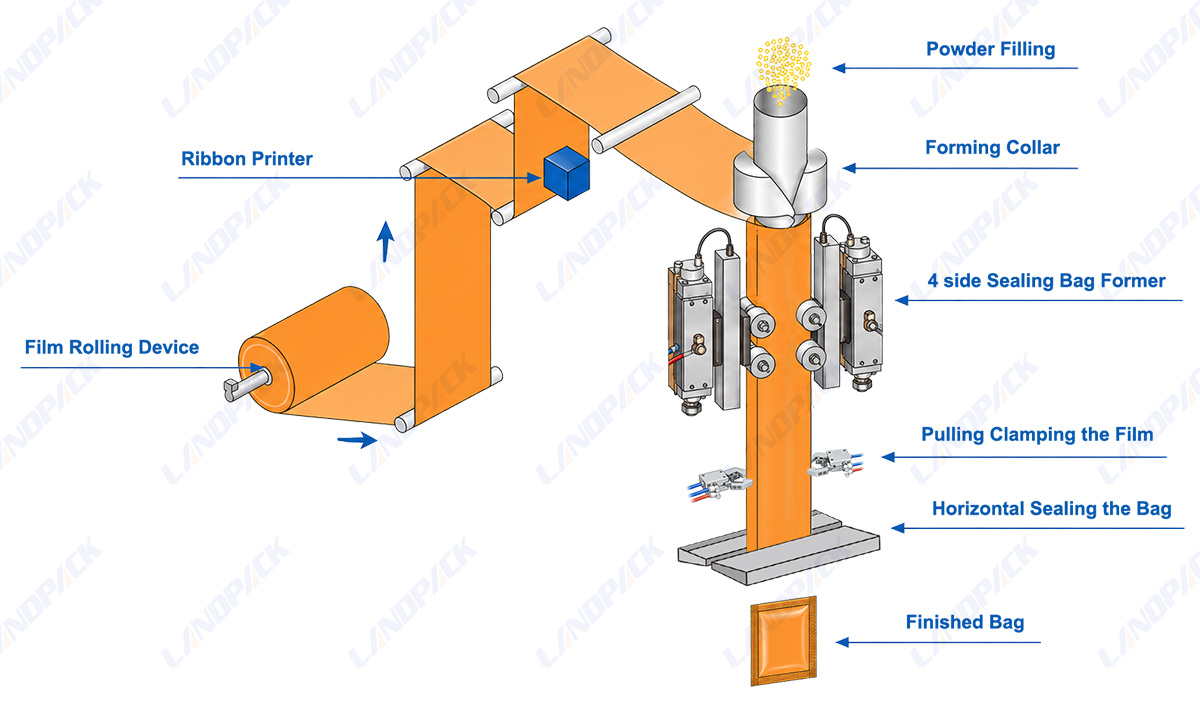

WORKFLOW

Roll Film Feeding

Ribbon Date Printing

Auger Measuring

Vertical Side Sealing

Powder Filling

Air Exhaust

Horizontal Sealing and Cutting

Finished Bag Output

PARAMETER

Model	LD-420D	LD-520D	LD-620D	LD-720D
Film Thickness	0.04-0.12mm	0.04-0.12mm	0.04-0.12mm	0.04-0.12mm
Bag Length	80-300mm	60-400mm	60-450mm	60-500mm
Bag Width	60-200mm	100-250mm	65-300mm	65-350mm
Film Roll Diameter	Max.600mm	Max.600mm	Max.600mm	Max.600mm
Packaging Rate	5-60 bags/min	5-40 bags/min	5-35 bags/min	5-30bag/min
Film Width	Max.420mm	Max.520mm	150-Max.620mm	150-Max.720mm
Making bag volume	1000ml	2000ml	3000ml	5000ml
Power Supply	220V, 50/60HZ, 3KW	220V, 50/60HZ, 3KW	220V, 50/60HZ, 3.2KW	220V, 50/60HZ, 3.5KW
Machine Size	121710151343 mm(LWH)	148810801490 mm(LWH)	148811801550 mm(LWH)	178013502050 mm(LWH)
