Automatic Shampoo Packing Machine Liquid Multi Lane Sachet Filling and Sealing Machine

Introduction:

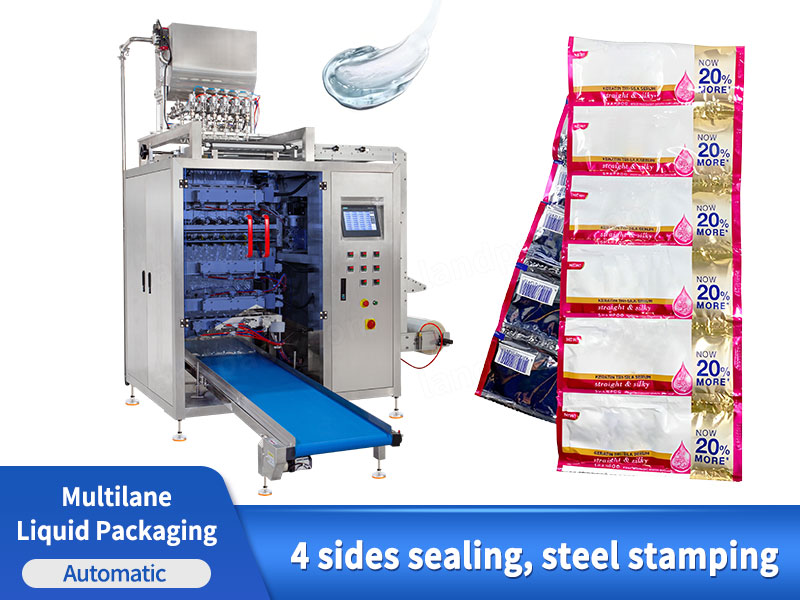

Multi lane shampoo sachet packing machine with piston filling, four-side sealing, date stamping, linked-pack cutting and automatic sachet stacking.

Application:

Suitable for automatic multi-lane packing of shampoo, cleaning agent, lotion, liquid soap, gel, sauce and other liquid or semi-liquid products into small sachets.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

This shampoo sachet packing machine fills liquid soap, hair conditioner, lotion, shampoo, fabric softener, hand sanitizer, facial cleanser, shower gel, hair serum, liquid detergent and other liquid products into small sachets. It can produce separate sachets or connected strip packs, then automatically fold and stack the finished packs at the discharge section.

Automatic Shampoo Packing Machine Liquid Multi Lane Sachet Filling and Sealing Machine

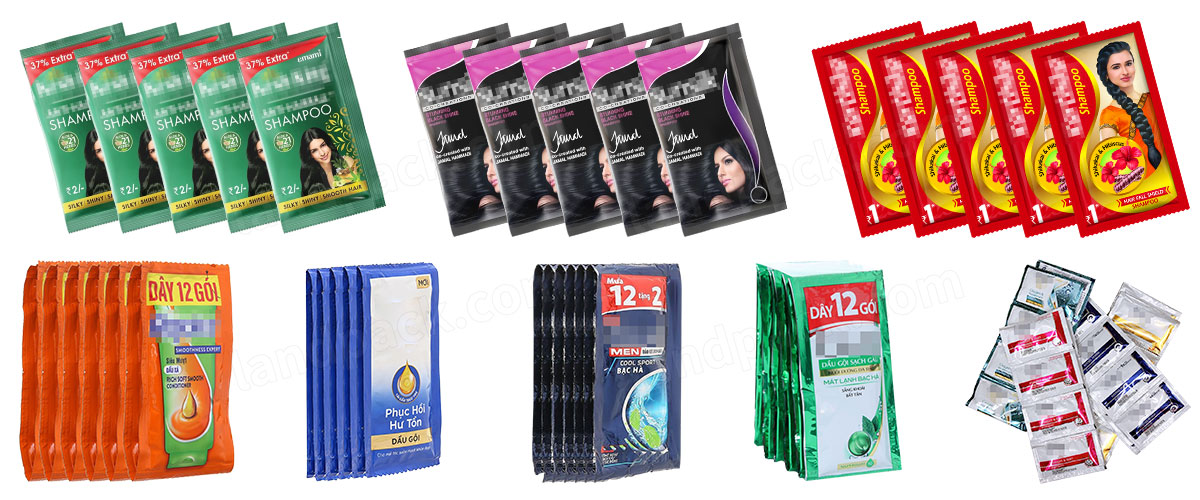

Package Type:

The machine forms flat 4 side seal sachets from roll film. It supports single sachets, vertically linked sachets, and connected strips with an adjustable number of packs. Suitable film materials include PET/PE, PET/AL/PE, NY/PE, and other heat-sealable laminated films.

FEATURES

1. Full SS304 machine frame resists contact with shampoo and household liquids.

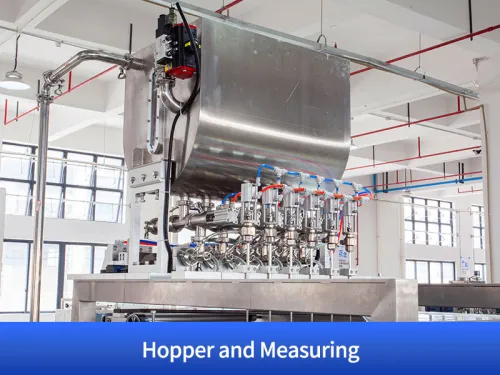

2. Separate piston pump for each lane controls the filling volume.

3. Servo drive controls film pulling and sachet length.

4. Touchscreen stores filling, sealing, and linked-pack settings.

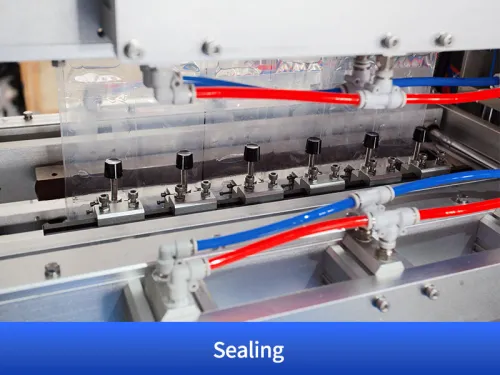

5. Four-side sealing closes every edge of each sachet.

6. Adjustable linked-pack control sets the number of connected sachets.

7. Automatic outlet conveyor folds and stacks finished sachet strips.

8. Steel stamping unit adds date or batch details without ink cartridges.

9. Independent sealing controls match different laminated films.

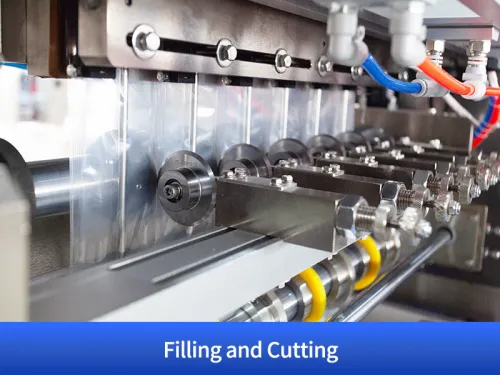

10. Cutting unit keeps sachet corners and edges aligned.

11. The pouch sachet filling sealing machine for shampoo handles individual packs and connected sachet strips.

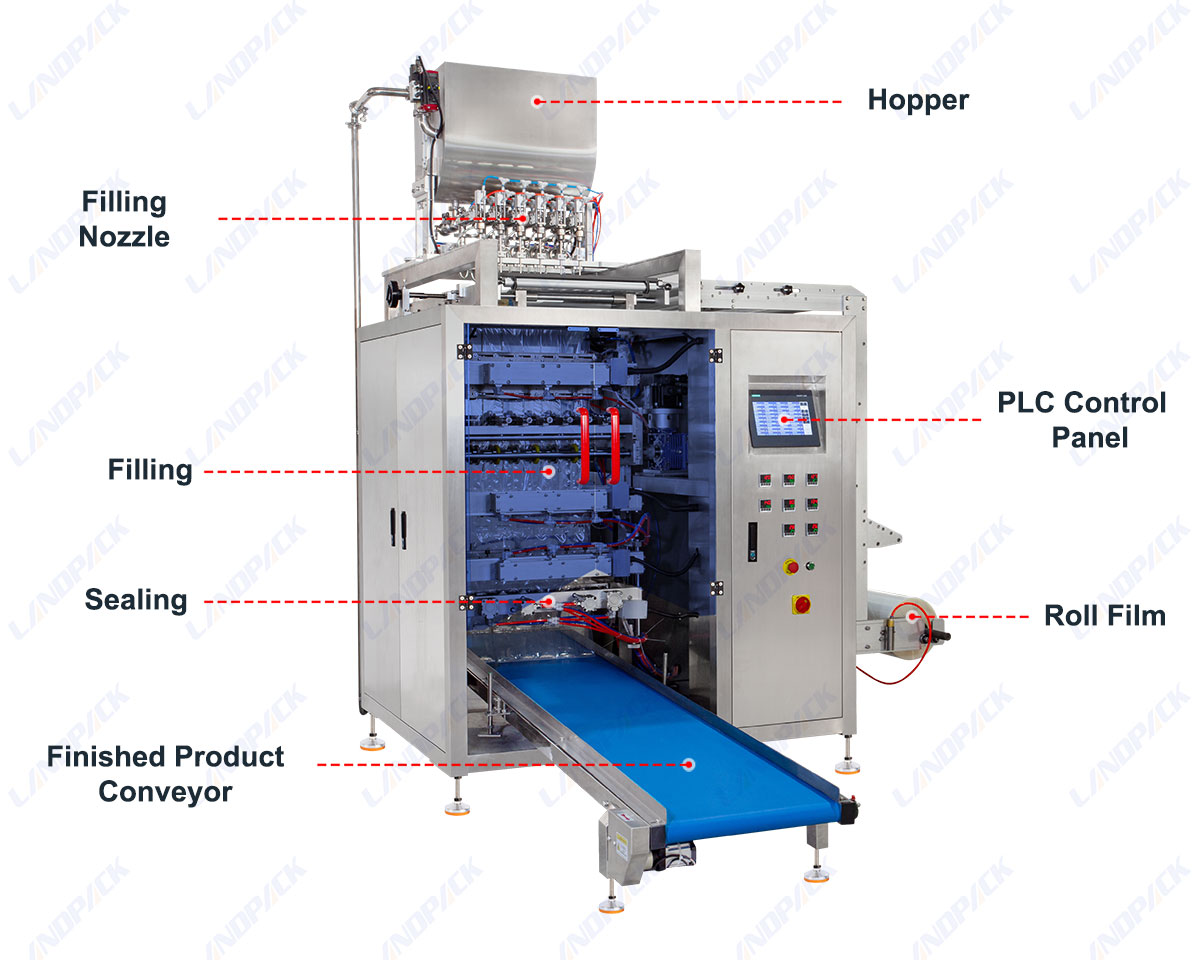

Machine Structure Overview:

Automatic Shampoo Packing Machine Liquid Multi Lane Sachet Filling and Sealing Machine

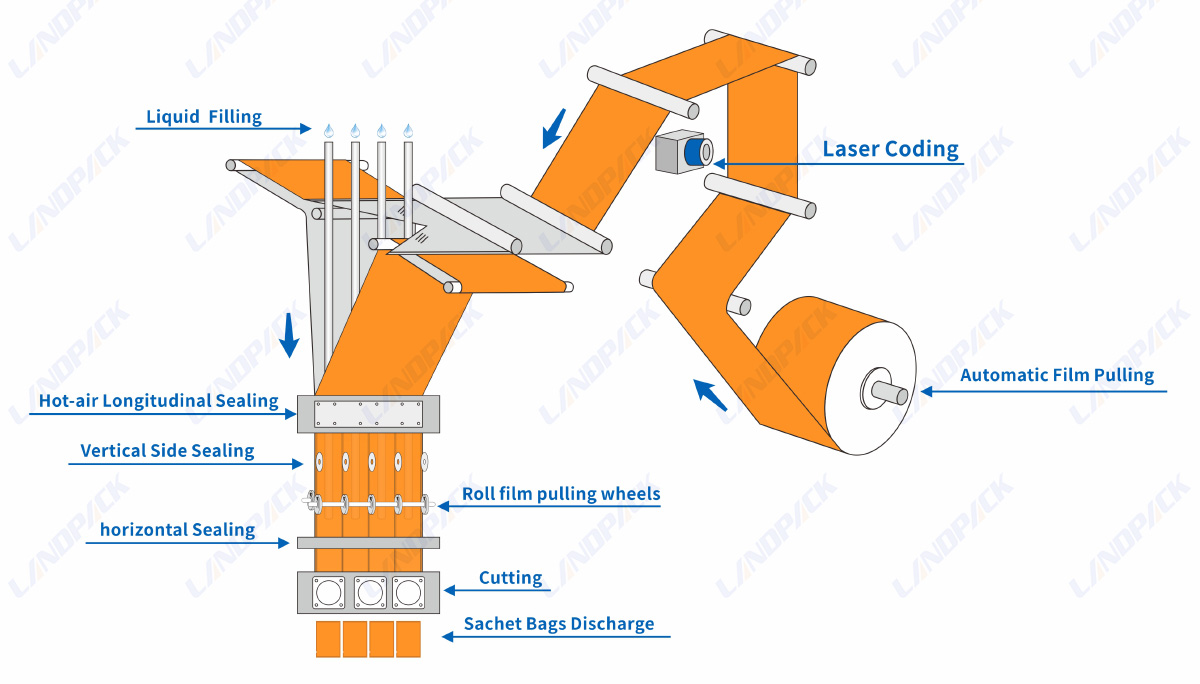

WORKFLOW

Touchscreen Setting

Piston Pump Metering

Liquid Filling

Vertical Side Sealing

Horizontal Sealing

Steel Date Stamping

Linked-Sachet Cutting

Automatic Folding and Stacking

PARAMETER

Model	LDFS-480L	LDFS-720L	LDFS-960L
Track Number	4~6 Tracks	4~10 Tracks	4~12 Tracks
Filling Method	1. Piston pump; 2. Peristaltic Pump
Capacity	Max.40 cycle/min
Sachet Size	L:45-120mm; W:35-60mm	L:45-120mm; W:35-90mm	L:45-120mm; W:35-120mm
Film Width & Thickness	Max.480mm; 0.07-0.1 mm	Max.720mm; 0.07-0.1 mm	Max.960mm; 0.07- 0.1 mm
Sealing Type	3/4 sides sealing	3/4 sides sealing	3/4 sides sealing
Cutting Type	1. Straight Cutting; 2. Zig Zag Cutting; 3. Continuous Cutting
Air & Power	0.8 mpa 0.8m³/min; 2.8kw	0.8 mpa 0.8m³/min; 4.1kw	0.8 mpa 0.8m³/min; 5.5kw

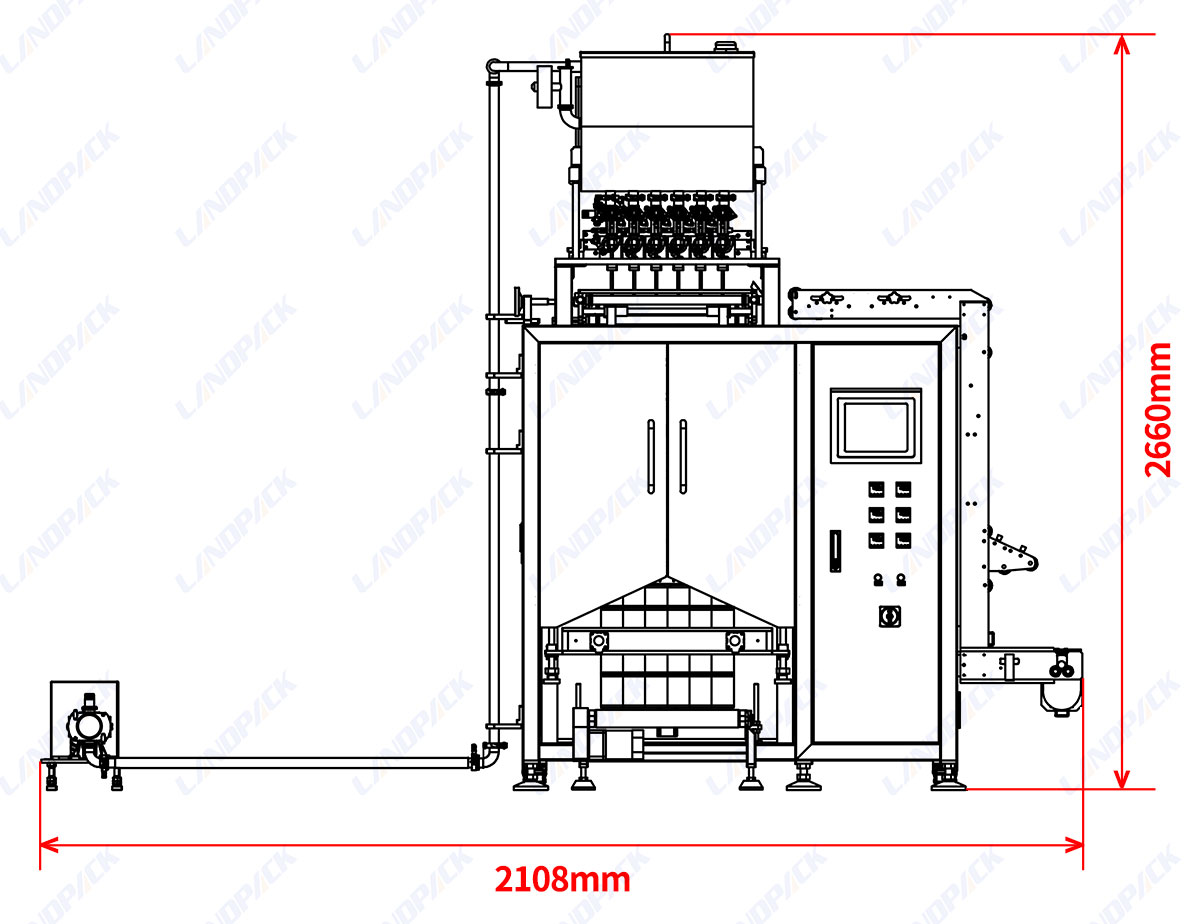

DIM & WT	95014701750mm; 300kg	115316541750mm; 400kg	141516862130mm; 500kg
