Shampoo Bottle Filling Machine For 100ml 200ml 300ml 400ml 500ml 750ml 1L Etc

Introduction:

Ideal for filling and capping small- to medium-size bottles (100 ml–1 L) across multiple industries: cosmetics & personal care: shampoo, conditioner, body wash, etc.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Ideal for filling and capping small- to medium-size bottles (100 ml–1 L) across multiple industries: cosmetics & personal care: shampoo, conditioner, body wash; daily chemicals: liquid soap, dishwashing, laundry detergent; food & beverages: sauces, oils, syrups, honey, essential oils ; pharmaceuticals & healthcare: oral liquids, sanitizers.

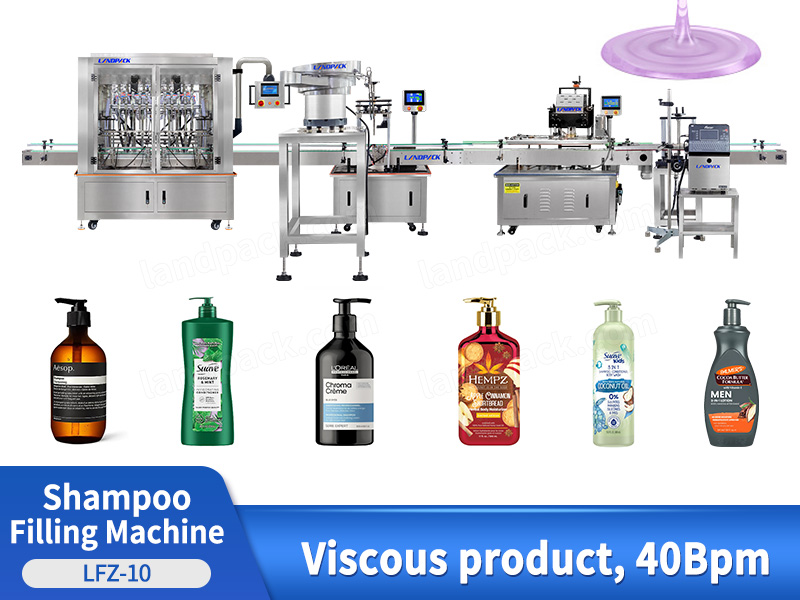

Shampoo Bottle Filling Machine For 100ml 200ml 300ml 400ml 500ml 750ml 1L Etc

FEATURES

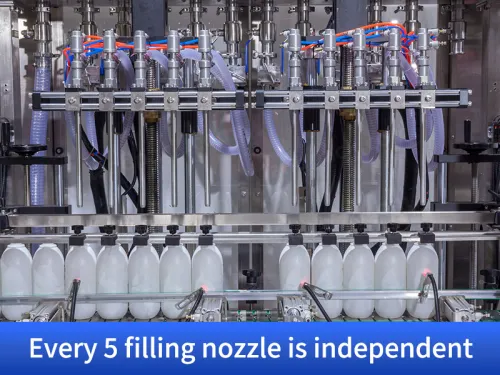

1. Features a 10-head gear pump filling system with two independent groups (5 heads each) for simultaneous filling of different products.

2. Uses bottom-up (dipping) nozzles to minimize bubbles and foam during filling.

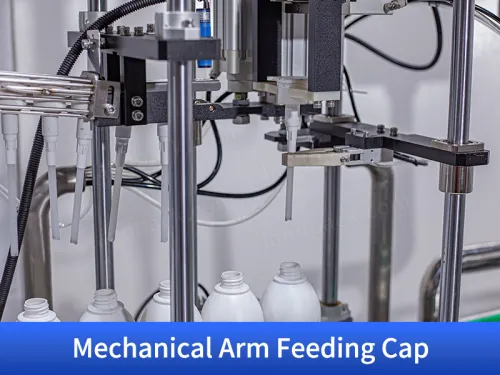

3. Automates cap feeding and capping with a vibratory feeder and four-wheel capping station, reducing manual work.

4. Includes ink-jet coding on bottle bottoms for traceability and compliance.

5. Equipped with sensors to prevent filling if no bottle is detected.

6. Ensures high accuracy (±1%) with adjustable fill volumes and recipe storage.

7. Made with food/pharma-grade 304/316L stainless steel for easy cleaning and GMP compliance.

8. Operates via PLC touchscreen for centralized control, real-time monitoring, and fault alerts.

Shampoo Bottle Filling Machine For 100ml 200ml 300ml 400ml 500ml 750ml 1L Etc

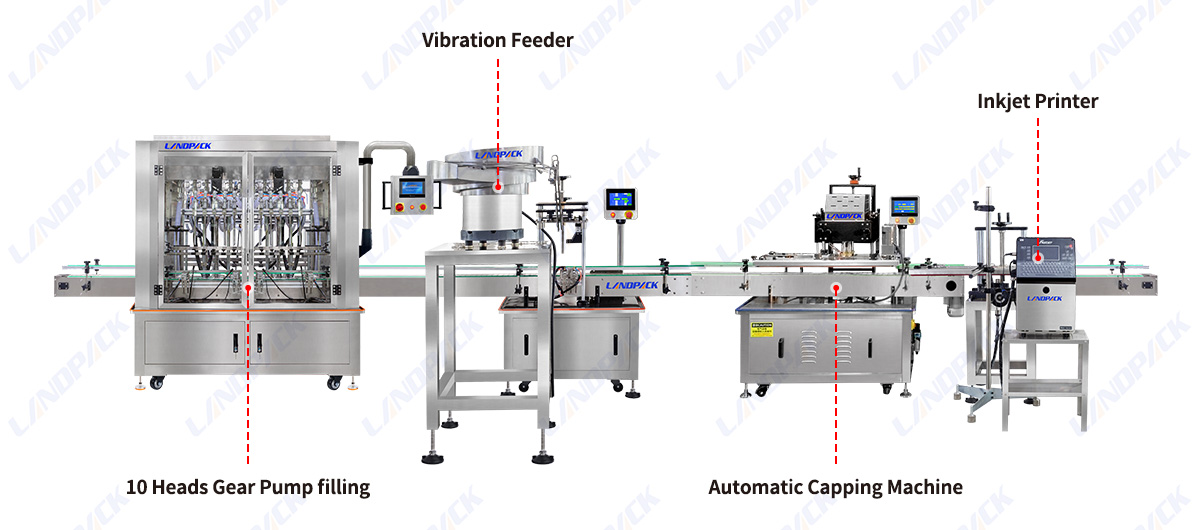

WORKFLOW

1.Bottle Feeding

2.Gear-Pump Filling

3.Cap Delivery

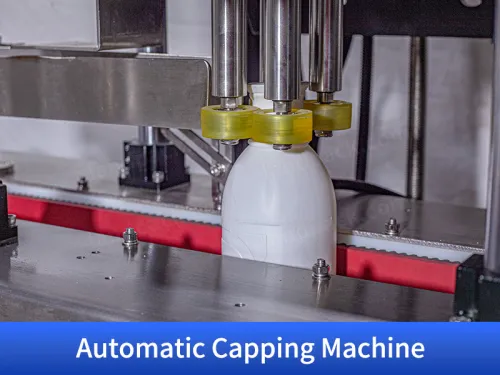

4. Automated Four-Wheel Capping

5. Ink‑Jet Coding & Discharging

PARAMETER

	Model	LD-ALF01
	Filling Range	50-1000ml(Customizable)
	Filling Speed	15-50 bottles/min
	Measurement accuracy	±1%
	Power	2 KW
	Working power supply	220V, 50Hz
	Working pressure	0.6-0.8MPa
	Weight	500kg

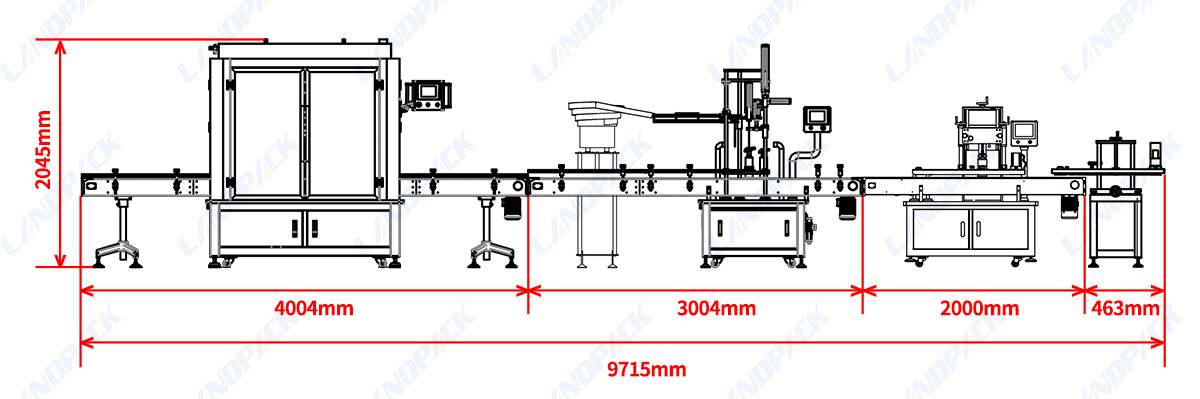

	Size	L4000W1320H2090(mm)
