Sauce Packing Machine | M Shape & Spout Pouch Horizontal Pouch Packing Machine

Introduction:

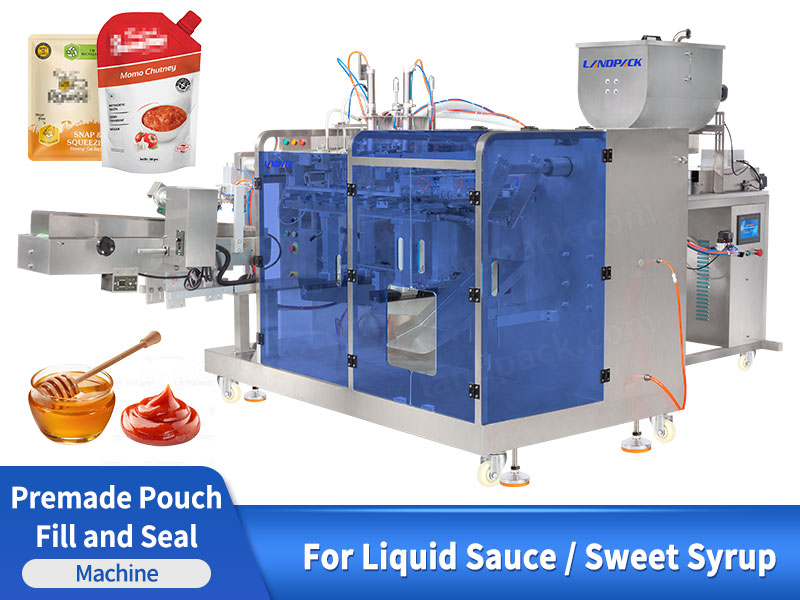

This horizontal pouch packaging line features dual filling nozzles, a spacious 50 L U-shaped hopper, and servo-driven piston pumps for stable, precise liquid dosing.

Application:

Designed for manufacturers of sauces, condiments, personal-care liquids, and household chemicals, this machine reliably fills and seals products like ketchup, salad dressing, shampoo, liquid soap, shampoo and liquid detergents.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Package Type:

This horizontal premade-pouch packaging system supports a wide range of pouch styles commonly used in food, condiments, daily chemical, and household products. Compatible pouch types include: flat Pouch (3-side seal / 4-side seal), stand-Up Pouch (Doypack), zipper Pouch (resealable pouches), spout Pouch (for liquids, sauces, detergents), gusset Pouch (side gusset or bottom gusset), etc.

Sauce Packing Machine | M Shape

Suitable Products:

The horizontal premade pouch packing machine, built with dual filling nozzles and a 50L U-shaped hopper, delivers stable, hygienic, and accurate filling for a wide range of liquid and semi-liquid products. It adapts easily to different viscosity levels and serves multiple industries, including:

Sauces & Condiments: chili sauce, ketchup, soy-based sauces, creamy dressings, flavored pastes.

Liquid & Semi-Liquid Foods: honey blends, fruit jams, dessert fillings, cooking oils, concentrated beverages.

Personal Care & Household Products: shampoo, conditioners, lotions, detergents, cleansing gels.

Sauce Packing Machine | M Shape

FEATURES

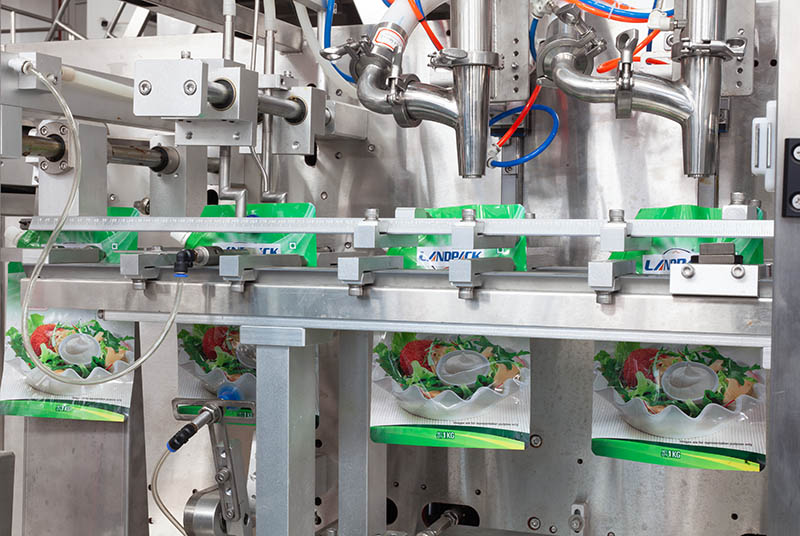

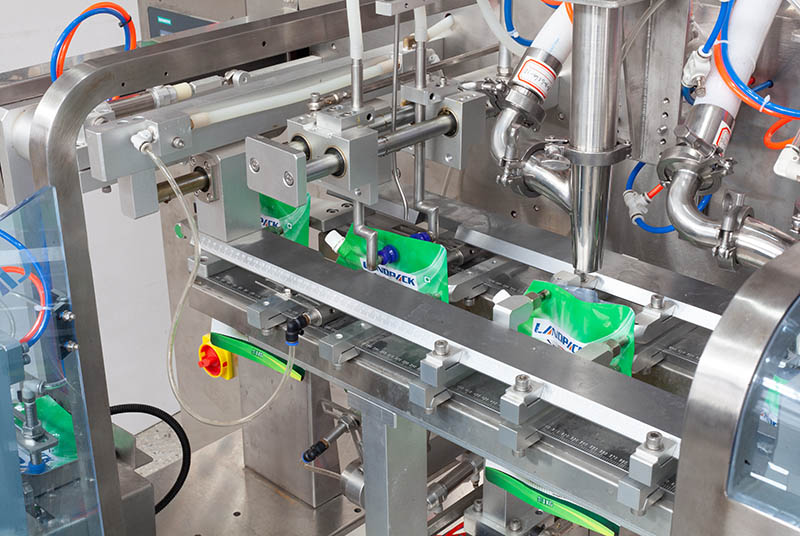

Dual Filling Nozzles for Simultaneous High-Speed Dispensing Two feeding nozzles are working simultaneously the spout pouch sealing and filling machine drastically reduces the time required to fill, and also increases the efficiency of packing.
	Anti-Drip Air-Blow Function for Clean Filling Each filling nozzle is upgraded with an air blow system, which stops drips from occurring after filling. This ensures that the surface of the pouch is clear and eliminates the waste product and also helps to maintain the hygiene of the pouch.

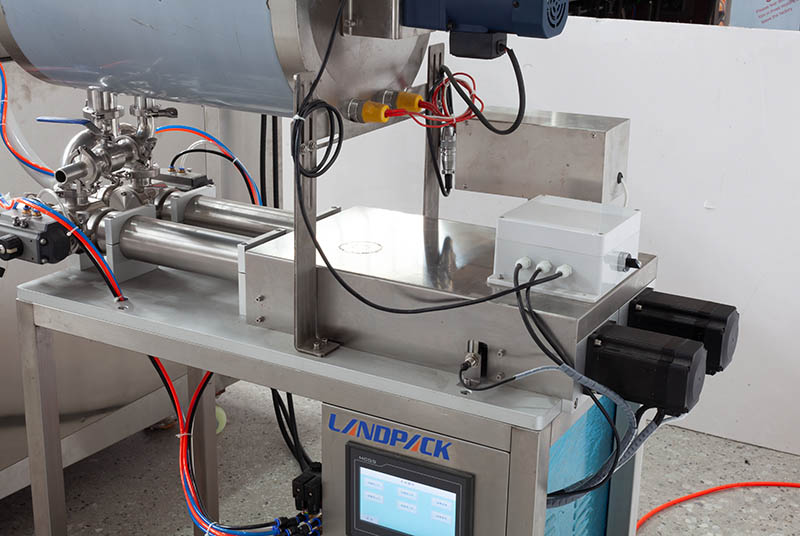

Servo-Driven Piston Pump for Accurate & Easy Adjustment The servo-controlled piston system provides precise dosage of volume using Fluid motion control. Users can change the parameters of filling quickly and effectively.

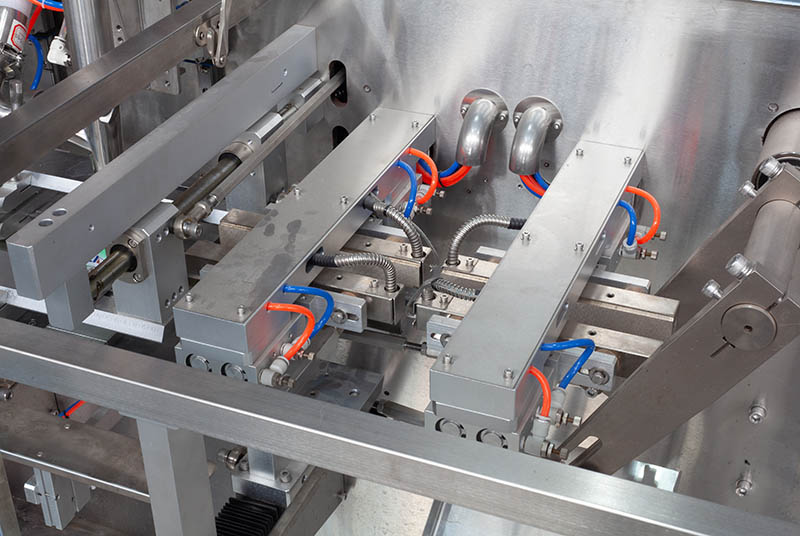

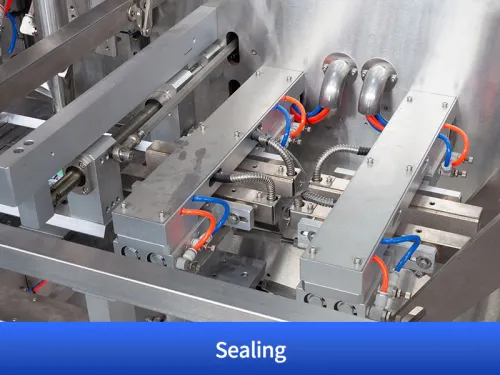

	Double Heat-Sealing Technology for Superior Seal Strength With two stages of heat sealing This machine provides greater strength, more tight and robust pouch seals.

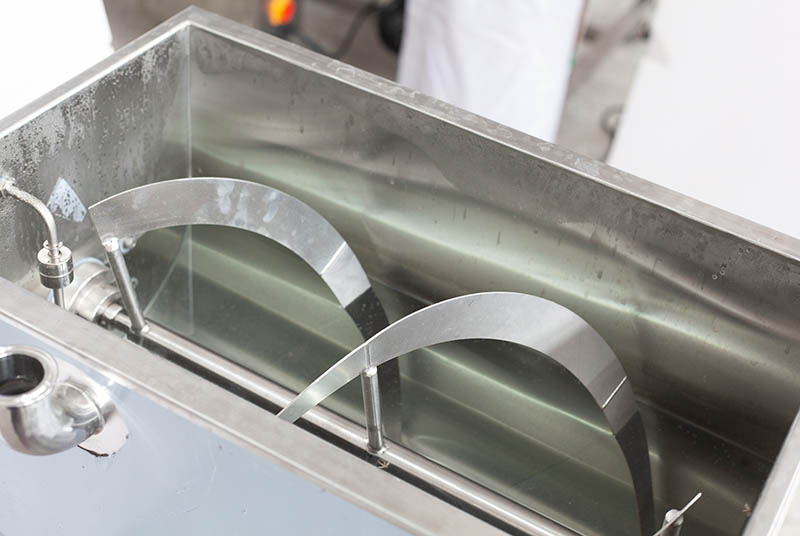

50L Hopper U-Shaped that has a stable continuous feed The large-capacity U-type container guarantees the continuous flow of viscous and semi-liquid substances. Heating and mixing options provide an even texture and keep the material from settlement.

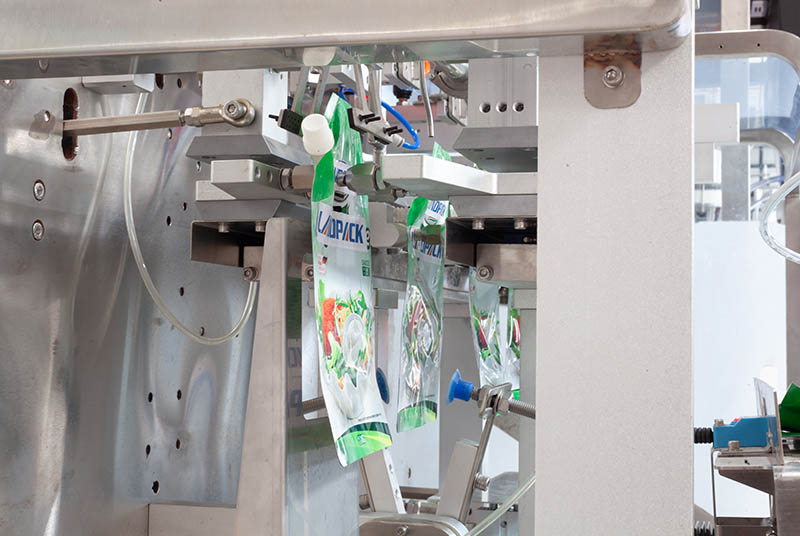

	Smart Pouch Opening & Safety Detection System The machine will automatically select open, and then examines each pouch that has been made prior to filling, to ensure that the pouch displays perfectly.

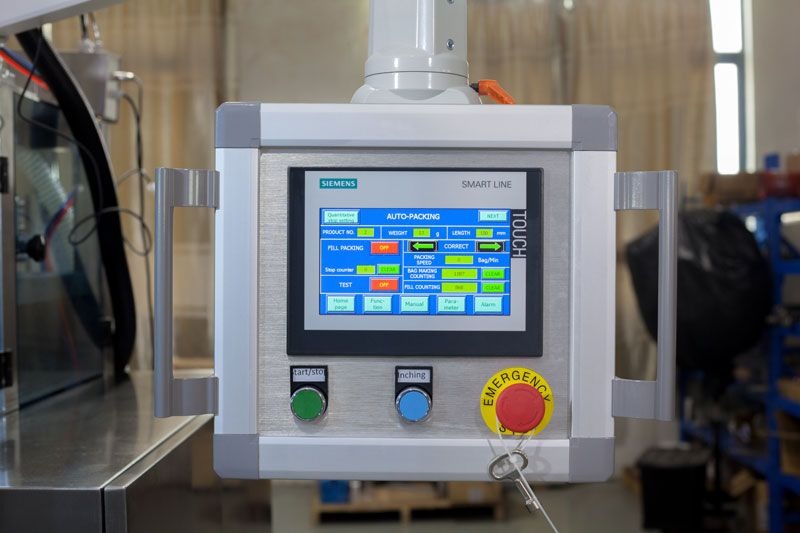

Touchscreen Control for users who have Recipe Memory The PLC touchscreen interface offers users with an easy operation, and simple parameter tuning and multi-recipe memory.

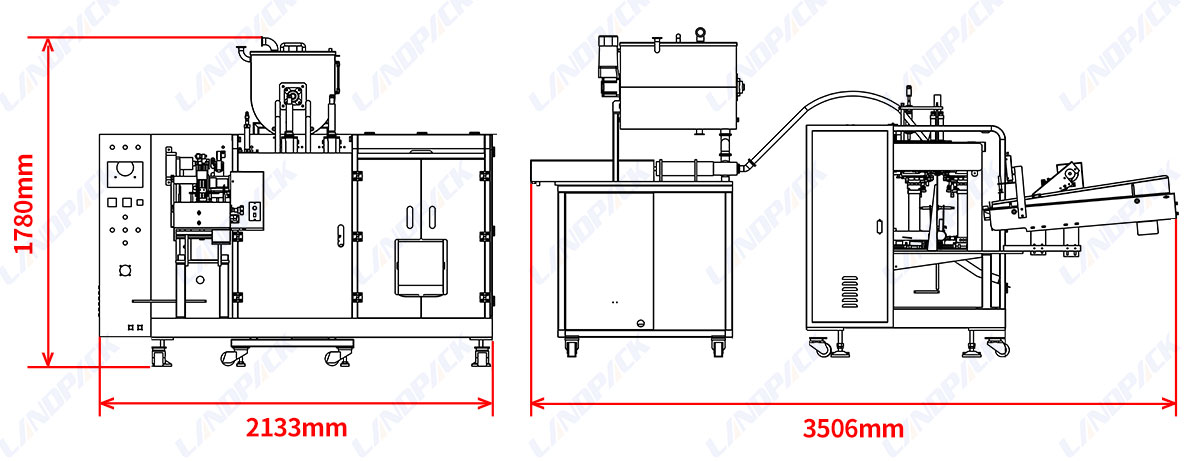

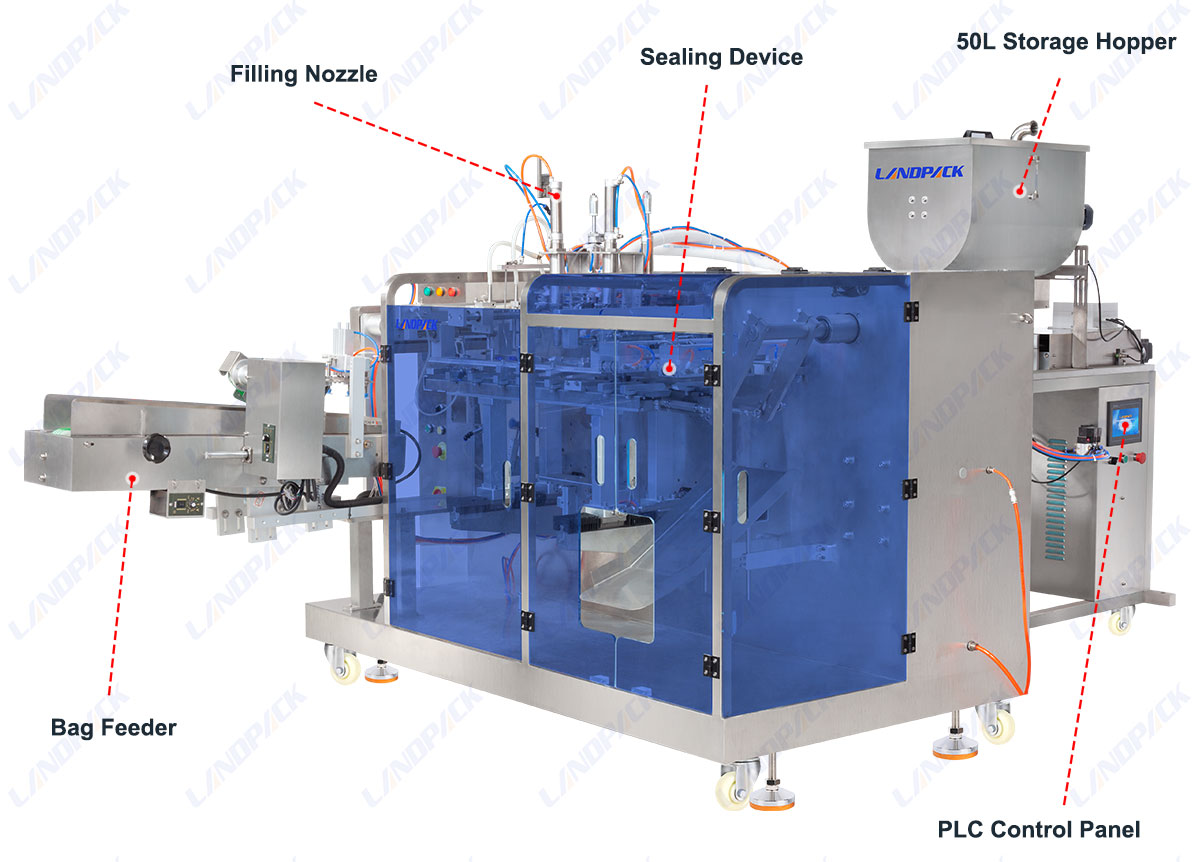

Machine Structure Overview:

1. Filling Nozzle

2. Sealing Device

3. 50L Storage Hopper

4. PLC Control Panel

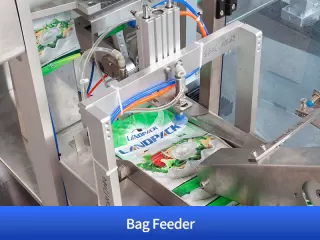

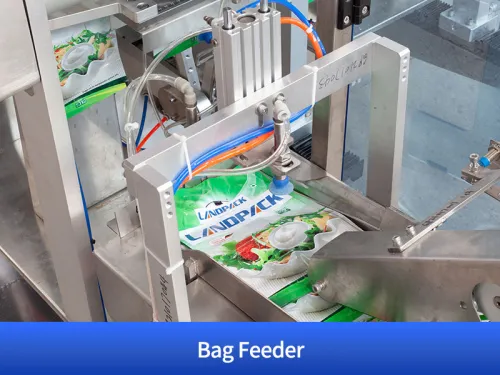

5. Bag Feeder

Sauce Packing Machine | M Shape

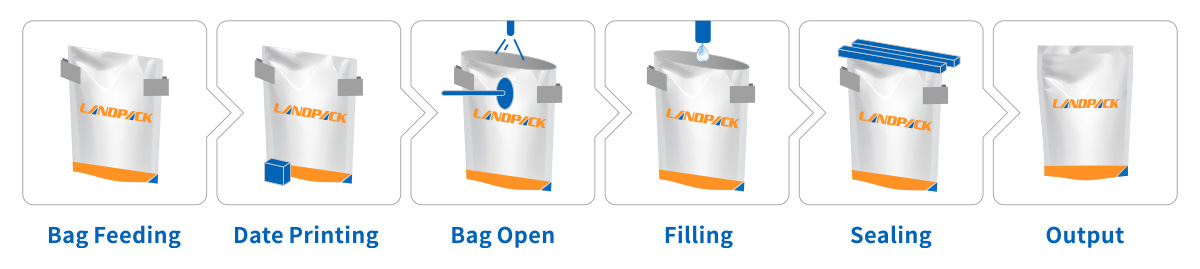

WORKFLOW

Pouch Feeding

Date Coding

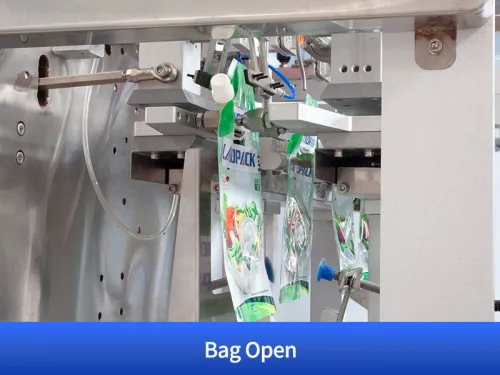

Pouch Opening & Detection

Precision Piston Dosing

Dual-Nozzle Filling

Air-Blow Drip Prevention

Double Heat Sealing

Cooling & Discharge

PARAMETER

Type	LDSP-160	LDSP-160Y	LDSP-210	LDSP-260
Bag Type	3-side, 4 side sealing bag, Doypack, Box Pouch, Zipper Pouch, Stand Up Pouch, Stand Up Pouch With Hole, Kraft Paper Bag, Side Gusset Bag etc.
Bag Size	110-230mm80-160mm(LW)	70-100mm110-230(LW)	100-210mm/110-320mm（L*W）	100-260mm/110-320mm（L*W）
Filling Range	10g-100g	10g-100g	10g-1kg	10g-3kg
Packing Speed	20-45bags/min(speed is determined by the product filling quantity)	25-50bags/min(speed is determined by the product filling quantity)	20-50bags/min (speed is determined by the product filling quantity)	20-50bags/min (speed is determined by the product filling quantity)
Machine weight	800KG	800KG	900KG	1000KG
Total Power	2.0KW	2.0KW	2.0KW	2.0KW
Work Flow	1.Giving bag 2. Pick up the bag(coding) 3.Open the bag up and down 4.Filling 5.Heating sealing 6.Output of product
Dimensions	1750mm X 1285mm X 1360mm(LWH)		2140mm X 1366mm X 1360mm(LWH)	2140mm X 1366mm X 1360mm(LWH)
Collocation	Screw metering,screw elevator
