Automatic Sauce Filling Machine Jam Ketchup Filling Capping Machine Line

Introduction:

Optimize your production with Landpack's automatic sauce filling machine. High-precision filling, capping, and labeling solutions for jam, honey, and paste jars. Custom turnkey systems with SUS304/316 quality.

Application:

Automatic sauce filling machine for bottles and jars, integrating bottle feeding, piston filling, cap feeding, and capping. Suitable for sauce, jam, chili sauce, mayonnaise, and ketchup, etc.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

A wide range of high and low viscosity liquids, pastes, and sauces with particles. Such as jam, honey, tomato sauce, peanut butter, chili paste, salad dressing, mayonnaise, chocolate spread, fruit pulp, oil, and liquid condiments.

Automatic Sauce Filling Machine Jam Ketchup Filling Capping Machine Line

Package Type:

Suitable for a wide range of bottles and jars, including glass bottles, plastic bottles (PET, PE, PP), and containers in round, square, or custom shapes. Compatible with screw caps, press caps, and lug caps, with adjustable settings for different bottle sizes and filling volumes.

FEATURES

1. Complete automatic line from bottle feeding to capping.

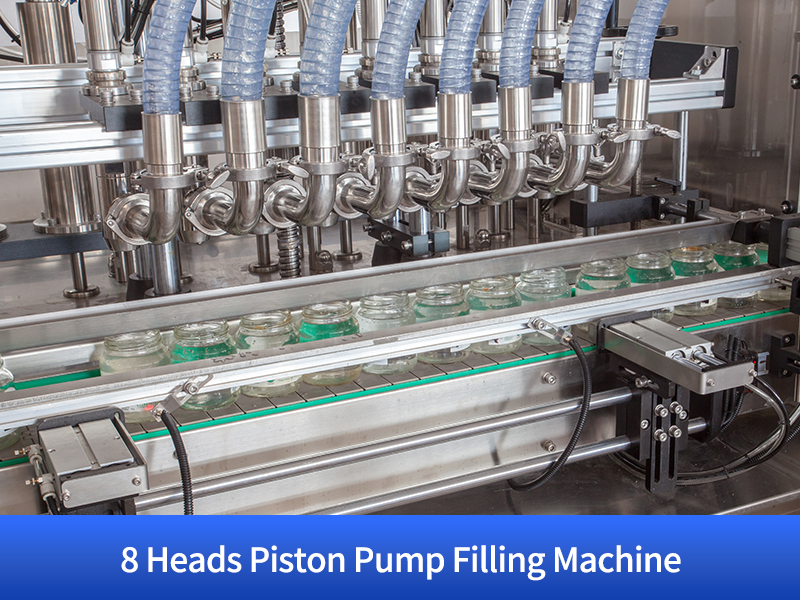

2. Piston filling system for accurate and stable dosing.

3. Suitable for liquid and high-viscosity products.

4. Adjustable filling volume for different bottle sizes.

5. Smooth bottle conveying with stable operation.

6. Automatic cap feeding and precise capping.

7. Easy operation with PLC and touchscreen control.

8. Food-grade stainless steel construction.

9. Modular design for flexible line configuration.

10. Can be integrated with labeling and packing systems.

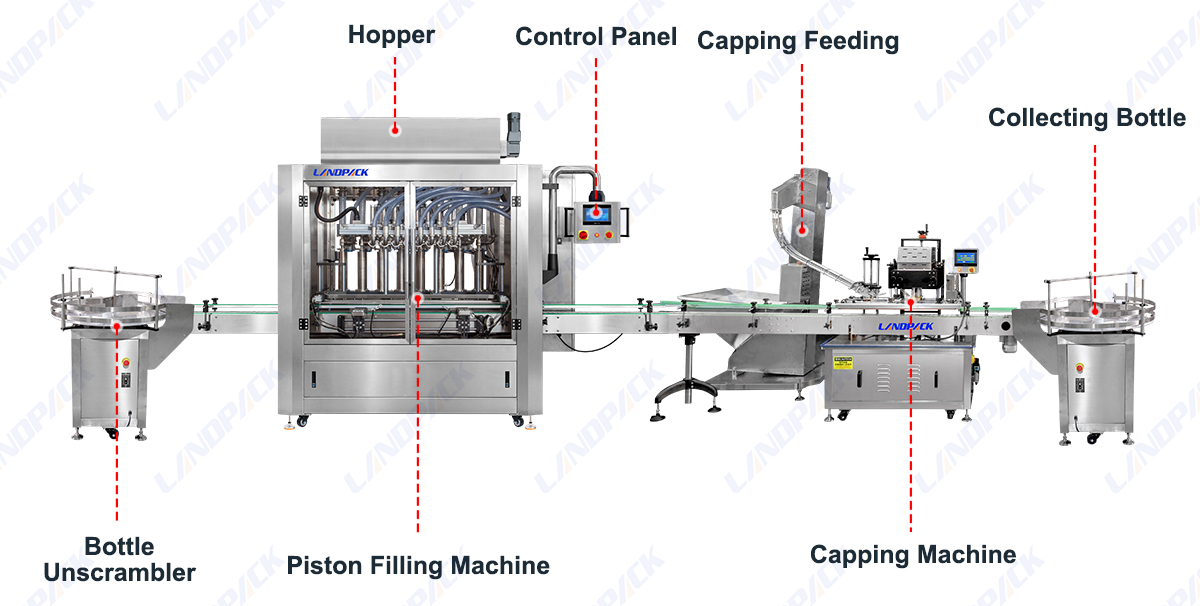

Machine Structure Overview:

1. Bottle Unscrambler, 2. Hopper, 3. Piston Filling Machine, 4. Control Panel, 5. Capping Feeding, 6. Capping Machine, 7. Collecting Bottle

Automatic Sauce Filling Machine Jam Ketchup Filling Capping Machine Line

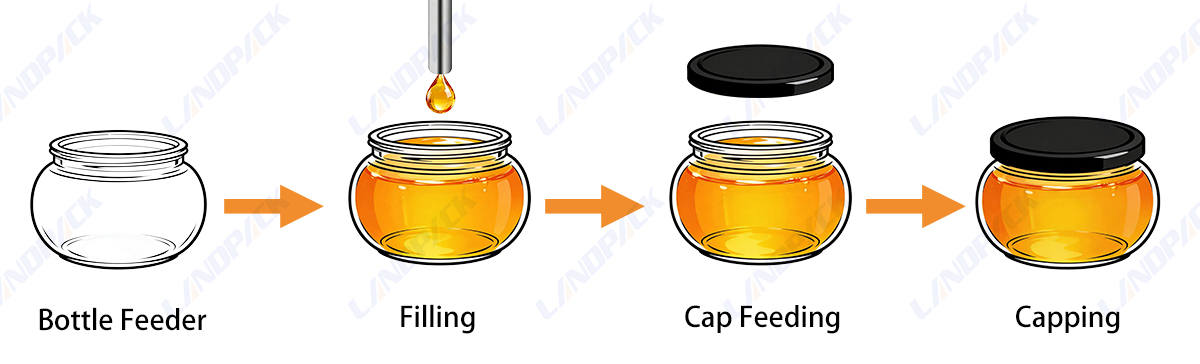

WORKFLOW

Bottle Feeding

Filling

Cap Feeding

Capping

PARAMETER

Bottle Liquid Filling Machine
Model	LFZ-04	LFZ-06	LFZ-08	LFZ-10
Filling Range	50-1000ml (customizable)	50-1000ml (customizable)	50-1000ml (customizable)	50-1000ml (customizable)
Production Speed	<15-25 bottles/min	<20-35 bottles/min	<30-40 bottles/min	<40-50 bottles/min
Measurement Accuracy	±1%	±1%	±1%	±1%
Power	2KW	2.5KW	3.5KW	5KW
Voltage	220V, 50Hz	220V, 50Hz	220V, 50Hz	220V, 50Hz
Air consumption	0.6-8Mpa	0.6-8Mpa	0.6-8Mpa	0.6-8Mpa
Weight	600kg	650kg	800kg	800kg

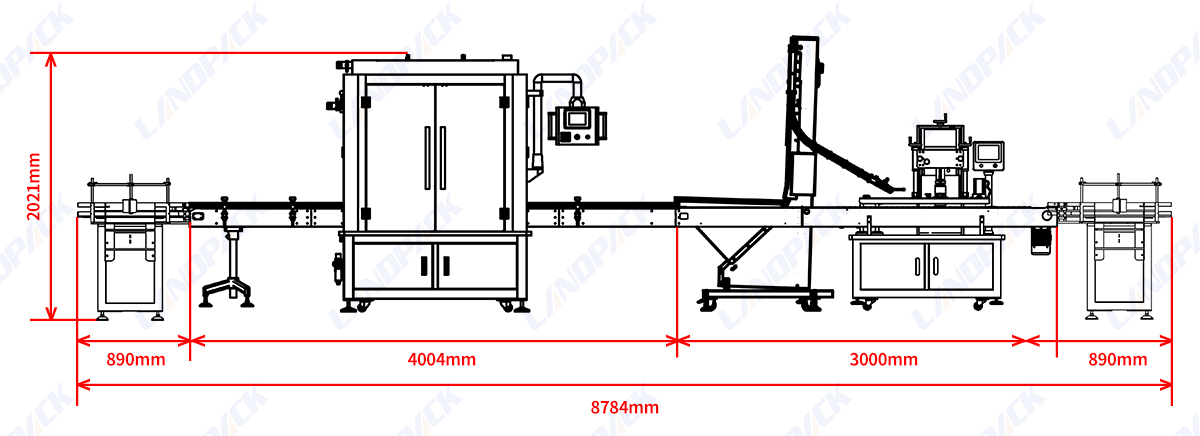

Dimension	L4000W1320H2090(mm)	L4000W1320H2090(mm)	L4000W1320H2090(mm)	L4000W1320H2090(mm)

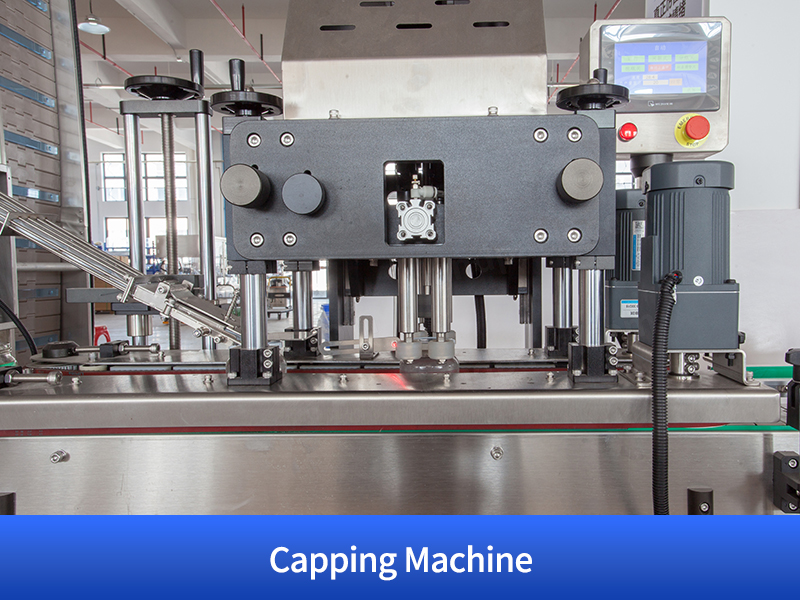

Autoamtic capping machine
Model	LFX-JX-01(Four wheel capping)	LFX-GS-150(Eight wheel capping)	LFX-GS-250(Six wheel capping)
Capacity	20-50Bottles/min	40-100Bottles/min	30-80Bottles/min
Bottle cap diameter	Φ22mm-Φ80mm（Could be customized）	Φ18mm-Φ80mm（Could be customized）	Φ18mm-Φ80mm（Could be customized）
Bottle diameter	Φ35mm-Φ140mm（Could be customized）	Φ35mm-Φ140mm（Could be customized）	Φ35mm-Φ140mm（Could be customized）
Bottle sealing height	38mm-300mm（Could be customized）	38mm-300mm（Could be customized）	38mm-300mm（Could be customized）
Power	1.5KW	2KW	1.5KW
Voltage	220V、50HZ	220V、50HZ	220V、50HZ
Air pressure	0.6-0.8Mpa	0.6-0.8Mpa	0.5-0.7Mpa
weight	250kg	350kg	300kg
Dimensions	H3000W800L1600mm	H3120W1544L2122	H3100W1244L2122
