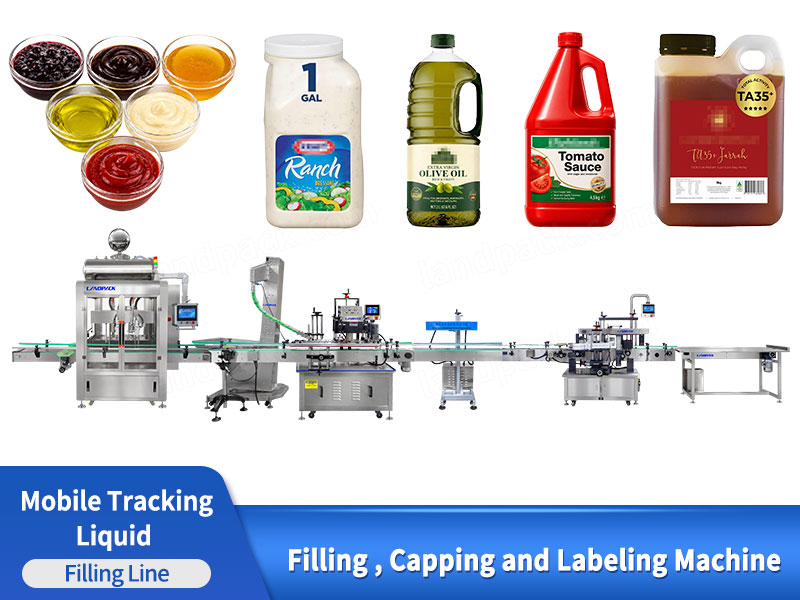

Automatic Sauce Filling Machine Hot Sauce Chili Liquid Bottle Machine

Introduction:

The automatic sauce filling machine provides a complete packaging solution for thick and particle-containing products.

Application:

Including salsa, bean paste, BBQ sauce, garlic sauce, pasta sauce, chili sauce, curry sauce, tomato sauce, hot sauce, and other chunky condiments.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

The automatic sauce filling machine provides a complete packaging solution for thick and particle-containing sauces, including garlic sauce, tomato sauce, chili sauce, curry sauce, salsa, BBQ sauce, bean paste, pasta sauce, hot sauce, mushroom sauce, oyster sauce, meat sauce and other viscous condiments with solid ingredients.

Automatic Sauce Filling Machine Hot Sauce Chili Liquid Bottle Machine

Package Type:

Automatic Chili Sauce Filling machine is suitable for a wide range of containers including PET bottles, glass bottles, HDPE bottles, plastic jars, wide-mouth sauce jars, round bottles, square bottles and customized sauce containers. The filling line supports packaging volumes from 100ml to 5000ml and can be customized according to different bottle shapes and production requirements.

FEATURES

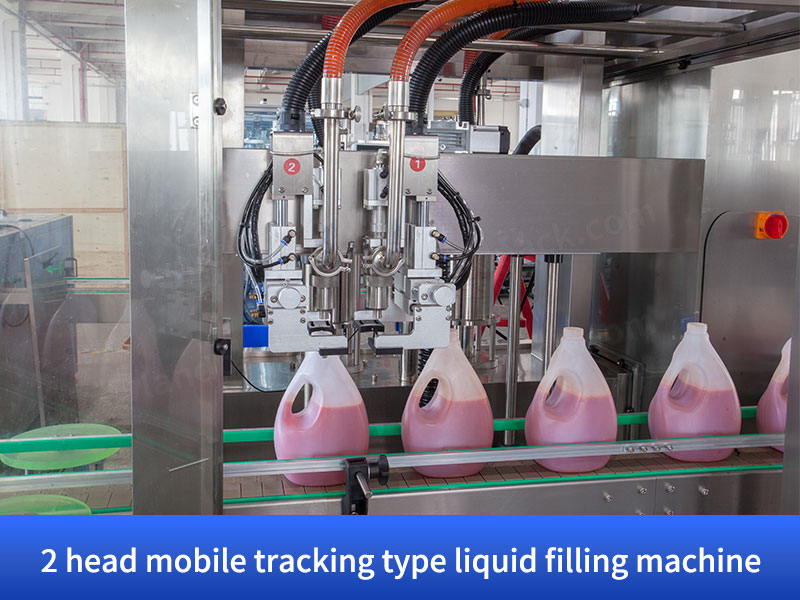

1. 5L piston filling system supports filling volumes from 500ml-5000ml, with speeds up to 15 bottles/min for 5L containers.

2. Compatible with various bottle shapes and sizes, including round bottles, square bottles and large-capacity containers.

3. Two-stage or three-stage filling control reduces foaming and prevents liquid splashing during filling.

4. Intelligent photoelectric detection system features No Bottle, No Fill protection for reduced product waste.

5. High-precision piston filling technology ensures stable filling accuracy and consistent product quality.

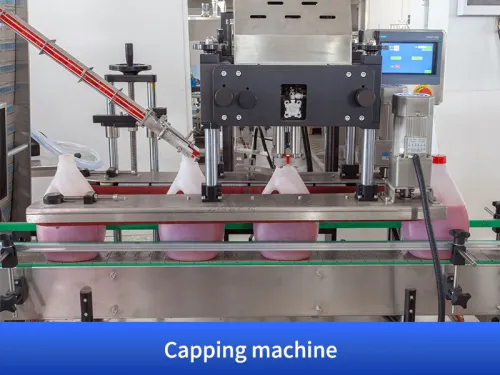

6. Four-wheel capping machine handles different screw cap sizes with simple adjustment and reliable sealing performance.

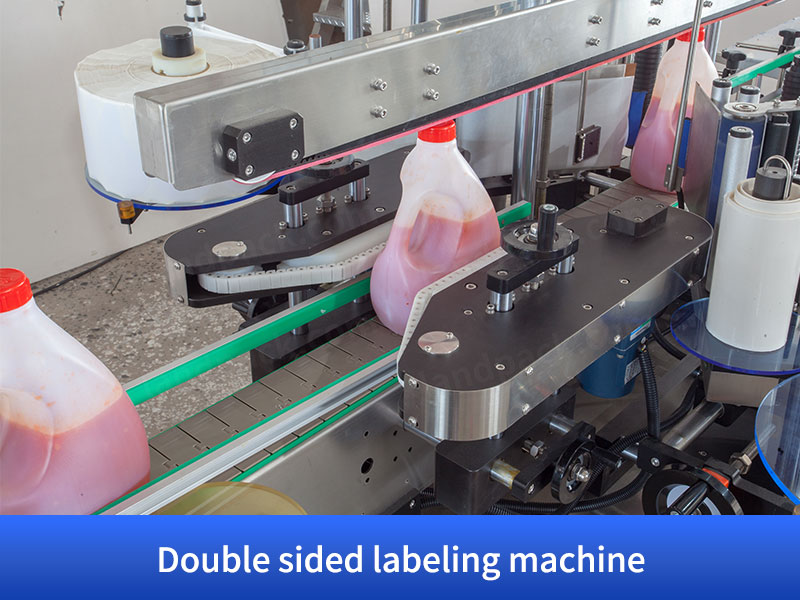

7. Double-side labeling machine supports single-label or front-and-back labeling on round and square bottles.

8. PLC control system can store up to 10 product recipes for quick changeovers and efficient production management.

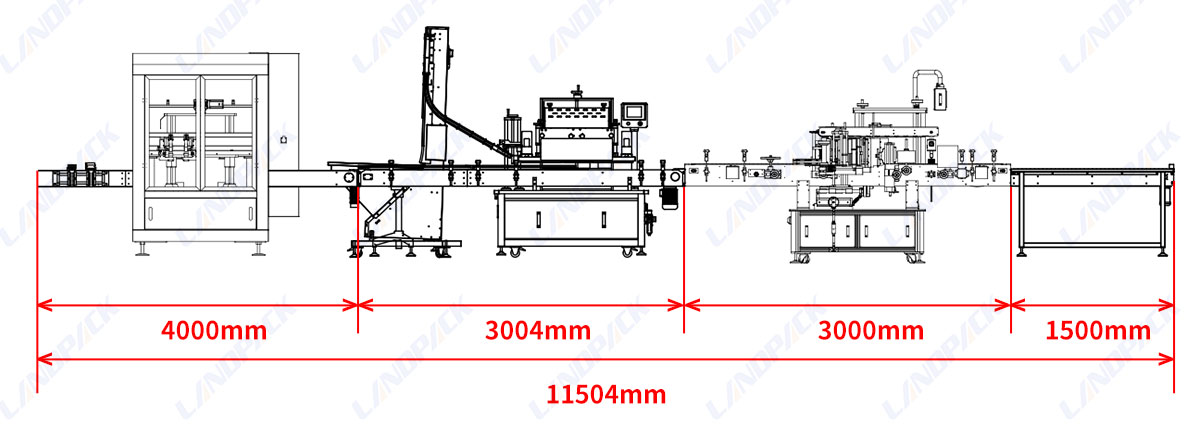

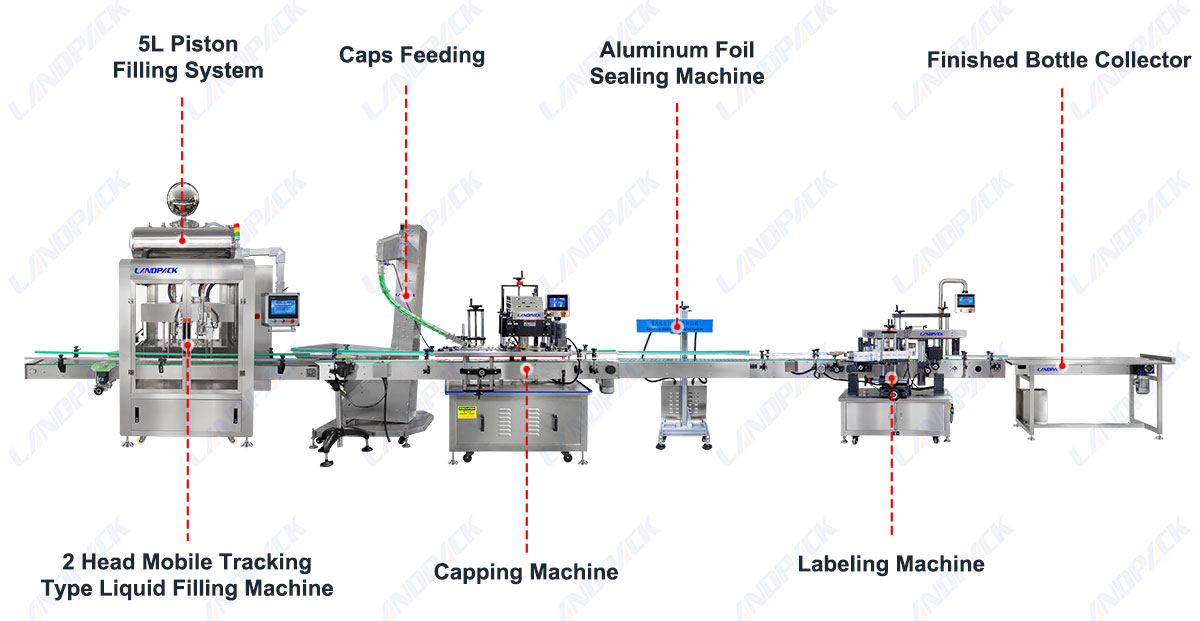

Machine Structure Overview:

Automatic Sauce Filling Machine Hot Sauce Chili Liquid Bottle Machine

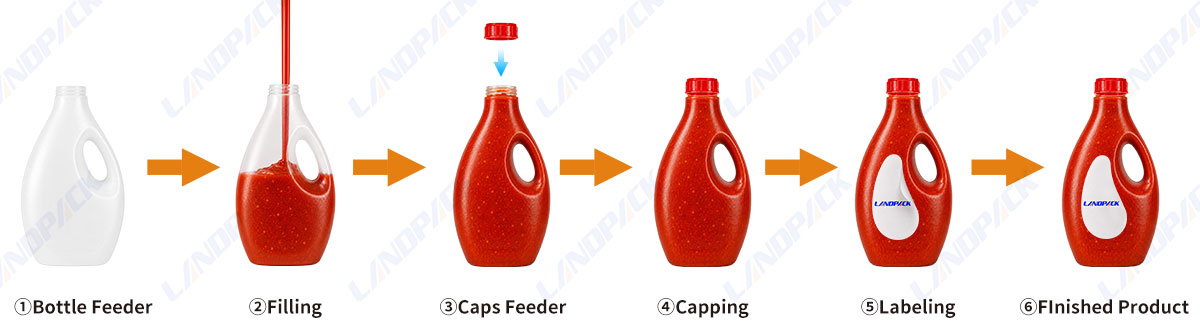

WORKFLOW

Bottle Feeding

Tracking Filling

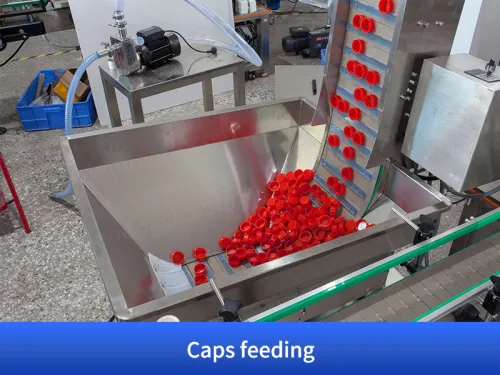

Cap Feeding

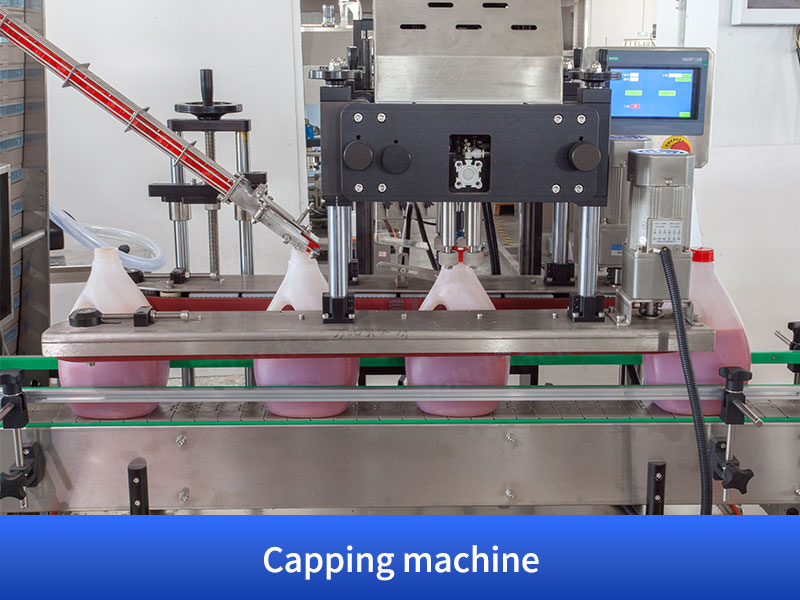

Automatic Capping

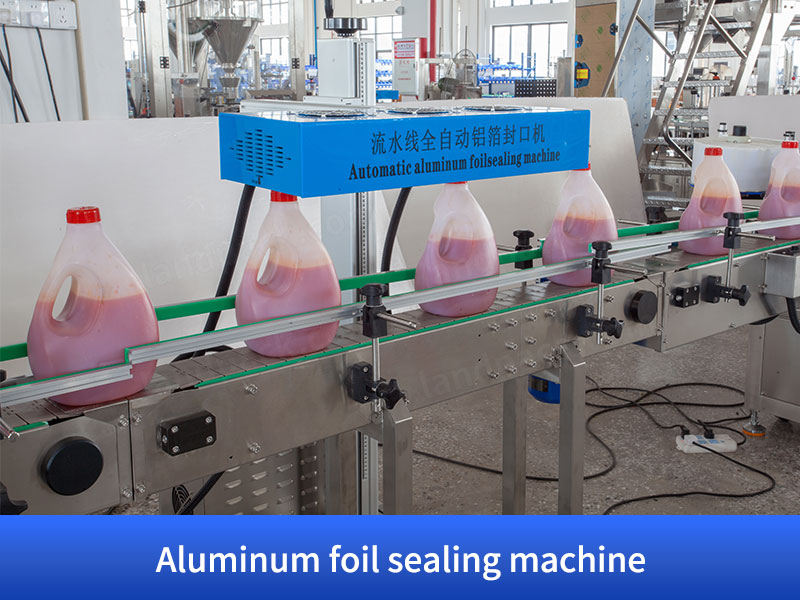

Induction Sealing

Labeling

Product Collection

PARAMETER

	Model	LD-ALT01
	Filling Range	200-10000ml (Customizable)
	Filling Speed	80-100 bottles/min
	Filling Type	Servo high-precision quantitative filling
	Measurement Accuracy	±1%
	Power	About 10KW/380v three-phase five-wire
	Working Power Supply	220V, 50Hz
	Program control	PLC+touch screen
	Weight	900kg
	Size	210012501900 (mm)
	Material	Materials for liquid-contact parts such as filling nozzles and troughs: 316# stainless steel, PVC and POM

Model	LFX-JX-01(Four wheel capping)	LFX-GS-150(Eight wheel capping)	LFX-GS-250(Six wheel capping)
Capacity	20-50Bottles/min	40-100Bottles/min	30-80Bottles/min
Bottle cap diameter	Φ22mm-Φ80mm（Could be customized）	Φ18mm-Φ80mm（Could be customized）	Φ18mm-Φ80mm（Could be customized）
Bottle diameter	Φ35mm-Φ140mm（Could be customized）	Φ35mm-Φ140mm（Could be customized）	Φ35mm-Φ140mm（Could be customized）
Bottle sealing height	38mm-300mm（Could be customized）	38mm-300mm（Could be customized）	38mm-300mm（Could be customized）
Power	1.5KW	2KW	1.5KW
Voltage	220V、50HZ	220V、50HZ	220V、50HZ
Air pressure	0.6-0.8Mpa	0.6-0.8Mpa	0.5-0.7Mpa
weight	250kg	350kg	300kg
Dimensions	H3000W800L1600mm	H3120W1544L2122	H3100W1244L2122

Model	LD-ZS(Double Heads Aluminum Foil Sealing)	LF-LB-2000(Single Heads Aluminum Foil Sealing)
Applicable bottle diameter	Φ10-200mm（Could be customized）	Φ10-200mm（Could be customized）
Applicable bottle height	H:40-300mm（Could be customized）	H:40-300mm（Could be customized）
Speed	0-30bottle/min	0-10bottle/min
Bottle material	Glass, ceramics, plastics, metals	Glass, ceramics, plastics, metals
Voltage	220V,50HZ	220V,50HZ
Power	1500W	1200W
Dimension	15008001750mm	12006001550mm

Model	LFT-LG-100(Low speed labeling)	LFT-GS-100(High speed labeling)
Label length	20mm～300mm	20mm～300mm
Label width/height	20mm～200mm(can be customized)	20mm～200mm(can be customized)
Bottle width	30-150mm(can be customized)	30-150mm(can be customized)
Roll Label outer diameter	300mm	300mm
Roll Label inner diameter	76mm	76mm
Accuracy	±1mm	±1mm
Label speed	40-100pcs/min	60-120pcs/min
Conveyor speed	5～25m/min	15～20m/min
Suitable label type	Adhesive sticker label(transparent label need customized)	Adhesive sticker label(transparent label need customized)
Working air pressure	0.4-0.6Mpa	0.4-0.6Mpa
Voltage	220V can be customized 4KW	220V can be customized 4KW
Weight	350KG	450KG
Overall dimension	3000mm×1450mm×1950mm	3050mm×1550mm×1950mm
