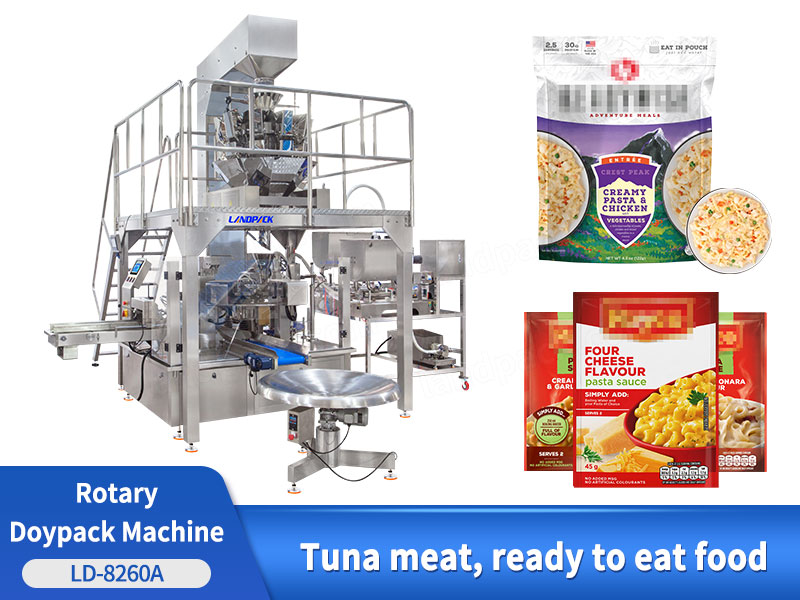

Retort Pouch Packaging Machine Pre-Cooked Food Rotary Packing Machine

Introduction:

Rotary retort pouch packaging machine designed for automatic pouch feeding, opening, granule and liquid filling, nitrogen flushing, and heat sealing.

Application:

Suitable for ready meals, sauces, and prepared food in retort or stand-up pouches.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Suitable for automatic filling and sealing of retort pouches and stand-up pouches containing liquid, semi-liquid, and granule products. Widely used for ready meals, sauces, soups, curries, pickled food, seasoning paste, pet food, and similar products. Applicable to food processing, central kitchens, and prepared food industries requiring sealed flexible packaging.

Retort Pouch Packaging Machine Pre-Cooked Food Rotary Packing Machine

Package Type:

Suitable for premade retort pouches or stand-up pouches (doypack), sealed with heat sealing. Supports granule, liquid, or mixed filling (granule + liquid), providing sealed flexible packaging for prepared food products.

FEATURES

1. Rotary turntable structure for continuous circular operation.

2. Automatic pouch feeding, opening, filling, sealing, and discharge system.

3. Multi-station design for step-by-step processing.

4. Compatible with premade retort pouches and stand-up pouches.

5. Combination filling system for granule and liquid products.

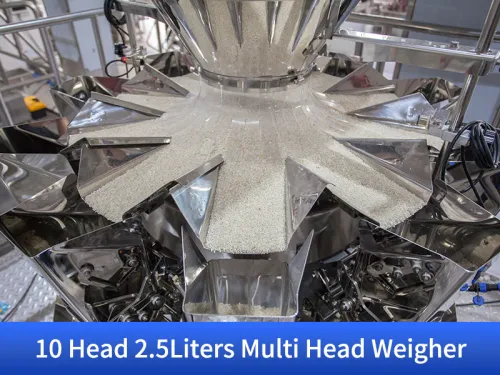

6. Multi-head weigher for solid dosing and pump for liquid filling.

7. Nitrogen flushing option for reducing oxygen content.

8. Heat sealing system with controlled temperature and pressure.

9. PLC control with touchscreen interface.

10. Sensors for pouch detection and positioning.

11. Stainless steel construction for product contact areas.

12. Servo-driven system for synchronized movement.

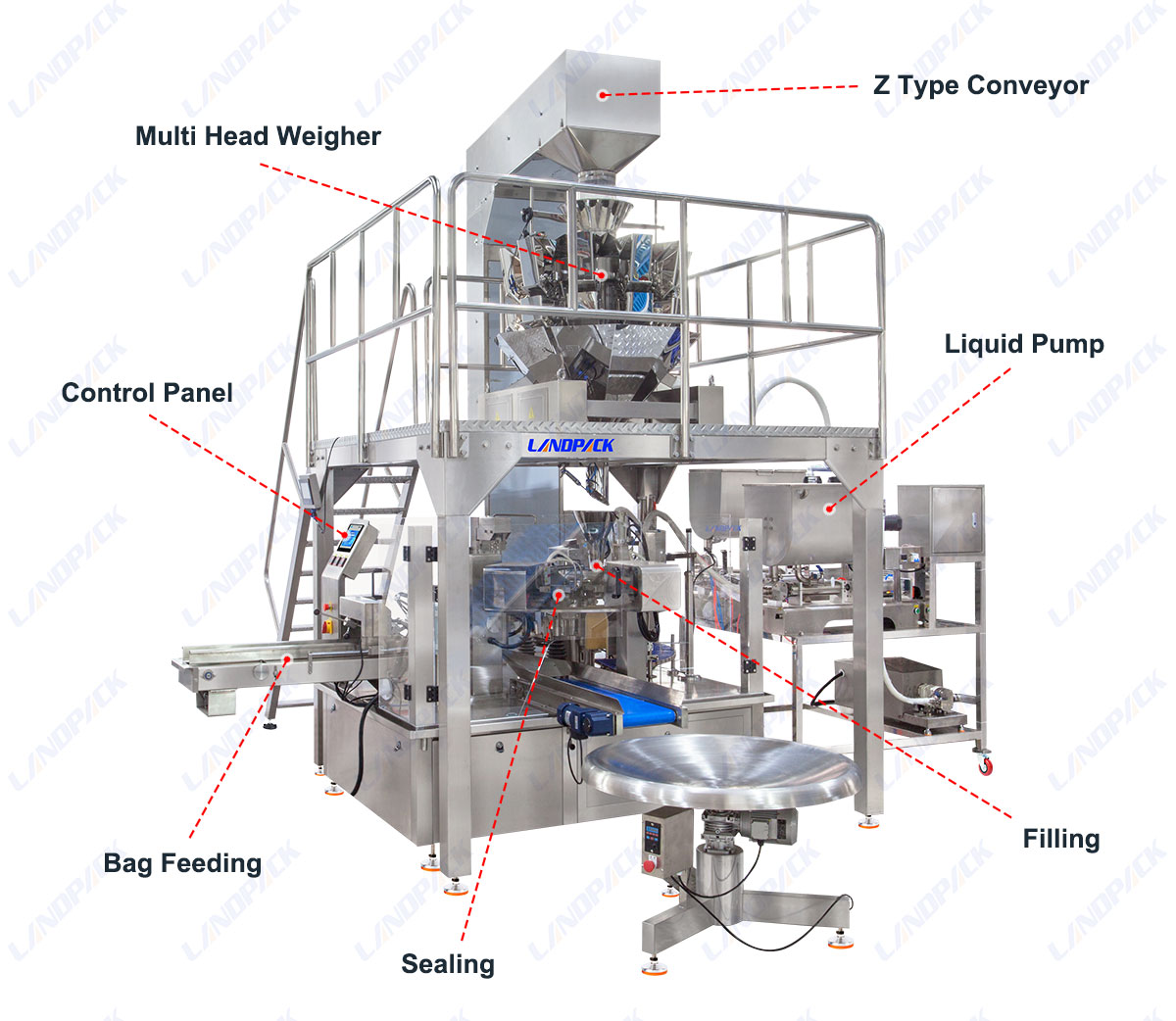

Machine Structure Overview:

1. Z Type Conveyor 2. Multi Head Weigher 3. Control Panel 4. Liquid Pumb 5. Bag Feeding 6. Filling 7. Sealing

Retort Pouch Packaging Machine Pre-Cooked Food Rotary Packing Machine

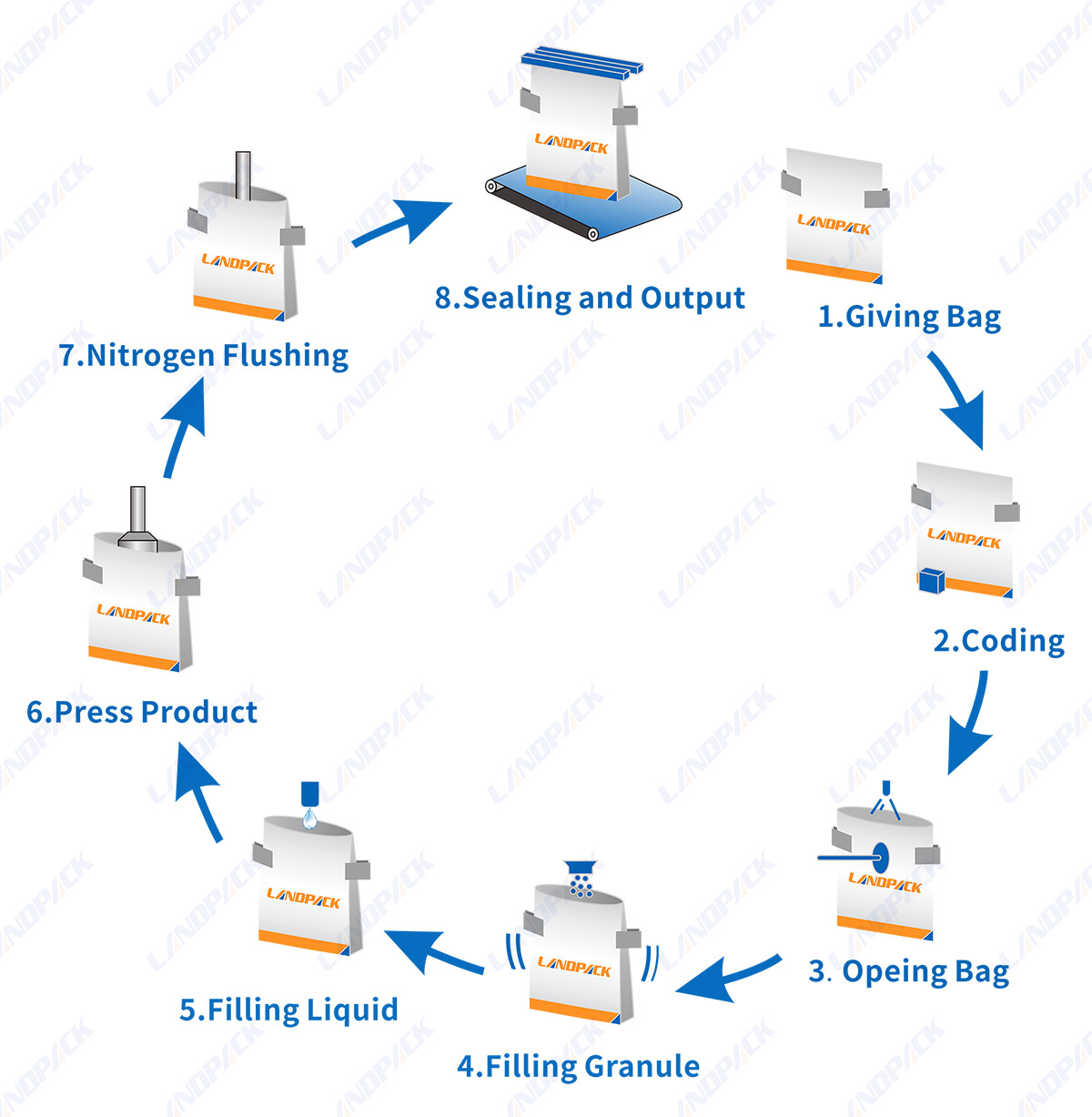

WORKFLOW

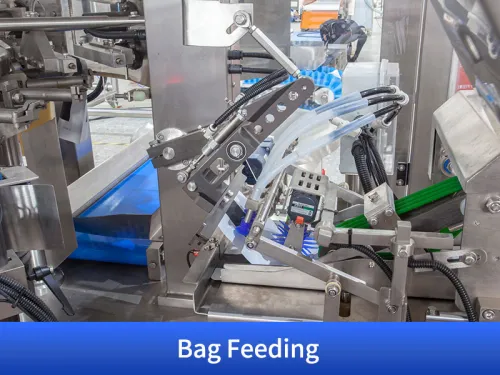

Bag feeding

Coding

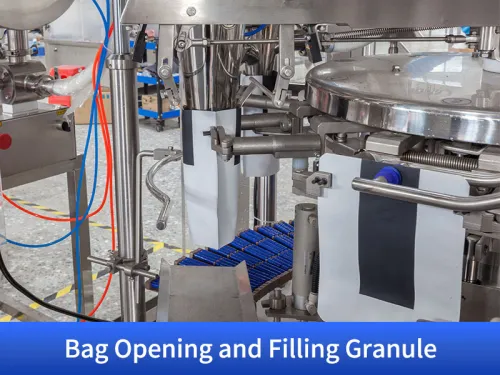

Bag opening

Filling (granule + liquid)

Press Product

Nitrogen Flushing

Sealing and Output

PARAMETER

	Model	LD-8260A
	Bag Size	Width:70-120mm/120-200mm, Length:80-160mm/150-300mm
	Filling Volume	10-500g (Depending on type of products)
	Capacity	30-100bags/min (The speed depends on type of products and packaging material used)The highest can be 100 packs / minuteZipper Bag The heghest can be 40packs/minute
	Package Accuracy	Error≤±1%
	Total Power	2.5KW/5.5kw (220V/380V,3PH,50HZ)
	Demension	210014001700 mm/260019001700(LengthWidthHeight)
	Weight	1600KGS/3000kgs
	Compress Air Requirement	≥0.8m³/min supply by user
	Pouch Type	All type of heat sealable performed side seal bags, block bottom bags, zip-lock recloseable bags, stand-up pouch with or without spout, portable bag, zipper bag, hand luggage, edging bag 4 sides, edging bag 3 sides, paper bagetc.
