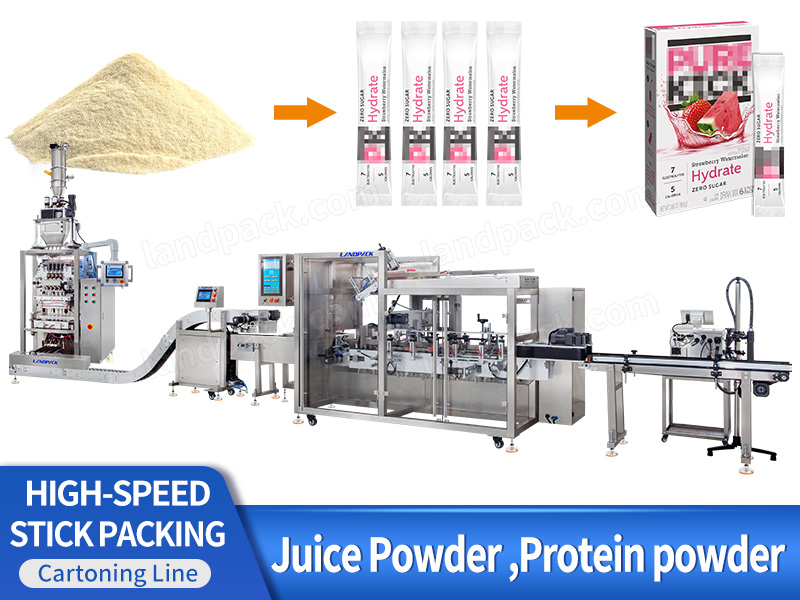

Automatic Stick Packing Machine | Protein Powder Counting Cartoning Packing System

Introduction:

This multi-lane stick pack packaging machine was specifically designed for high-speed, accurate powder dosing and sealing. Equipped with a vacuum feeder, auger filling system, and integrated coding device for added reliability and hygienic operation.

Application:

Packaging protein powder, milk powder, nutritional blends, instant beverage powders and various pharmaceutical or dietary supplement powders is easily accomplished with these boxes.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Packaging protein powder, milk powder, nutritional blends, instant beverage powders and various pharmaceutical or dietary supplement powders is easily accomplished with these boxes.

Package Type:

Multi-lane powder packaging machines produce various stick bags, sachet bags, and single-serve packages designed for retail or travel-friendly products. These packages provide portability, moisture protection, professional presentation and enhanced portability.

Automatic Stick Packing Machine | Protein Powder Counting Cartoning Packing System

Suitable Products:

Its multi-lane structure enables mass production of uniform single-serve stick packs, perfect for sports nutrition, health-care products, food industries, and on-the-go powder applications.

- Nutritional & Beverage Powders: Protein powder, milk powder, collagen powder, instant coffee, cocoa mix, and energy drink powder—ideal for health, fitness, and daily nutrition markets.

- Food & Culinary Powders: Flour blends, seasoning powder, spices, sugar powder, baking mixes, and instant soup bases—supporting consistent dosing for food production.

- Pharmaceutical & Supplement Powders: Electrolyte powder, vitamin blends, oral rehydration salts, herbal extracts, and medical-grade fine powders—ensuring precise, hygienic stick-pack packaging for professional applications.

FEATURES

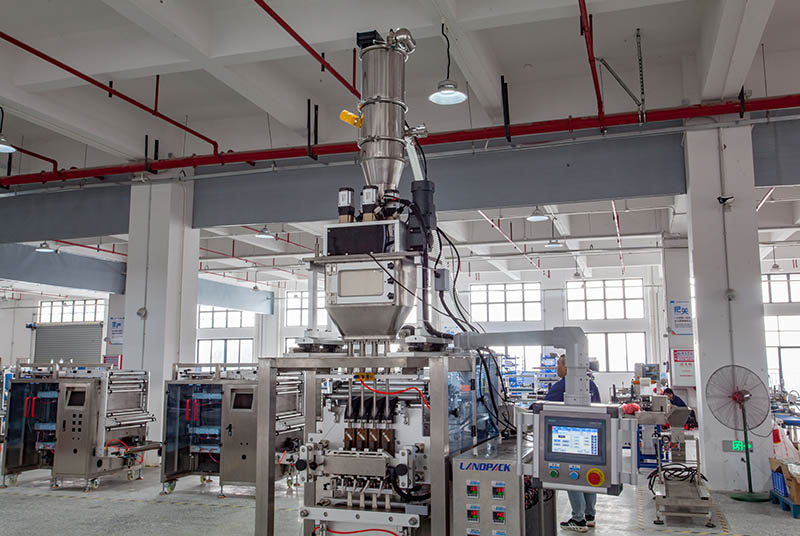

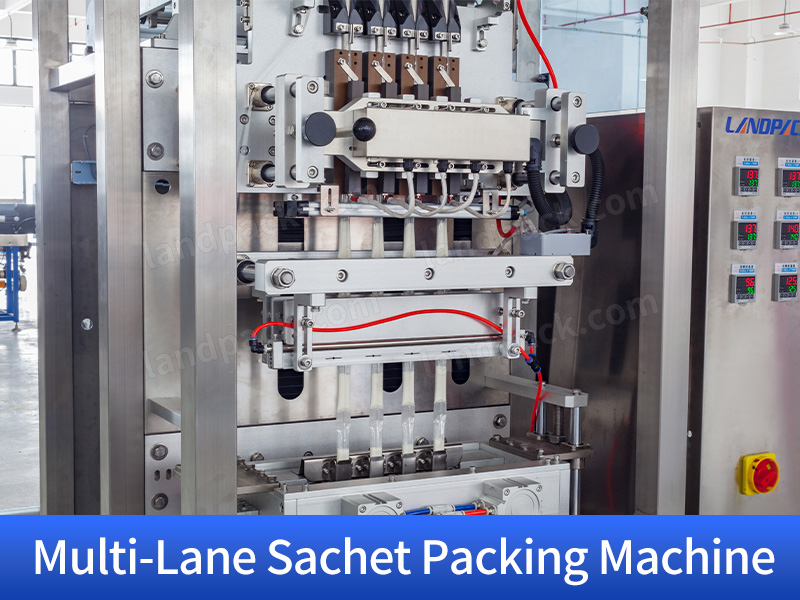

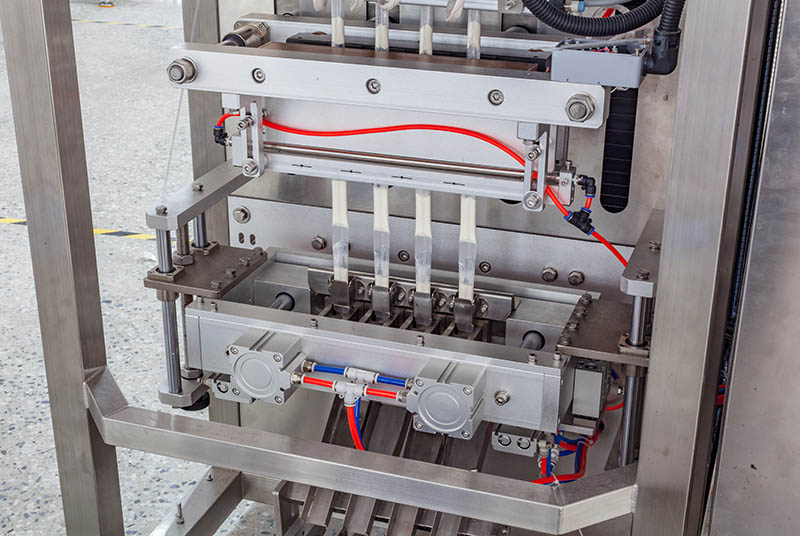

High-Efficiency Multi-Lane Stick Pack Machine The LDBK-280 operates with impressive speed and precision, continuously forming, dosing, sealing, and cutting stick packs for powder products. Designed for fine materials such as whey protein, instant coffee, nutritional powders, and micro-granules, its servo-controlled auger guarantees stable filling accuracy and reliable seal integrity even at high output rates.
	Vacuum Conveying for Dust-Free Powder Supply A fully automated vacuum transfer system feeds powder directly into the dosing hopper, reducing airborne dust and preventing material loss. This closed-loop handling method keeps the production environment clean and is especially suitable for ultra-light powders that disperse easily.

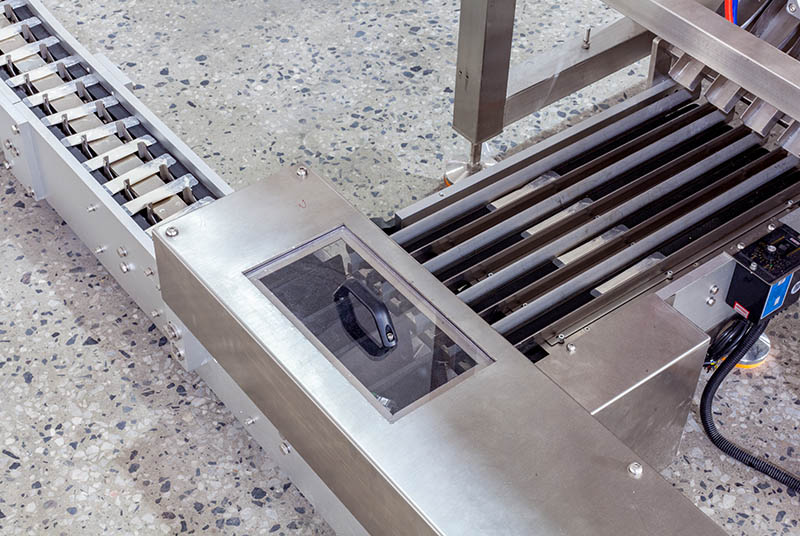

Inclined Conveyor for Steady Stick Pack Delivery The angled belt conveyor arranges finished stick packs neatly and guides them smoothly toward downstream cartoning equipment. Its optimized belt structure minimizes friction and eliminates issues like warping, slipping, or uneven feeding during fast-paced production.

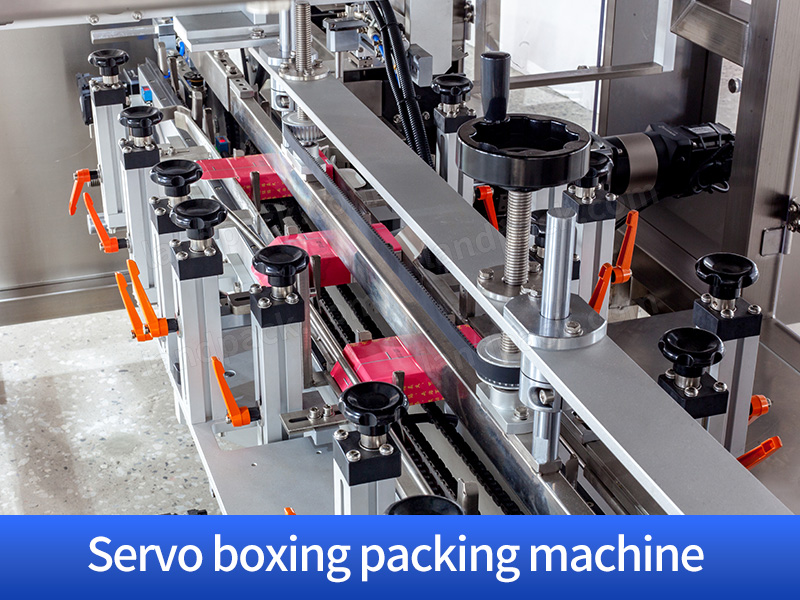

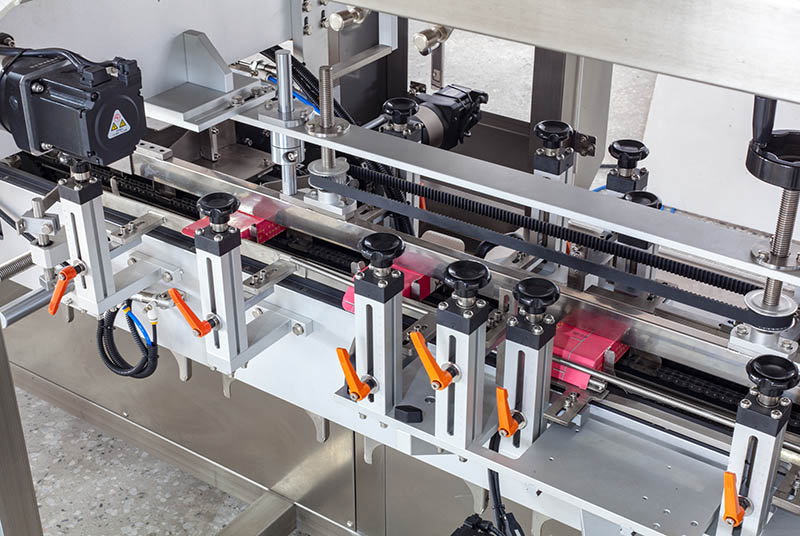

	Automatic Cartoning with Instruction Insert The automatic cartoner erects cartons, loads groups of stick packs, inserts instruction leaflets via a dedicated mechanism, and completes final closing—all in a synchronized, uninterrupted cycle. This ensures tidy packaging and enhanced user convenience.

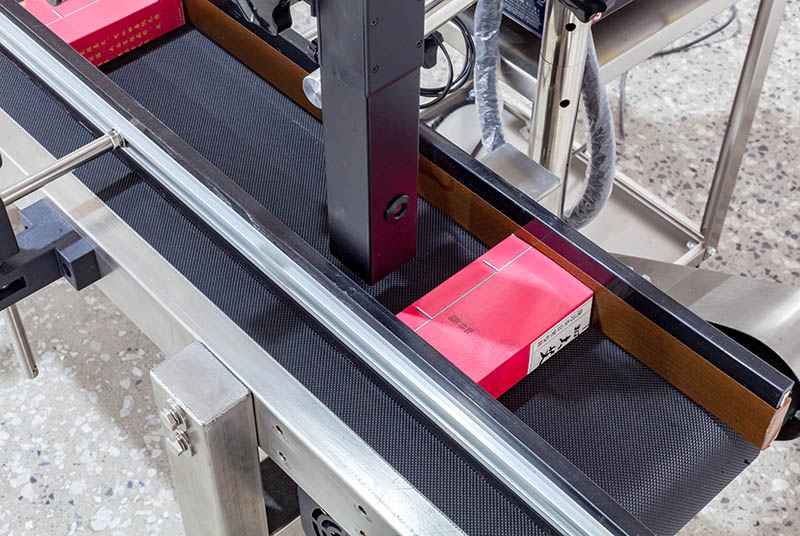

Coding Integration for Complete Product Tracking A dedicated coding conveyor paired with a compact inkjet system marks each carton with production dates, lot codes, and other traceability information. The clear, high-contrast printing meets international compliance standards for food, health supplements, and pharmaceutical products.

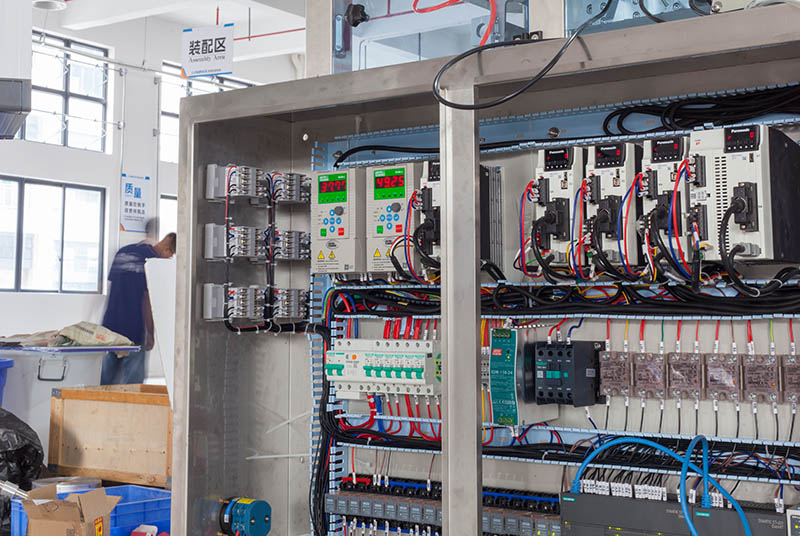

	Intelligent Electrical Control Cabinet for Stable System Performance The integrated electrical control cabinet houses all core automation components, ensuring safe, organized, and reliable machine operation. Equipped with high-quality circuit protection, modular wiring, and an intuitive PLC interface, it allows operators to monitor system status in real time and make quick adjustments when needed. Its heat-dissipation design and clean internal layout reduce maintenance requirements and enhance long-term durability, supporting continuous high-speed production with confidence.

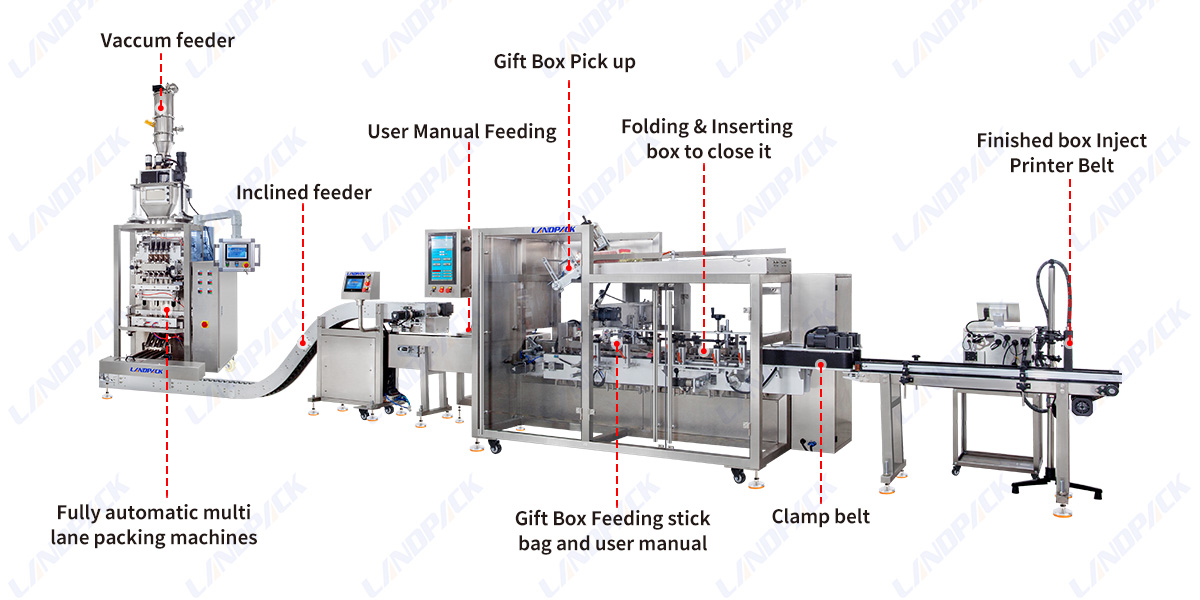

Machine Structure Overview:

1. Vaccum Feeder

2. Fully Automatic Multi Lane Packing Machine

3. Inclined Feeder

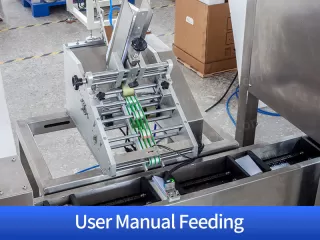

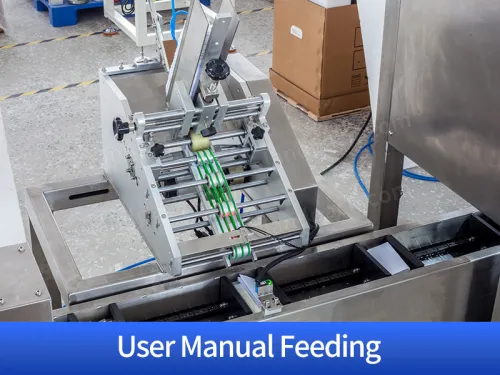

4. User Manual Feeding

5. Gift Box Pick Up

6. Folding & Inserting Box to Close it

7. Clamp Belt

8. Finished Box Inject Printer Belt

Automatic Stick Packing Machine | Protein Powder Counting Cartoning Packing System

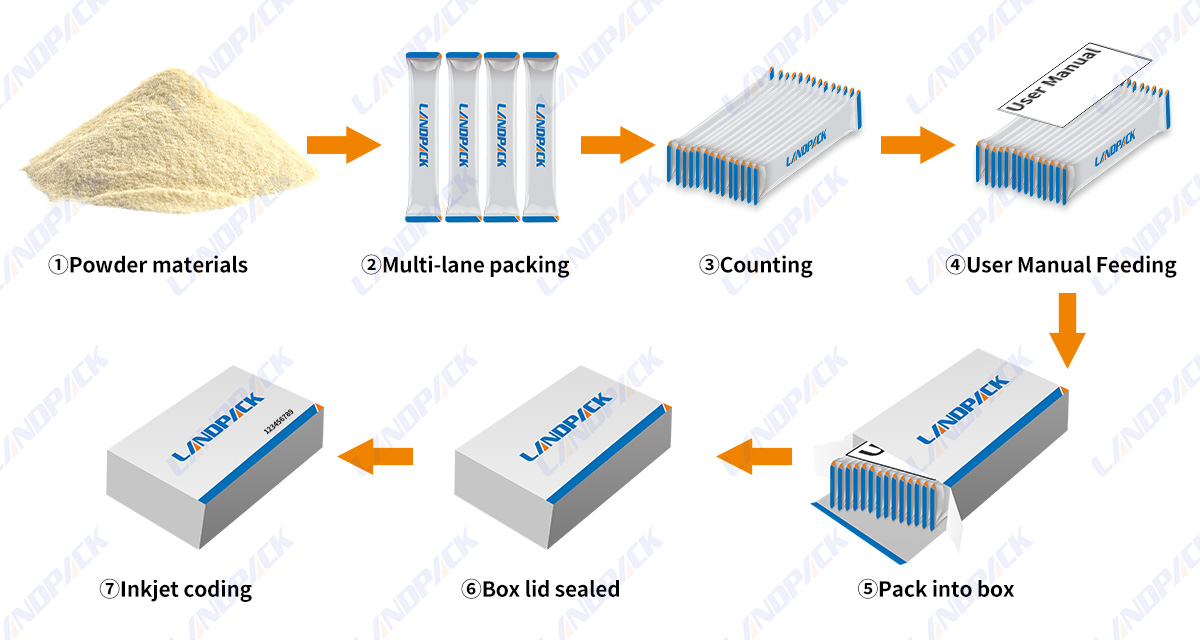

WORKFLOW

Powder materials feeding

Multi-lane packing

Stick pack counting

User manual feeding

Carton opening

Inkjet coding

Carton lid sealed

Pack into box

PARAMETER

Multi Lane Stick Packing Machine Parameters
Model	LDBK-280	LDBK-560
Lane number	4-6 Line	8-12 Line
Filling Method	1.Volumetric cup; 2. Weigher
Capacity	Max.35 cycle/ min
Sachat Size	L:50-180mm; W:17-30mm	L:50-180mm; W:17-30mm
Film weidth & Thickness	Max.280mm, 0.07-0.10mm	Max.560mm, 0.07-0.10mm
Sealing type	Back sealing/Stick bag	Back sealing/Stick bag
Cutting type	1.Straight cutting; 2.Zig zag cutting; 3.Round cutting; 4.Irregular
Air & Powder	0.8Mpa 0.8m3/min; 3.5kw	0.8Mpa 0.8m3/min; 5.5kw

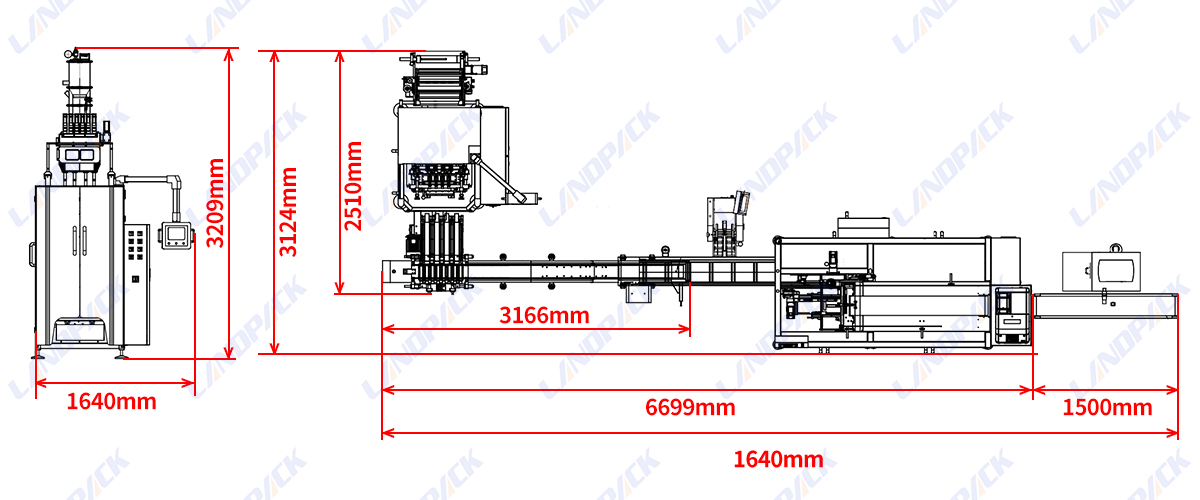

Dimension & weight	13859182005mm;350kg	168513002005mm;550kg

Automatic Bag in Box Packing System
Model	LDDS-100	LDDS-120	LDDS-250
Packing Speed	40-60 boxes/min	30-50 boxes/min
Box Size	(L)60-220mm(W)20-125mm(H)15-60mm	(L)80-250mm(W)100-160mm(H)40-90mm	(L)150-320mm(W)100-180mm(H)90-110mm
Air Consumption	≥0.6 mpa, 20 m³/h
Power Supply	220V/380V, 50HZ
Machine Power	4.5KW	5.5KW	6.5KW
Machine Size	342513901771mm	345014501800mm	420016501850mm
Machine Weight	1200KG	1600KG	2500KG
