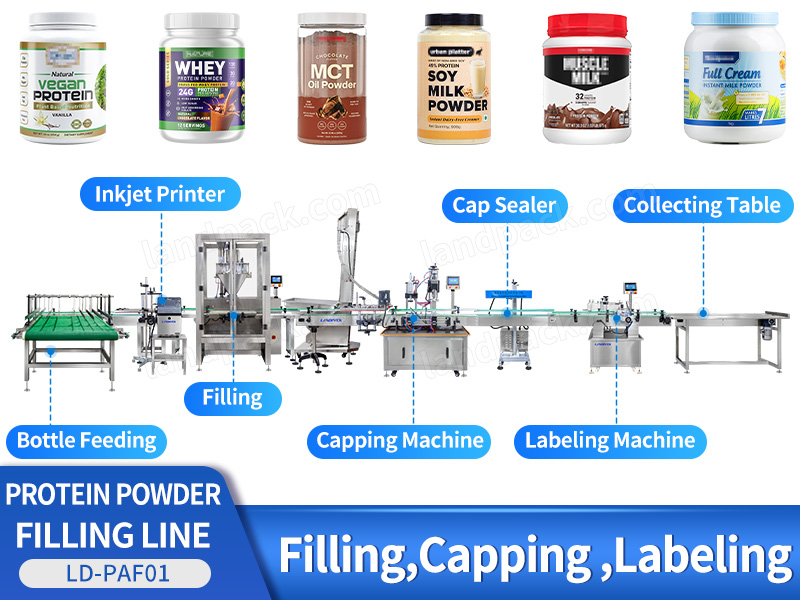

Automatic Protein Powder Single Head Filling Sealing Labeling Capping Line

Introduction:

This turnkey solution automates the entire sequence—from bottle unscrambling and date coding to precision powder dosing, cap feeding, and servo-driven sealing.

Application:

Automatic protein powder filling machine for bottles, integrating filling, capping and labeling. Stable output up to 40 bottles/min for nutrition powders.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Engineered for automated dosing, capping, and labeling, this system is optimized for nutritional supplements and food-grade fine powders, such as protein and collagen. It delivers a hygienic, high-stability workflow at throughput speeds reaching 40 bottles/min, ensuring consistent output for health-focused manufacturing sectors.

Package Type:

Designed for round bottles and jars, compatible with PET bottles, HDPE containers, and plastic jars in various diameters and heights.

Automatic Protein Powder Single Head Filling Sealing Labeling Capping Line

Suitable Products:

This protein powder filling machine is suitable for accurate and dust-controlled packaging of various fine and free-flowing powders across food, health, and industrial applications.
Nutrition & Health Products: Protein powder, whey protein, collagen powder, dietary supplement powder
Food & Dairy Powders: Milk powder, coffee powder, seasoning powder, spice blends
Chemical & Industrial Powders: Detergent powder, cleaning additives, chemical agents, industrial additives

Automatic Protein Powder Single Head Filling Sealing Labeling Capping Line

FEATURES

1. Automated Infeed: Systematically aligns and transports empty containers to maintain a constant, high-efficiency supply.

2. Traceability Coding: Applies crisp batch codes and production dates, ensuring easy identification and regulatory compliance.

3. Auger Dosing: High-precision auger filling system optimized for fine powders, minimizing dust while ensuring exact dosage.

4. Servo Capping: Features automated sorting and servo-driven torque control for uniform, secure sealing across multiple bottle formats.

5. Induction Sealing: Creates an airtight moisture barrier to extend shelf life and guarantee tamper-evident product safety.

6. High-Speed Labeling: Delivers precise, smooth application on cylindrical bottles with superior adhesion and visual finish.

7. Final Collection: Systematically gathers finished units for inspection or secondary packing, optimizing end-of-line logistics.

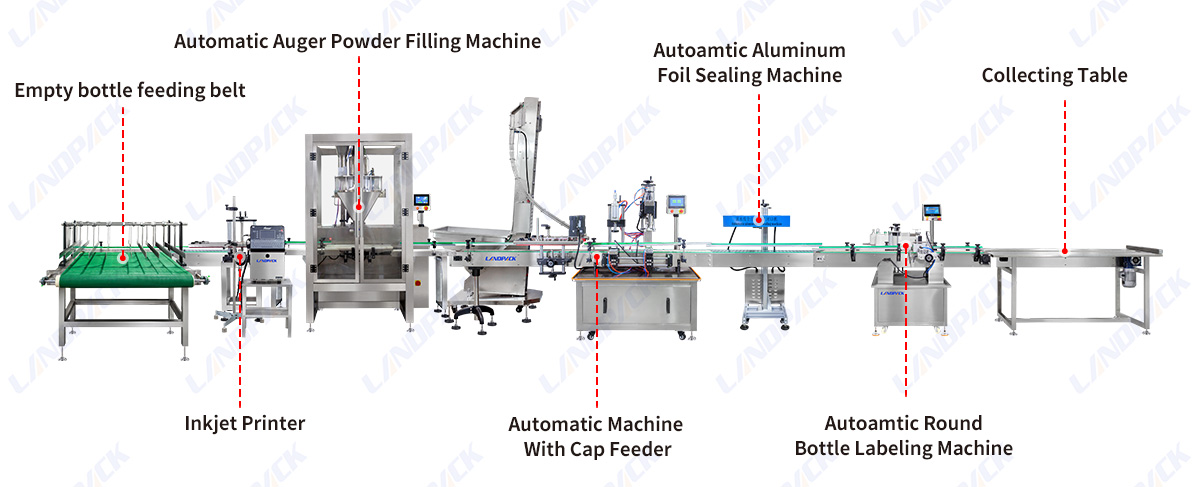

Machine Structure Overview:

Automatic Protein Powder Single Head Filling Sealing Labeling Capping Line

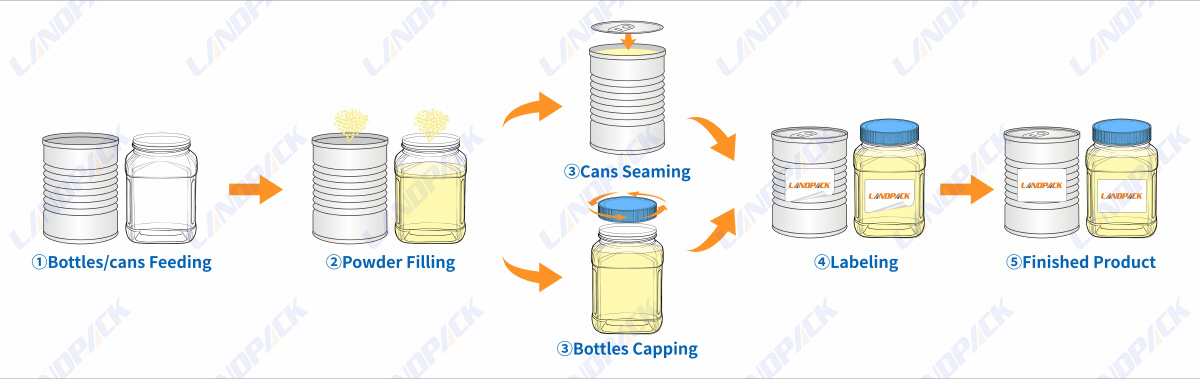

WORKFLOW

Automatic feeding empty bottles

Powder filling accurately

Bottles capping

Round bottles labeling

Finished product output and collect

PARAMETER

Automatic Bottle Feeder
Machine Model	LD-LP800N
Power Supply	220V/110V, 50-60Hz, 200W
Turntable Diameter	800mm
Suitable Bottle Diameter	20-100mm
Suitable Bottle Height	30-320mm
Working Speed	40-60bottles/min(depending on bottle size)
Package Size	123010101260mm
Gross Weight	141kg

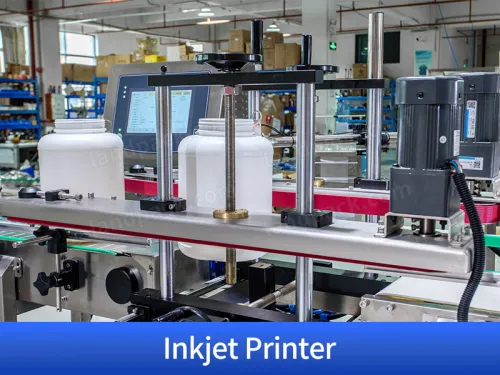

Bottom Inkjet Coding Machine
Printing speed	1024 seconds(5*7)
Power	220V/50HZ,150VA
Printing direction	Positive sequence/reverse order/reverse/reverse
Printing distance	The nozzle and the object to be sprayed are kept within 3cm
Store information	The system can store 1000 print information
Ink consumption	70million words per print(5X7)
Machine weight	48kg

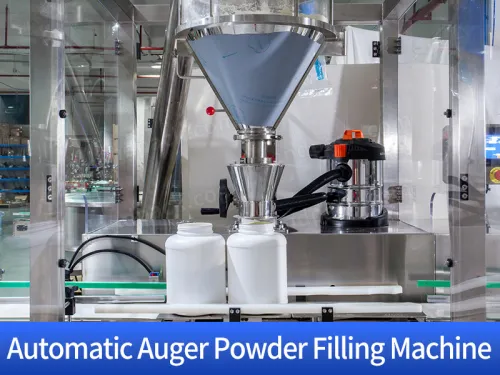

Automatic Powder Filling Machine
Model	LFP-01(Single Head)	LFP-01(Dual Head)
Filling Weight	10-5000 g (by changing auger)	10-5000 g (by changing auger)
Bottle Diameter	Φ30-Φ140 mm (customizable)	Φ30-Φ140 mm (customizable)
Bottle Height	50-200 mm (customizable)	50-200 mm (customizable)
Capacity	10-20 bottles/min	20-40 bottles/min
Filling Accuracy	≤500 g: ±1%>500 g: ±0.5% (varies by material)	≤500 g: ±1%>500 g: ±0.5% (varies by material)
Power Consumption	2.5 kW	5 kW
Hopper Capacity	50 L	50 L
Power Supply	220 V, 50 Hz	220 V, 50 Hz
Air Pressure	0.6–0.8 MPa	0.6–0.8 MPa
Machine Weight	350 kg	550 kg
Automatic capping machine
Model	LDBZ-2C (Double heads servo capping)	LDBZ-C (Single head servo capping)	LDBZ-3C (Three heads servo capping)
Capacity	40 Bottles/min	30 Bottles/min	50 Bottles/min
Bottle diameter	Φ25mm-100mm(Could be customized)
Bottle sealing height	40mm-200mm(Could be customized)
Power	2.5KW	2KW	3KW
Voltage	220V, 50HZ
Air pressure	0.5-0.7Mpa	0.4-0.6Mpa	0.7-0.9Mpa
Weight	350kg	300kg	400kg

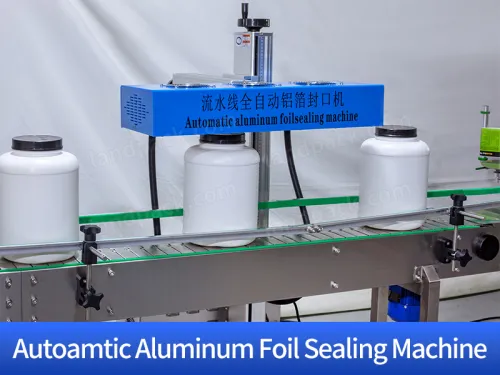

Aluminum foil sealing machine
Model	LD-ZS(Double Heads Aluminum Foil Sealing)	LF-LB-2000(Single Heads Aluminum Foil Sealing)
Applicable bottle diameter	Φ10-200mm（Could be customized）	Φ10-200mm（Could be customized）
Applicable bottle height	H:40-300mm（Could be customized）	H:40-300mm（Could be customized）
Speed	0-30bottle/min	0-10bottle/min
Bottle material	Glass, ceramics, plastics, metals	Glass, ceramics, plastics, metals
Voltage	220V,50HZ	220V,50HZ
Power	1500W	1200W
Dimension	15008001750mm	12006001550mm
Automatic Labeling Machine
Model	LFT-YP-00
Labeling Speed	20-60 bottles/min
Labeling Accuracy	±1mm
Max Label Width	100mm
Applicable Product Size	Φ30mm~Φ80mm(Can be customized)
Applicable inner diameter of paper	Φ76mm
Applicable outer diameter of paper	Max.Φ330mm
Air Source	4-6 KG 30L/min
Dimension	20008001600mm
Voltage	220V, 50Hz, 2000W
Weight	250KG
