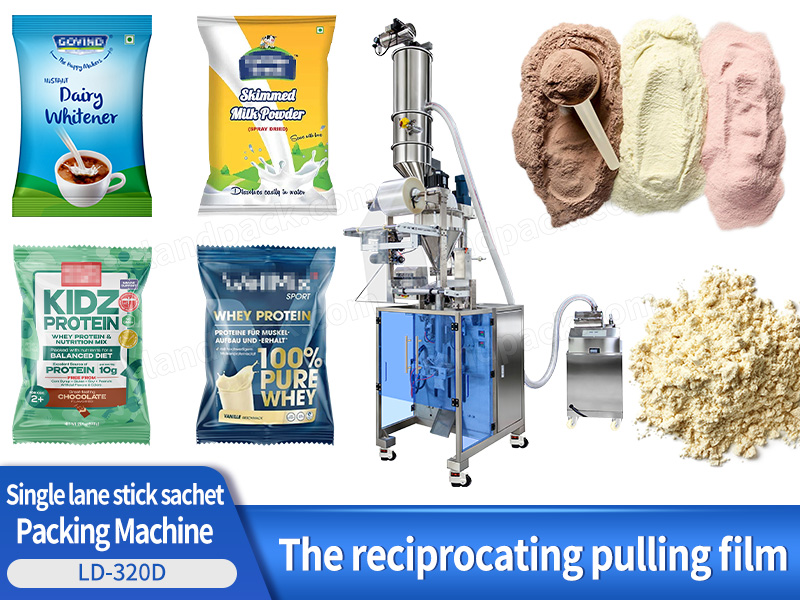

Automatic Protein Powder Packing Machine 100g-5kg Vertical Packaging Machine

Introduction:

Forming, filling, sealing, and cutting of pillow-type and gusseted bags from roll film in a continuous vertical process. Features vacuum feeding, stable sealing, and continuous bag forming from roll film.

Application:

Automatic powder vertical packing machine with auger filler for protein powder, milk powder, spice powder, coco powder and dry food products. Features vacuum feeding, stable sealing, and continuous bag forming from roll film.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

This powder packing machine is suitable for packaging dry powders and fine granules with controlled dosing and sealed flexible bags. Such as whey protein, milk powder, flour, starch, coffee powder, spice powder, protein blends, dietary powders, functional nutrition products, fine powders, additives, industrial powder materials, powdered medicine, sachet powders, healthcare powders, Instant drink powders, baking mixes, seasoning powders, etc.

Automatic Protein Powder Packing Machine 100g-5kg Vertical Packaging Machine

Package Type:

Forming, filling, sealing, and cutting of pillow-type and gusseted bags from roll film in a continuous vertical process.

FEATURES

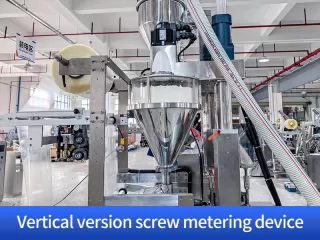

1. Auger filler ensures stable and repeatable dosing for powder materials.

2. Vacuum feeder enables automatic material loading and reduces manual handling.

3. Servo-driven film pulling system improves bag length accuracy.

4. PLC control with touch screen for easy operation and parameter adjustment.

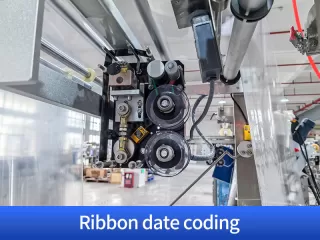

5. Integrated ribbon printer for date and batch coding.

6. Sealing system designed to minimize powder leakage and ensure clean seals.

7. Dust collection system helps maintain a clean working environment.

8. Compatible with a wide range of powder densities and flow properties.

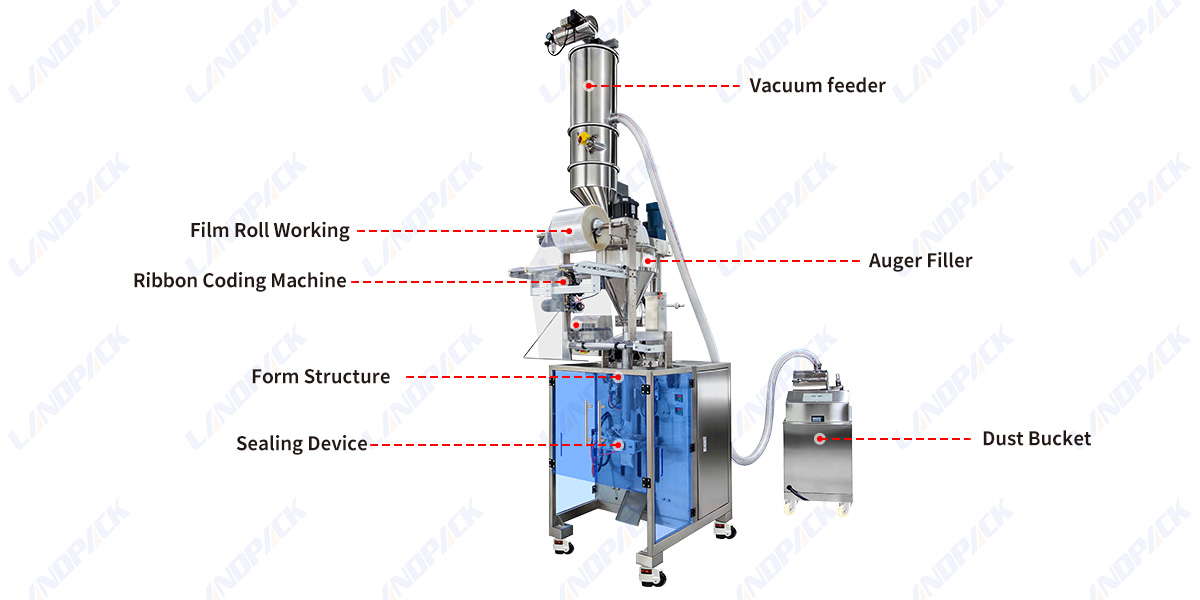

Machine Structure Overview:

1. Vacuum feeder, 2. Film Roll Working, 3. Auger Filler, 4. Ribbon Coding Machine, 5. Form Structure, 6. Sealing Device, 7. Dust Bucket

Automatic Protein Powder Packing Machine 100g-5kg Vertical Packaging Machine

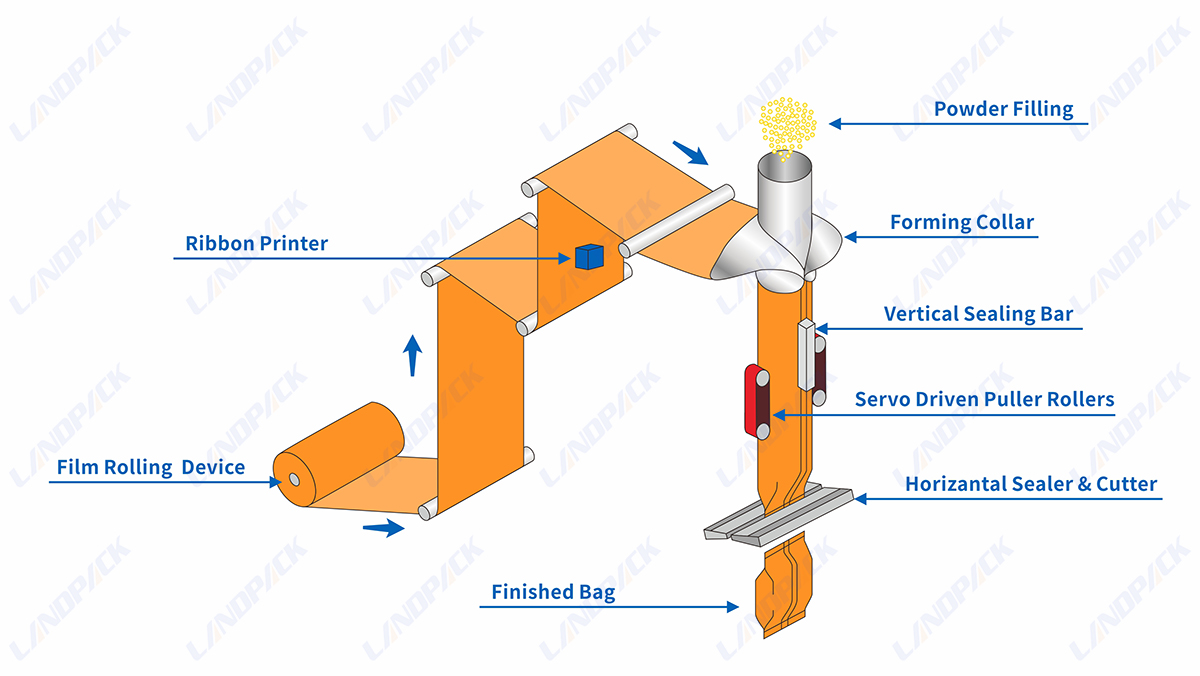

WORKFLOW

Film Unwinding

Bag Forming

Filling

Sealing

Cutting

Output

PARAMETER

	Model	LD-320D
	Capacity	20-100 bags/min
	Bag size	L: 50-170mm, W: 50-150mm
	Film width	120mm-320mm
	Film thickness	0.05-0.12mm
	Control system	PLC+Servo Motor+Color Touch Screen; PLC+Servo+Touch screen
	Power supply	1N+PE/50HZ/AC220V, 4KW
	Airconsumption	0.6-0.8Mpa, 0.3-0.5㎥/h

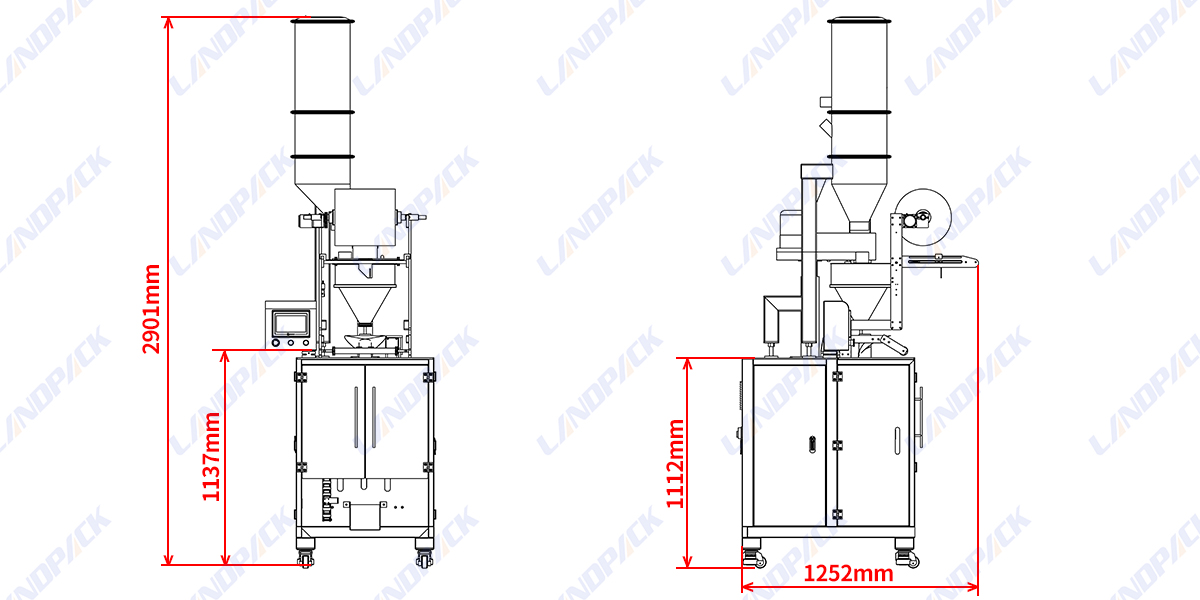

	Dimension	L1350W900H1400mm
	Equipment Material	Main body 3mm thickness 304 stainless steel frame
	Weight	350kg
	Description of Main Packaging Process	Pulling film-coding-bag making-measurement-filling (inflating)-sealing (punching)-cutting-packaging finished product output.
