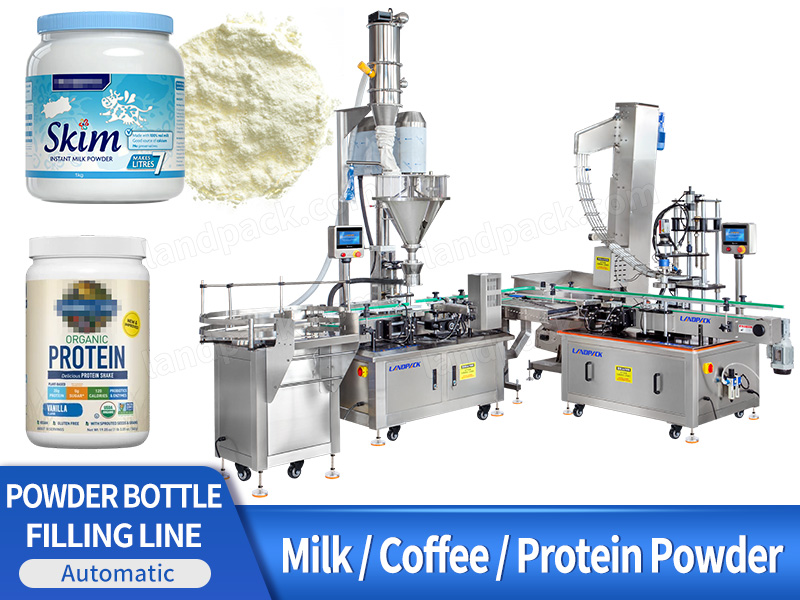

Automatic Powder Filling Machine | Protein Powder Filling Capping Machine Line

Introduction:

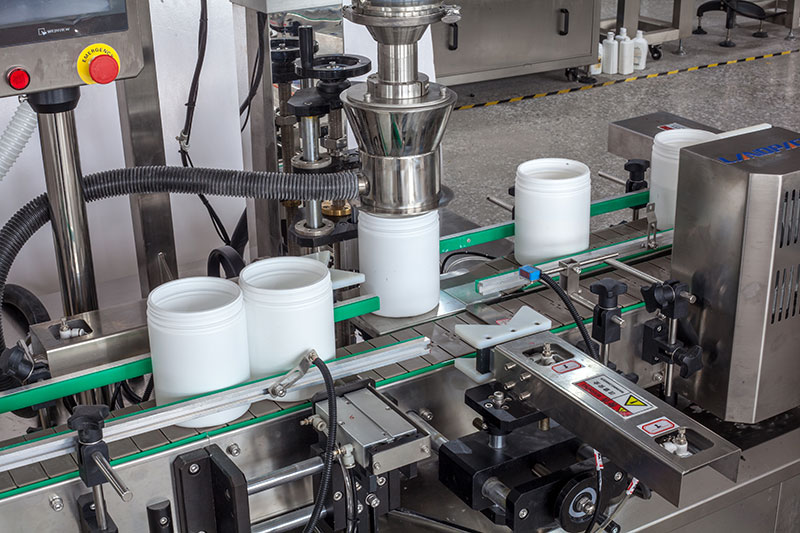

This powder filling line integrates an auger filler, automatic cap feeding, and high-precision capping to deliver a clean, efficient, and fully automated packaging process.

Application:

This line is ideal for packaging a wide range of powder products, including protein powder, milk powder, nutritional supplements, functional powders, and other food or health-related powder materials.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Package Type:

This system supports PET and HDPE bottles, wide-mouth jars, cylindrical or square containers of various sizes as well as stable bottle feeding, clean filling and secure capping - making it perfect for powdered product packaging.

Automatic Powder Filling Machine | Protein Powder Filling Capping Machine Line

Suitable Products:

This Powder Filling Line is built for accurate, sanitary, and efficient bottling of a broad range of powdered materials.

Nutrition & Sports Powders: Protein powder, meal replacement powder, fitness energy powder.

Health & Supplement Powders: Collagen powder, multivitamin powders, herbal extract powders, dietary fiber mixes.

Food & Ingredient Powders: Milk powder, dairy powder, cocoa powder, matcha blends, spice and seasoning powders.

Automatic Powder Filling Machine | Protein Powder Filling Capping Machine Line

FEATURES

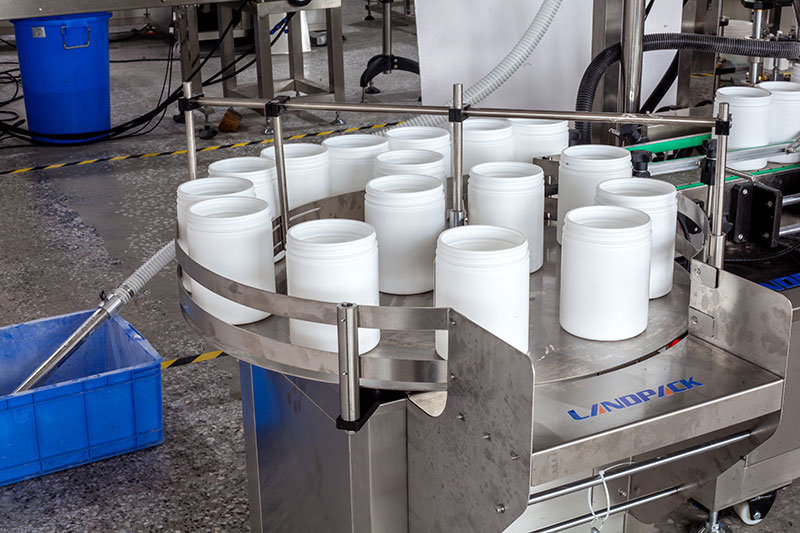

Bottle Sorting Machine Ensures an uninterrupted and orderly flow of bottles, increasing line efficiency and reducing the need for manual handling.

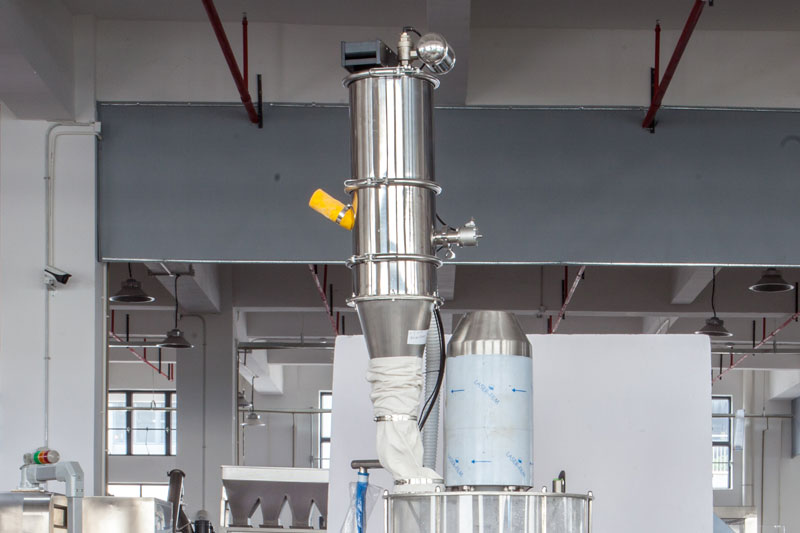

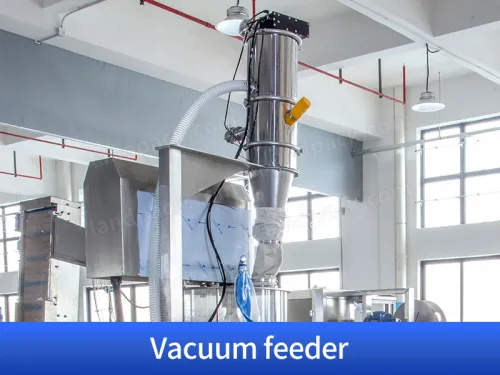

	Vacuum Feeder Automatically moves powder into the hopper to ensure that the process remains free of dust and ensures a steady material supply.

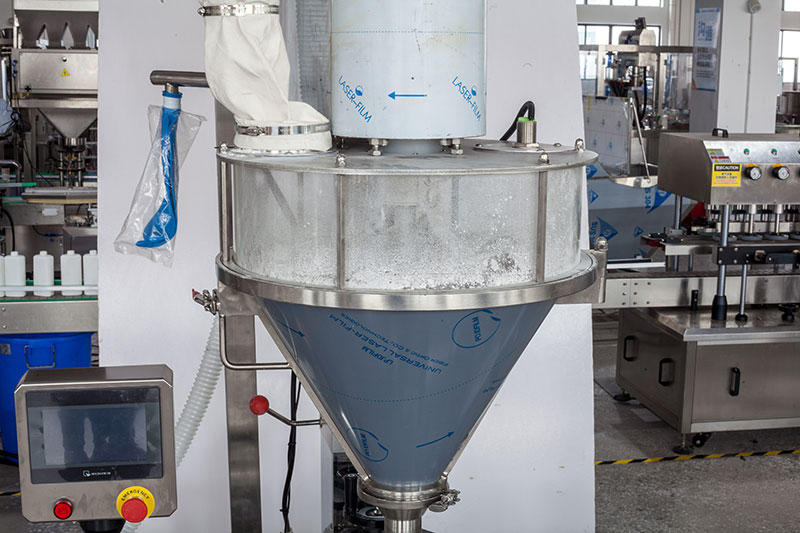

Auger screws dosing filling hopper device Auger Screw Dosing Holing Hopper with a precise auger system, which guarantees precise powder dosing. Ideal for protein powders as well as other powders with fine particles.

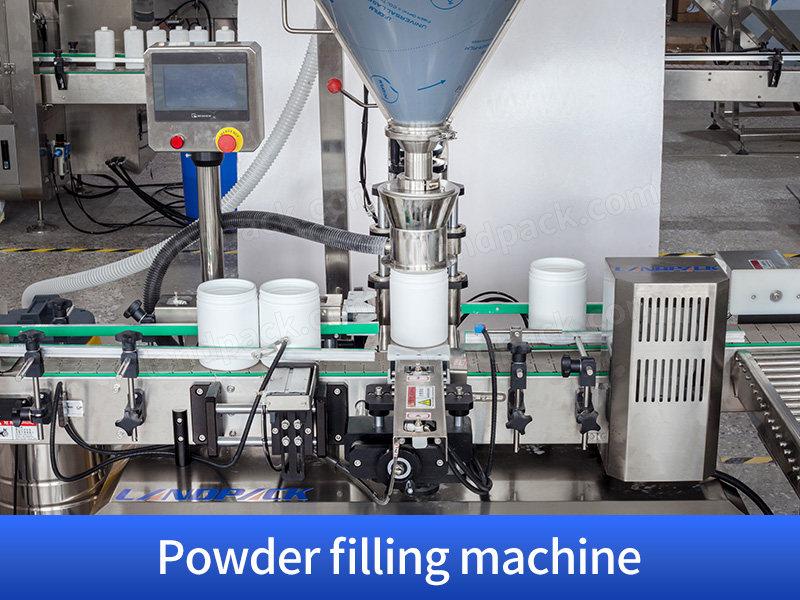

	Powder filling machine Servo-driven filler that provides constant fill volumes and allows for rapid, efficient, and reliable operation.

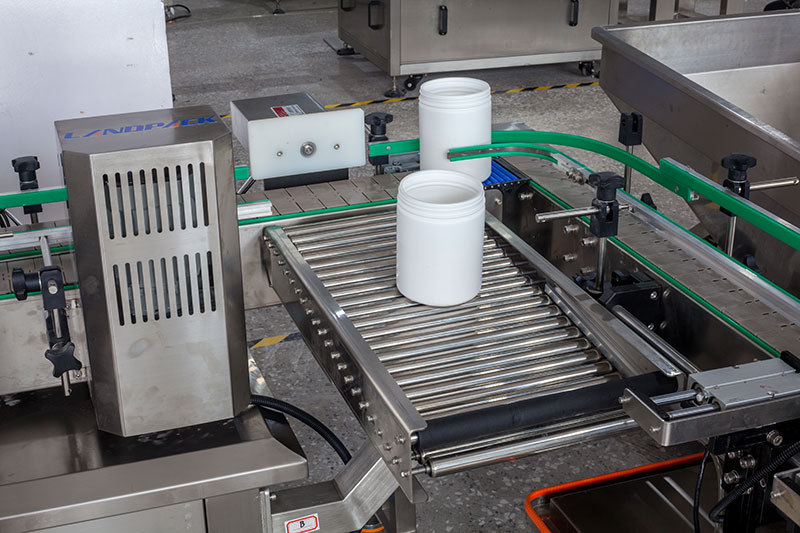

Automatic weight checker and reject function Automatic Weight Checker that includes Reject Function. Real-time weight monitoring assures that each bottle is in compliance with the specified weight. Out-of-spec items are automatically rejected.

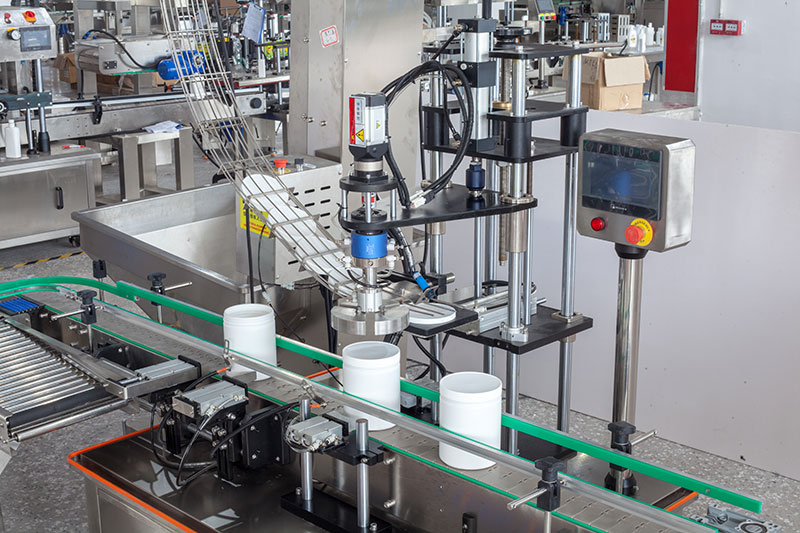

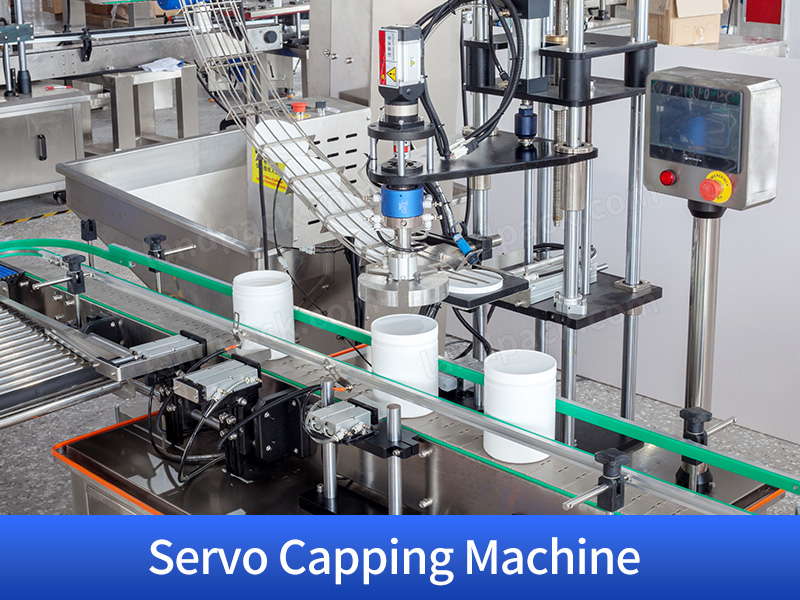

	Cap feeding capping machine Automatically organizes and distributes caps to the cap head to reduce manual labor and ensure a smooth production. Offers stable torque control to ensure an even and secure capping process to prevent leakage and ensure the integrity of the product.

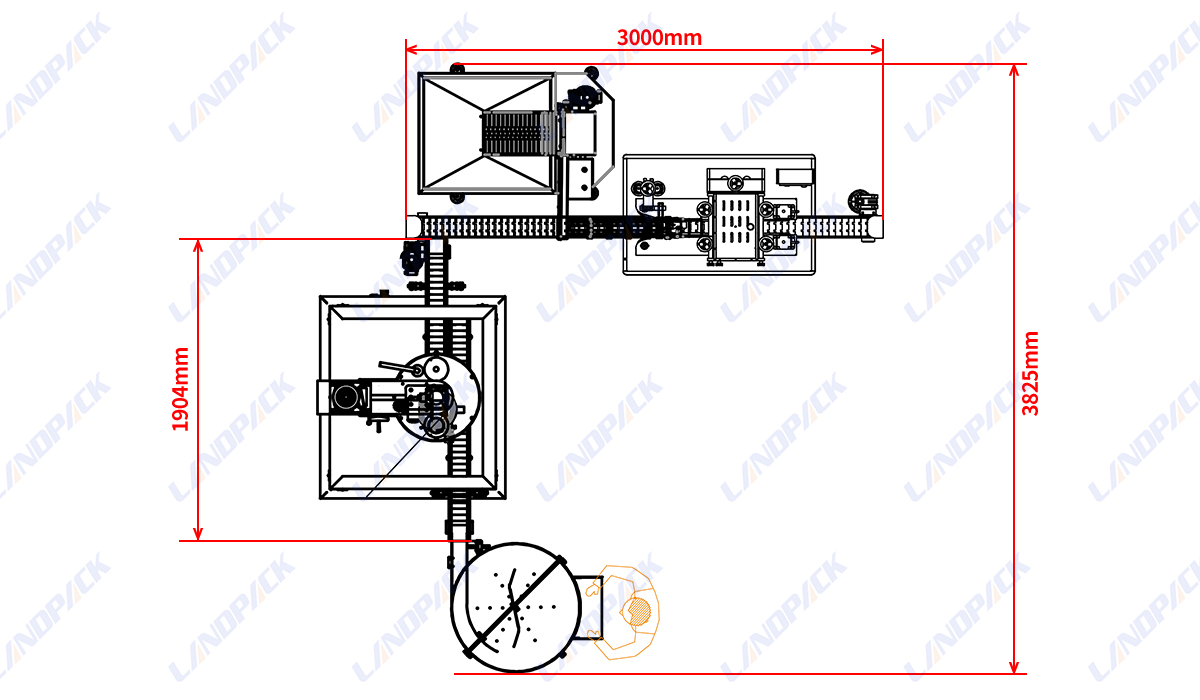

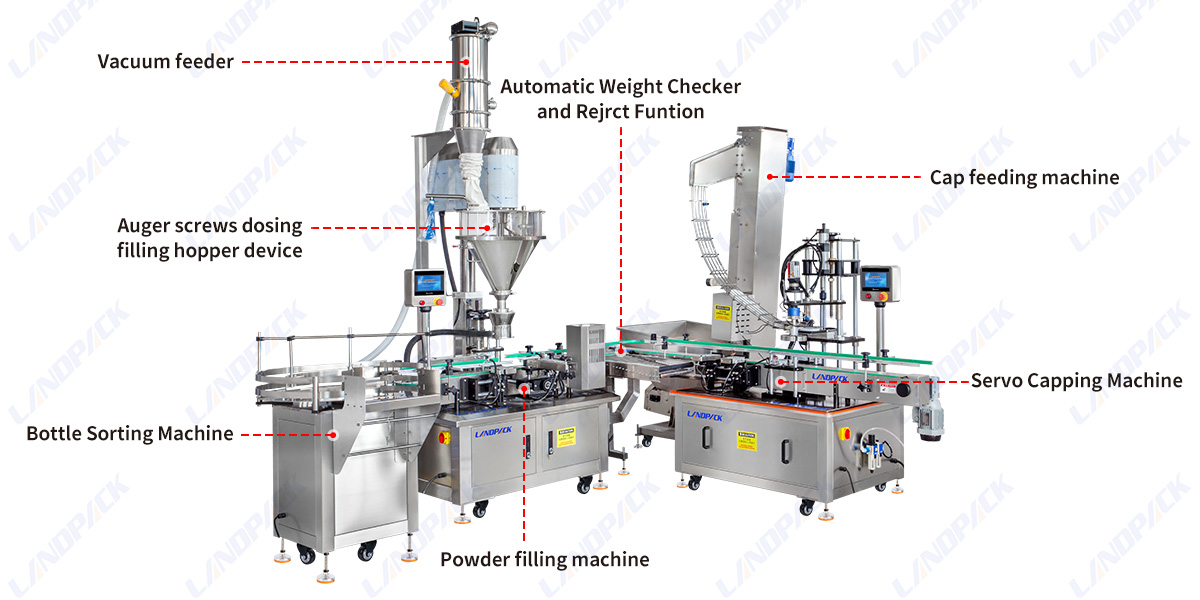

Machine Structure Overview:

1. Bottle Sorting Machine

2. Vacuum Feeder

3. Auger Screws Dosing Filling Hopper Device

4. Automatic Weight Checker and Rejrct Funtion

5. Powder Filling Machine

6. Cap Feeding Machine

7. Servo Capping Machine

Automatic Powder Filling Machine | Protein Powder Filling Capping Machine Line

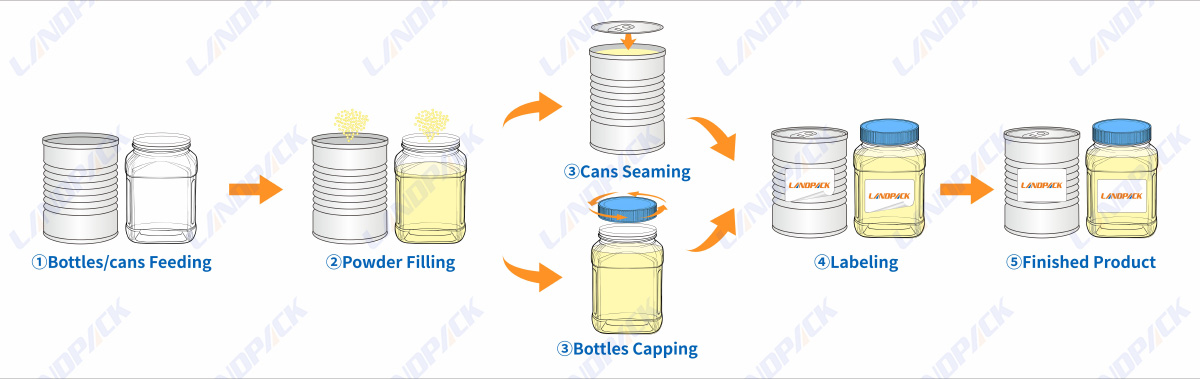

WORKFLOW

Bottle/Can Infeed

Powder Filling Stage

Capping or Seaming (Optional)

Labeling Module (Optional)

Finished Product Discharge

PARAMETER

	Powder Filling Machine
	Model	LD-PAF01
	Filling Range	10-5000g (Customizable)
	Filling Speed	20-40 bottles/min
	Measurement accuracy	±1%
	Power	5 KW
	Working power supply	220V, 50Hz
	Working pressure	0.6-0.8MPa
	Weight	550kg
	Size	L2006W979H2068(mm)

Automatic capping machine with cap feeder
Model	LFX-JX-01 (Four wheel capping)	LFX-GS-150 (Eight wheel capping)	LFX-GS-250 (Six wheel capping)
Capacity	20-50 bottles/min	40-100 bottles/min	30-80 bottles/min
Bottle cap diameter	Φ22mm-Φ80mm (Could be customised)	Φ18mm-Φ80mm (Could be customised)	Φ18mm-Φ80mm (Could be customised)
Bottle diameter	Φ35mm-Φ140mm (Could be customised)	Φ35mm-Φ140mm (Could be customised)	Φ35mm-Φ140mm (Could be customised)
Bottle sealing height	38mm-300mm (Could be customised)	38mm-300mm (Could be customised)	38mm-300mm (Could be customised)
Power	1.5KW	2KW	1.5KW
Voltage	220V, 50HZ	220V, 50HZ	220V, 50HZ
Air pressure	0.6-0.8Mpa	0.6-0.8Mpa	0.5-0.7Mpa
weight	250kg	350kg	300kg
Dimensions	H3000W800L1600mm	H3120W1544L2122	H3100W1244L2122
