Automatic Case Packing Packaging Automatic Packaging Systems with Delta Robot Palletizer

Introduction:

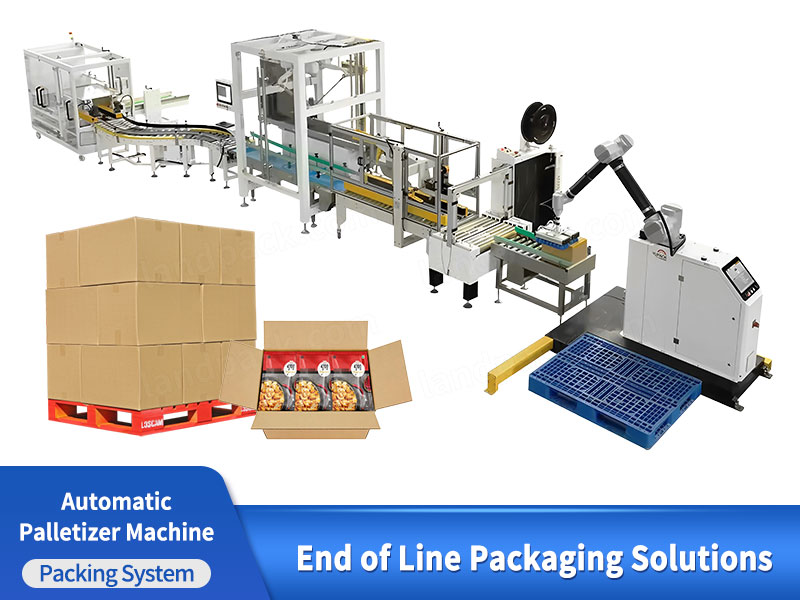

This packaging system is designed for carton erecting, bag/carton case packing, carton sealing, strapping and robotic palletizing in packing lines.

Application:

Suitable for automatic secondary packaging and palletizing in multiple industries such as snacks, frozen food, biscuits, rice, pet food, detergent pouch.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

This packaging system is designed for carton erecting, bag/carton case packing, carton sealing and robotic palletizing in packing lines, suitable for automatic secondary packaging and palletizing in multiple industries such as snacks, frozen food, biscuits, rice, pet food, detergent pouches, tissue packs, cosmetic products, medicine cartons.

Automatic Case Packing Packaging Automatic Packaging Systems with Delta Robot Palletizer

Package Type:

The packing system supports automatic carton erecting, bag or carton loading, carton sealing and robotic palletizing for pillow bags, premade pouches, stand-up pouches, cartons and bundled products. It is suitable for corrugated shipping cases and can connect with packaging machines.

FEATURES

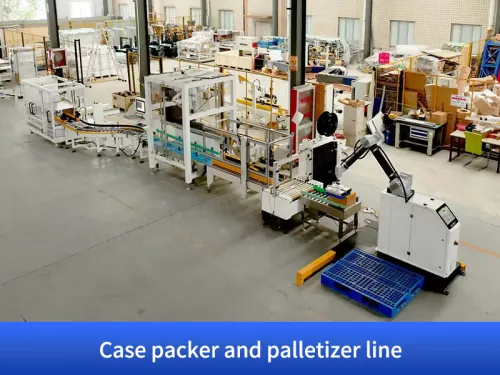

1. Complete end-of-line system including carton erecting, case packing, carton sealing, strapping and robotic palletizing.

2. Drop-type carton packing structure runs smoother with lower power consumption and stable bottle loading.

3. PLC centralized control with photoelectric detection ensures accurate product positioning and automatic operation.

4. Automatic carton erector supports continuous carton feeding with up to 50–100 cartons storage capacity.

5. Carton sealing machine provides neat sealing performance with sealing qualification rate up to 99.9%.

6. Automatic strapping machine improves carton stability during transportation and warehouse stacking.

7. Robotic palletizer supports high-speed pallet stacking, reducing labor cost and improving end-of-line automation efficiency.

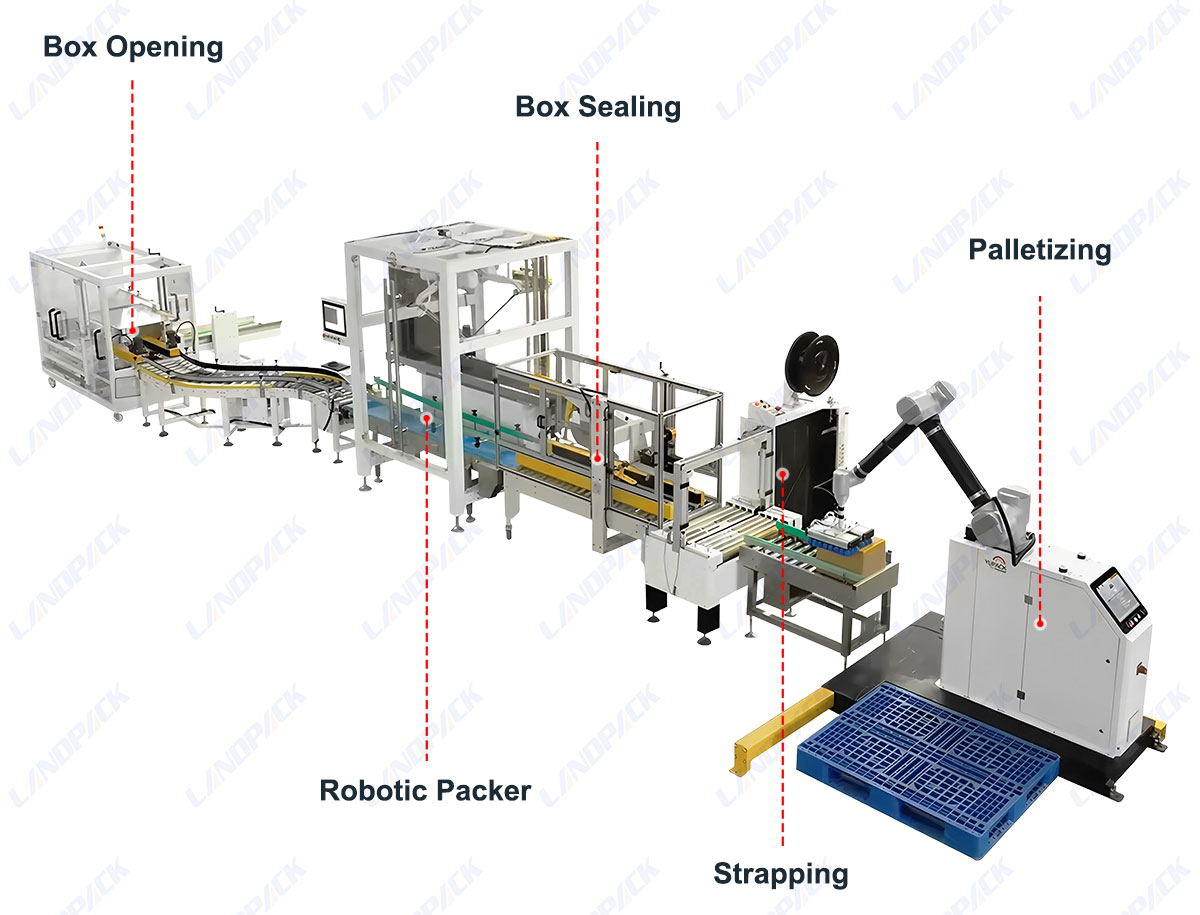

Machine Structure Overview:

1.Box Opening 2. Box Sealing 3. Palletizing 4. Robotic Packer 5. Strapping

Automatic Case Packing Packaging Automatic Packaging Systems with Delta Robot Palletizer

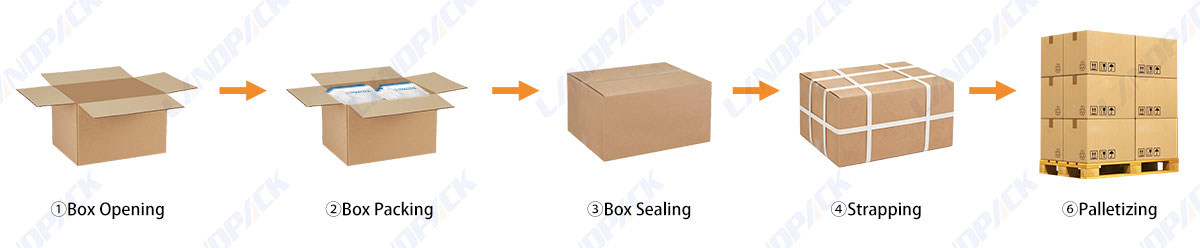

WORKFLOW

Carton erecting

Product conveying

Automatic product arrangement

Case packing

Carton sealing

Strapping

Delta robot palletizing

Finished pallet output

PARAMETER

Box Case Sealer Sealing Machine
Model	LD-ZHJ300
Power supply	220V, 50Hz, 0.75kW
Air pressure requirement	0.5-0.8MPa
Machine material	Aluminum + stainless steel
Applicable	L: 120-300mm, W: 30-150mm, H: 20-60mm
Size of carton	Customizable
Box material	300-450g cardboard paper, corrugated paper
Working speed	30-50 cartons/min
Machine size	400813541633 mm
Weight	About 1500kg

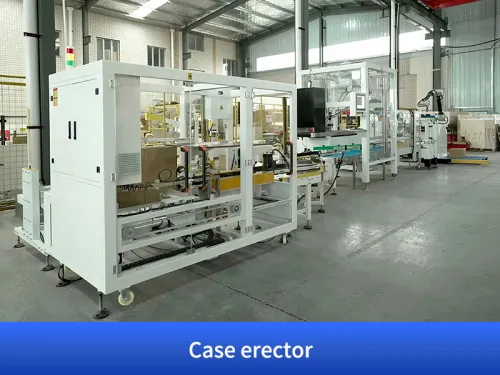

Carton erecting machine
Carton opening speed	10-12 cartons/min
Carton size range	L: 270-450W: 150-400H: 100-400mm (Min and max cannot exist at the same time)
Power supply	220V, 50/60Hz, 1 Phase
Power	2400W
Adhesive tape width	48/60/75mm
Carton storage quantity	80-100pcs(800-1000mm)
Air consumption	450NL/min
Air compressing	6kg/cm³
Discharge table height	600+30 mm
Machine size	L2100W2100H1450mm
Machine weight	450Kg

Automatic Carton Packing Machine
Model	LD-B8	LD-B18	LD-B30	LD-B42	LD-B48
Capacity	480case/h	1100case/h	1800case/h	2500case/h	2800case/h
Power supply	AC380V,50HZ	AC380V,50HZ	AC380V,50HZ	AC380V,50HZ	AC380V,50HZ
Power	3.7KW	3.7KW	4.5KW	4.5KW	5.2KW
Suitable products	Glass bottles, pet bottles, tin cans, bags, small boxes, and so on (customized)
Packing way	Paper carton packer, plastic boxes (customized)
Packing method	Side push, drop, servo, sprocket, robot, spider hand (customized)

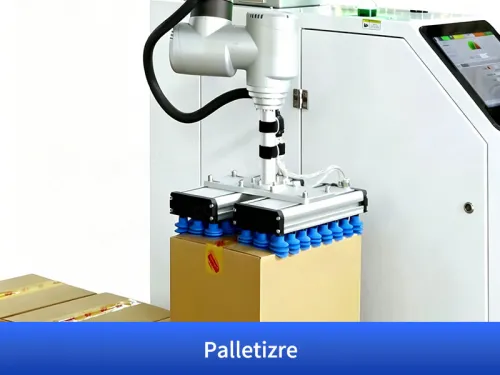

Automatic Robot palletizer
Model	LD60-PL	LD120-PL	LD1800-PL
Arm Reach	2000mm	2400mm	3060mm
Maximum Load	60kg	120kg	180kg
Weight	500kg	1050kg	1120kg
Pallet Dimensions	1200*1200	1200*1200	1400*1400
Palletizing Speed	8 cycle/min	8 cycle/min	8 cycle/min

Strapping Machine
Table height	630-750mm (adjustable)
Width of pp strap	9-15mm
Thickness of pp strap	0.55-1.2mm
Voltage	220V-415V, 1PH/3PH
Power	0.75KW, 50/60HZ
Machine size	L1400W630H1430mm
Packing size	L1500730H1530mm
Machine weight	200kg
