Automatic Popcorn Vertical Packing Machine (Secondary Lifting)

Application:

Automatic Popcorn Vertical Packing Machine With Secondary lifting feeding + weighing. It suitable for packaging in food, agriculture, pharmaceutical, cosmetics, chemical and other industries.

Kindly Reminder:

Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Automatic Popcorn Vertical Packing Machine With Secondary lifting feeding + weighing. It suitable for packaging in food, agriculture, pharmaceutical, cosmetics, chemical and other industries. This packaging system is suitable for popcorn, snacks, puff, biltong, chicken nuggets, beef jerky, pet foods, frozen foods, nut, sunflower seeds, vegetables, chocolate, fruits, candies, chemicals and other particles.

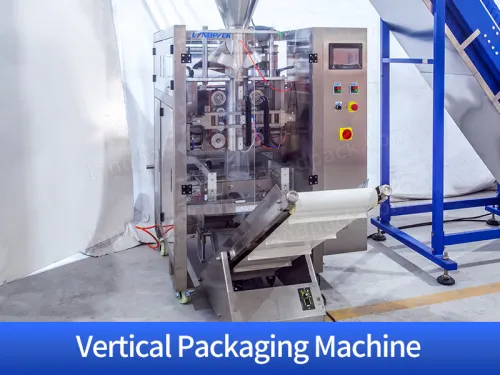

Automatic Popcorn Vertical Packing Machine (Secondary Lifting)

FEATURES

1.The machine features a large food-grade bucket elevator designed for easy cleaning and maintenance, meeting hygiene standards.

2.Equipped with a high-precision combination weigher system to ensure accurate measurement and consistent product weight.

3.Utilizes a secondary lifting mechanism, making it ideal for production facilities with limited ceiling height.

4.Operates with an imported PLC control system and user-friendly color touchscreen interface for intuitive and efficient operation.

5.Incorporates an advanced servo-driven film transport system with precision mark sensors, ensuring stable film positioning and high-quality packaging.

6.Includes automatic fault detection and alarm functions to reduce downtime and material waste, compatible with various bag styles including pillow, gusseted, hang-hole, and linked bags.

Automatic Popcorn Vertical Packing Machine (Secondary Lifting)

WORKFLOW

Automatic Bucket Elevator

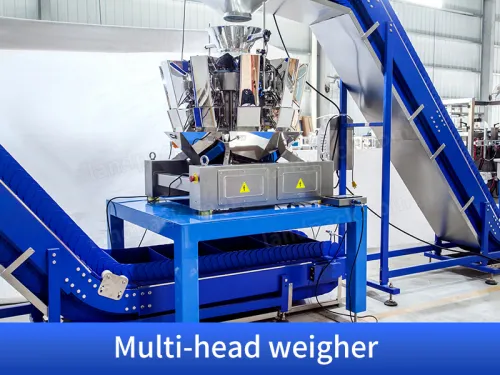

Multi Head Weigher

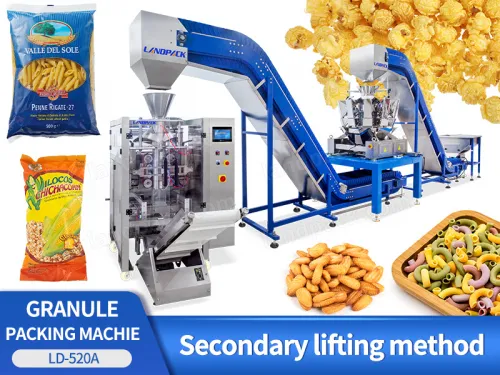

Secondary Lifting

Form Structure

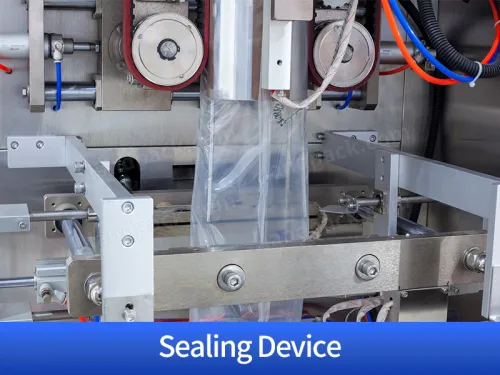

Packing and Sealing

Product Output Feeding

PARAMETER

Model	LD-420	LD-520	LD-720	LD-900	LD-1050	LD-1200
Film Thickness	0.04-0.08mm	0.04-0.12mm	0.04-0.12mm	0.04-0.12mm	0.04-0.12mm	0.04-0.12mm
Bag Length	80-300mm	80-350mm	100-500mm	100-600mm	100-800mm	100-1000mm
Bag Width	60-200mm	100-250mm	180-350mm	260-430mm	290-505mm	290-580mm
Film Roll Diameter	Max.320mm	Max.320mm	Max.320mm	400mm	400mm	400mm
Pakaging Rate	5-60bag/min	5-60bag/min	5-55bag/min	5-20bag/min	5-20bag/min	5-20bag/min
Film Width	Max.420mm	Max.520mm	150-Max.720mm	Max.900mm	Max.900mm	Max.1200mm
Measurement Range	150-1500ml	5-2000ml	4000ml	1-25L	1-25L	1.5L-45L
