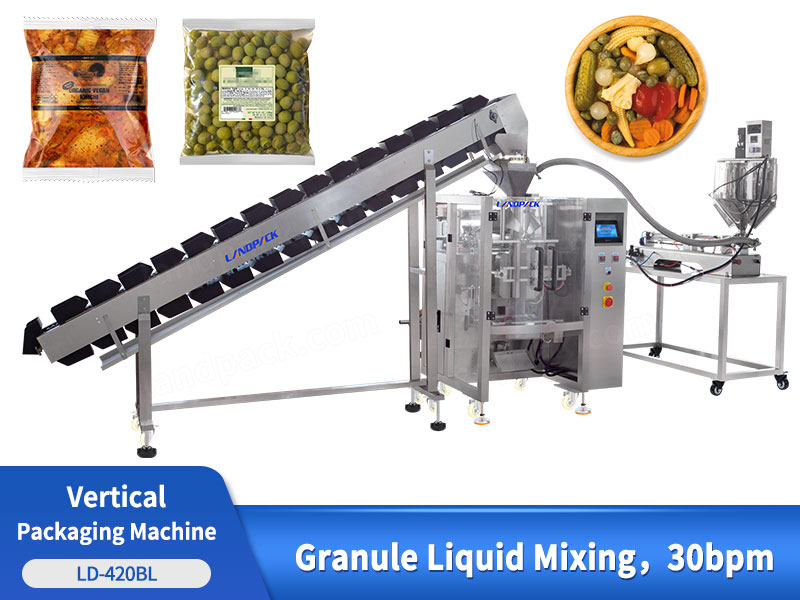

Automatic Pickles Pouch Packing Machine | Vertical Packing Machine

Introduction:

This vertical packing machine is built to package solid ingredients and liquid components together in a single pouch. It incorporates a chain plate conveyor for solids along with a piston-based liquid filling system for sauces or brines.

Application:

It is widely used for packing pickled vegetables, kimchi, jam with fruit pieces, preserved fruits in syrup, and mixed snacks with sauce or brine.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Package Type:

This vertical packaging system is compatible with pillow bags, three-side seal pouches, and four-side seal formats. Bag size parameters can be flexibly adjusted to suit different solid-to-liquid ratios, maintaining reliable sealing quality and a uniform package appearance for mixed-product packaging.

Automatic Pickles Pouch Packing Machine | Vertical Packing Machine

Suitable Products:

This vertical packaging machine is designed for combined solid and liquid packaging, integrating a chain-bucket elevator for granules and a piston filling system for liquids. It enables precise proportion control and stable sealing, making it ideal for products requiring both particulate and sauce or syrup in a single bag. Typical applications include:
1. Pickled & Preserved Foods: Kimchi, pickled vegetables, mixed pickles with brine, marinated radish, and fermented cabbage products.
2. Fruit & Sauce-Based Products: Fruit pieces with syrup, fruit cocktail packs, preserved fruits in juice, diced mango with syrup, and mixed fruit toppings.
3. Ready-to-Eat & Specialty Foods: Vegetable mixes with seasoning liquid, seasoned bean products, snack kits with sauce, and specialty condiment combinations.

FEATURES

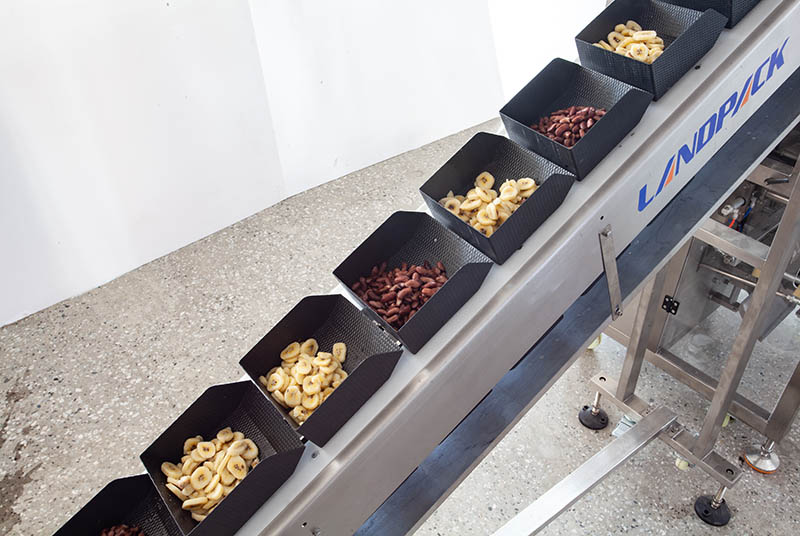

Chain Conveyor Ensures stable and hygienic transfer of granular materials with minimal spillage.

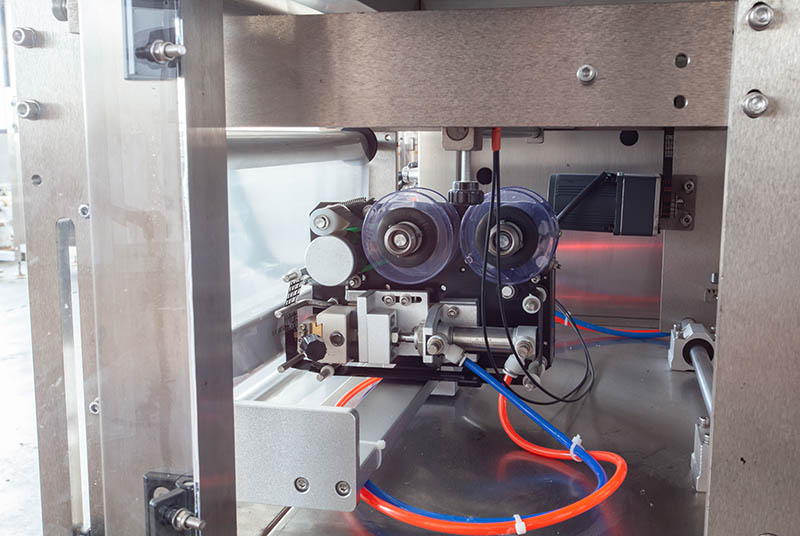

	Coding Machine Prints clear production dates and batch codes in real time for easy traceability.

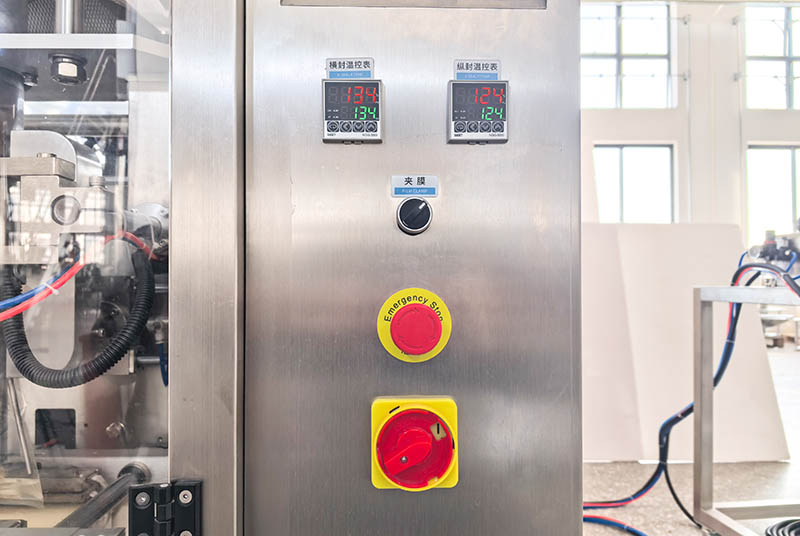

Emergency Stop Integrated safety button allows immediate shutdown to protect operators and equipment.

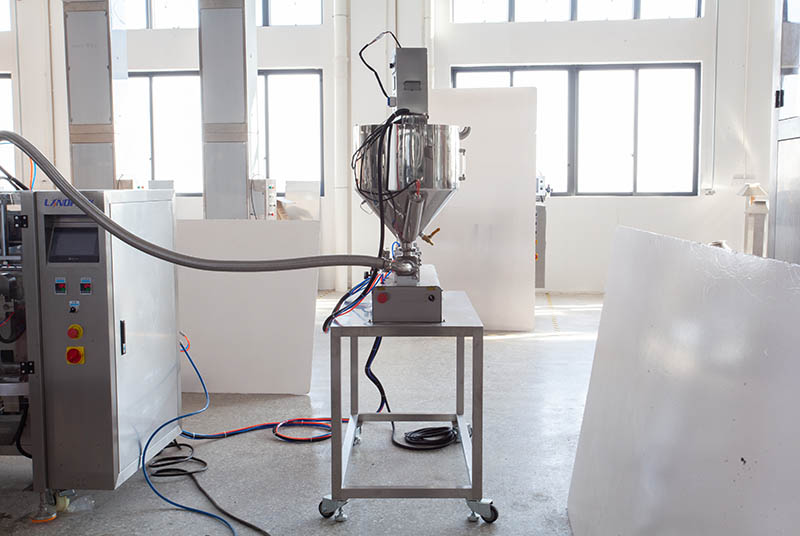

	Liquid Pump Delivers precise, stable liquid dosing, suitable for sauces, syrups, and brine-based products.

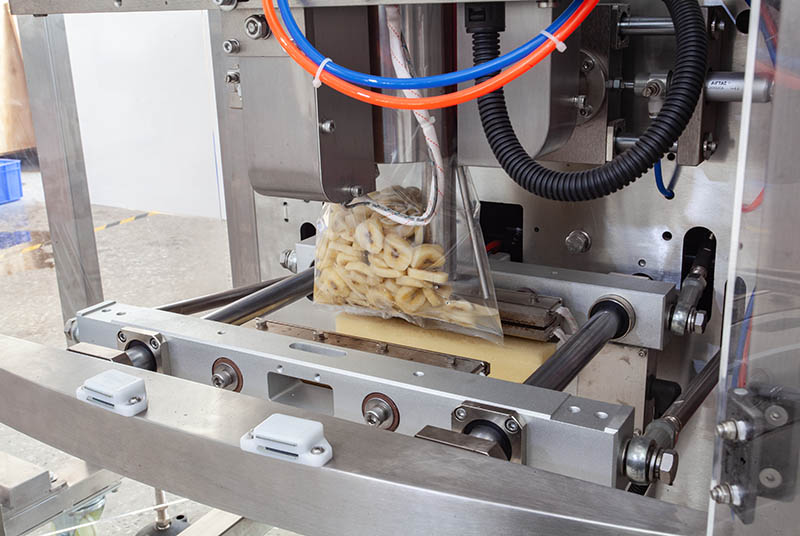

Sealing and Cutting Station Provides strong, consistent seals and clean cuts for reliable package integrity.

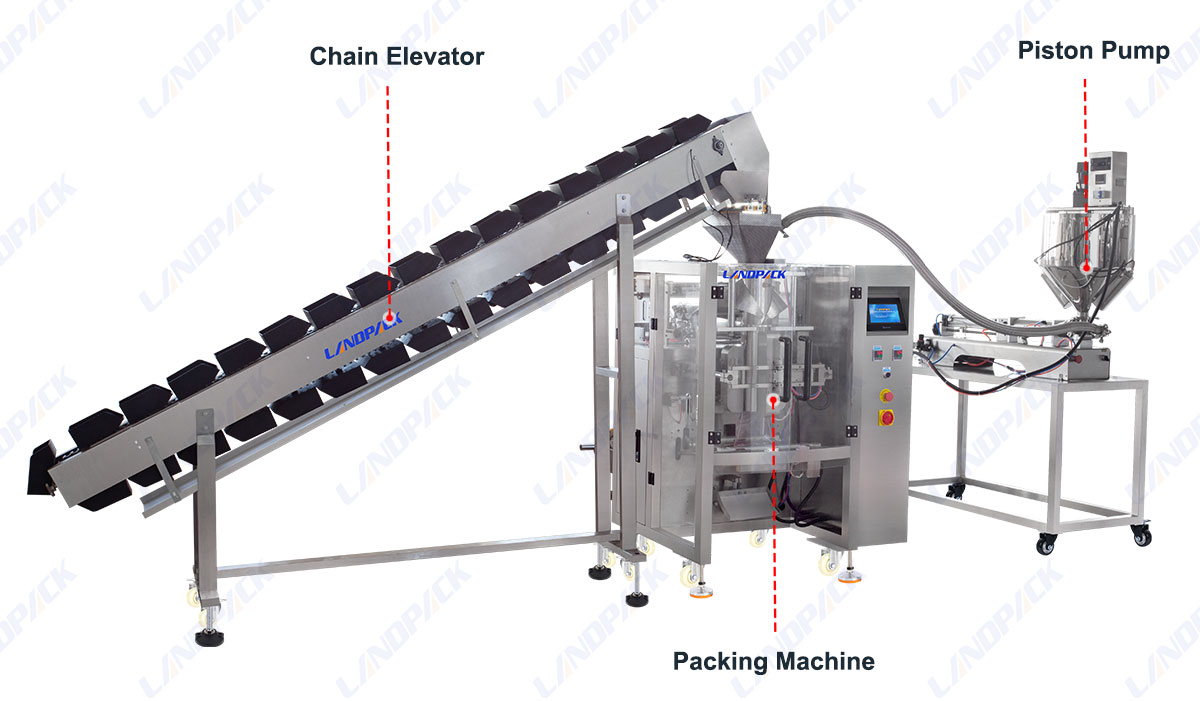

Machine Structure Overview:

1. Chain Elevator

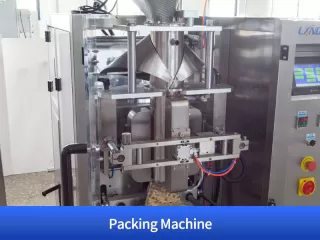

2. Packing Machine

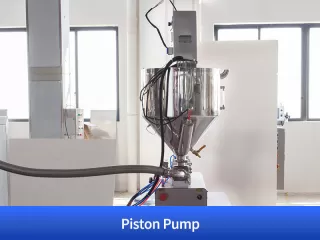

3. Piston Pump

Automatic Pickles Pouch Packing Machine | Vertical Packing Machine

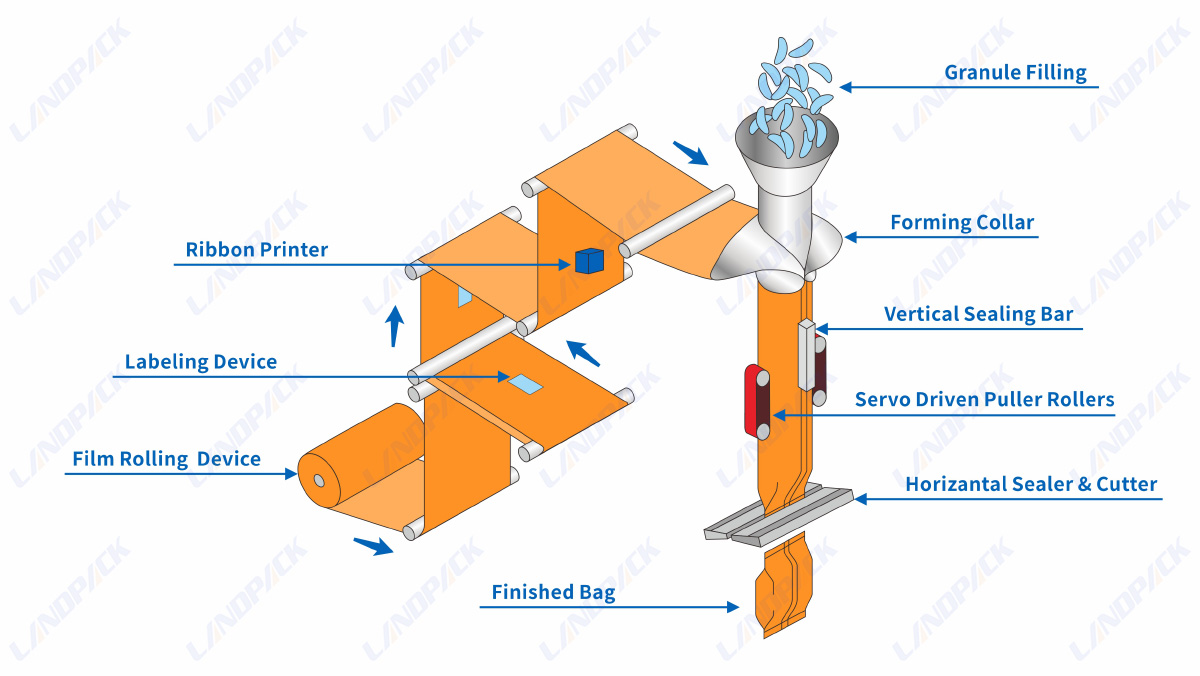

WORKFLOW

Granule Feeding

Liquid Dosing

Bag Forming & Filling

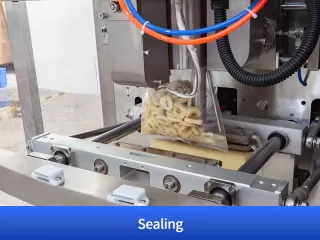

Sealing & Cutting

PARAMETER

Model	LD-420BL	LD-520BL	LD-620BL	LD-720BL
Film Thickness	0.04-0.12mm	0.04-0.12mm	0.04-0.12mm	0.04-0.12mm
Bag Length	80-300mm	60-400mm	60-450mm	60-500mm
Bag Width	60-200mm	100-250mm	65-300mm	65-350mm
Film Roll Diameter	Max.600mm	Max.600mm	Max.600mm	Max.600mm
Pakaging Rate	5-60 bags/min	5-40 bags/min	5-35 bags/min	5-30 bags/min
Film Width	Max.420mm	Max.520mm	150-Max.620mm	150-Max.720mm
Making bag volume	1000ml	2000ml	3000ml	5000ml
Power Supply	220V, 50/60HZ, 3KW	220V, 50/60HZ, 3KW	220V, 50/60HZ, 3.2KW	220V, 50/60HZ, 3.5KW

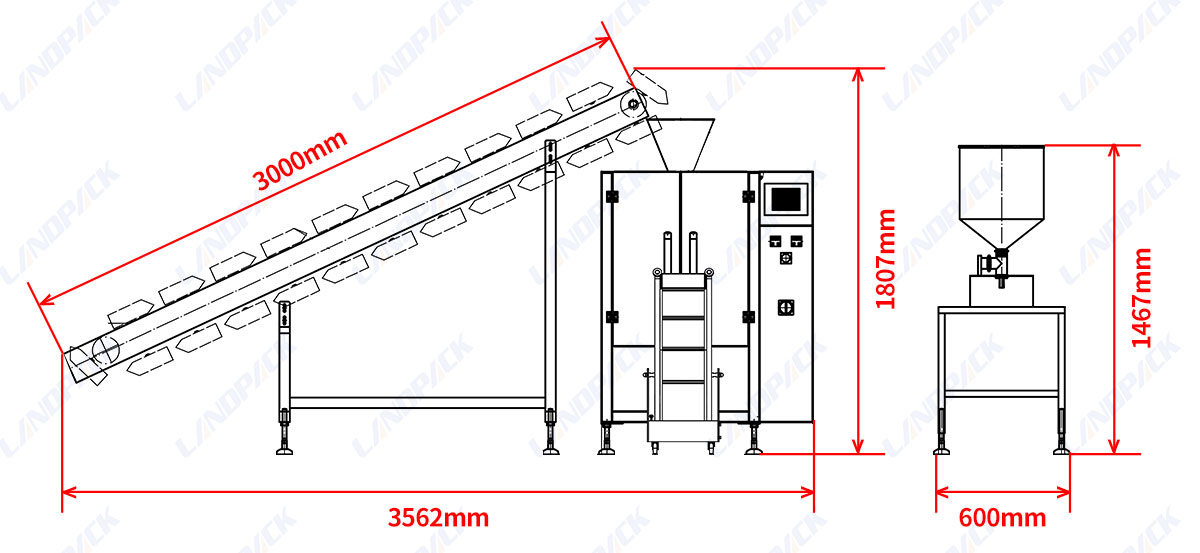

Machine Size	121710151343 mm(LWH)	148810801490 mm(LWH)	148811801550 mm(LWH)	178013502050 mm(LWH)
