Pickled Filling Machine | Automatic Fruit Cans Filling Seaming and Coding Line

Introduction:

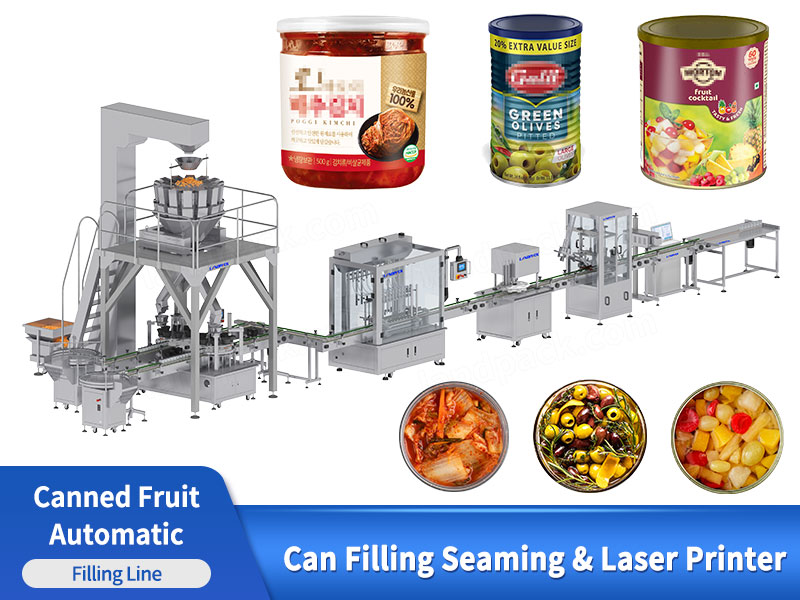

This automatic fruit canning filling line integrates container unscrambling, multihead weighing, solid and liquid filling, sealing, coding, and collection into one continuous system.

Application:

Engineered for fruit canning manufacturers, this system supports high-speed filling of fruit pieces followed by controlled syrup or juice dosing.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Engineered for fruit canning manufacturers, this system supports high-speed filling of fruit pieces followed by controlled syrup or juice dosing.

Package Type:

This fruit canning filling line is designed for a wide range of metal and rigid containers commonly used in food canning. It supports round tin cans, aluminum cans, and composite cans with standard diameters and heights. The system is compatible with easy-open lids and press-on caps, ensuring stable filling, sealing, and coding throughout continuous canning operations.

Pickled Filling Machine | Automatic Fruit Cans Filling Seaming and Coding Line

Suitable Products:

This fruit canning filling line is engineered for accurate solid-liquid portioning and continuous can sealing, making it suitable for a wide range of canned food products that require stable filling ratios and reliable closure performance.

Canned Fruits & Fruit Pieces: Peaches, pineapples, pears, mandarin segments, cherries, mango chunks, mixed fruits, and diced tropical fruits.

Fruit in Syrup & Juice: Fruits filled with light syrup, heavy syrup, natural fruit juice, flavored juice, or glucose-based soaking liquids.

Solid-Liquid Canned Foods: Fruit salads, dessert cups, cocktail fruits, and other food products combining solid pieces with liquid media that require consistent weight and visual presentation.

FEATURES

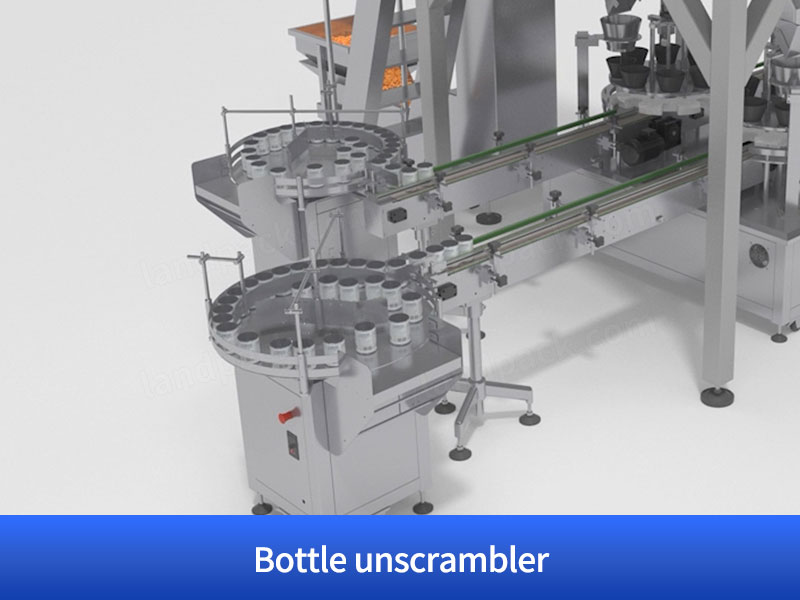

Bottle Unscrambler Automatically arranges and delivers empty cans to the filling section in a smooth, continuous flow, reducing manual intervention and improving overall production efficiency.

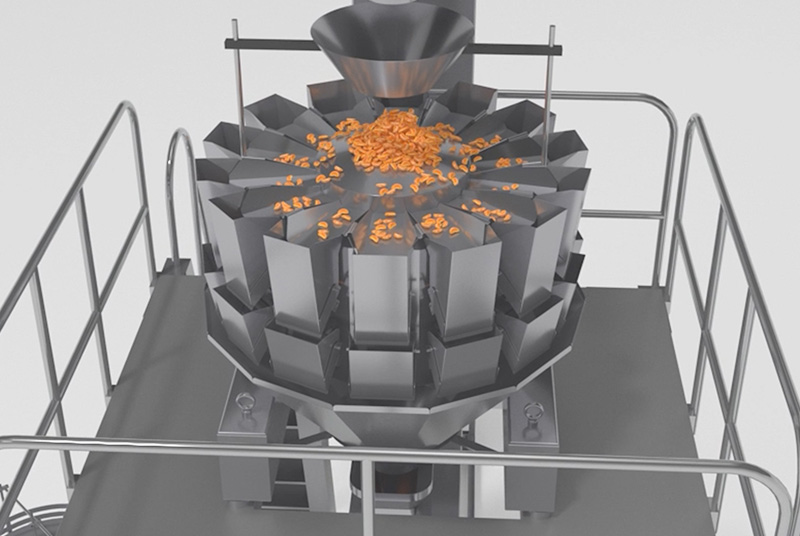

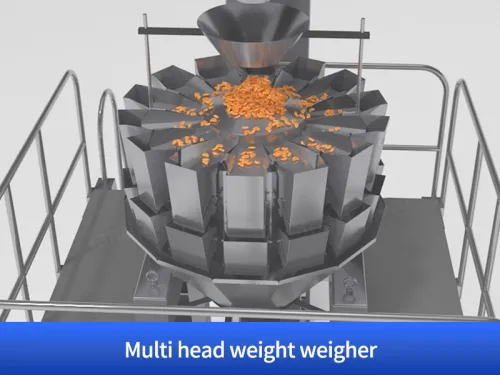

	Multi Head Weight Weigher The high-accuracy multi-head weighing unit precisely manages fill weights for solid products, ensuring uniform portions of pickled fruits, vegetables, and granular materials.

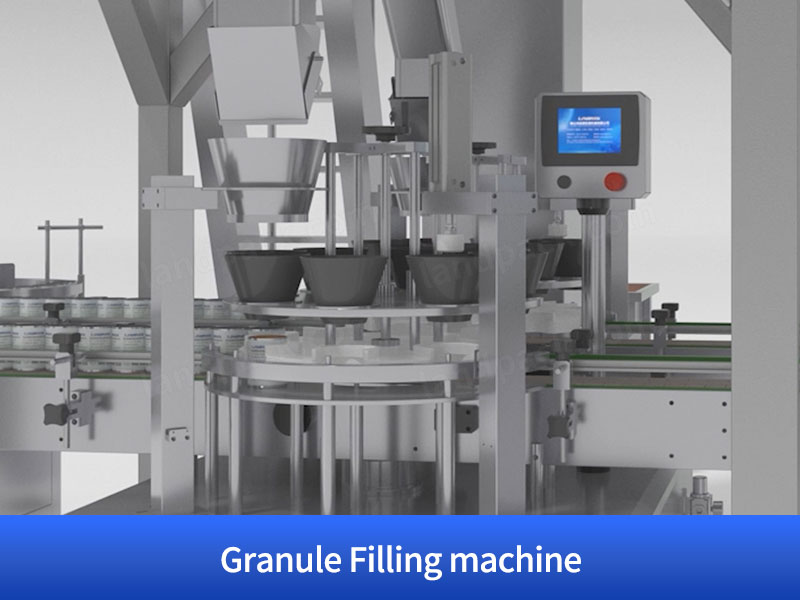

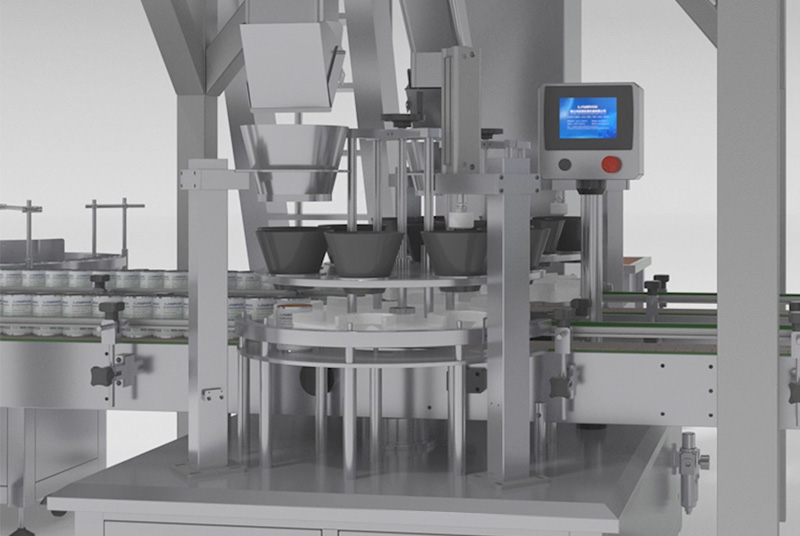

Granule Filling Machine Engineered for handling solid and granular ingredients such as fruit chunks or vegetable pieces, the system provides fast and reliable filling performance.

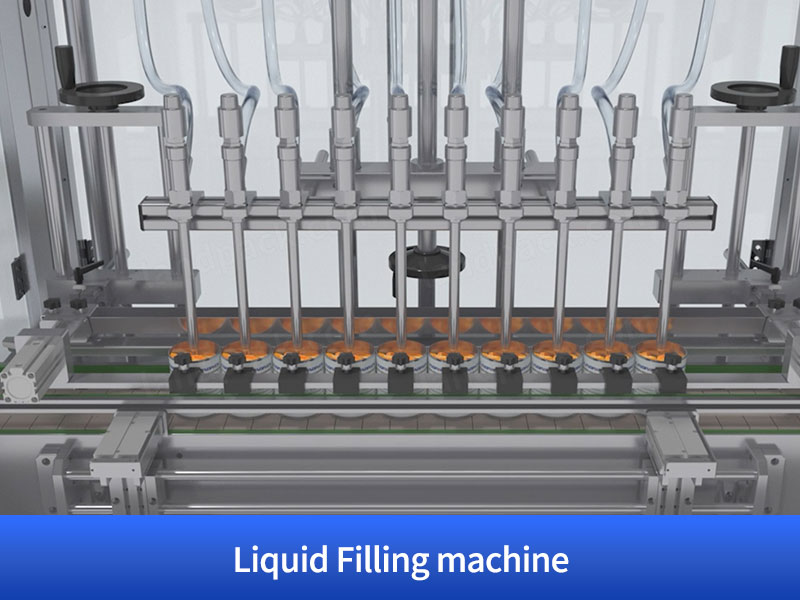

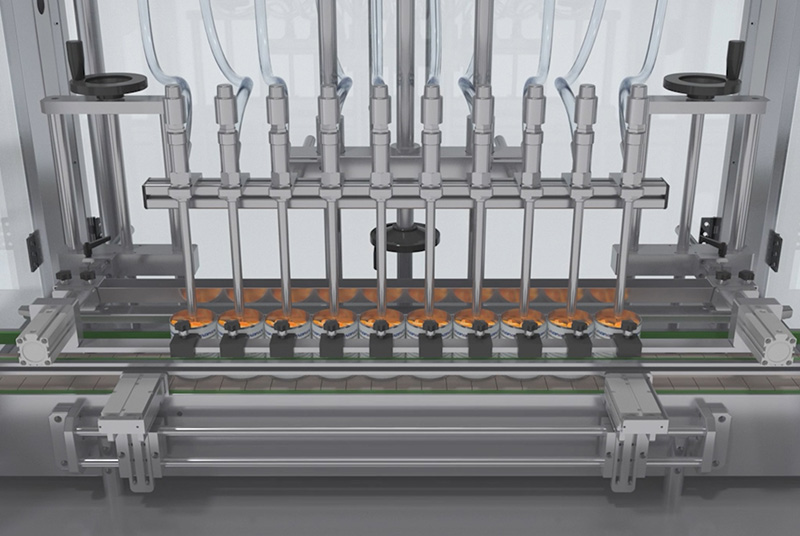

	Liquid Filling Machine Liquid filling modules accurately dispense brine, sauces, or other liquids into the cans, enabling clean and stable solid–liquid combination filling.

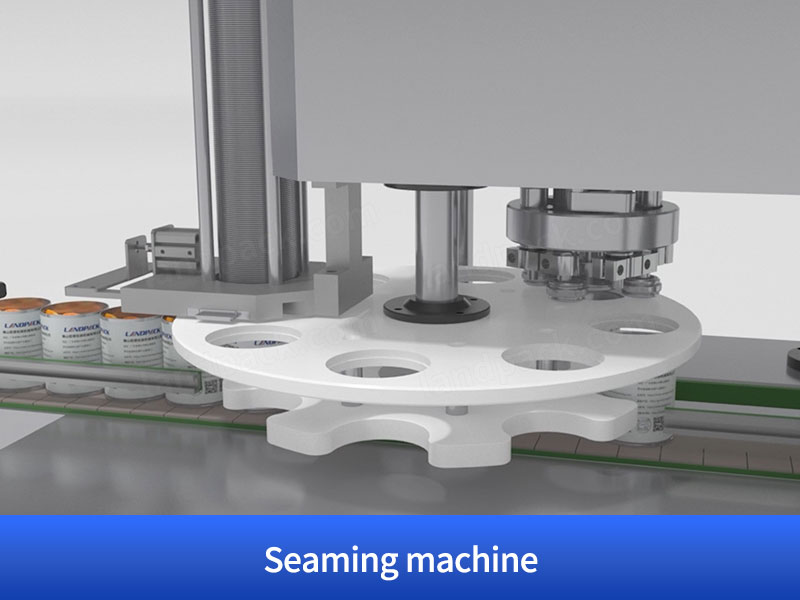

Seaming Machine The can seaming system creates strong, leak-resistant seams that help preserve product quality and extend shelf life, making it ideal for canned and pickled foods.

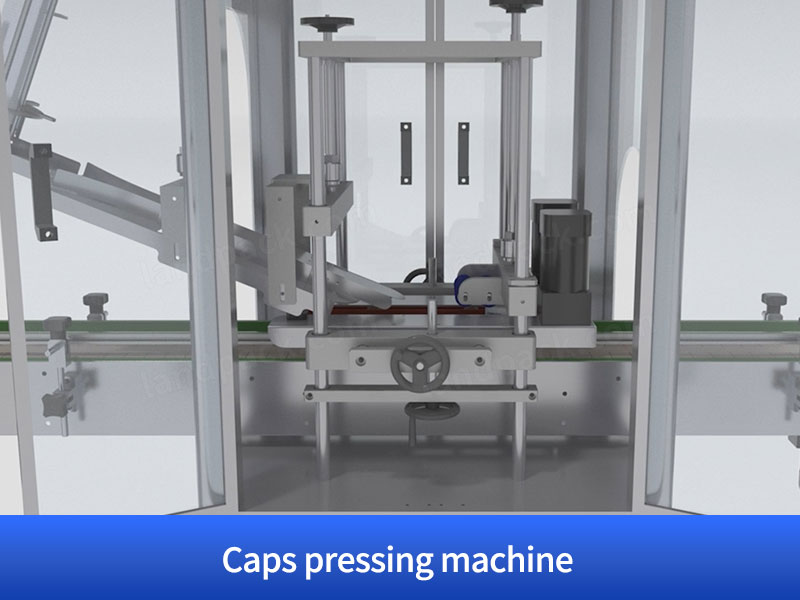

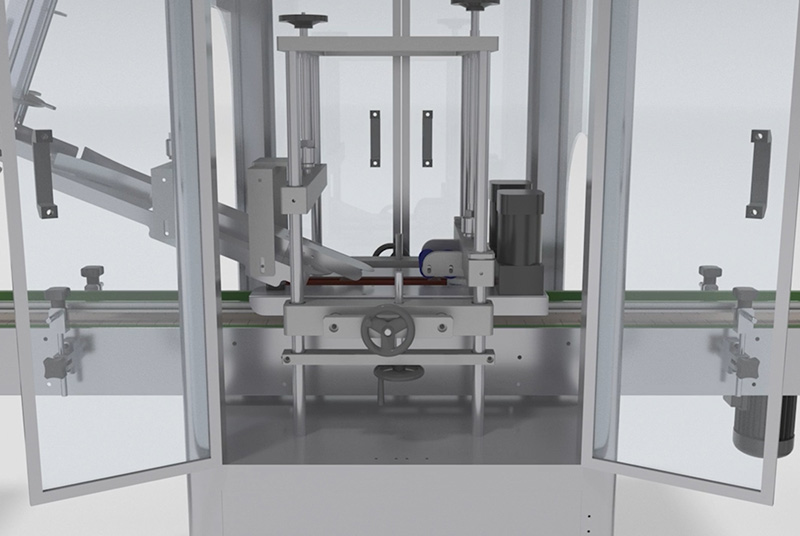

	Caps Pressing Machine The cap pressing mechanism applies consistent pressure to ensure secure closures, improving package integrity during transport and storage.

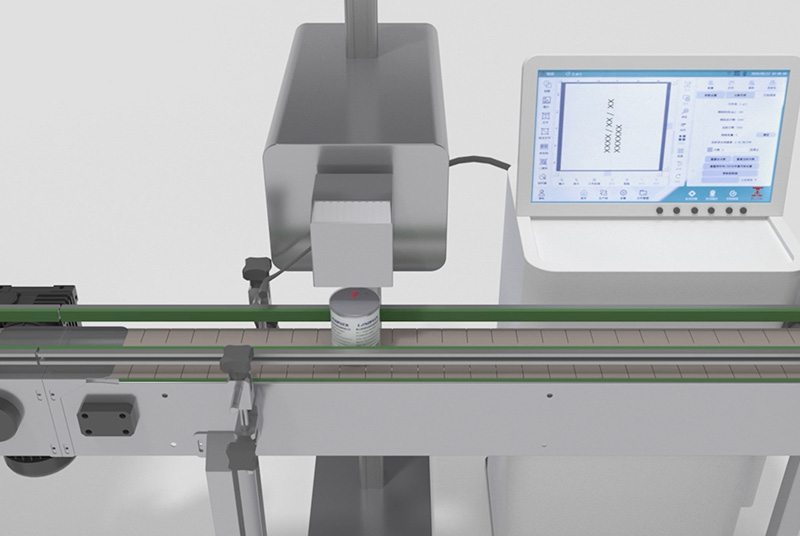

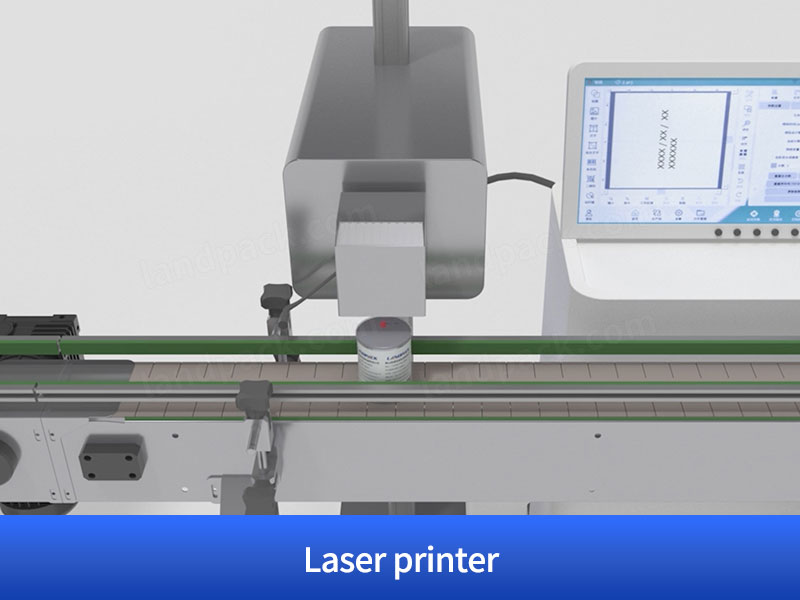

Laser Printer A non-contact laser coding unit clearly and permanently marks production dates, batch codes, or QR codes on each can, supporting full product traceability.

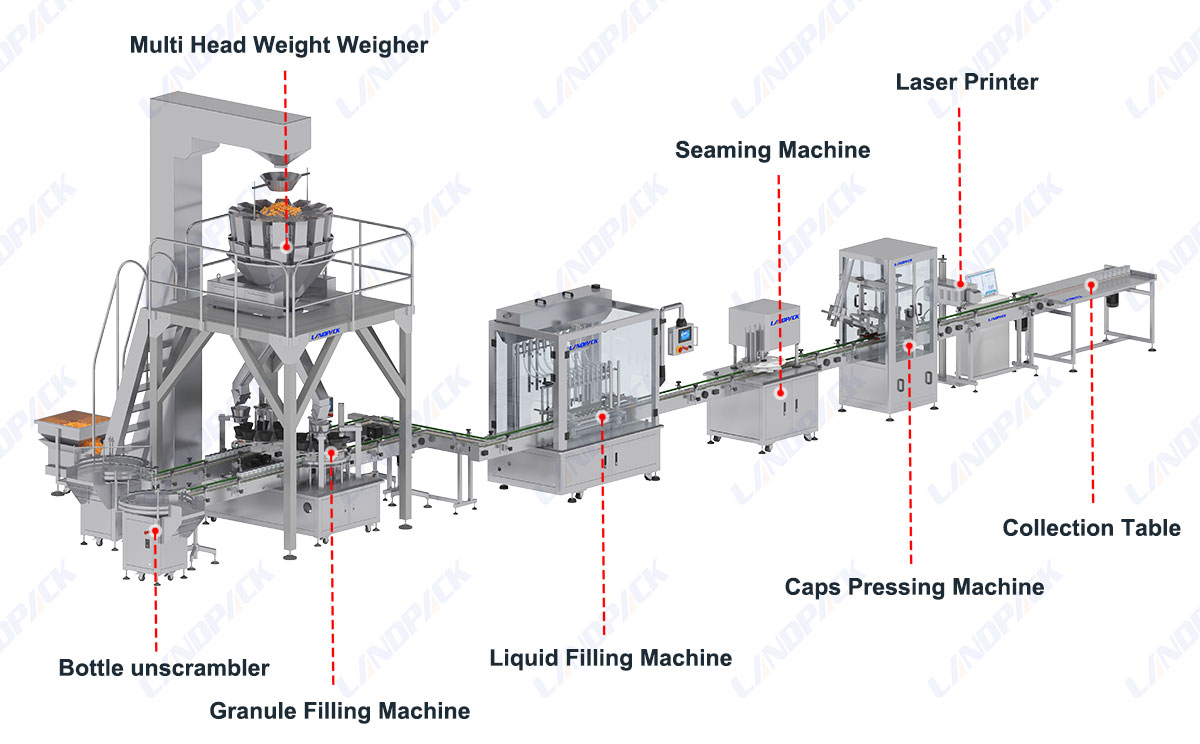

Machine Structure Overview:

1. Bottle unscrambler

2. Multi Head Weight Weigher

3. Granule Filling Machine

4. Liquid Filling Machine

5. Seaming Machine

6. Caps Pressing Machine

7. Laser Printer

8. Collection Table

Pickled Filling Machine | Automatic Fruit Cans Filling Seaming and Coding Line

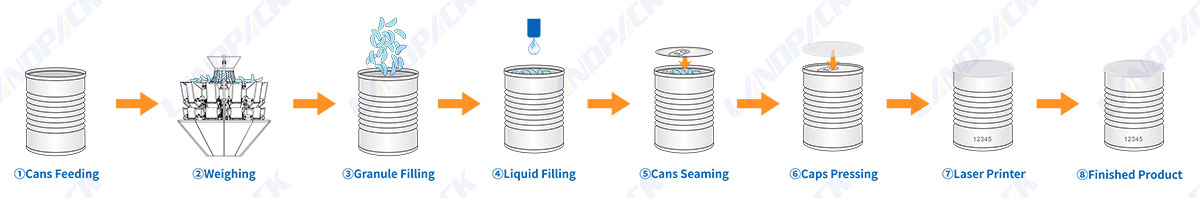

WORKFLOW

Cans Feeding

Weighing

Granule Filling

Liquid Filling

Cans Seaming

Cap Pressing

Laser Printer

Finished Product Output

PARAMETER

	Automatic Bottle Feeder
	Machine Model	LD-LP800N
	Power Supply	220V/110V, 50-60Hz, 200W
	Turntable Diameter	800mm
	Suitable Bottle Diameter	20-100mm
	Suitable Bottle Height	30-320mm
	Working Speed	40-60 bottles/min (depending on bottle size)
	Package Size	123010101260 mm
	Gross Weight	141kg

	Automatic Grunale Filling Machine
	Model	LF-ZP-10
	Output	20-30 bottles/min
	Bottle diameter	Ф30mm-Ф135mm (customizable)
	Bottle height	40mm-200mm (customizable)
	Power	750W, 220V, 50Hz
	Weight	200kg

	Automatic Liquid Pump Filling Machine
	Model	LD-YTZL4A
	Filling head	10 Heads
	Air pressure	0.5-0.8MPa
	Liquid level accuracy	±1mm
	Viscosity range	<20Cps (static viscosity)
	Working speed	30-60 Bottles/Min
	Machine size	About 160011501530mm
	Machine weight	About 298kg
	Package size	About 166013101670mm

	Automatic Can Sealing Machine
	Number of sealed cans	1
	Sealing speed	15-24 bottles/min
	Can sealing height	50-200mm
	Applicable bottle diameter	50-126mm
	Power	0.55KW
	Weight	130KG
	Size	4006001450mm
	Voltage	220V, 50/60Hz

	Automatic Plastic Lids Pressing Machine
	Seal Can diameter	φ40-φ130mm (can be customised)
	Bottle's height	60-300mm(can be customized)
	Cap's height	5-15mm
	Speed	30-50 Cans/min (can be customised)
	Storage can cover	about 100pcs
	Machine Size	1900x800x1700 mm
	Power	220V/380V, 0.68KW
	Air Pressure	0.6MPa

	Laser Printer
	Print range	100*100mm
	Positioning way	Infrared focusing
	Focuslens	focal length 150mm
	Speed	Max10000mm/s (can be customised)
	Laser	fiber laser generator
	Machine voltage	220V (can be customised)
	Machine size	8255451425mm
	Machine weight	60kg
