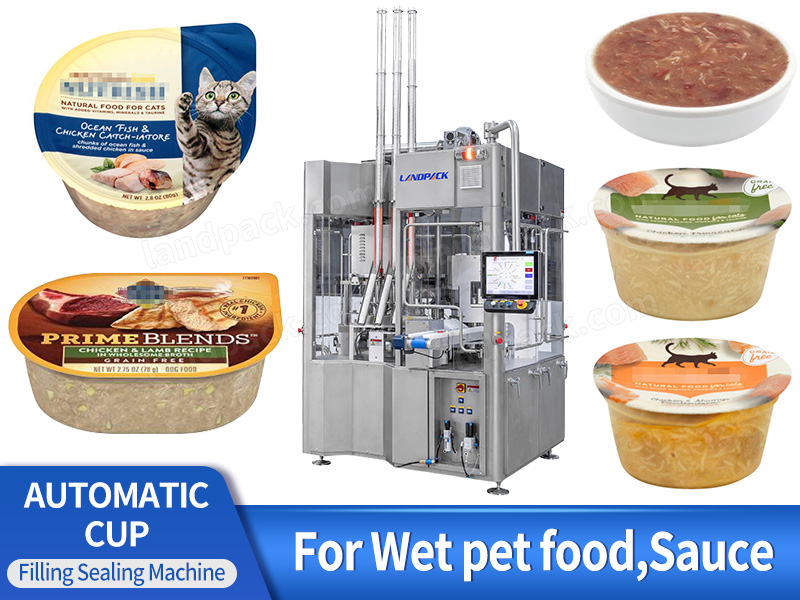

Automatic Pet Food Packaging Machine Rotary Cup Filling Sealing Machine

Introduction:

This high-efficiency rotary cup filling and sealing machine integrates cup denesting, precise filling, foil sealing, and finished product output.

Application:

Automatic pet food packaging machine, suitable for liquid, paste, and granule products. Providing Cup Packaging Solutions for the Pet Food, Dairy, and Ready-to-Eat Food Industries, running up to 180 cups/min.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

This versatile rotary cup filling and sealing machine is an ideal solution for high-speed food packaging. Beyond premium cat and dog food, it perfectly handles viscous or semi-liquid products like meat paste, gravy, caviar, shredded meat, jelly, soup, porridge, sauce, yogurt, pudding, chili sauce, jam, and honey.

Automatic Pet Food Packaging Machine Rotary Cup Filling Sealing Machine

Package Type:

This cup filling and sealing machine is designed for a wide range of pre-formed containers, including plastic (PP, PS, PET), paper, or aluminum cups in round, square, or customized shapes. It supports various cup sizes and depths, making it suitable for different single-serve packaging formats.

FEATURES

1. Fully automatic rotary system for stable, continuous production.

2. Automatic cup denesting for smooth and reliable feeding.

3. Accurate filling with low product waste (±1%).

4. Suitable for liquid, paste, granule, and mixed products.

5. Supports pre-cut lids and roll film sealing.

6. Strong, clean, and leak-proof heat sealing.

7. Easy operation with PLC and touchscreen control.

8. Food-grade stainless steel construction.

9. Can be connected with coding, labeling, and other machines.

10. Optional nitrogen flushing for longer shelf life.

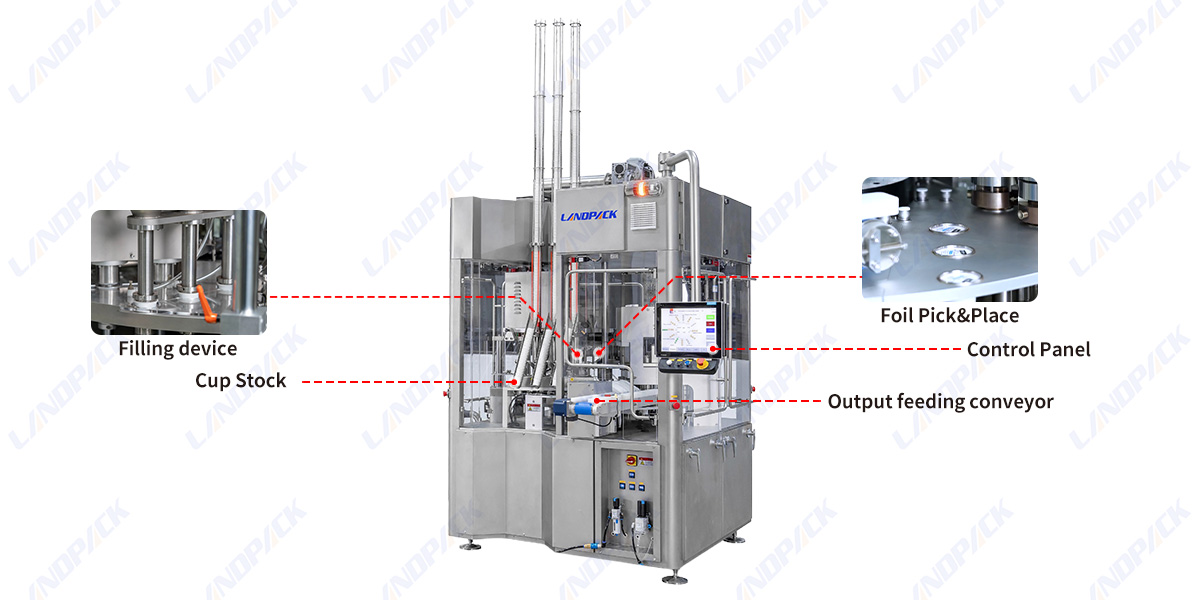

Machine Structure Overview:

1. Cup Stock, 2. Control Panel, 3. Filling Device, 4. Foil Pick & Place, 5. Output Feeding Conveyor

Automatic Pet Food Packaging Machine Rotary Cup Filling Sealing Machine

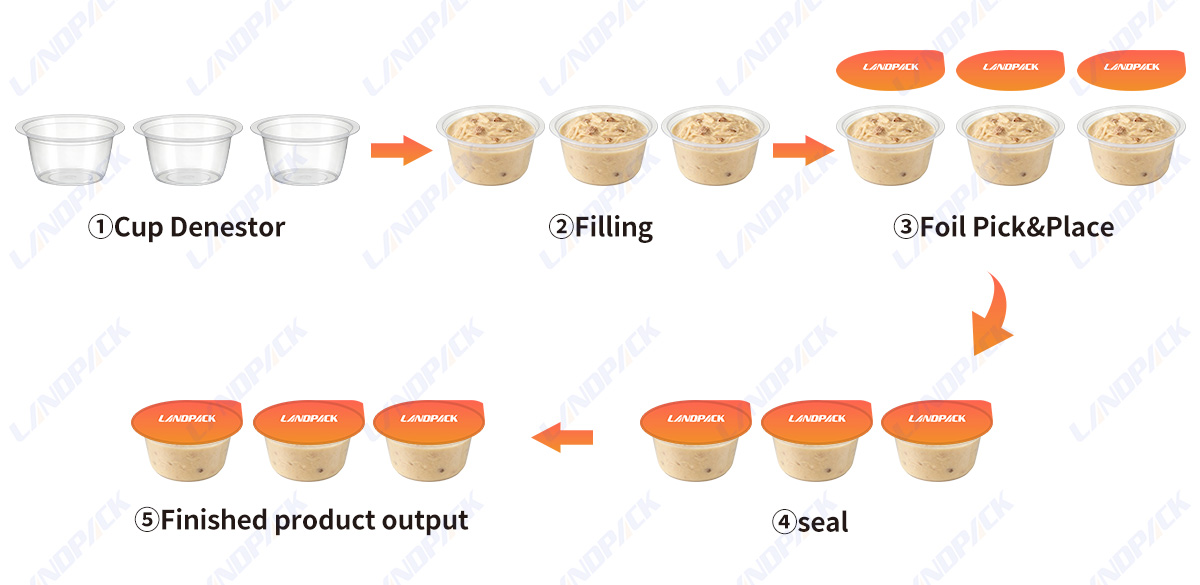

WORKFLOW

Cup Feeding

Cup Positioning

Product Filling

Lid Placing

Cup Sealing

Date Coding

Cup Discharge

PARAMETER

	Model	LD-C03
	Capacity	180 cups/min
	Container	Cup/K cup/capsule
	Filling Weight	12 grams
	Accuracy	±0.2g
	Power consumption	8.6KW
	Air consumption	0.4m³/min
	Pressure	0.6Mpa
	Voltage	220V, 50/60HZ, 3 phase
	Machine Size	L170020002200mm
