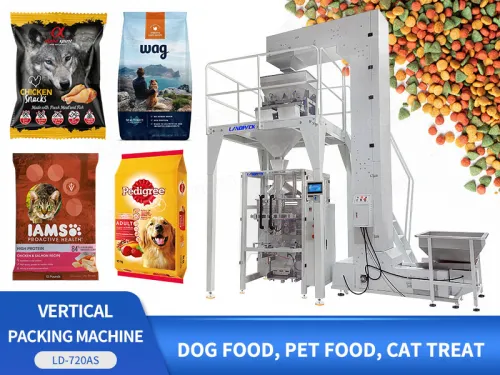

Automatic 1-5kg Dog Food Pet Food Vertical Packaging Machine

Application:

The Automatic 1–5 kg Dog Food Packaging Machine is designed for medium‑scale bagging of dry and granular pet feeds—dog kibble, cat food, fish and aquatic pellets, bird, etc; And is widely deployed in pet food manufacturers, feed mills, and co‑packers.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Additionally, it handles granular foodstuffs like nuts, seeds, coffee, dried fruits, rice, and snacks, as well as non‑food granules such as small hardware parts, fertilizers, salts, and chemical powders, making it ideal for snack producers, agricultural input packagers, and industrial component distributors.

Automatic 1-5kg Dog Food Pet Food Vertical Packaging Machine

FEATURES

1. The fully automated weigh-fill-seal system provides efficient packaging with minimal operator intervention for continuous production.

2. Premium branded electrical and pneumatic components ensure reliable performance and extended equipment lifespan.

3. High-quality mechanical parts minimize wear and tear, reducing maintenance requirements and downtime.

4. User-friendly film loading system with automatic alignment correction ensures smooth material feeding and proper bag formation.

5. Intuitive touchscreen control panel allows easy operation and quick recipe changes for different product specifications.

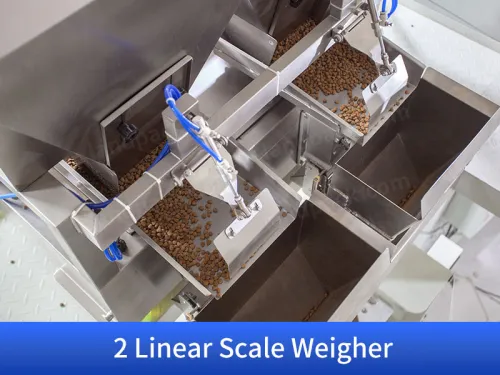

6. Dual-head linear scale weigher with vibration-assisted hopper and specialized dimple plates delivers precise measurements even for challenging granular materials.

Automatic 1-5kg Dog Food Pet Food Vertical Packaging Machine

WORKFLOW

Z Type Buckets Feeding

Multi Heads Weigher

Film bag making

Automatic Product Packing

Finished Product Output

PARAMETER

Model	LD-420	LD-520	LD-720	LD-900	LD-1050	LD-1200
Film Thickness	0.04-0.08mm	0.04-0.12mm	0.04-0.12mm	0.04-0.12mm	0.04-0.12mm	0.04-0.12mm
Bag Length	80-300mm	80-350mm	100-500mm	100-600mm	100-800mm	100-1000mm
Bag Width	60-200mm	100-250mm	180-350mm	260-430mm	290-505mm	290-580mm
Film Roll Diameter	Max.320mm	Max.320mm	Max.320mm	400mm	400mm	400mm
Pakaging Rate	5-60bag/min	5-60bag/min	5-55bag/min	5-20bag/min	5-20bag/min	5-20bag/min
Film Width	Max.420mm	Max.520mm	150-Max.720mm	Max.900mm	Max.900mm	Max.1200mm
Measurement Range	150-1500ml	5-2000ml	4000ml	1-25L	1-25L	1.5L-45L
