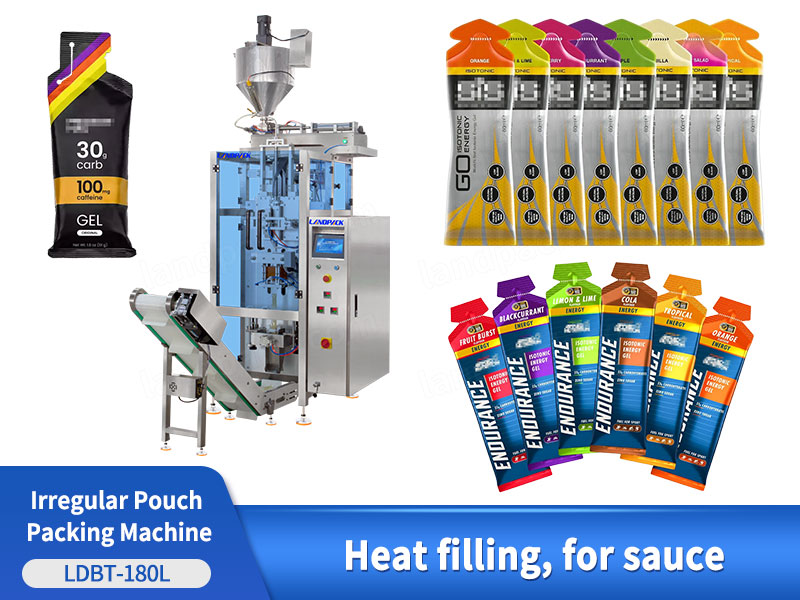

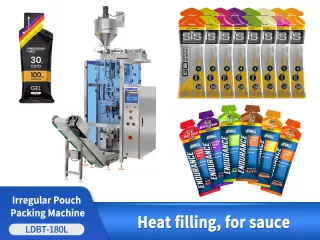

Paste Sachet Packing Machine Single Lane Shaped Pouch Packaging Machine

Introduction:

Single-lane vertical liquid packing machine for special-shaped pouches and sachet pouches. Equipped with piston pump filling, PLC control, and customizable molds.

Application:

Suitable for food, cosmetic, and chemical liquid packaging applications. such as ketchup, honey, blueberry jam， mayonnaise, energy drinks, coffee, shampoo, lotion, face cream, etc.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

This single-lane pouch-shaped packing machine is developed for liquid products that require customized pouch shapes. It can handle both free-flowing and viscous liquids across multiple industries. Such as energy drinks, tomato sauce, mayonnaise, cooking oil, vinegar, jam, syrup, shower gel, shampoo, conditioner, skincare liquids, liquid detergent, cleaning agents, industrial liquids, sample sachets, promotional packs, single-use portions, etc.

Paste Sachet Packing Machine Single Lane Shaped Pouch Packaging Machine

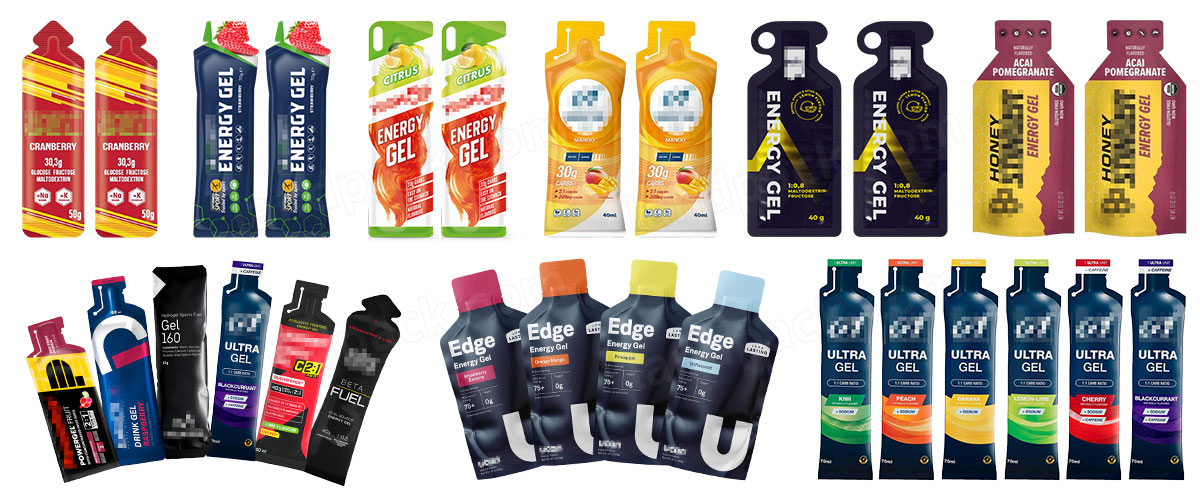

Package Type:

Production of irregular and special-shaped pouches with an automatic vertical form-fill-seal process, including shaping, filling, sealing, and cutting in one cycle.

FEATURES

1. High-precision piston pump ensures consistent and accurate dosing.

2. Modular mold design supports diverse irregular pouch shapes.

3. Synchronized sealing and cutting mechanism for seamless production.

4. User-friendly PLC and touch screen for streamlined management.

5. Robust stainless steel construction optimized for sanitary liquid handling.

6. Rapid changeover capabilities for various volumes and bag dimensions.

7. Advanced film tension control for a uniform and professional finish.

8. Versatile filling technology compatible with diverse liquid viscosities,

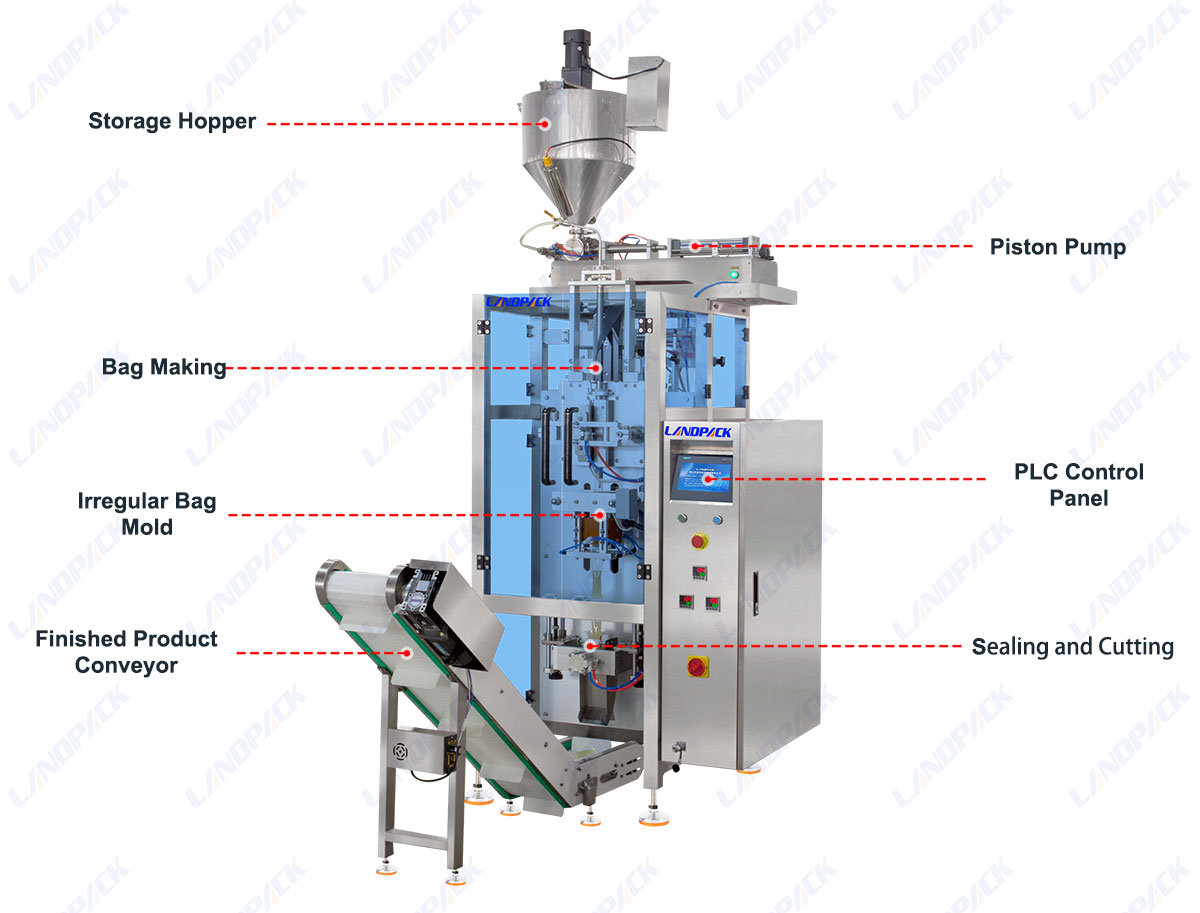

Machine Structure Overview:

1. Storage Hopper 2. Piston Pump 3. Bag Making 4. Irregular Bag Mold 5. PLC Control Panel 6. Finished Product Conveyor 7. Sealing and Cutting

Paste Sachet Packing Machine Single Lane Shaped Pouch Packaging Machine

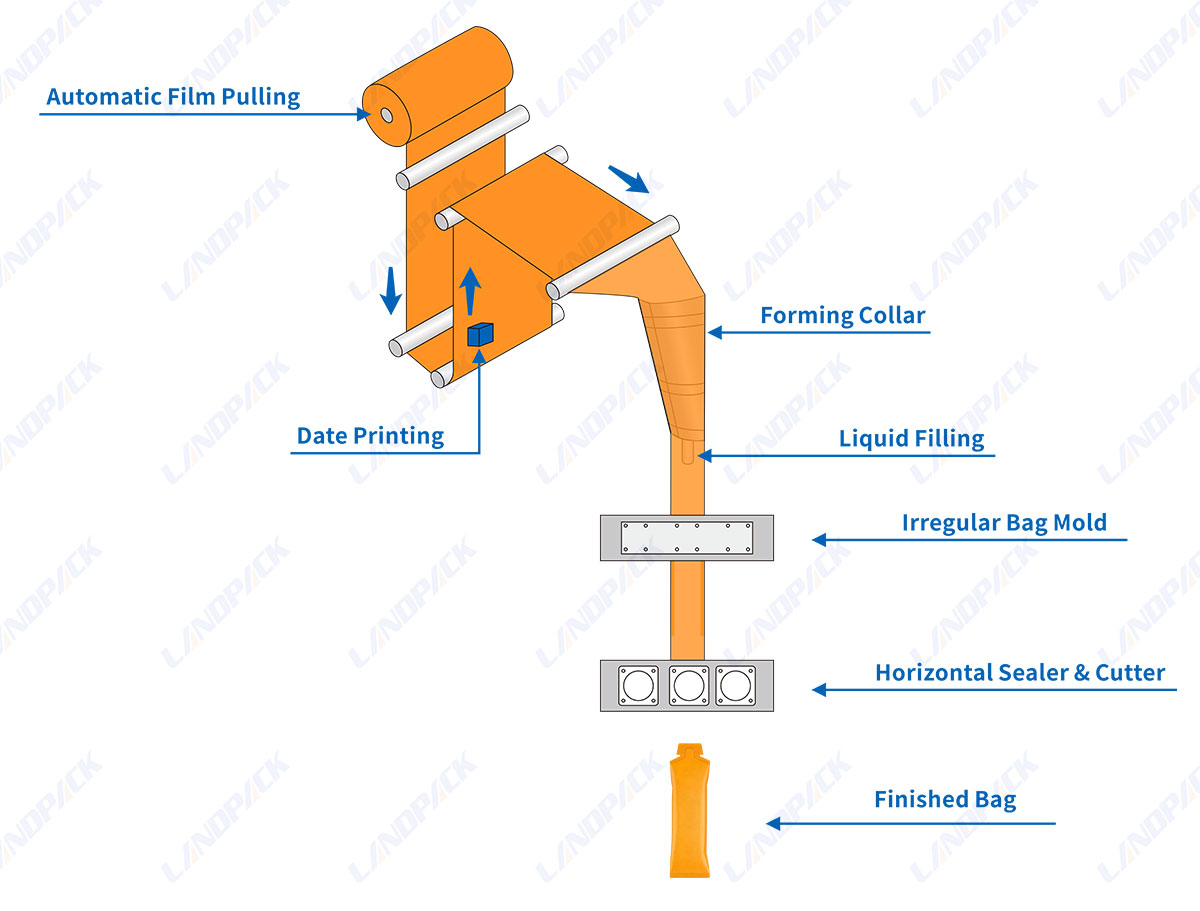

WORKFLOW

Material Heating & Mixing

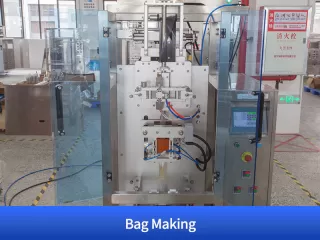

Film Forming

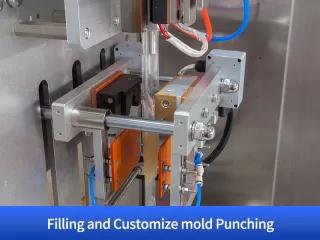

Liquid Filling

Sealing

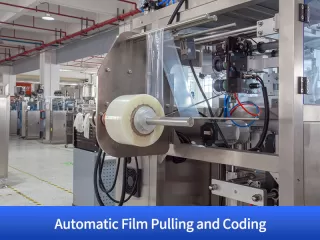

Coding

Cutting

Finished Pouch Output

PARAMETER

Model	LDYX-180L	LDYX-480L
Track number	1-4 Tracks	1-4 Tracks
Filling Method	1. Piston pump, 2. Peristaltic pump
Production capacity	20-30 cycle/min
Bag Size	L: 50-170mm; W: 70-230mm	L: 50-170mm; W: 100-300mm
Film W&D	Max. 500mm; 0.07-0. 10mm	Max. 620 mm; 0.07–0.10 mm
Sealing Type	Irregularly shaped bag
Air & Power	220V/380V 50HZ, 5.0kw	220V/380V 50HZ, 5.5kw
Air Consumption	0.8mpa; 0.8m³/min	0.8mpa; 0.8m³/min
Weight	800 KG	900 KG

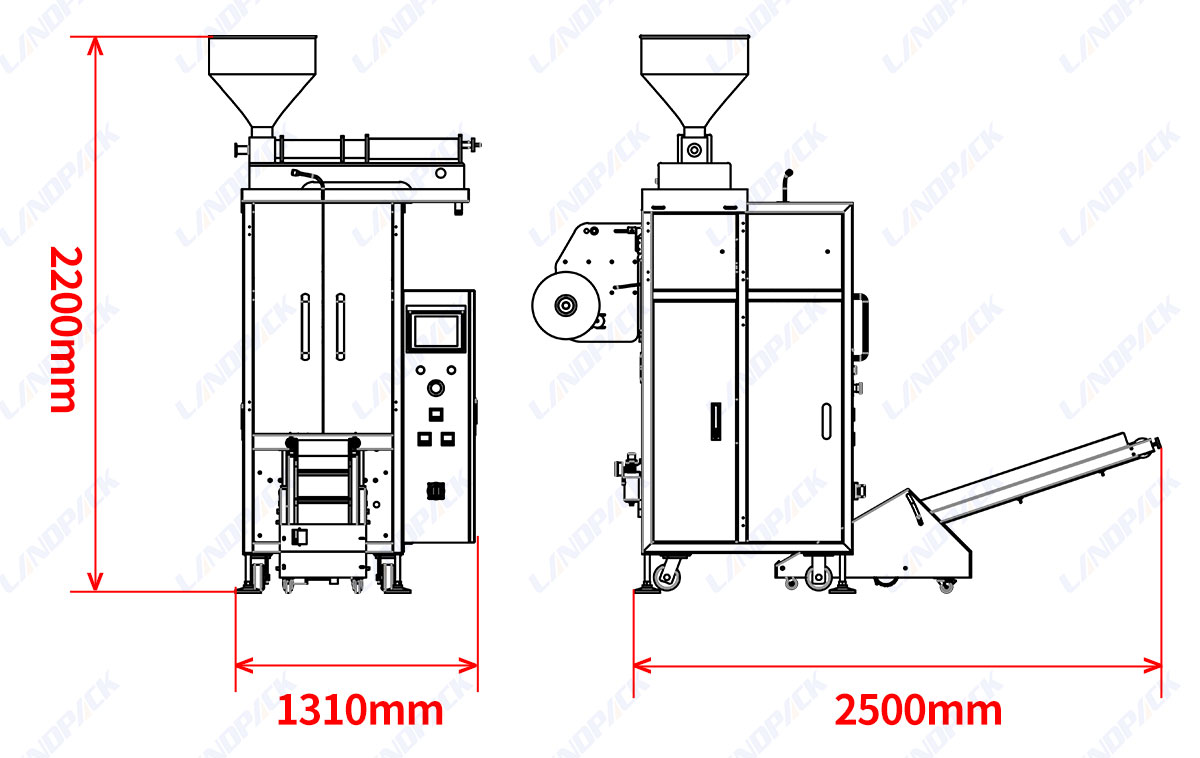

Machine size	260013502350 mm	260014502350 mm
